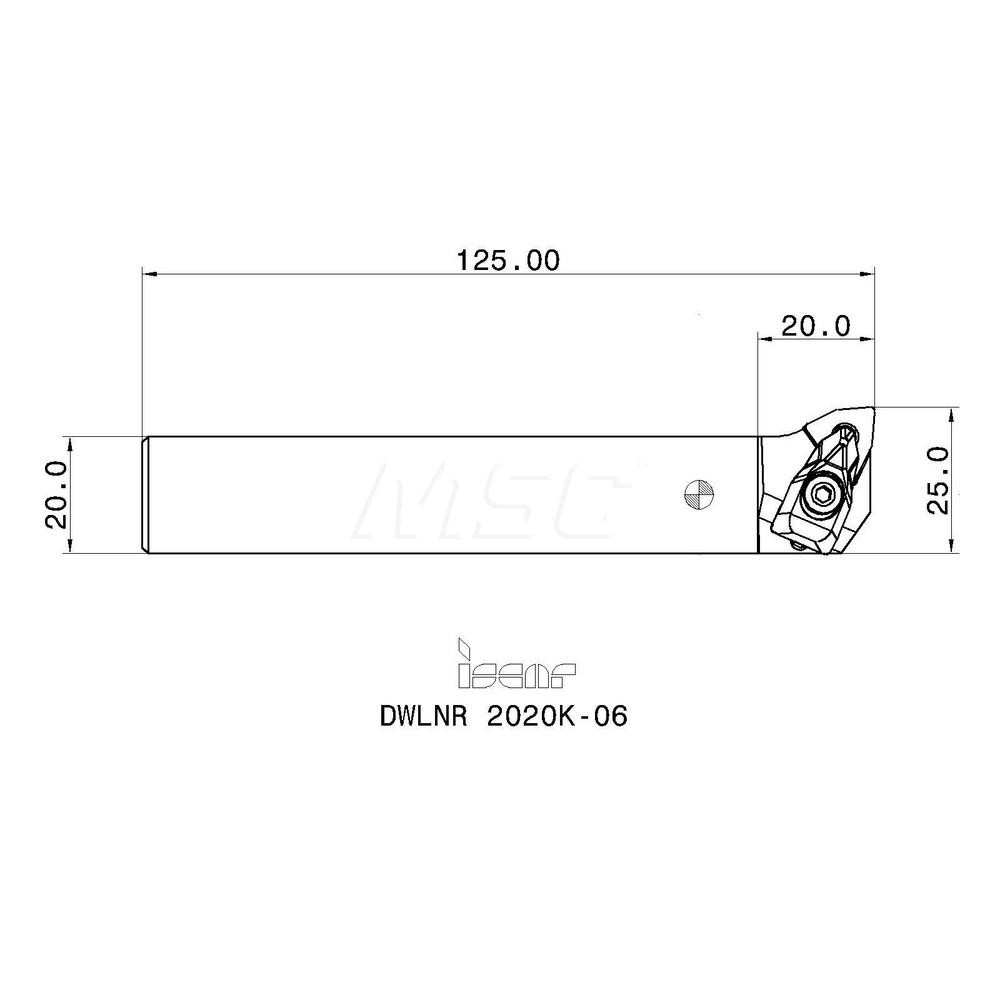

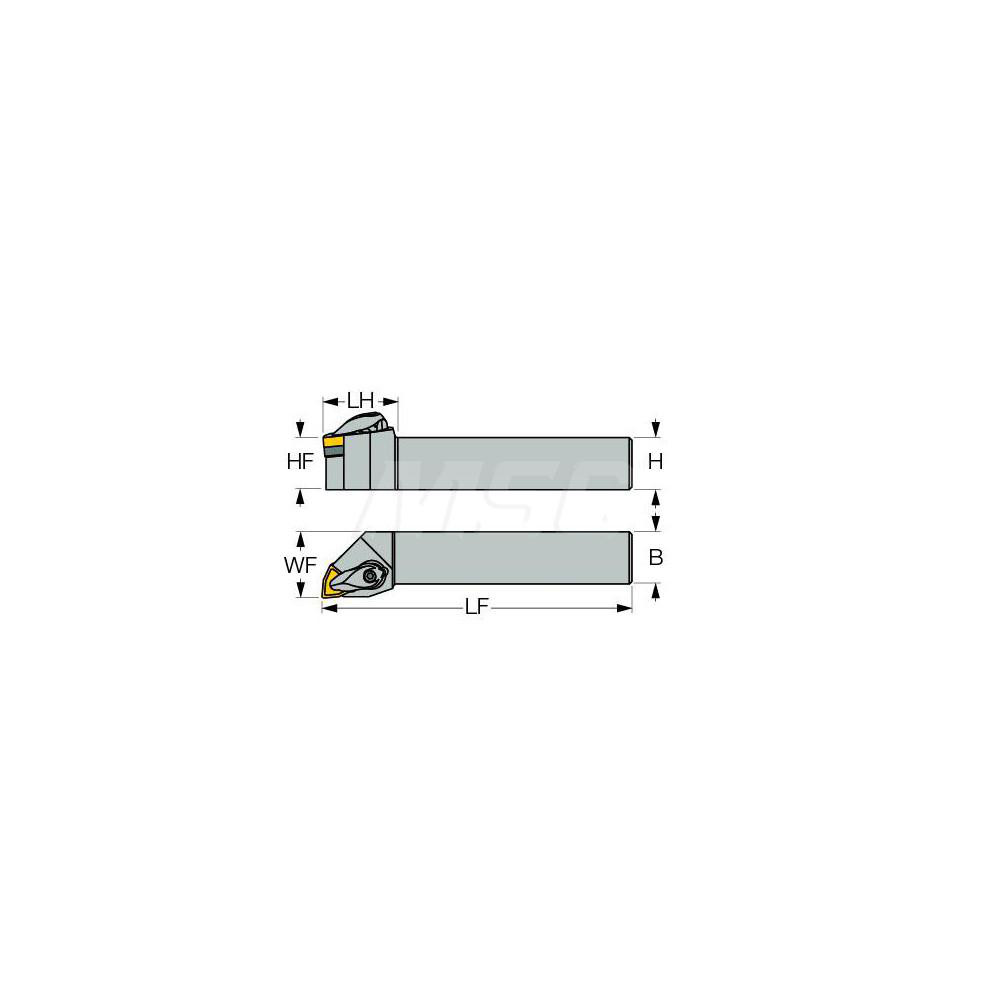

20.00 x 20.00 mm Shank, 125.00 mm OAL
| Toolholder Style | DWLN |
|---|---|
| Hand of Holder | Right Hand |
| Insert Compatibility | WNM.. |
| Insert Holding Method | Screw |
| Shank Width (mm) | 20.00 |
| Shank Height (mm) | 20.00 |
| Coolant Through | No |
| Rake | Negative |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | WNMG06T304-GN |
| Multi-use Tool | No |
| Series | Isoturn |
| Cutting Tool Application | Turning |
| Head Length (mm) | 26.00 |
| Back of Bar to Cutting Edge (mm) | 25.00 |
| Standards | ISO 13399 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Complete Insert Compatibility | WNMA/WNMA-WG; WNMG-NF; WNMG-GN; WNMG-TF; WNMG-PP |
| UNSPSC Code | 23153308 |
| Country of Origin | South Korea |
| MSC Number | MSC# 91107581 |
