3/4" Shank

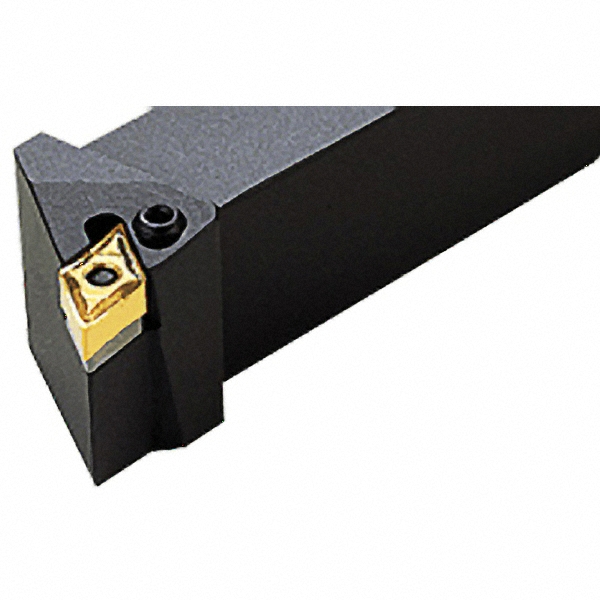

| Toolholder Style | PDJN |
|---|---|
| Hand of Holder | Right Hand |
| Insert Compatibility | DN.. |
| Insert Holding Method | Clamp |

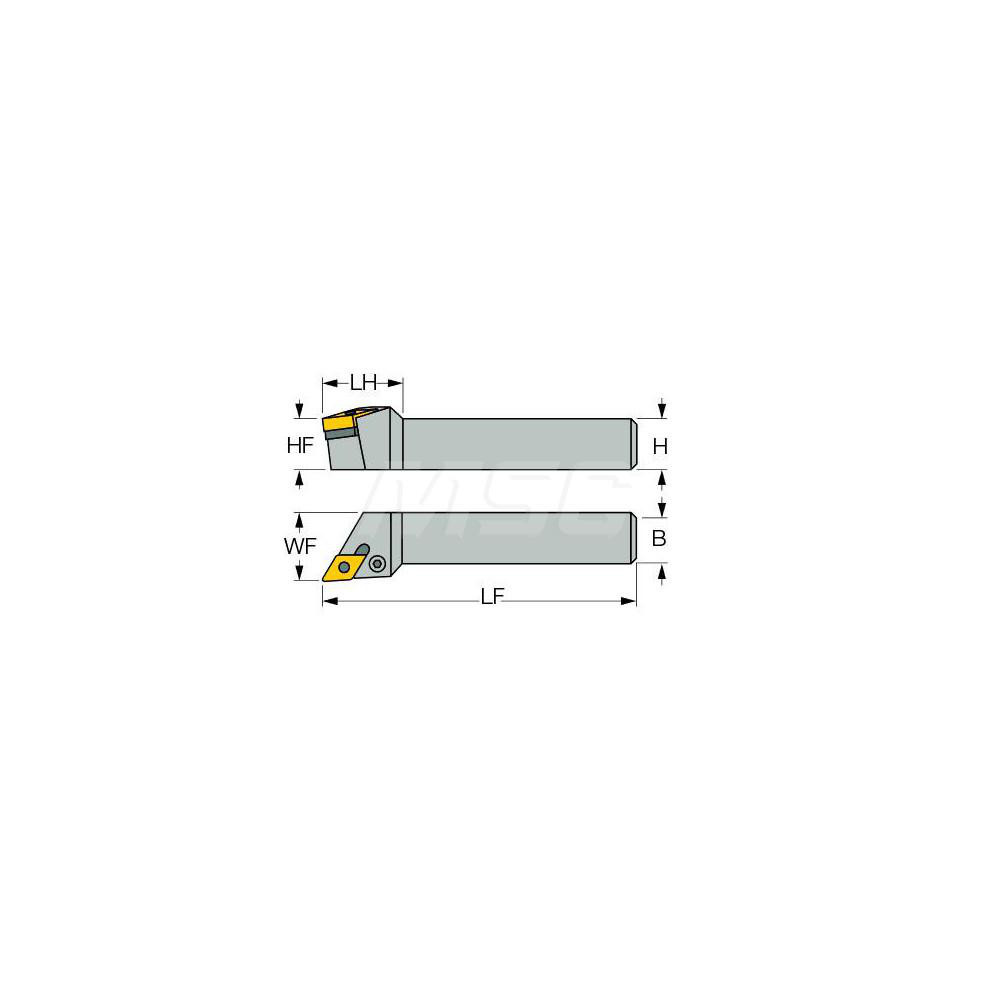

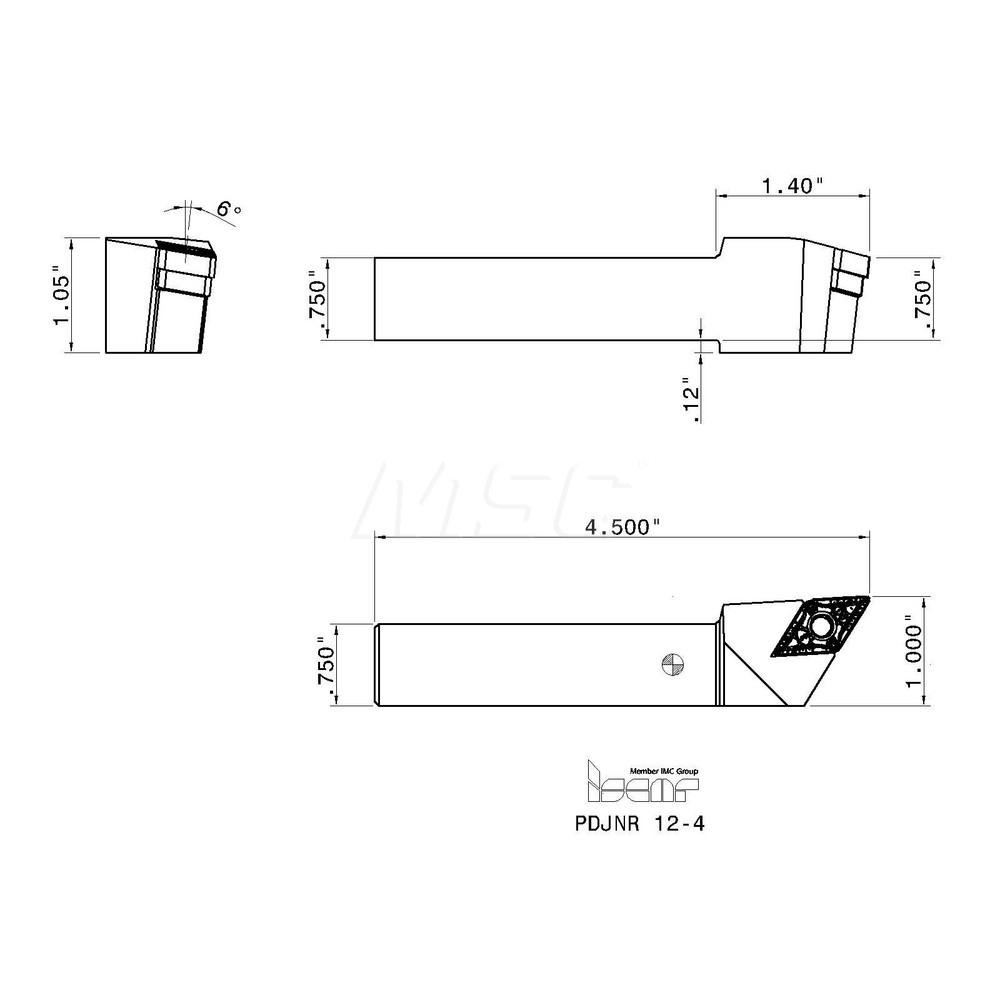

| Shank Width (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 4.5000 |
| Coolant Through | No |
| Rake | Negative |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | DNMG432-GN |
| Rake Angle | -6 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Height (Decimal Inch) | 0.7500 |
| Series | Isoturn |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 1.4000 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Standards | ISO 13399 |
| Complete Insert Compatibility | DNMG-PF; DNMG-VL; DNMM-NM; DNGA-MC/M4 (CBN); DNMX-HT; DNGG-M4HF/M4HM (CBN); DNMG-WG; DNMG-M3M; DNGA-R2/M2 (CBN); DNMG/DNGG-PP; DNGA-Ceramic; DNMG-GN; DNMG-NR; DNMG/DNGG-TF; DNMA (CBN); DNMG/DNGG-SF; DNMS-12; DNMA; DNMG-NF |
| UNSPSC Code | 23153308 |
| Country of Origin | Israel |
| MSC Number | MSC# 32117780 |
