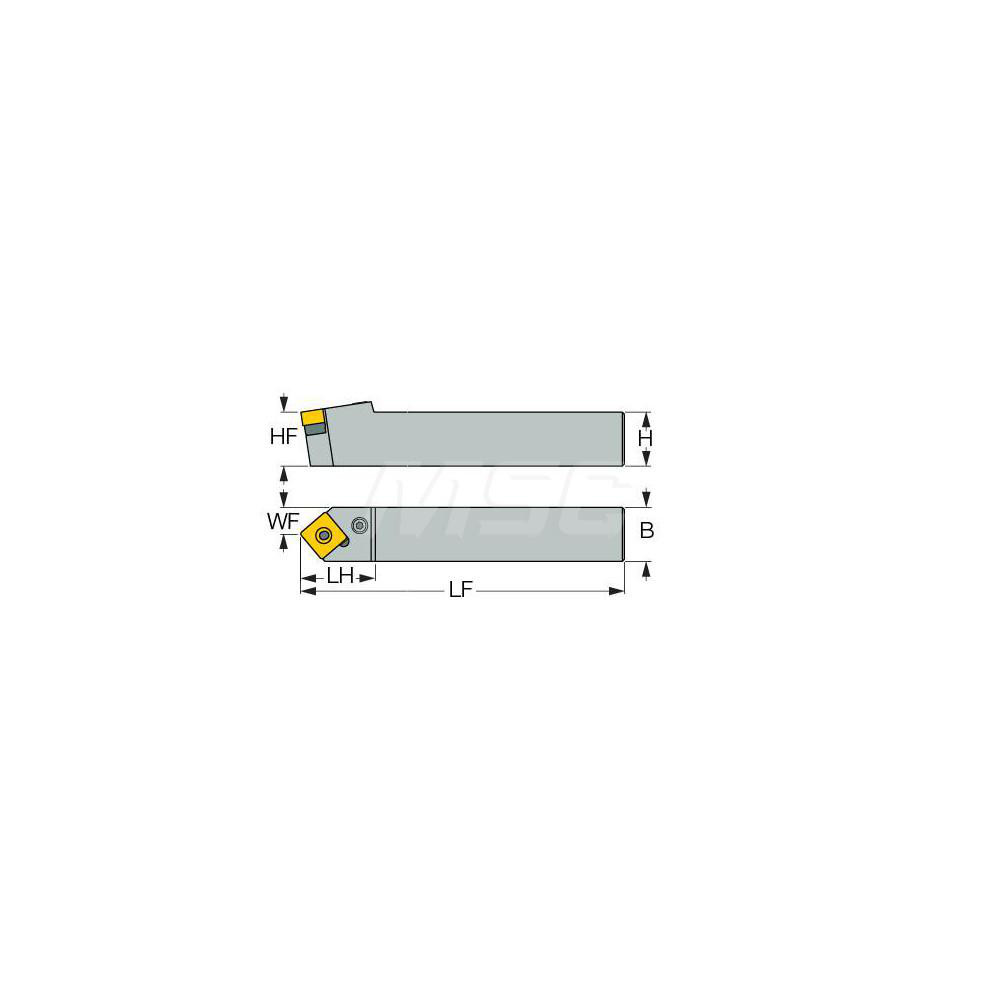

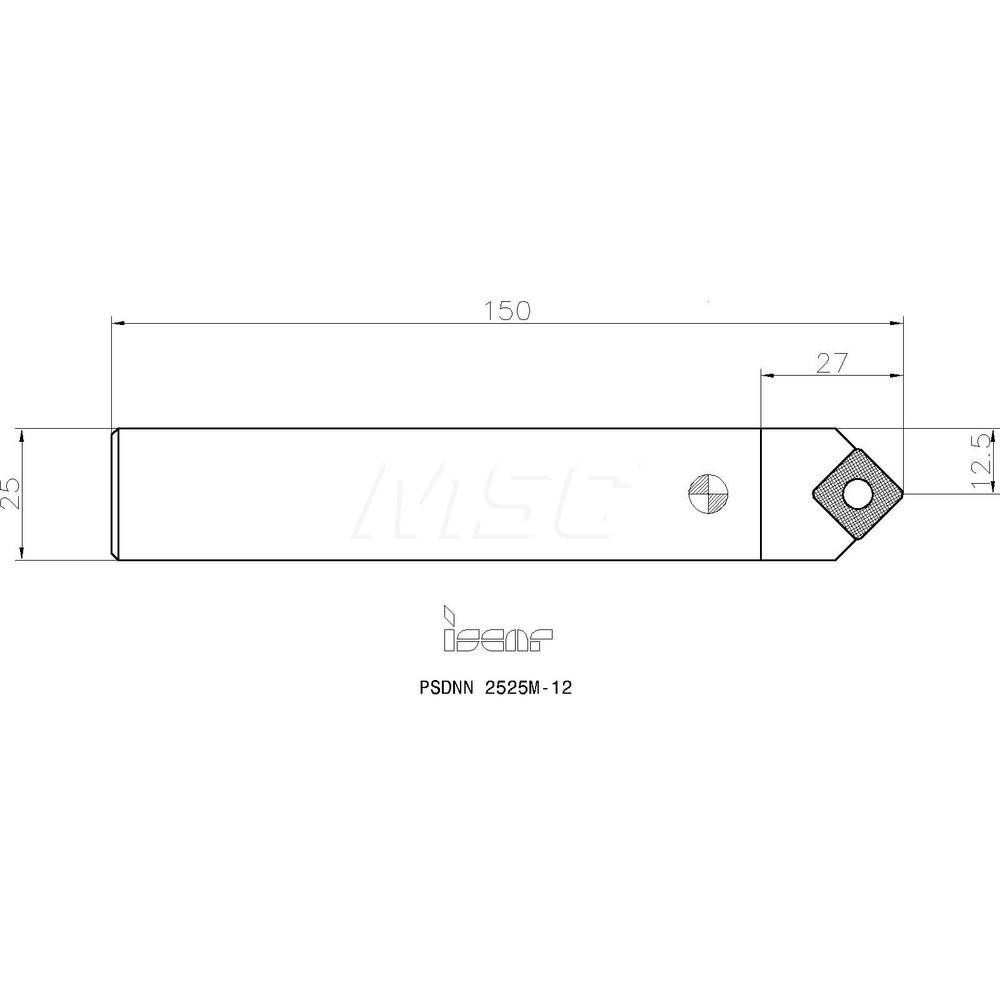

25.00 x 25.00 mm Shank, 150.00 mm OAL
| Toolholder Style | PSDN |
|---|---|
| Hand of Holder | Neutral |
| Insert Compatibility | SN..1204.. |
| Insert Holding Method | Lever |
| Overall Length (Decimal Inch) | 5.9055 |
| Shank Width (mm) | 25.00 |
| Shank Height (mm) | 25.00 |
| Coolant Through | No |
| Rake | Neutral; Negative |
| Cutting Direction | Neutral |
| Compatible Insert Size Code | SNMG120408-GN |
| Rake Angle | -7;0 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (Decimal Inch) | 0.9843 |
| Series | Isoturn |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 1.0630 |
| Head Length (mm) | 27.00 |
| Back of Bar to Cutting Edge (mm) | 12.50 |
| Standards | ISO 13399 |
| UNSPSC Code | 23153308 |
| Country of Origin | South Korea |
| undefined | undefined |
| MSC Number | MSC# 05809439 |
