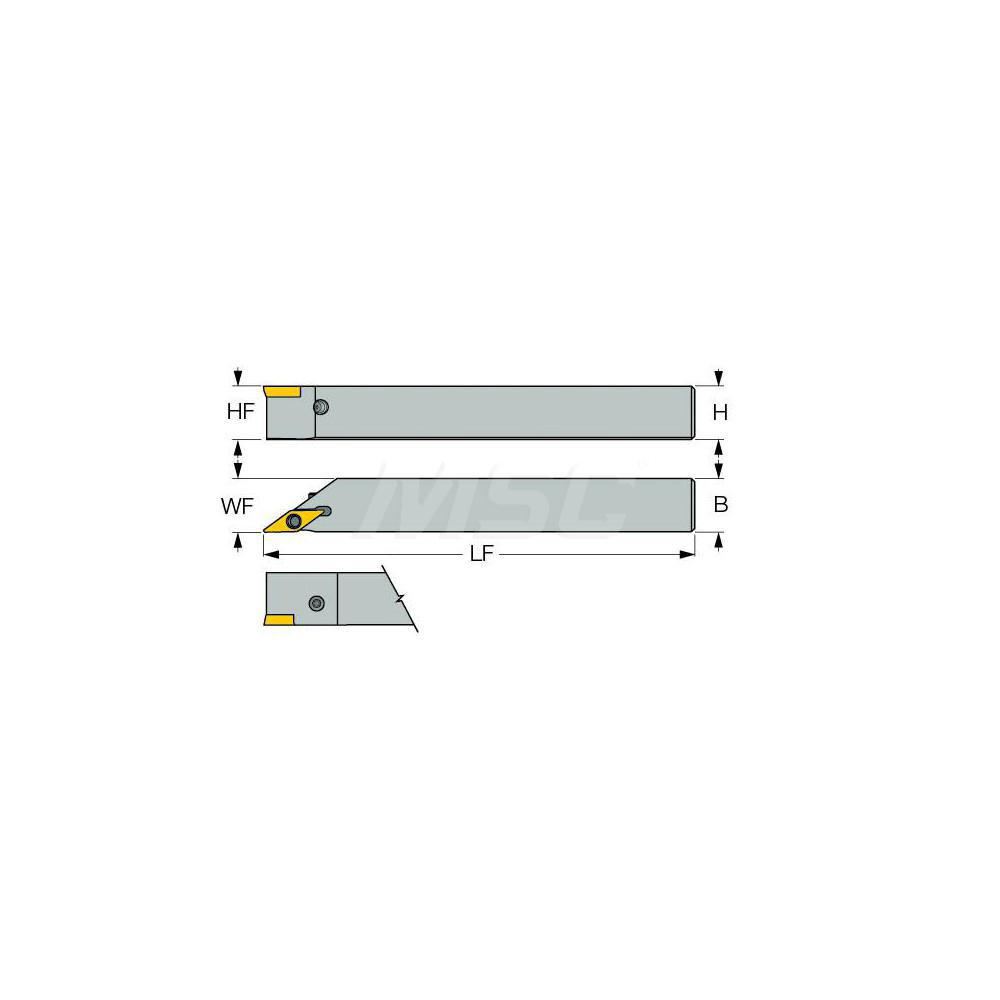

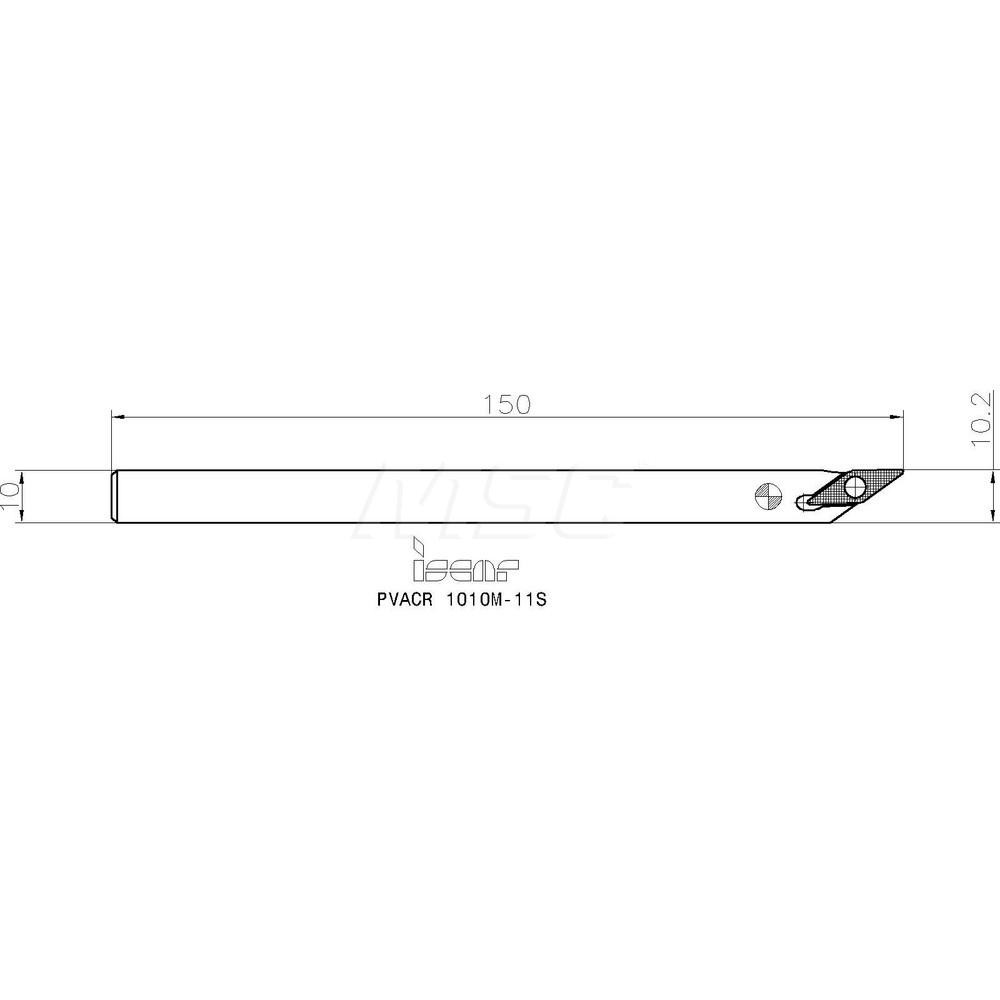

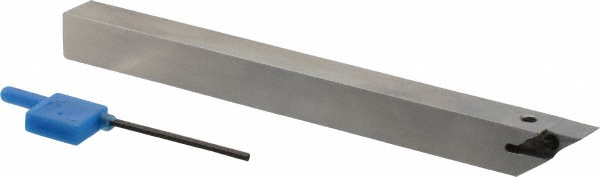

10.00 x 10.00 mm Shank, 150.00 mm OAL
| Toolholder Style | PVAC |
|---|---|
| Hand of Holder | Right Hand |
| Lead Angle | 35.0 |
| Insert Compatibility | VC.T |
| Insert Holding Method | Clamp |
| Shank Width (mm) | 10.00 |
| Shank Height (mm) | 10.00 |
| Coolant Through | No |
| Rake | Neutral |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | VCMT110302-SM |
| Rake Angle | 0 |
| Multi-use Tool | No |
| Series | Isoturn |
| Cutting Tool Application | Turning |
| Back of Bar to Cutting Edge (mm) | 10.20 |
| Standards | ISO 13399 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Complete Insert Compatibility | VCMT-SM; VCGT-AS; VCET-WF |
| UNSPSC Code | 23153308 |
| Country of Origin | Switzerland |
| undefined | undefined |
| MSC Number | MSC# 45381845 |
