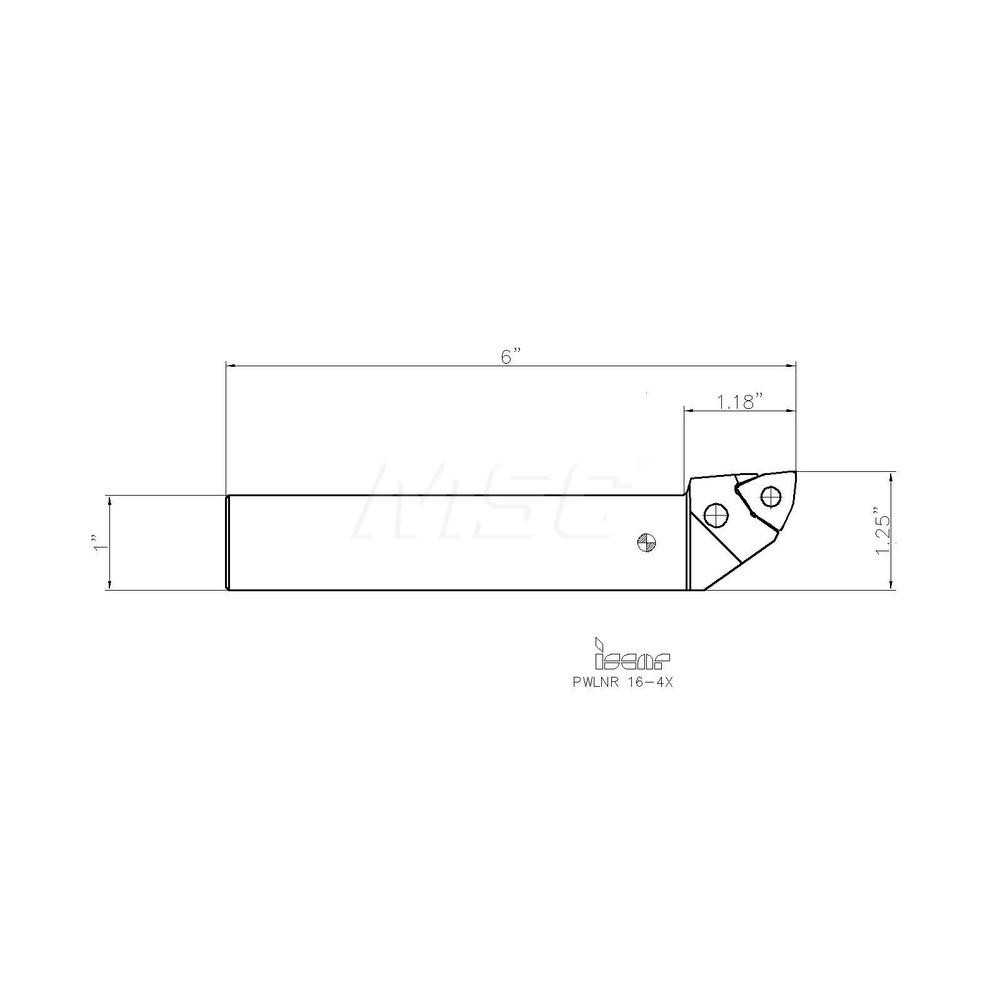

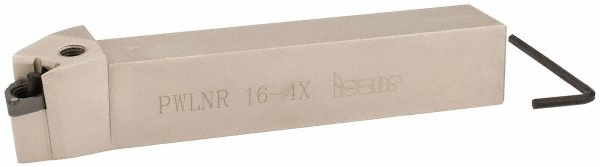

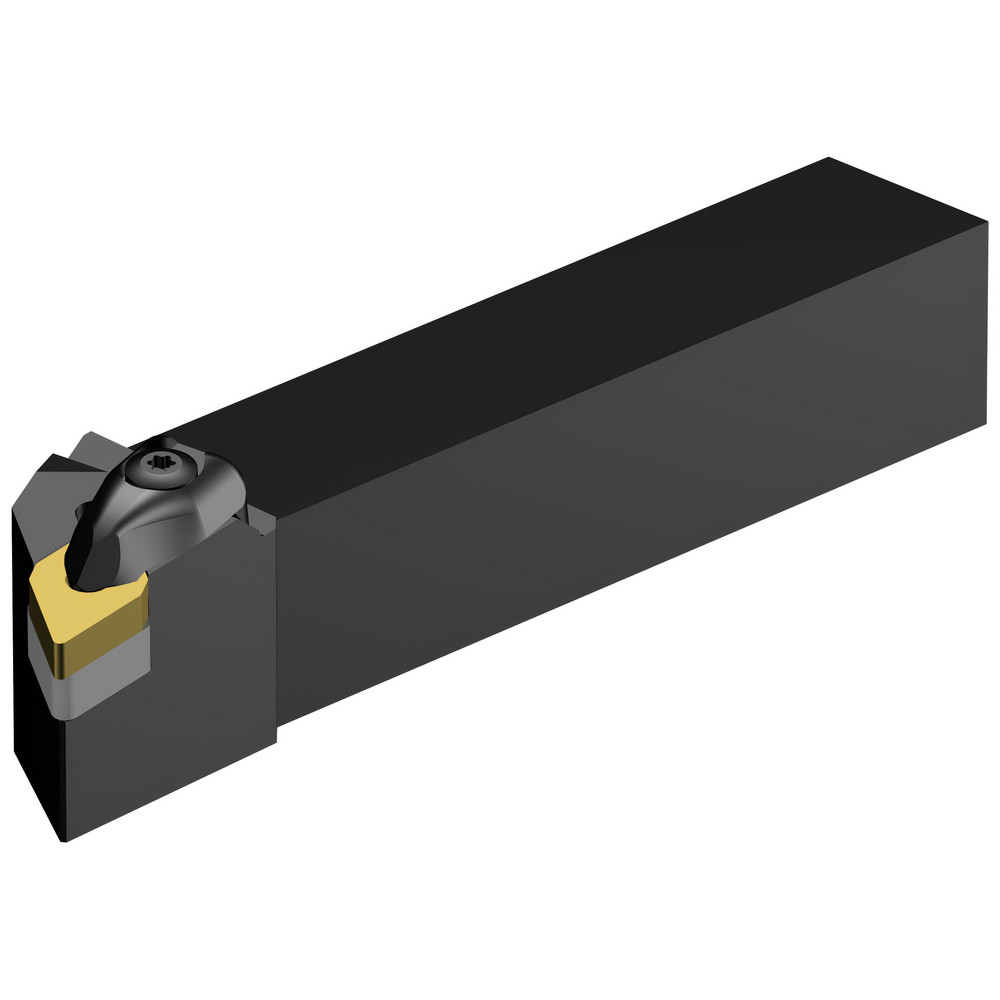

1" Shank
| Toolholder Style | PWLN |
|---|---|
| Hand of Holder | Right Hand |
| Insert Compatibility | WNM.. |
| Insert Holding Method | Clamp |

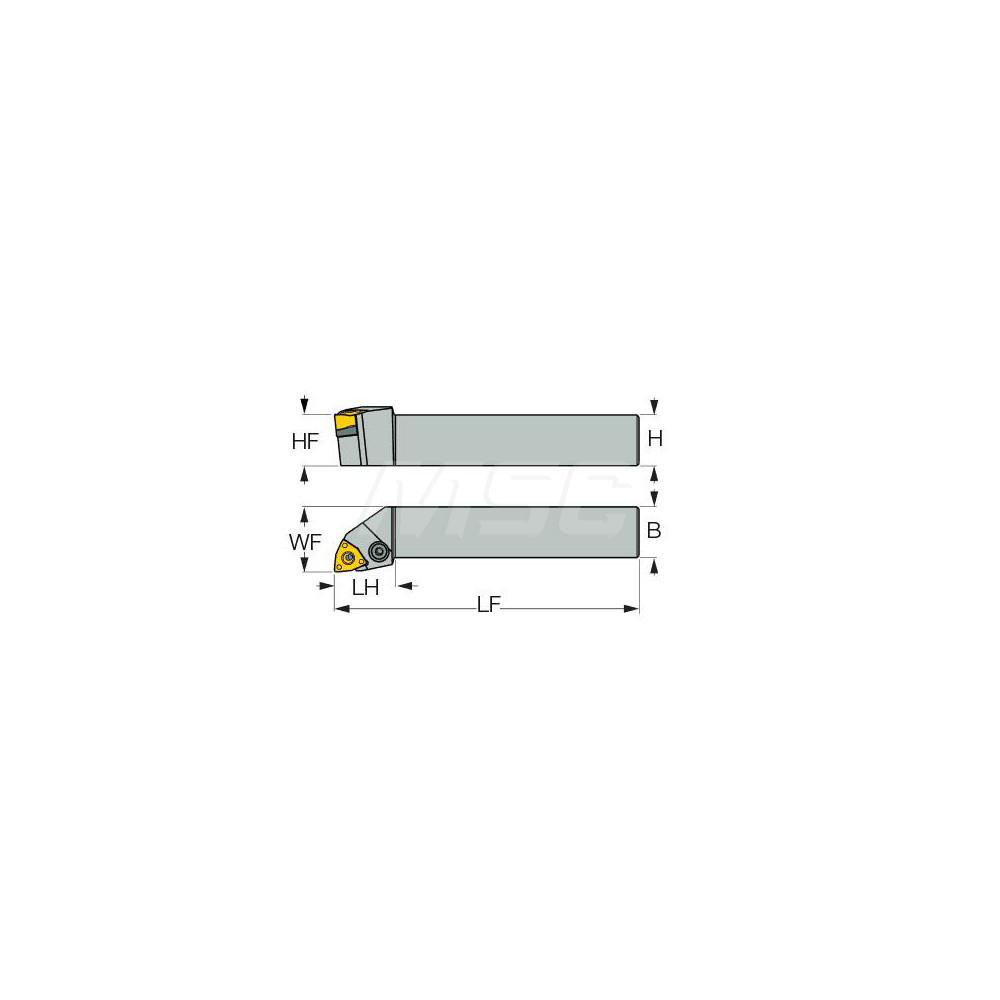

| Shank Width (Inch) | 1 |
| Overall Length (Decimal Inch) | 6.0000 |
| Coolant Through | No |
| Rake | Negative |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | WNMX451-M4MW |
| Rake Angle | -6 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | Heliturn |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 1.1800 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Standards | ISO 13399 |
| Complete Insert Compatibility | WNMX-M4MW; WNMX-HTW |
| UNSPSC Code | 23153308 |
| Country of Origin | VARIOUS |
| MSC Number | MSC# 64294655 |
