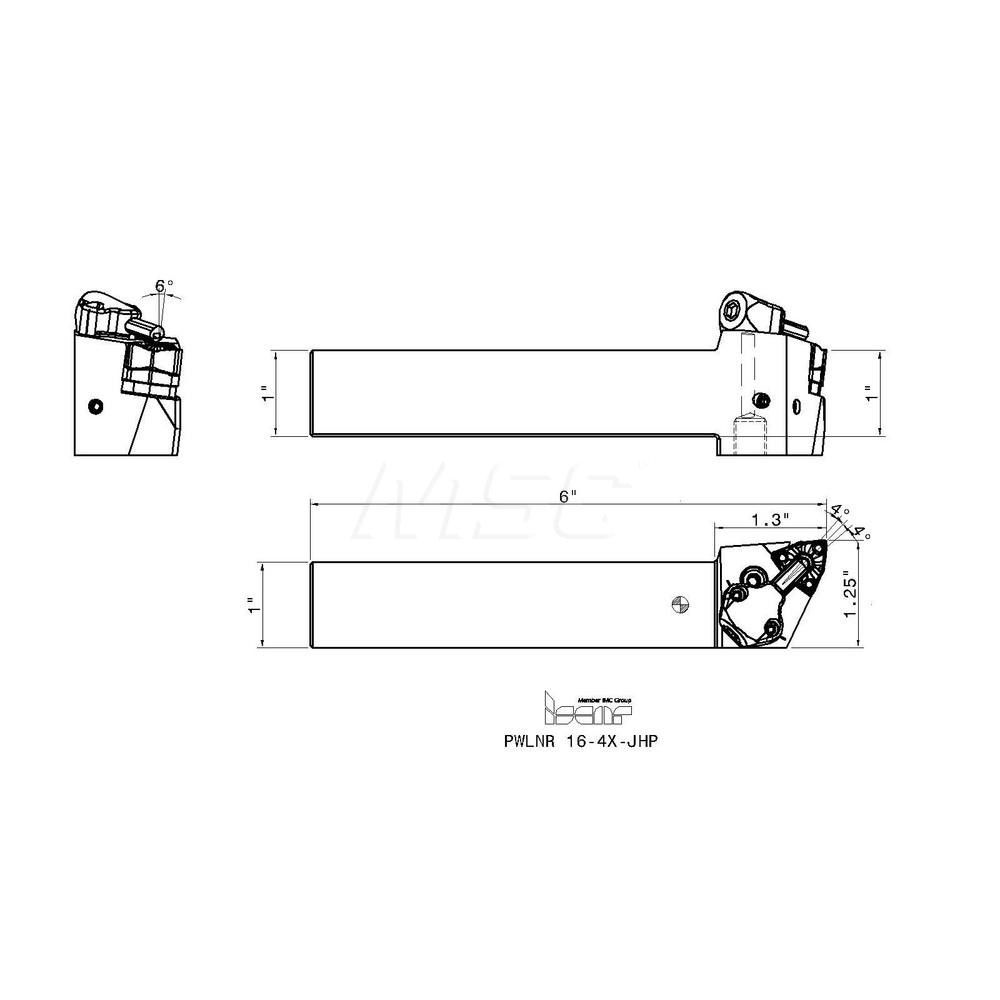

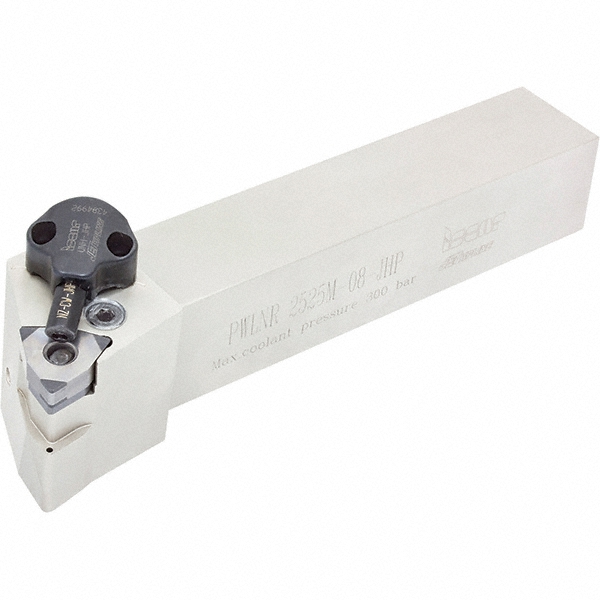

1" Shank, 6" OAL
| Toolholder Style | PWLN |
|---|---|
| Hand of Holder | Right Hand |
| Insert Compatibility | WN..08.. |
| Insert Holding Method | Lever |
| Shank Width (Inch) | 1 |
| Overall Length (Decimal Inch) | 6.0000 |
| Coolant Through | Yes |
| Rake | Negative |
| Cutting Direction | Right Hand |

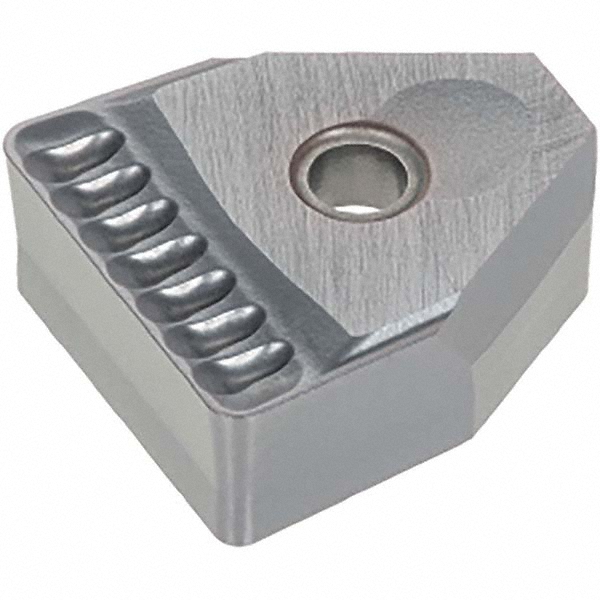

| Compatible Insert Size Code | WNMX452-M4PW |
| Rake Angle | -6 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | Heliturn LD; JetHPLine |
| Overall Length (Inch) | 6 |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 1.3000 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Standards | ISO 13399 |
| UNSPSC Code | 23153308 |
| Country of Origin | Israel |
| MSC Number | MSC# 63545123 |
