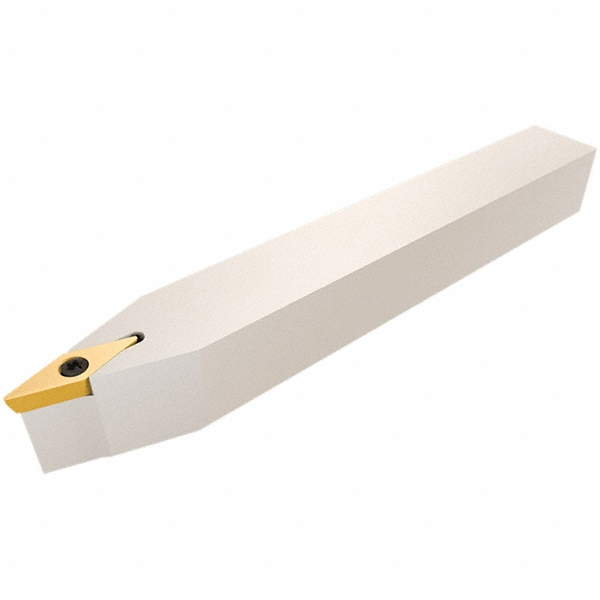

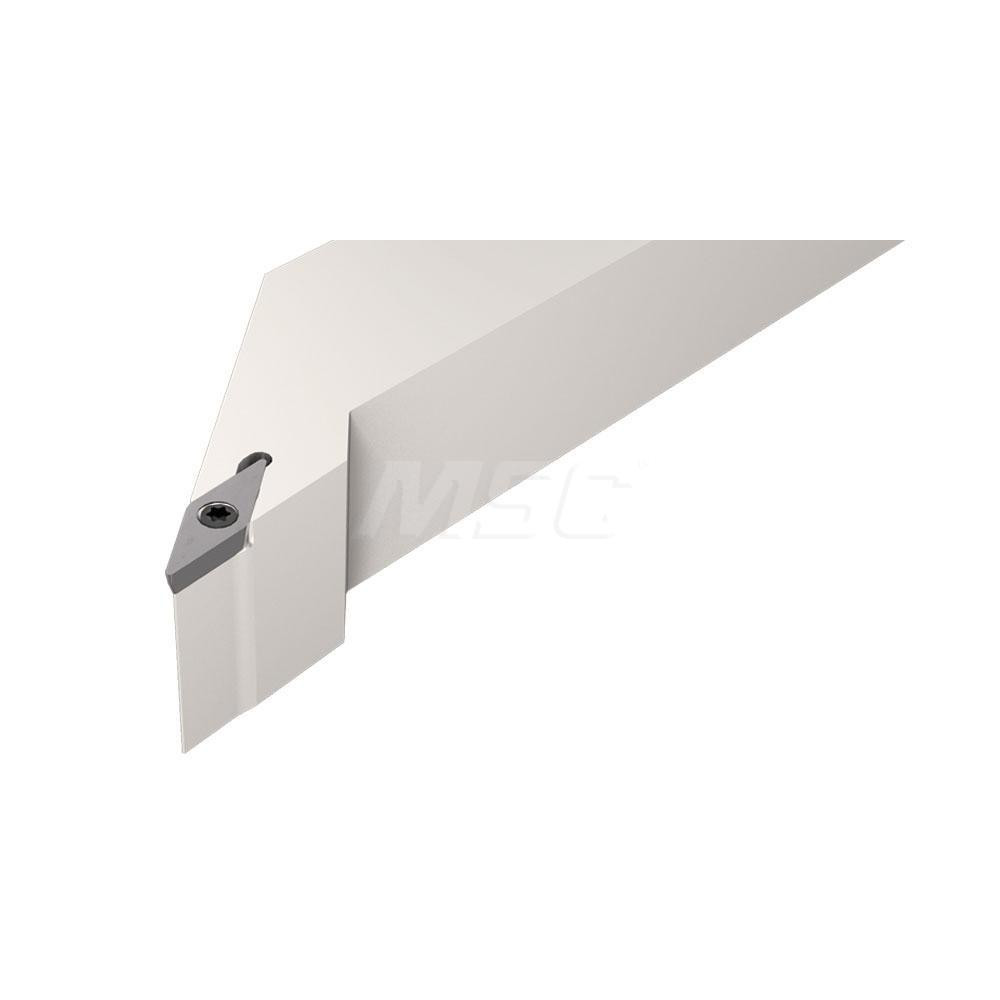

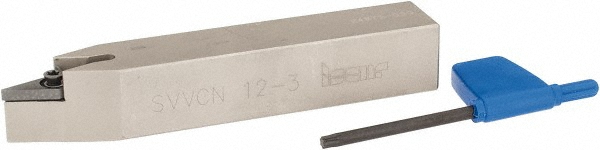

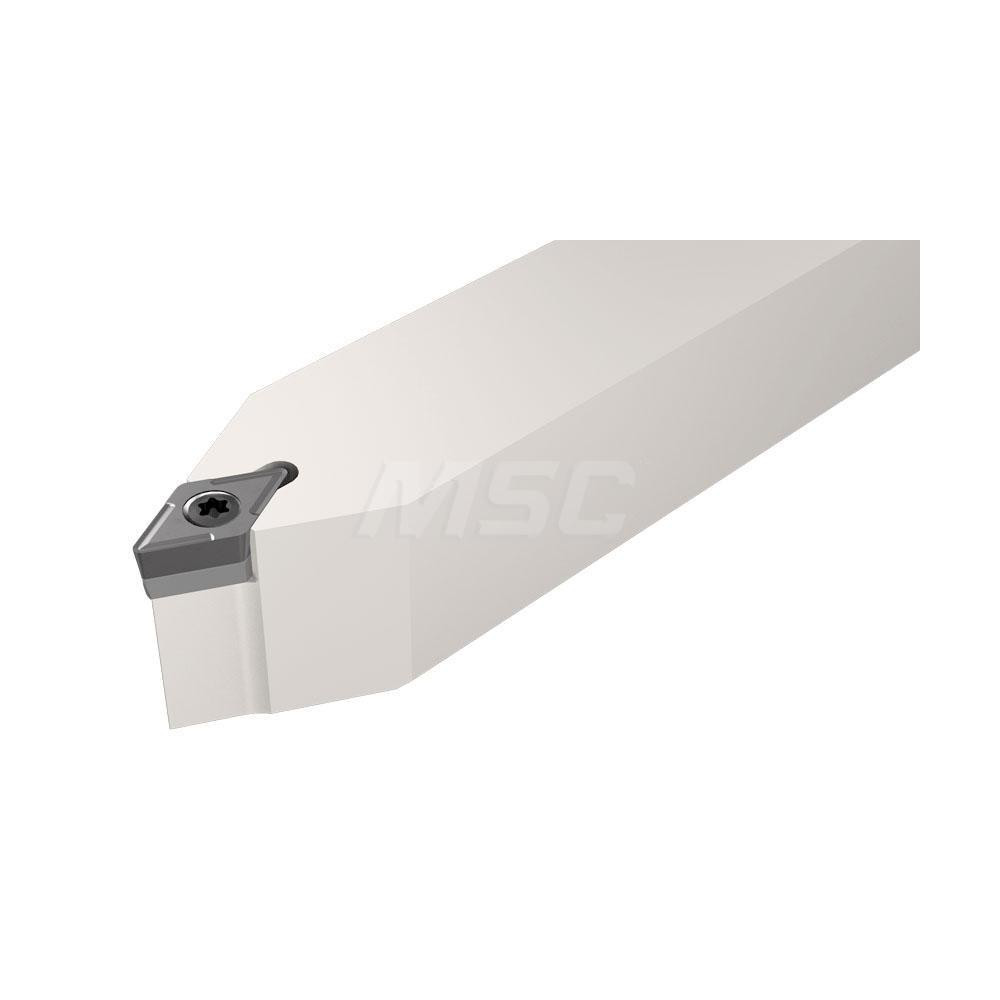

12.00 x 12.00 mm Shank, 125.00 mm OAL
| Toolholder Style | SVVC |
|---|---|
| Hand of Holder | Neutral |
| Insert Compatibility | VC..1103 |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 4.9213 |
| Shank Width (mm) | 12.00 |
| Shank Height (mm) | 12.00 |
| Coolant Through | No |
| Rake | Neutral |
| Cutting Direction | Neutral |
| Compatible Insert Size Code | VCMT110302-SM |
| Rake Angle | 0 |
| Multi-use Tool | Yes |
| Shank Width (Decimal Inch) | 0.4724 |
| Shank Height (Decimal Inch) | 0.4724 |
| Series | Isoturn |
| Cutting Tool Application | Facing |
| Head Length (mm) | 18.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.2480 |
| Back of Bar to Cutting Edge (mm) | 6.30 |
| Standards | ISO 13399 |
| UNSPSC Code | 23153308 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 30709950 |
