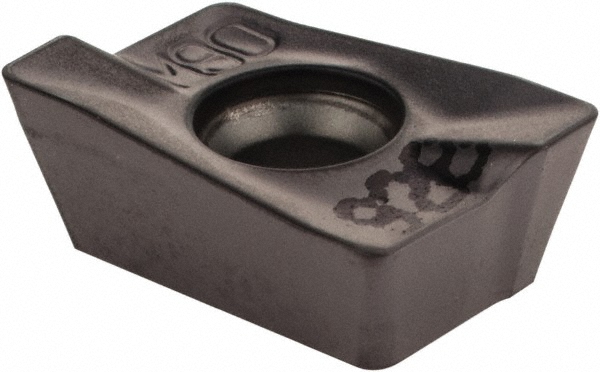

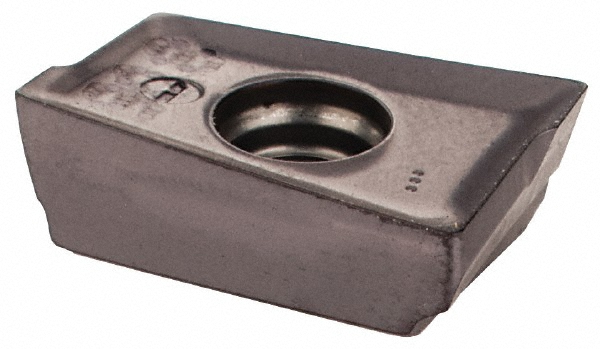

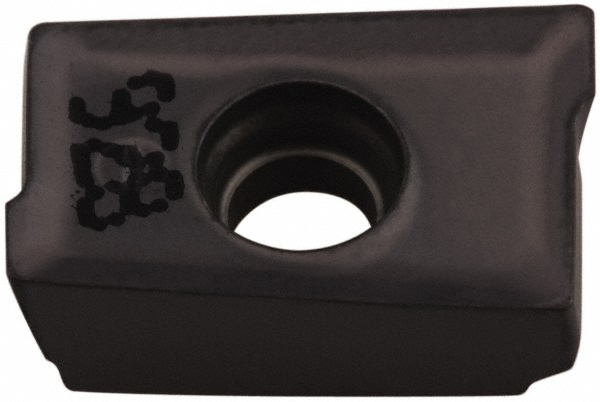

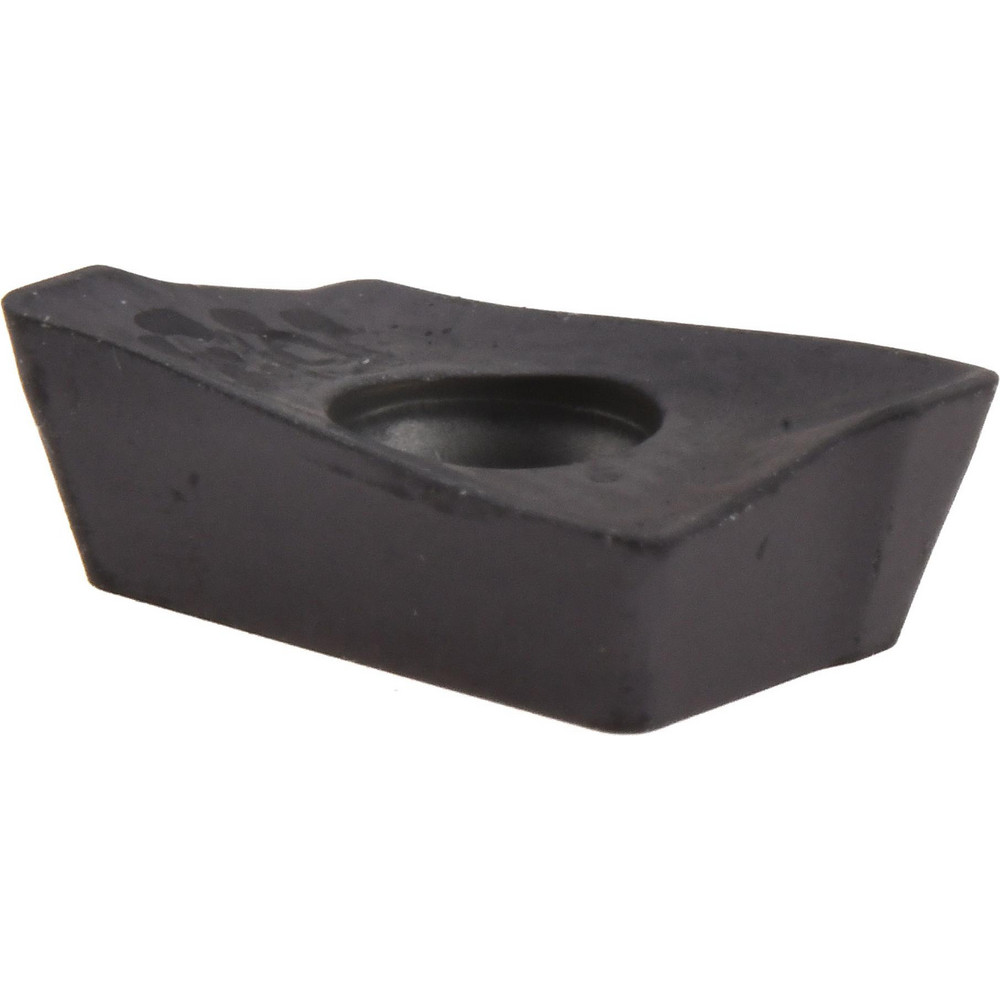

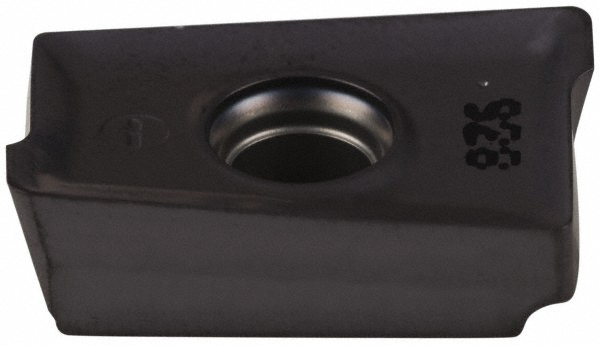

TiAlN Finish, 0.1790" Thick, 0.3310" Wide
| Insert Style | AXKT |
|---|---|
| Insert Size | 13 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | IC928 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1790 |
| Coating/Finish | TiAlN |
| Relief Angle | 15.00 |
| Insert Size Code | 1304 |
| Material Grade | C5; C6; C1; C2 |
| Inscribed Circle (Decimal Inch) | 0.3310 |
| Thickness Range (Decimal Inch) | 0.1750 to 0.1850 |
| Inscribed Circle Range (Decimal Inch) | 0.3000 to 0.3500 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4720 |
| Series | MILL2000 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Cutting Edge Effective Length (Decimal Inch) | 0.5060 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | 3M AXKT 1304PDR IC928 |
| Iso Code | 3M AXKT 1304PDR |
| Standards | ISO 13399; ANSI |
| Rake Angle | 23 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | 3M AXKT 1304PDR IC928 |
| Cutter Series Compatibility | 3M AX13 |
| Chip Breaker | PDR |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.3310 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5560 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 75299776 |
