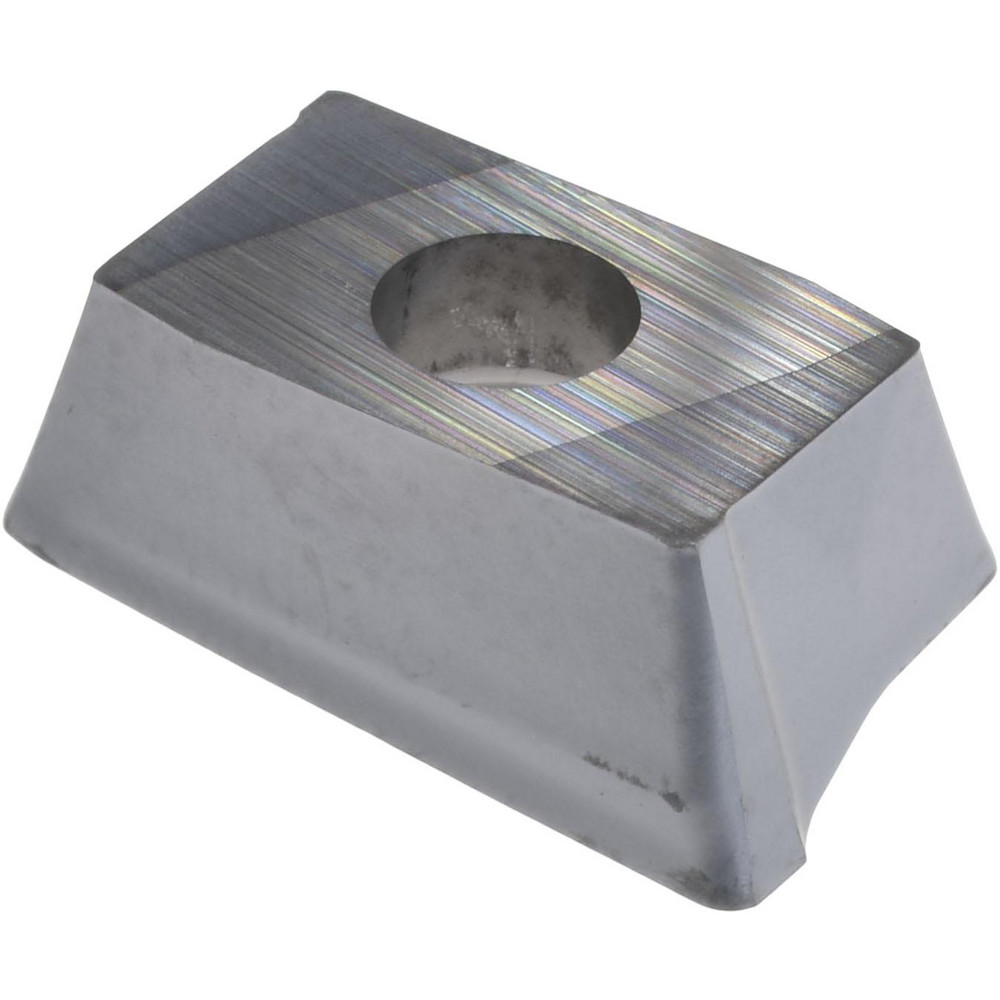

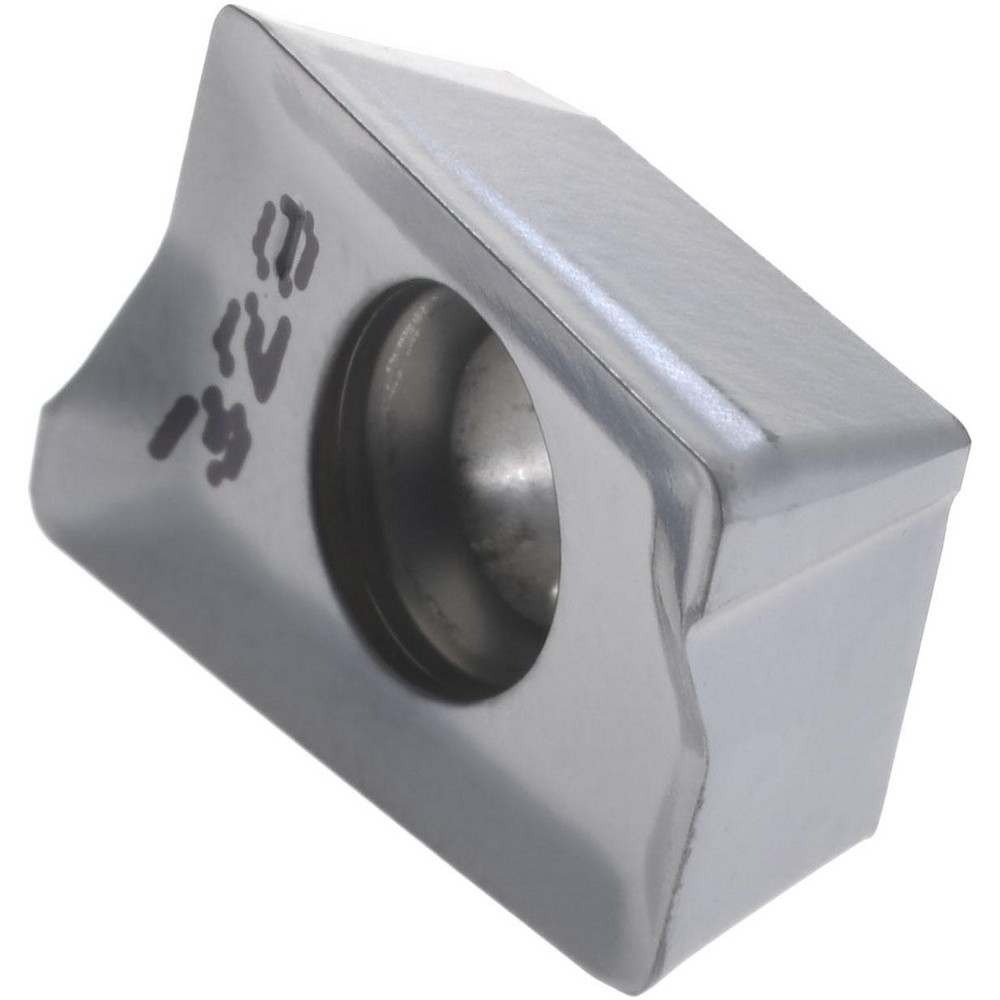

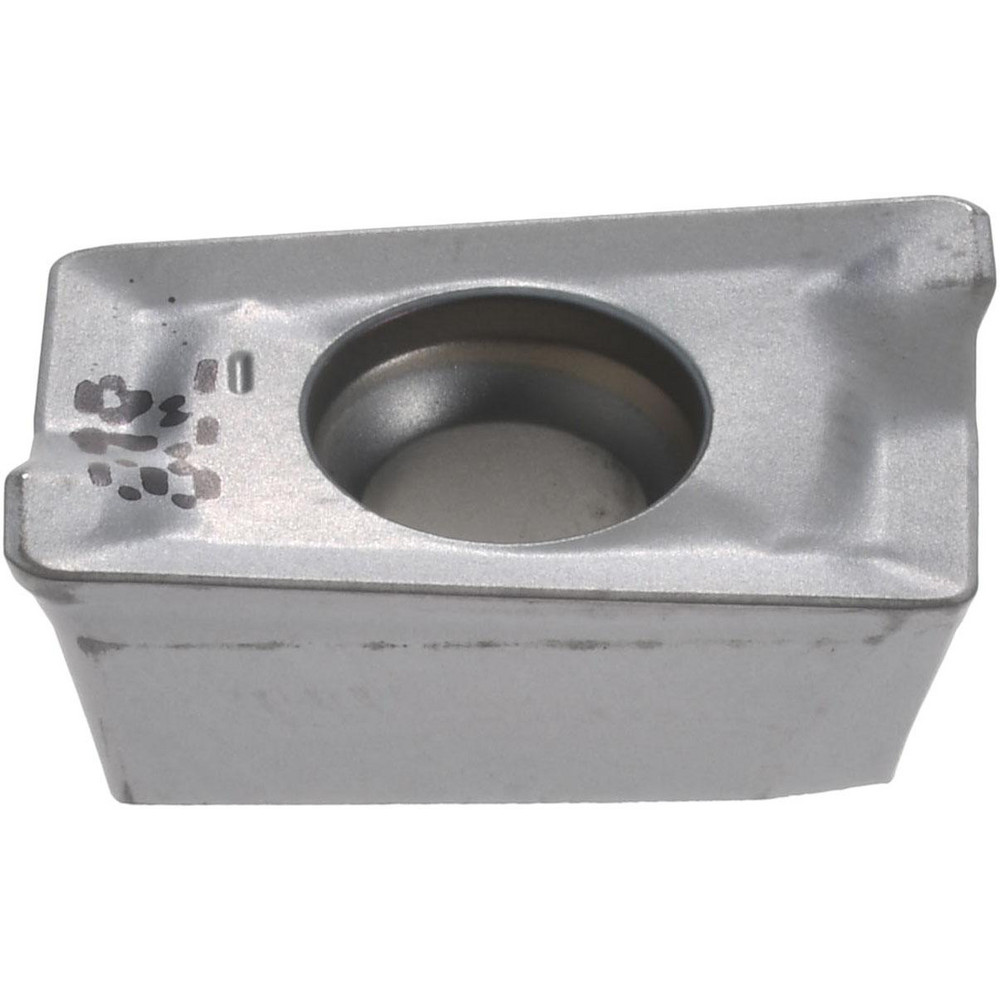

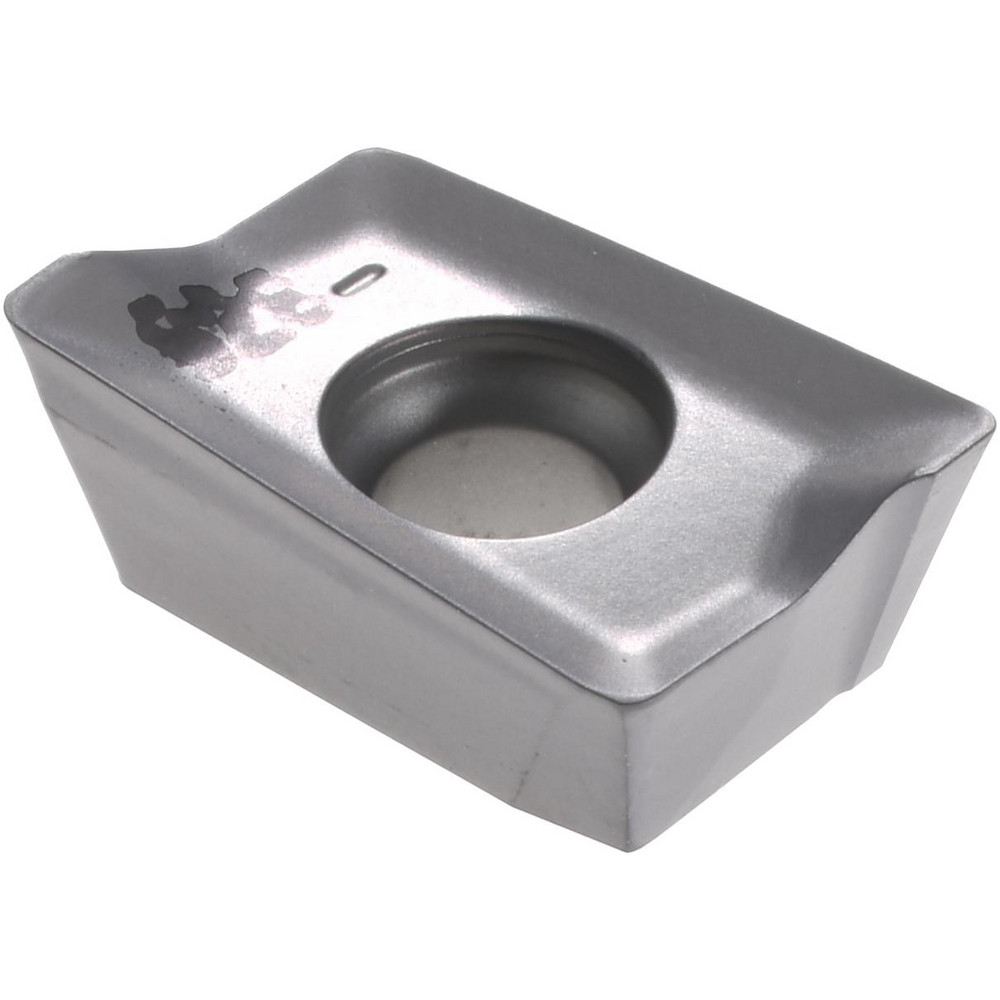

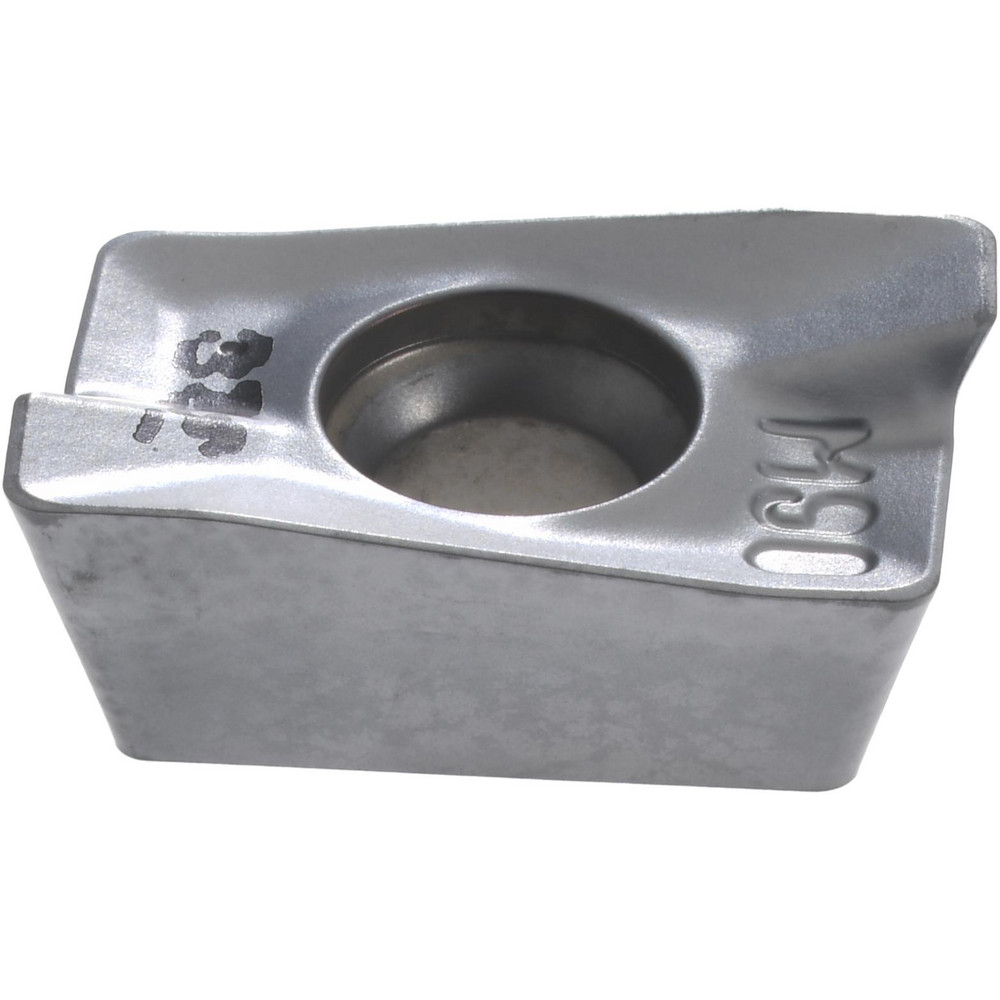

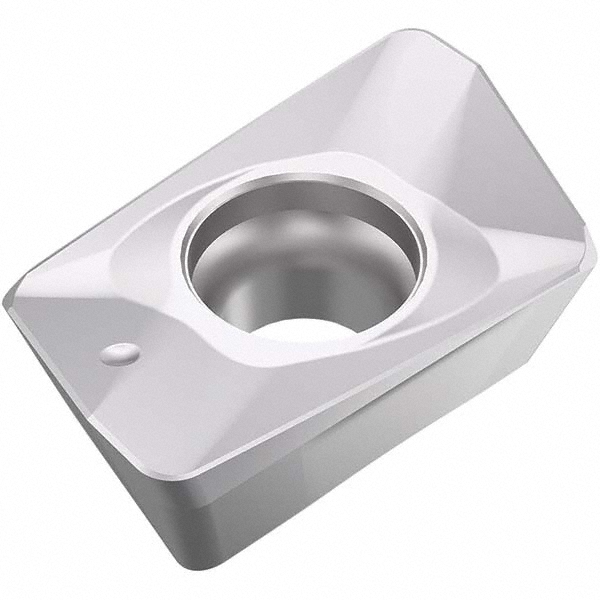

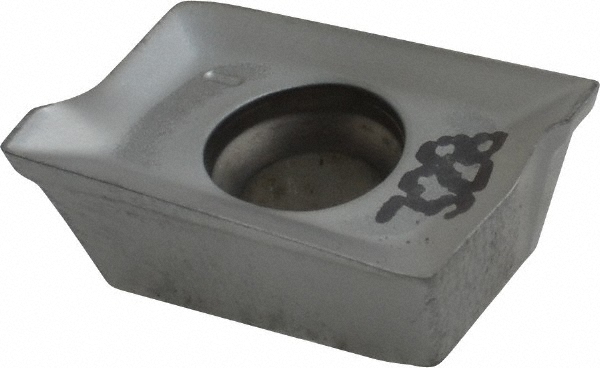

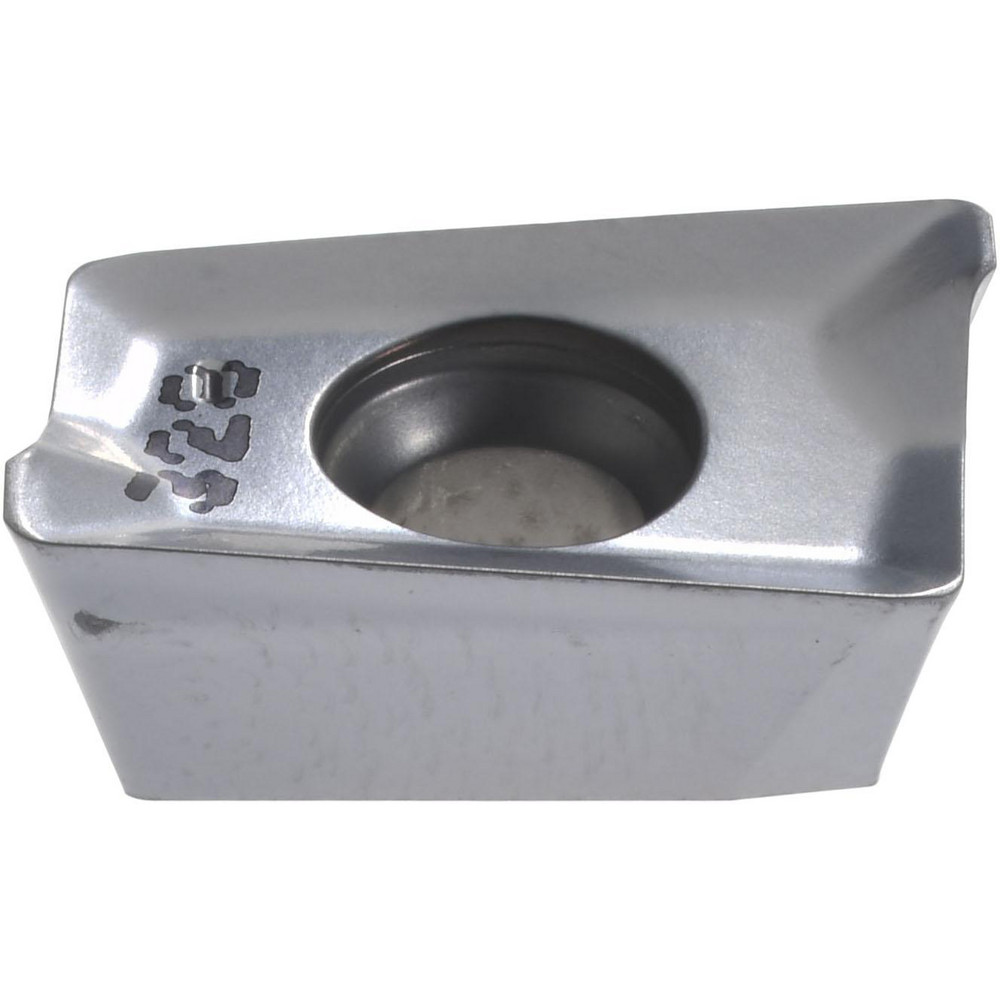

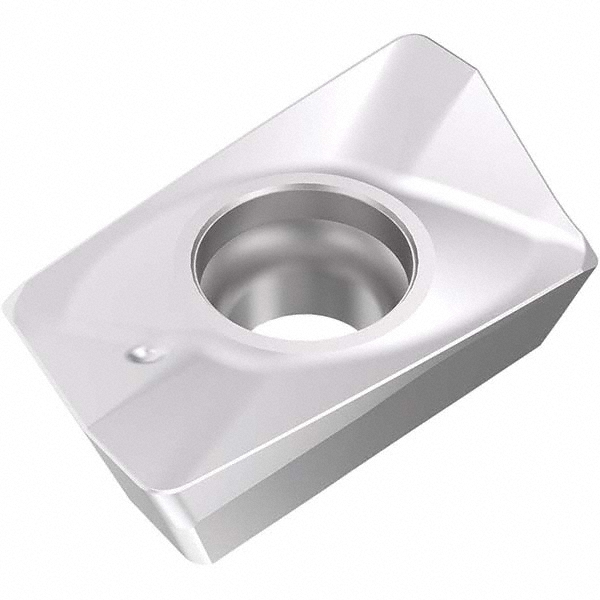

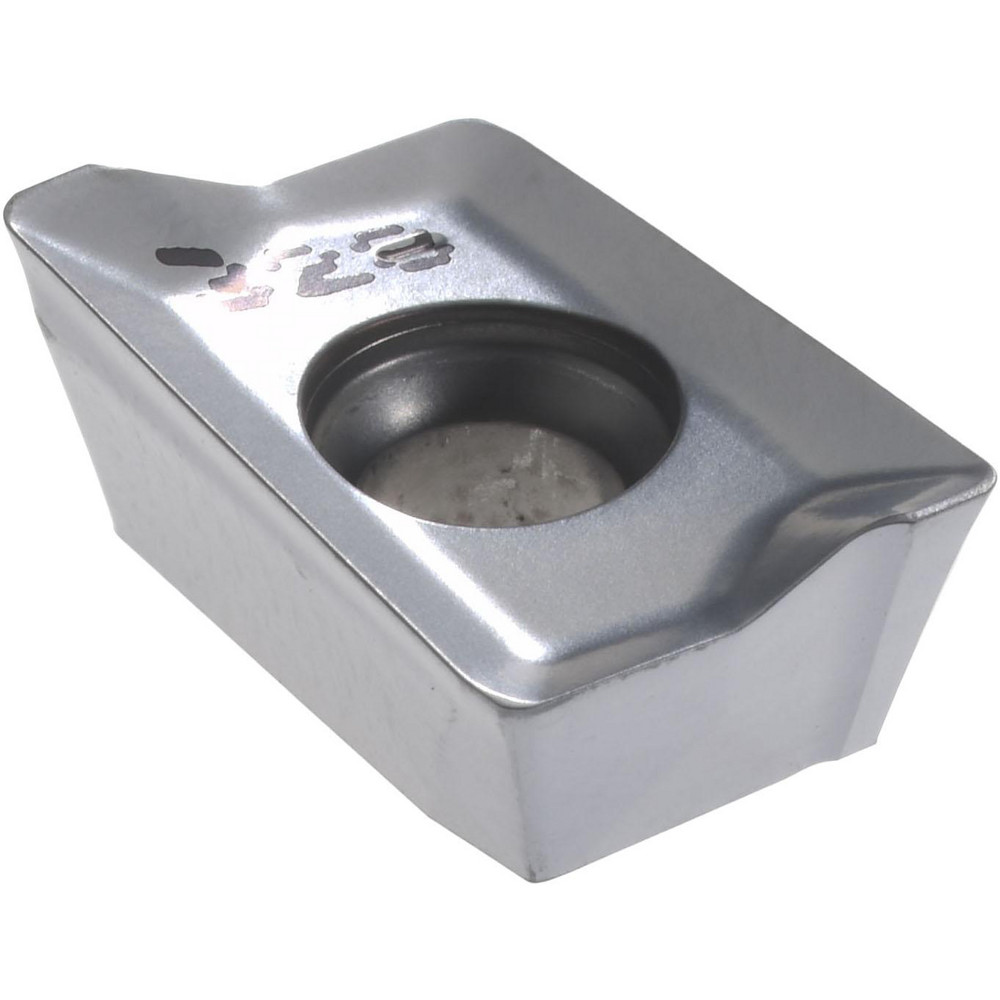

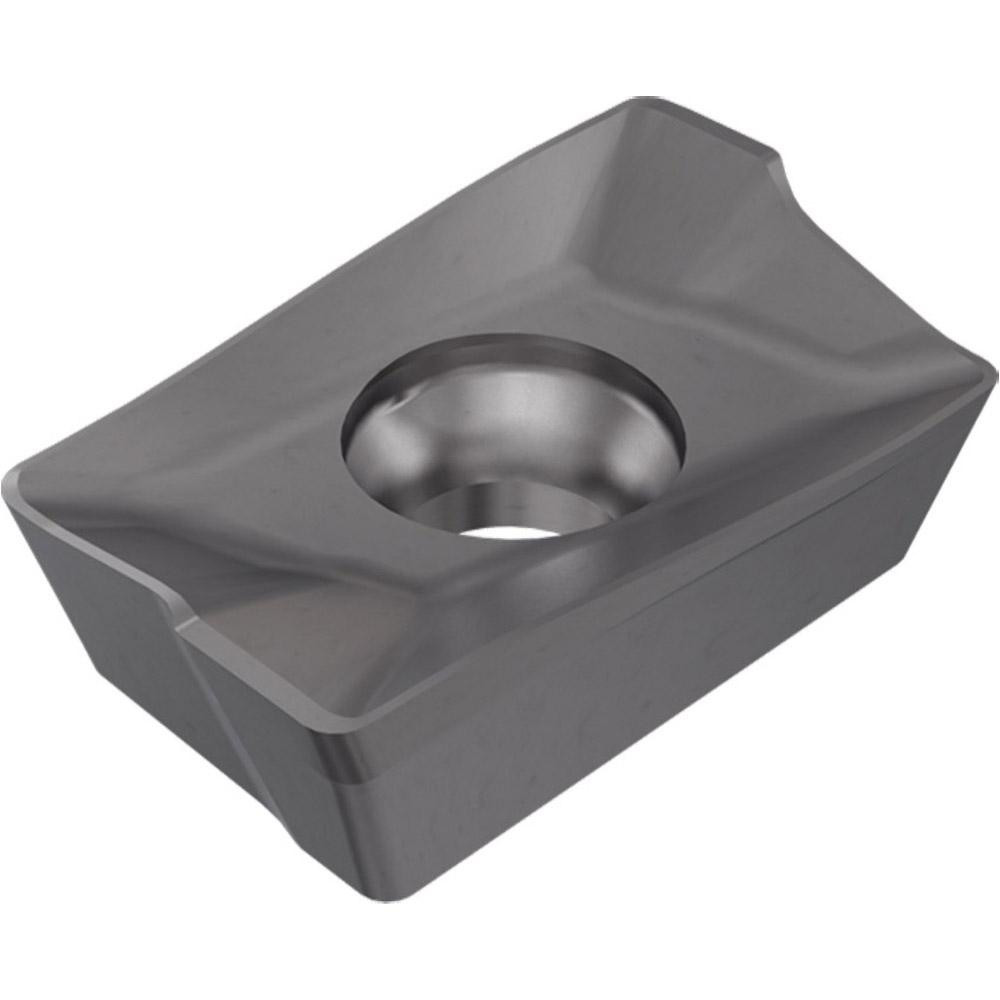

TiCN Finish, 0.2360" Thick, 0.3780" Wide
| Insert Style | ADKR |
|---|---|
| Insert Size | 15 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | IC328 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2360 |
| Coating/Finish | TiCN |
| Relief Angle | 15.00 |
| Insert Size Code | 1505 |
| Material Grade | C3; C5; C6; C2 |
| Inscribed Circle (Decimal Inch) | 0.3780 |
| Thickness Range (Decimal Inch) | 0.2350 to 0.2500 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4720 |
| Maximum Depth of Cut (mm) | 12.00 |
| Series | HELIMILL |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.5550 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material Code | S |
| Ansi Code | ADKR 1505PDR-HM IC328 |
| Iso Code | ADKR 1505PDR-HM |
| Standards | ISO 13399; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | ADKR 1505PDR-HM IC328 |
| Cutter Series Compatibility | HM90-15 |
| Chip Breaker | HM |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.3780 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6280 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 52692043 |
