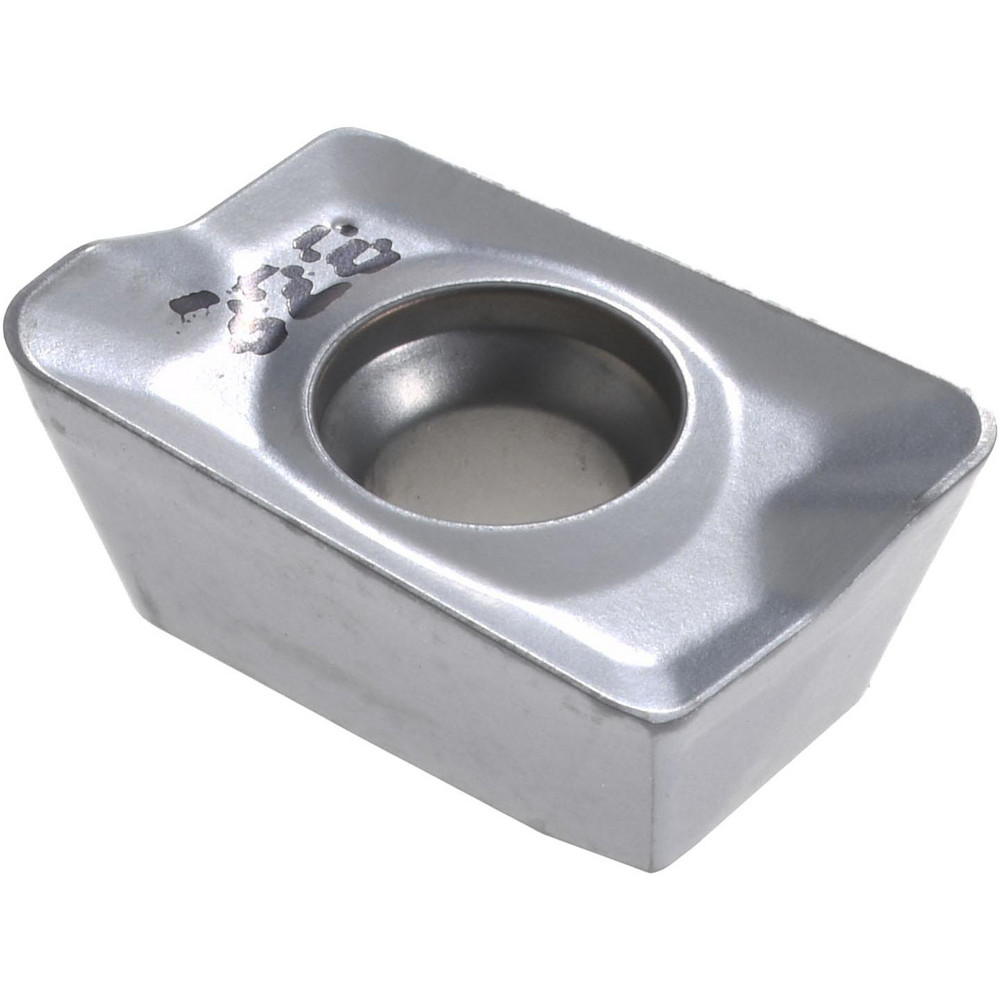

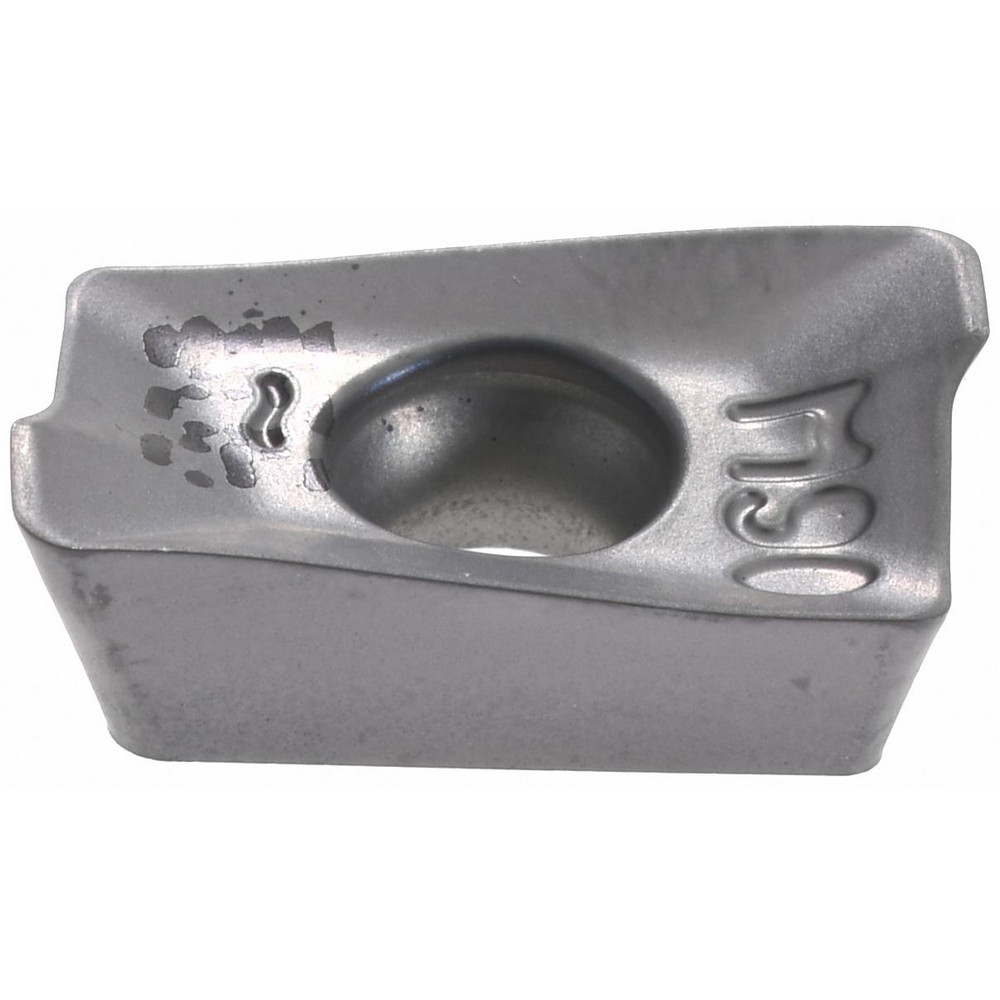

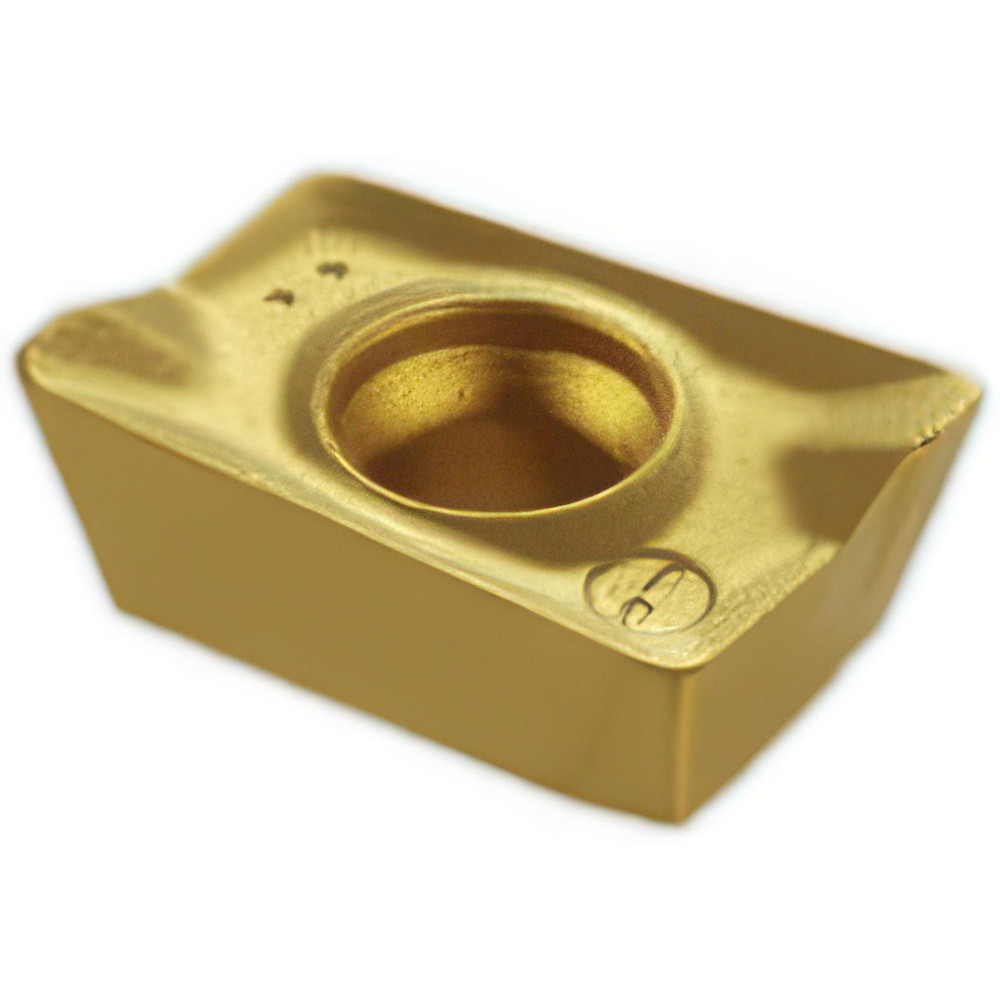

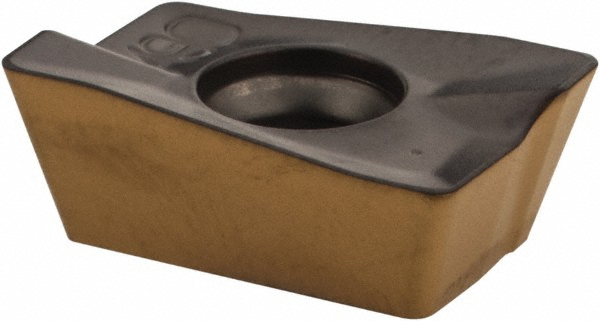

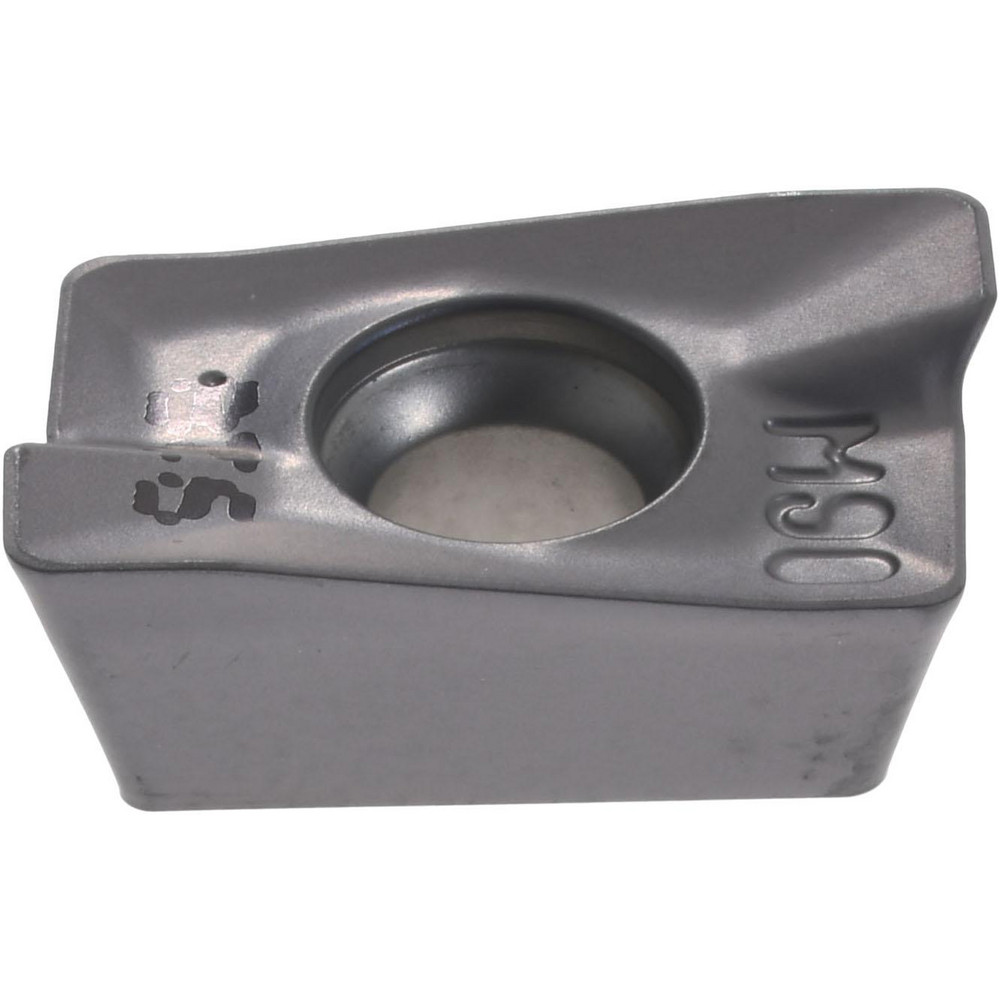

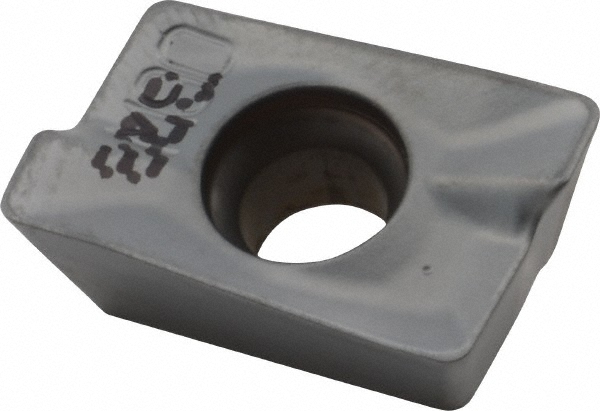

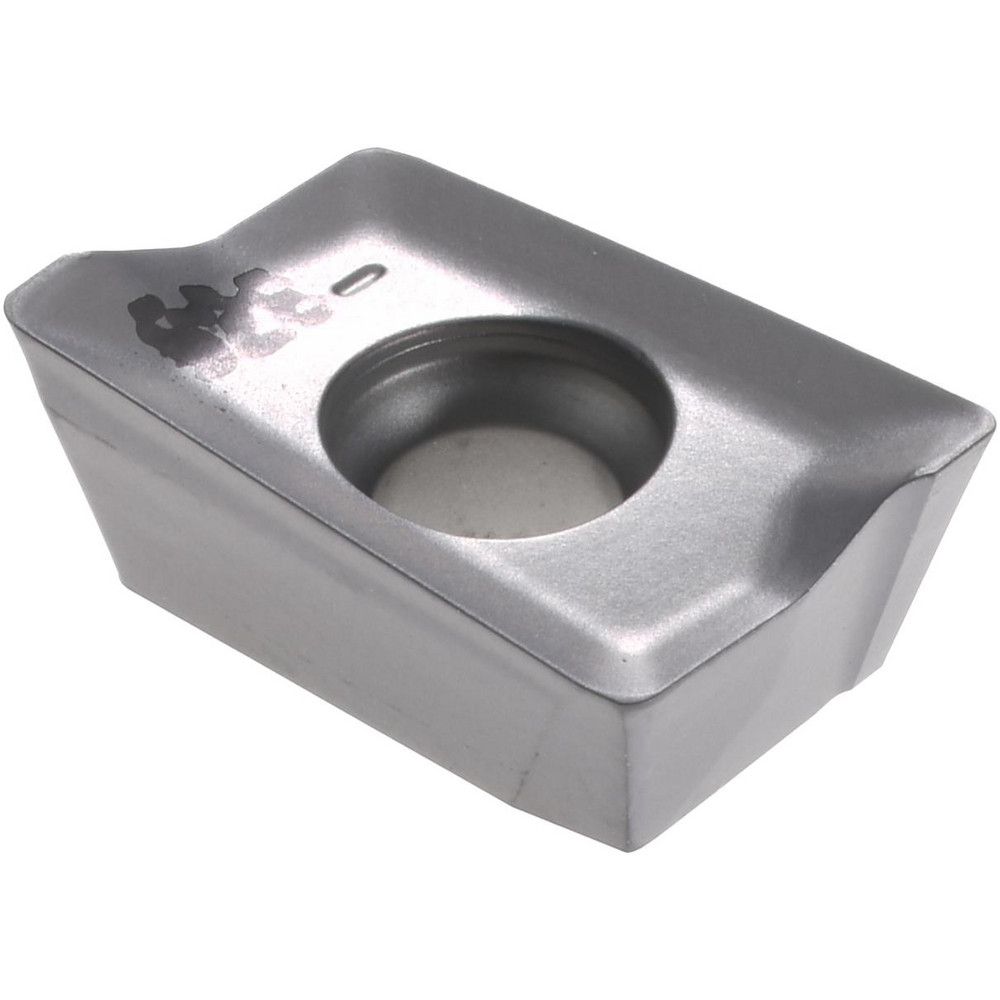

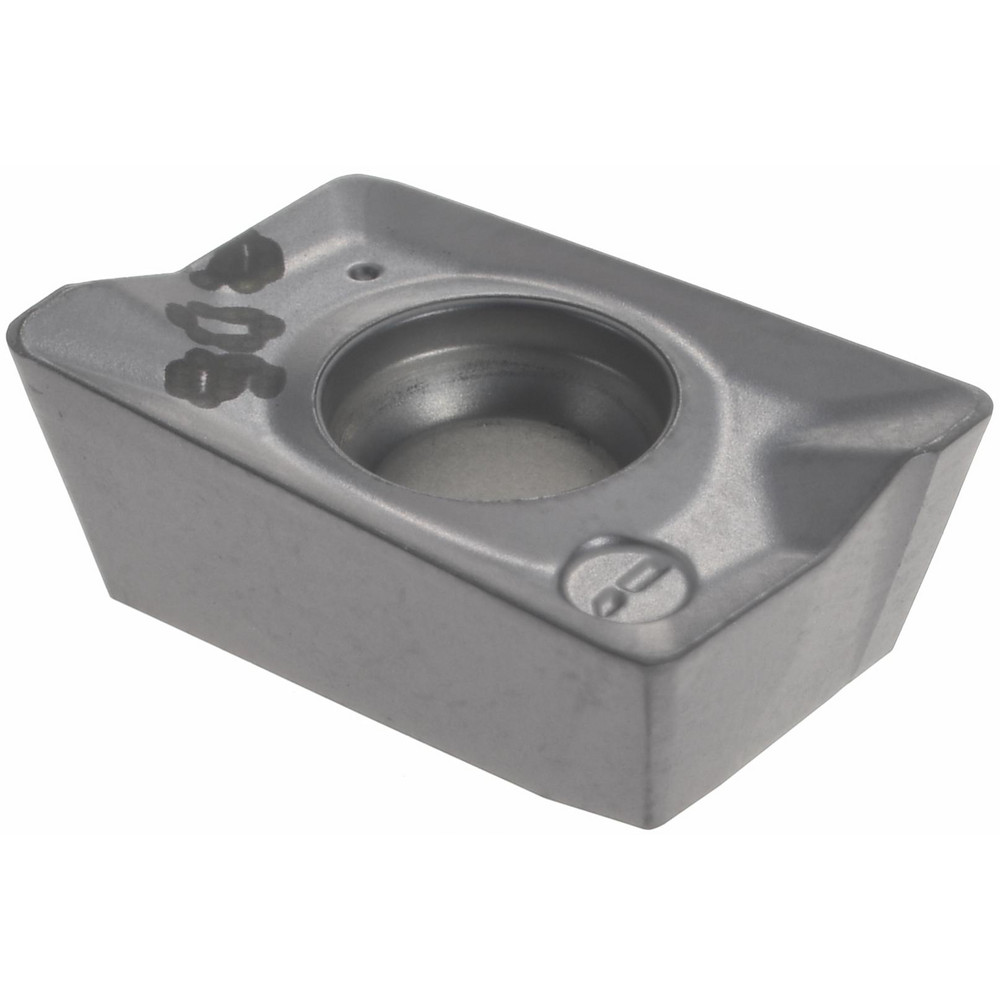

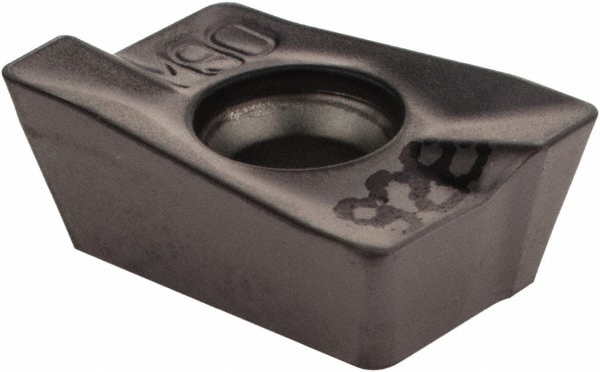

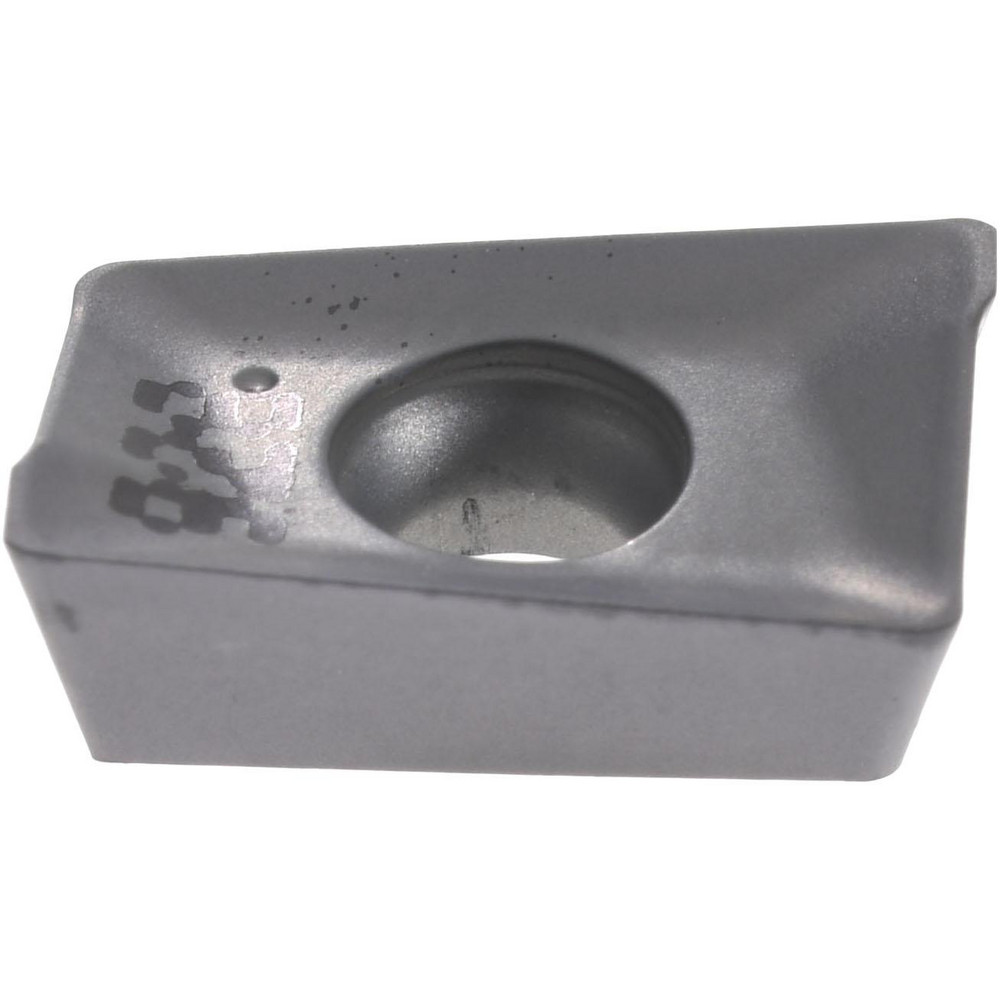

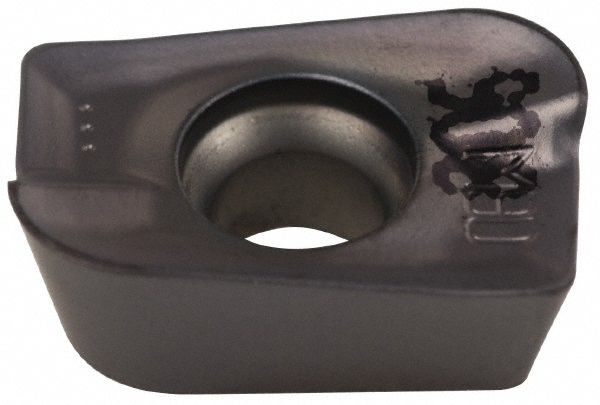

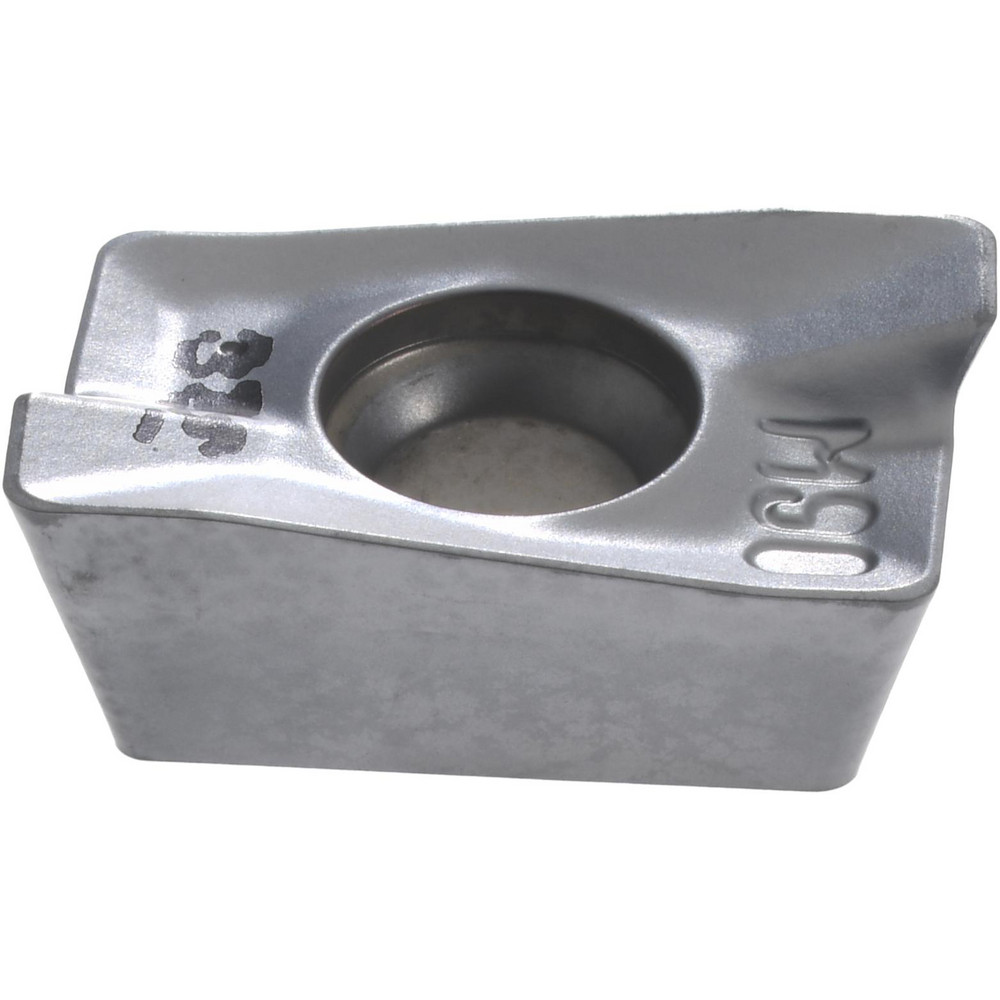

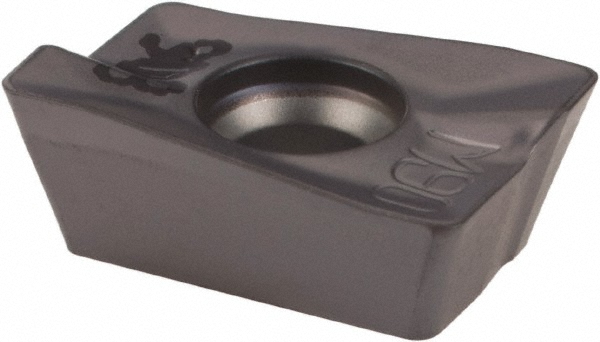

TiAlN Finish, 0.2300" Thick, 0.3770" Wide
| Insert Style | ADKT |
|---|---|
| Insert Size | 15 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | IC908 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2300 |
| Coating/Finish | TiAlN |
| Relief Angle | 15.00 |
| Insert Size Code | 1505 |
| Material Grade | Submicron |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness Range (Decimal Inch) | 0.2200 to 0.2350 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4720 |
| Series | HELIMILL |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.5410 |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Ansi Code | ADKT 1505PDR HM90 IC908 |
| Iso Code | ADKT 1505PDR HM90 |
| Standards | ISO 13399; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | ADKT 1505PDR HM90 IC908 |
| Cutter Series Compatibility | HM90-15 |
| Chip Breaker | HM |
| UNSPSC Code | 23291601 |
| Material Application | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.3770 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6160 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 33310715 |
