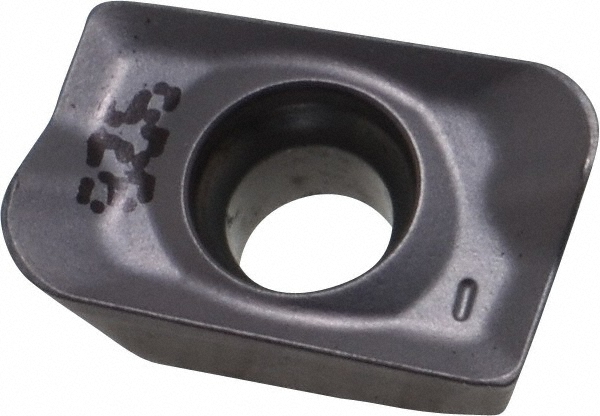

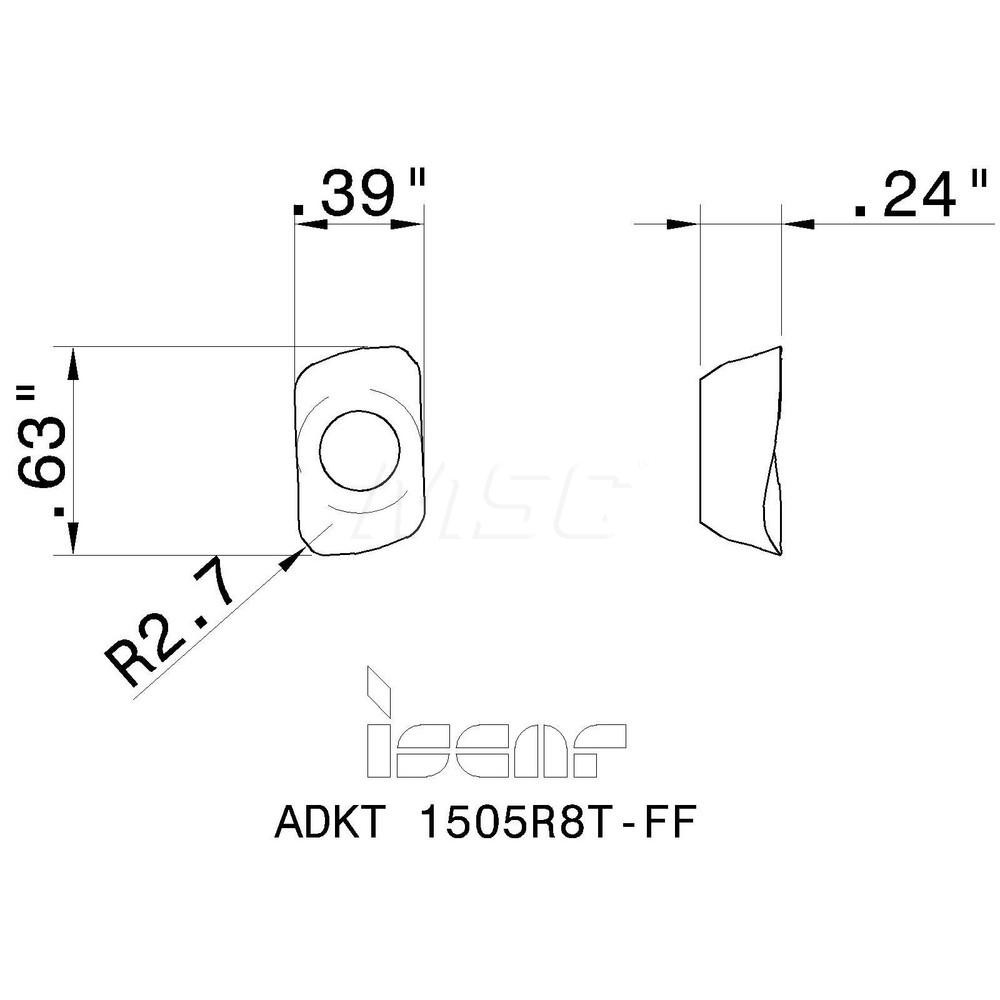

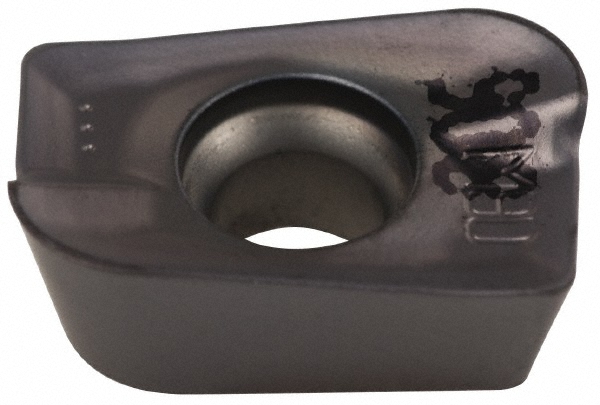

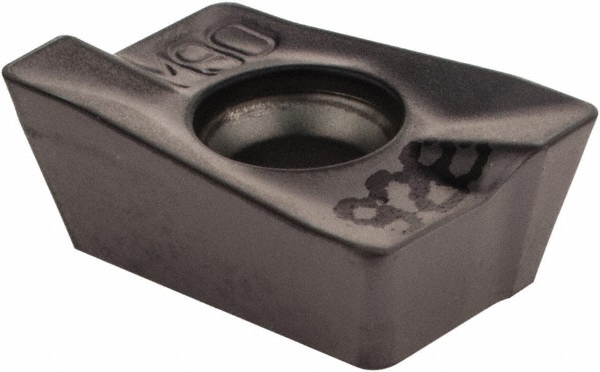

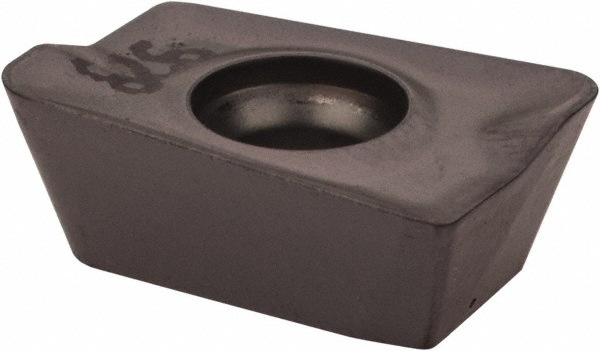

TiAlN Finish, 0.2440" Thick, 0.3900" Wide
| Insert Style | ADKT |
|---|---|
| Insert Size | 15 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | IC928 |

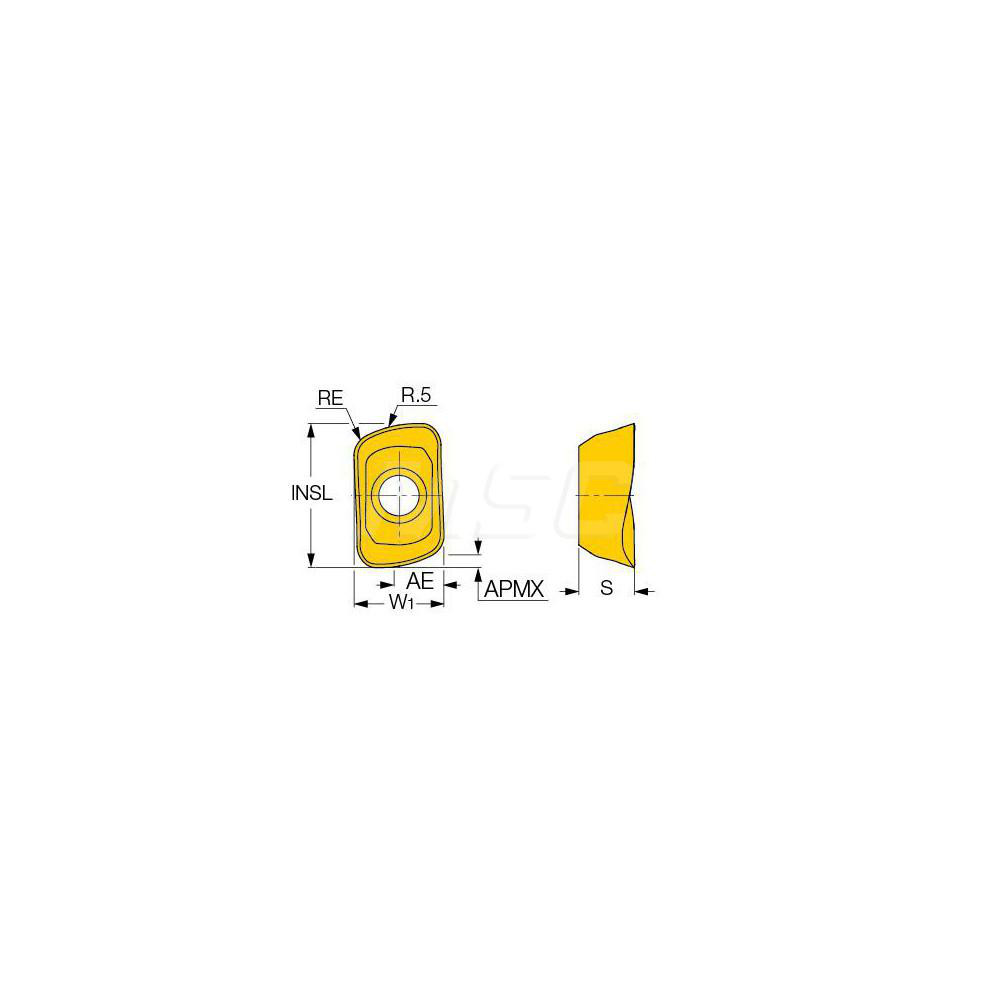

| Corner Radius (Decimal Inch) | 0.1063 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2440 |
| Coating/Finish | TiAlN |
| Relief Angle | 15.00 |
| Insert Size Code | 1505 |
| Inscribed Circle (Decimal Inch) | 0.3900 |
| Thickness Range (Decimal Inch) | 0.2350 to 0.2500 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Series | HELIMILL |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.0590 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | ADKT 1505R8T-FF IC928 |
| Iso Code | ADKT 1505R8T-FF |
| Standards | ISO 13399; ANSI |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | ADKT 1505R8T-FF IC928 |
| Cutter Series Compatibility | HM90-15 |
| Chip Breaker | FF |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.3900 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6260 |
| Country of Origin | Israel |
| MSC Number | MSC# 72487085 |
