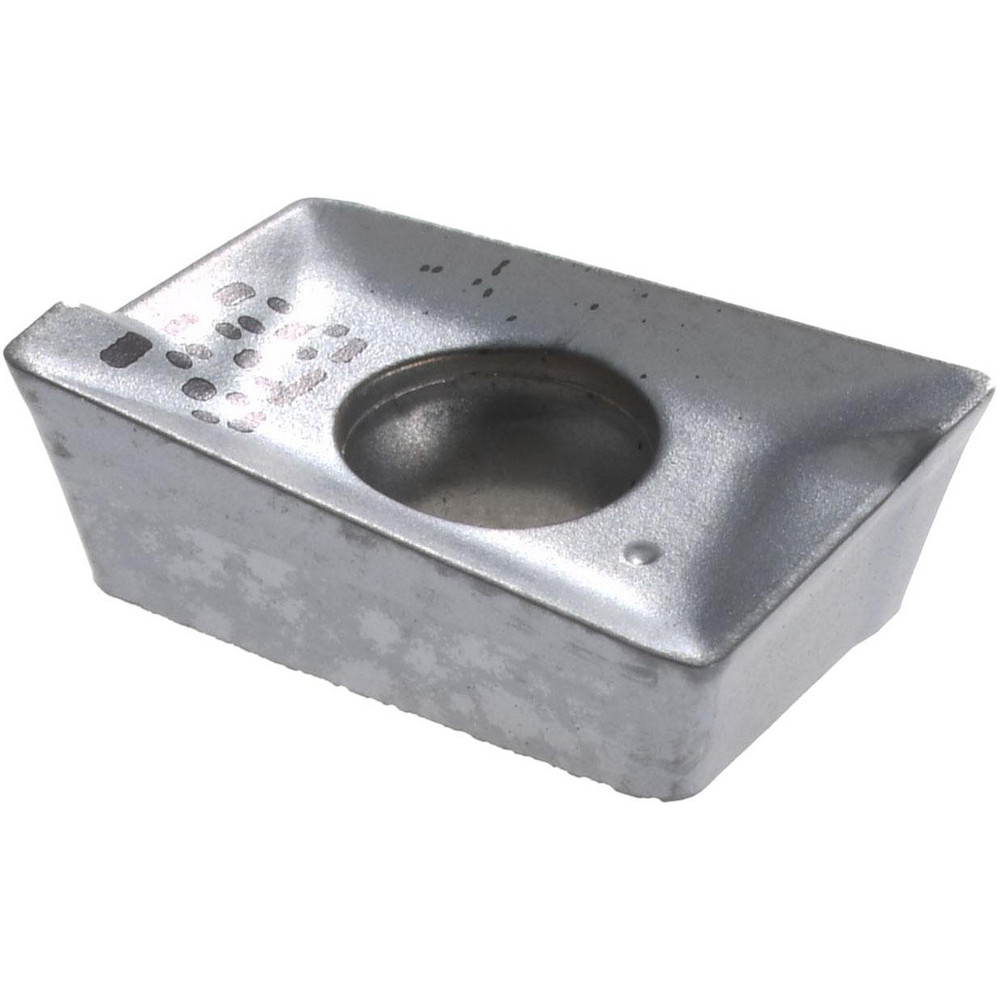

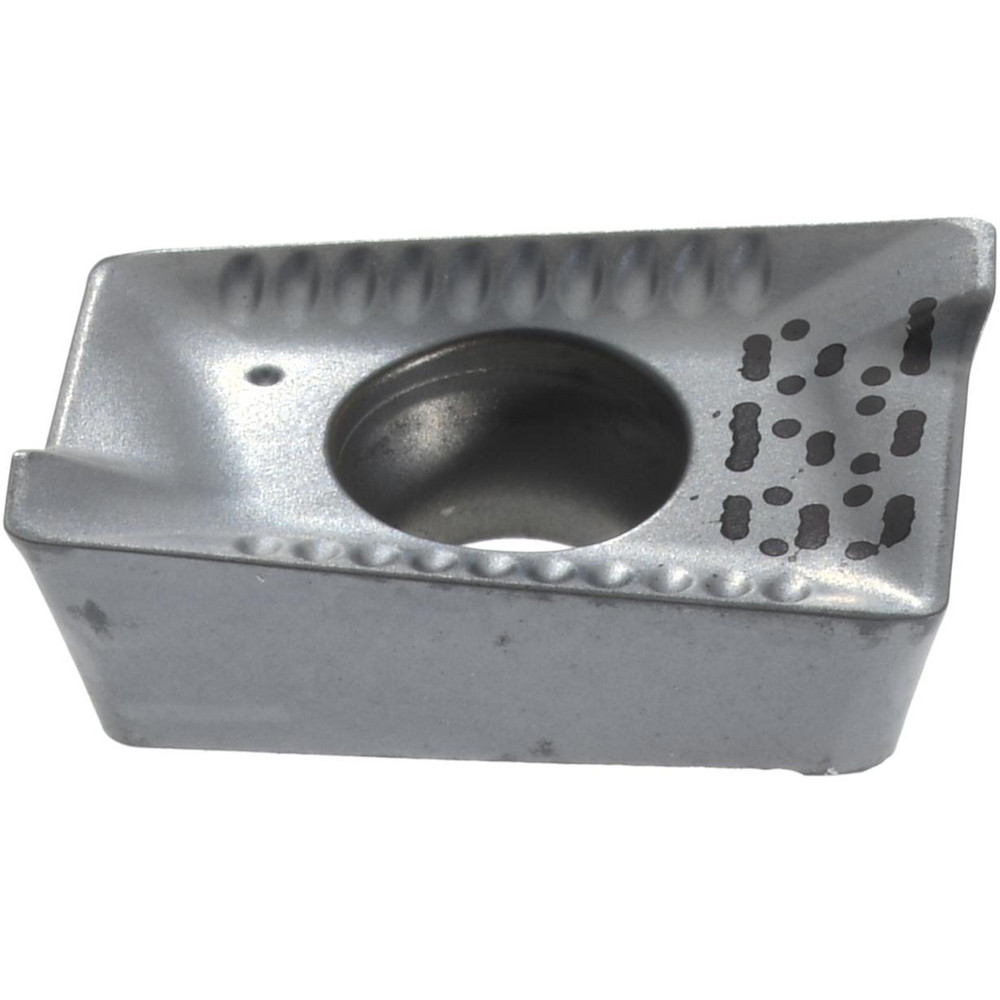

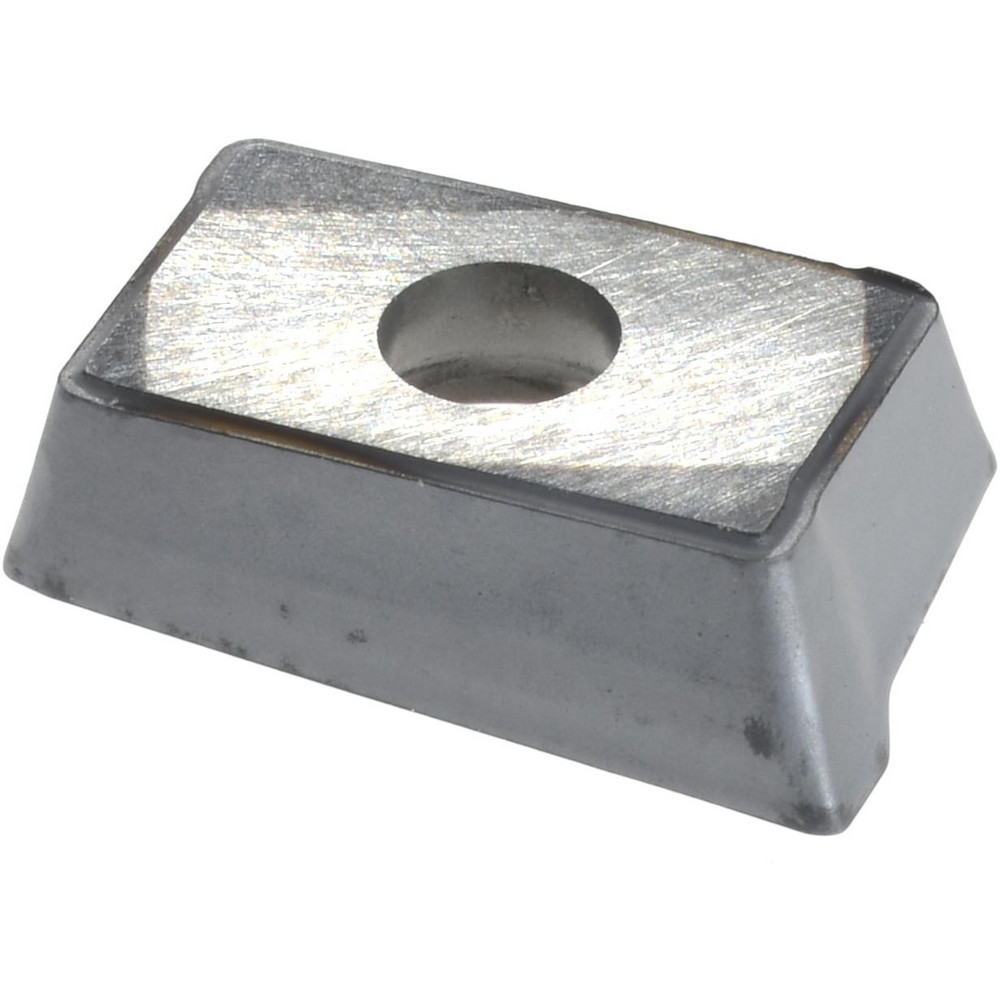

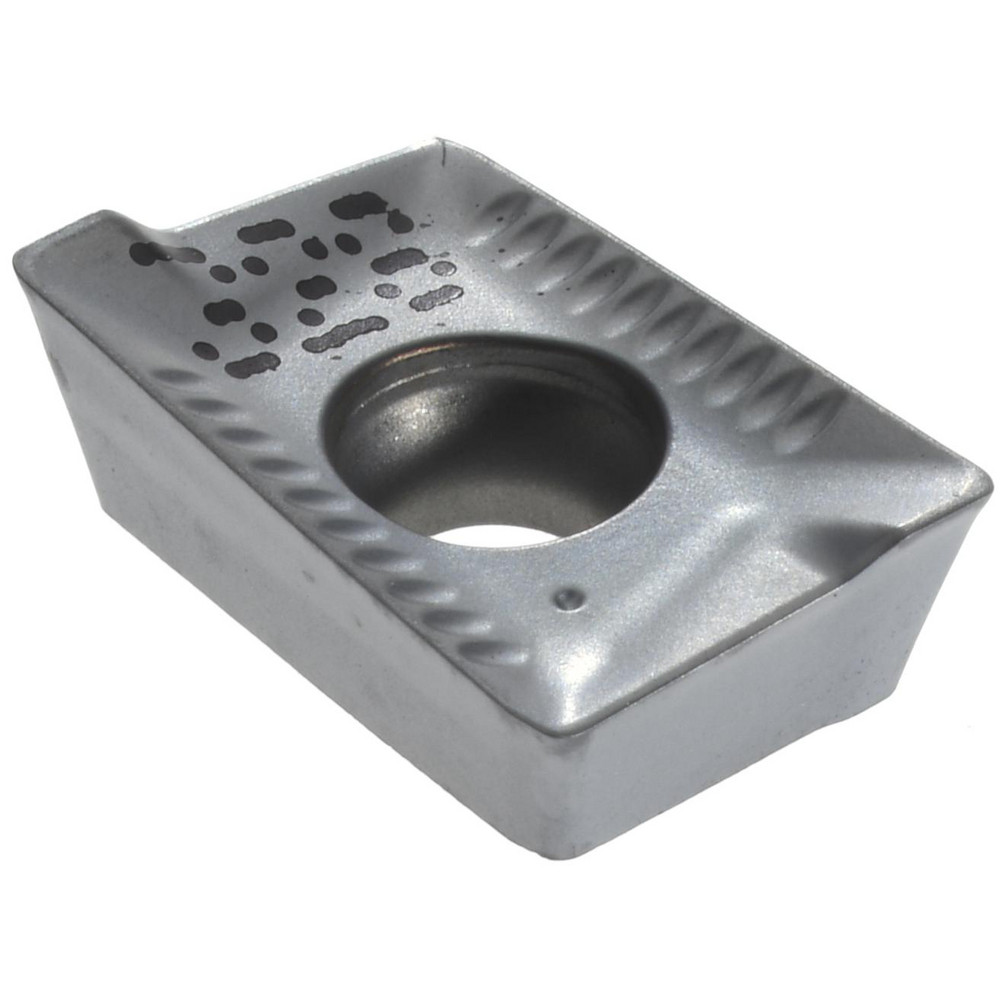

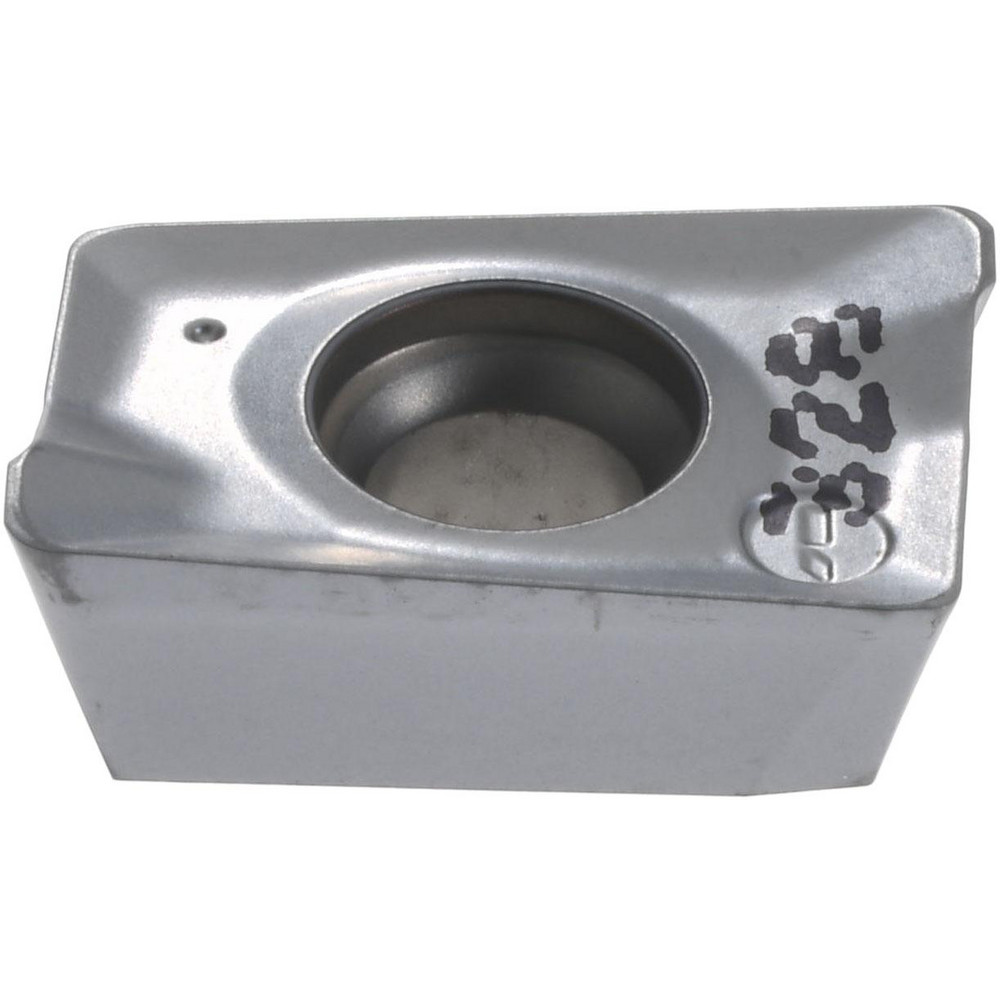

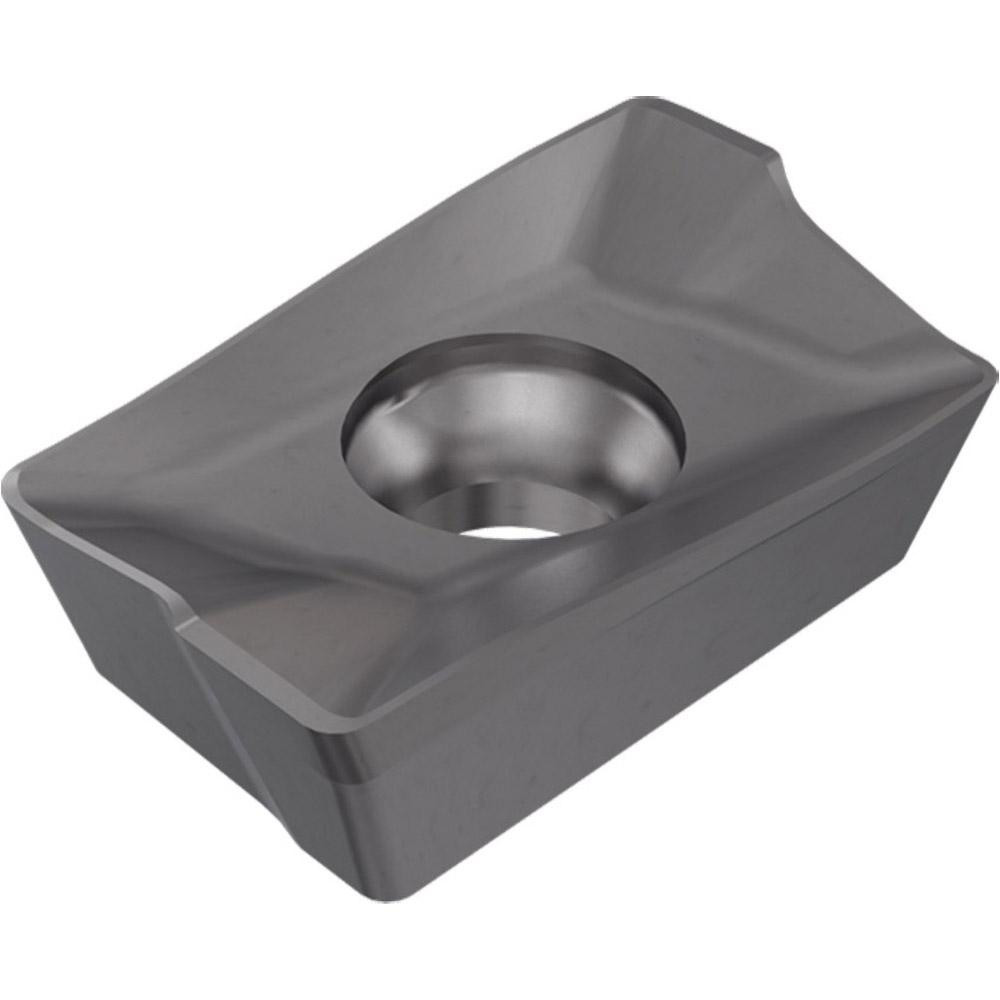

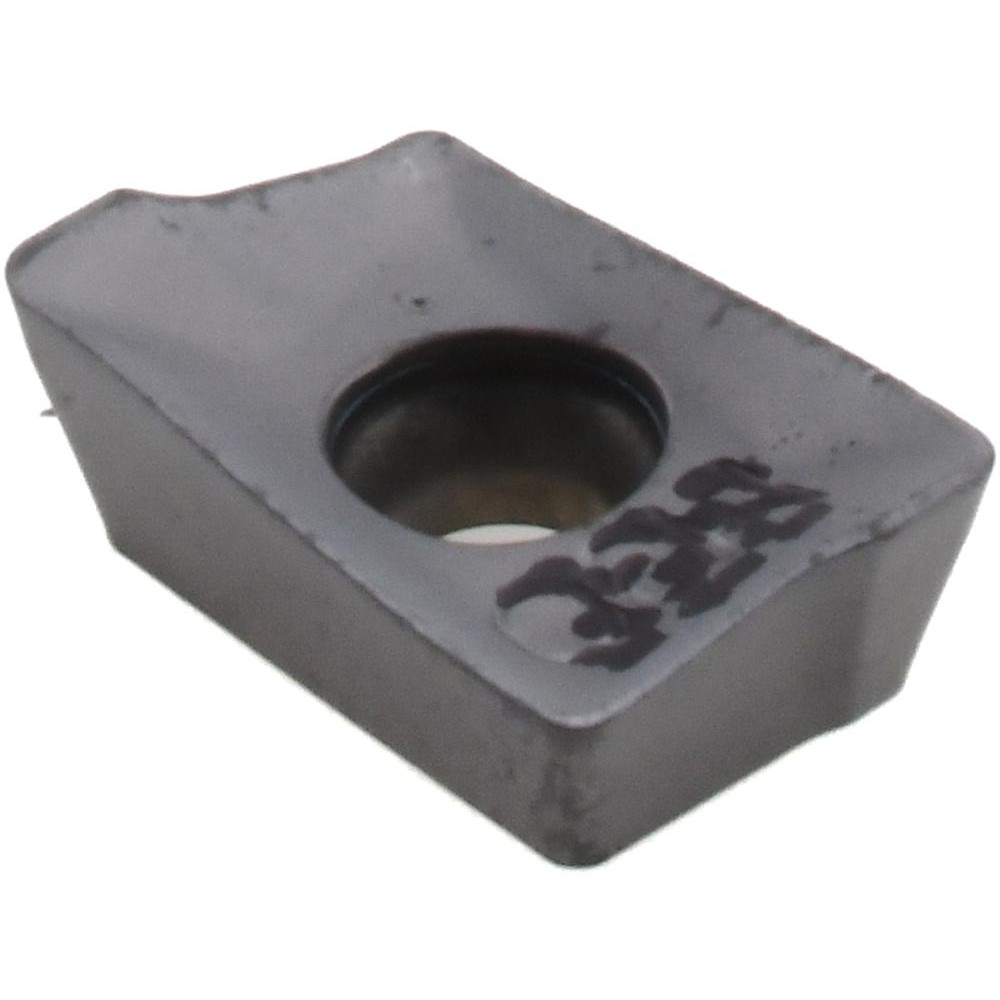

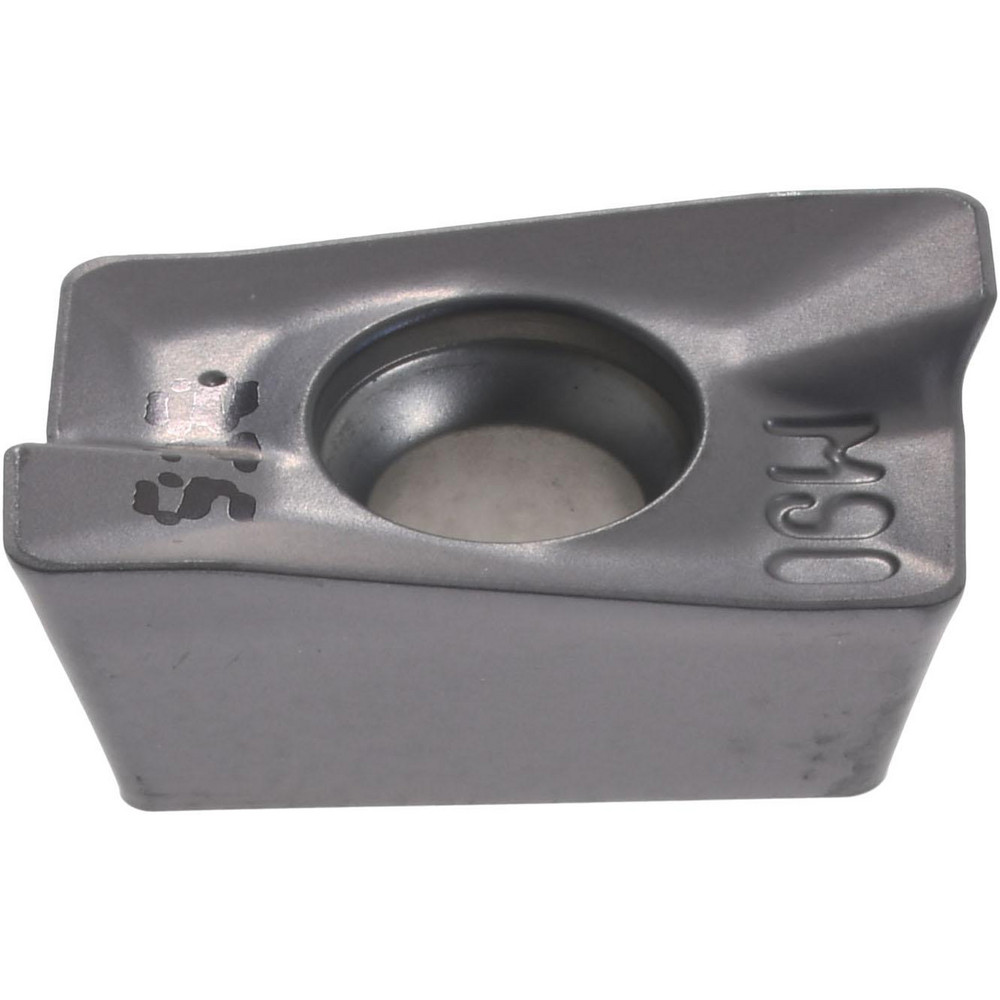

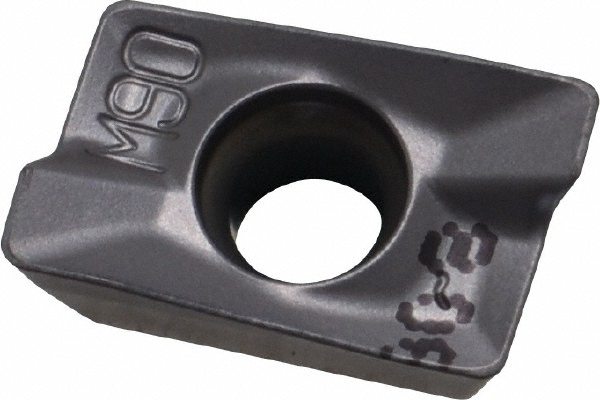

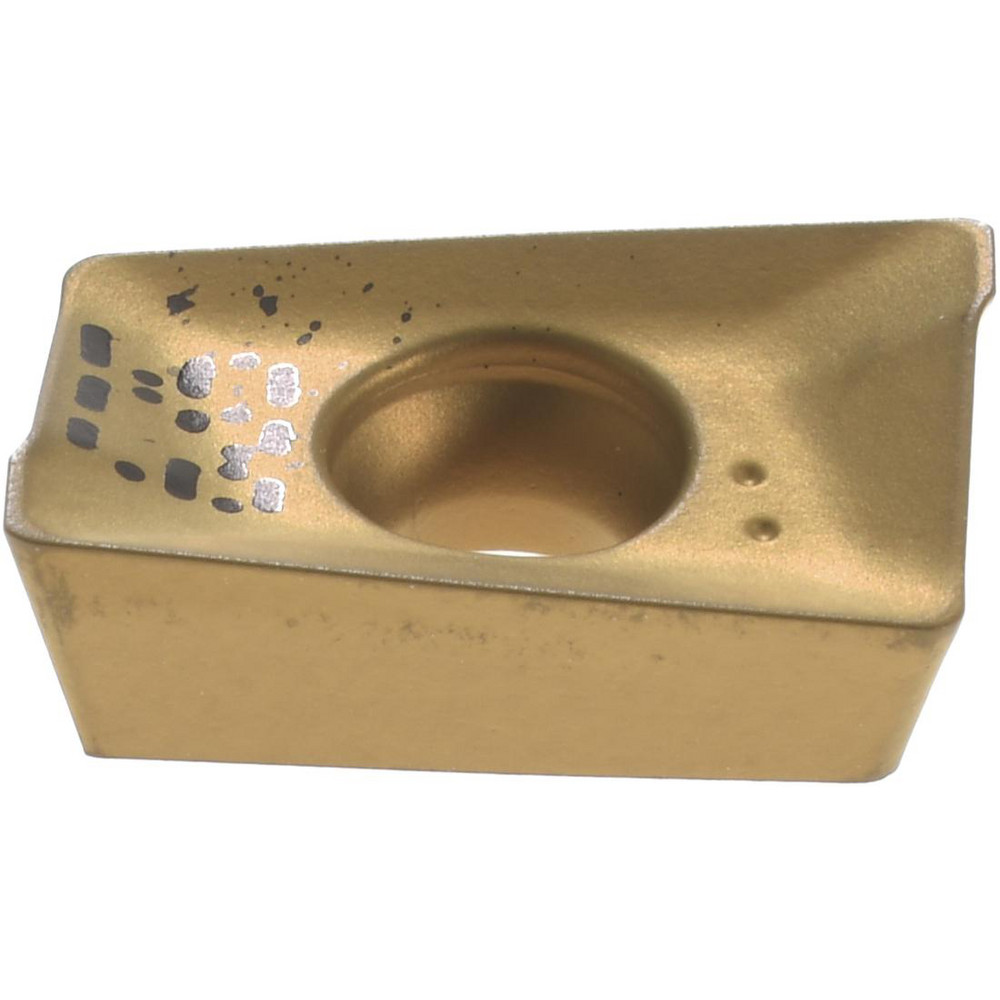

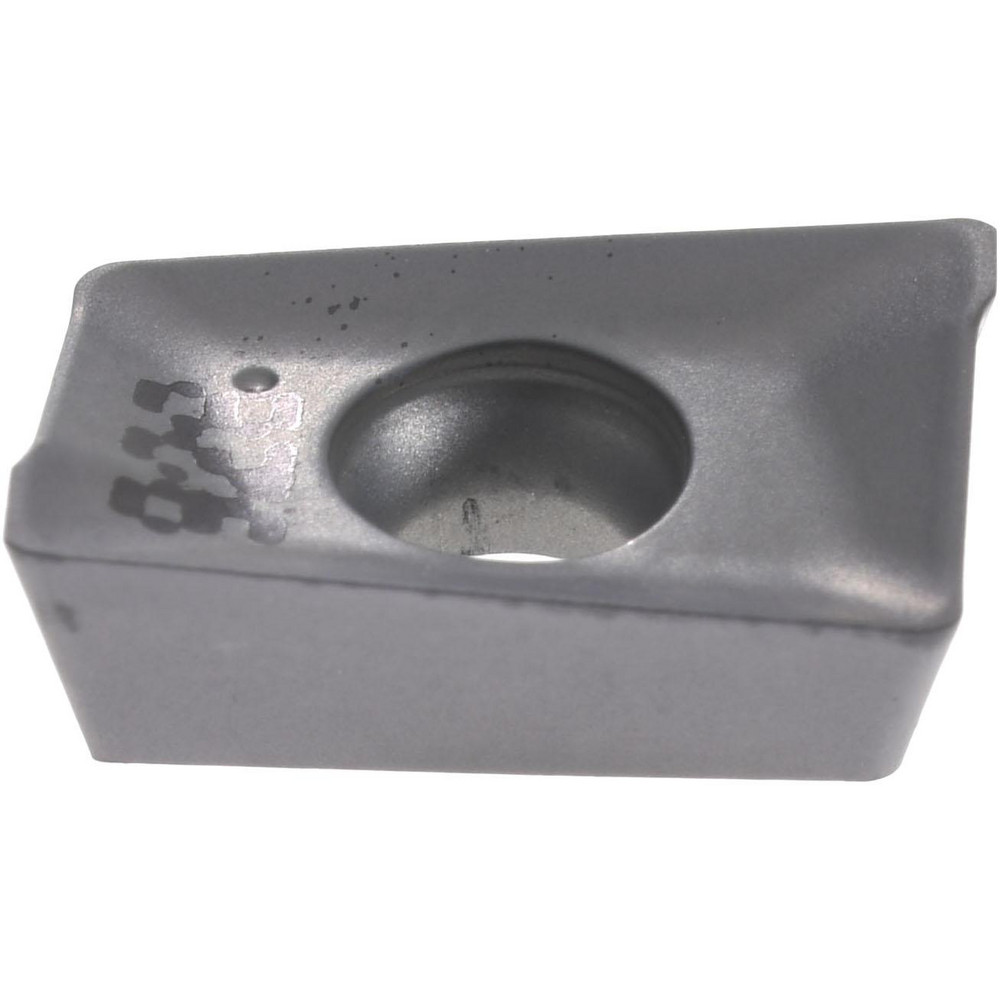

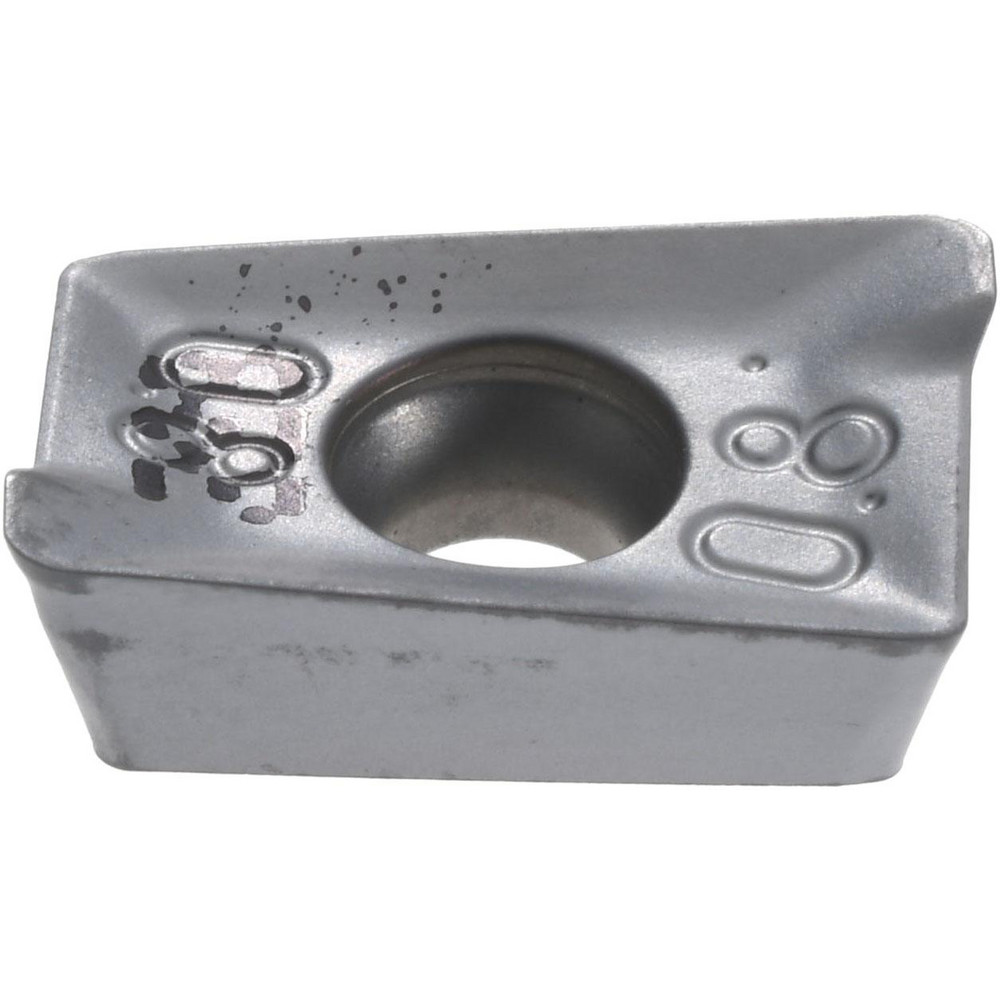

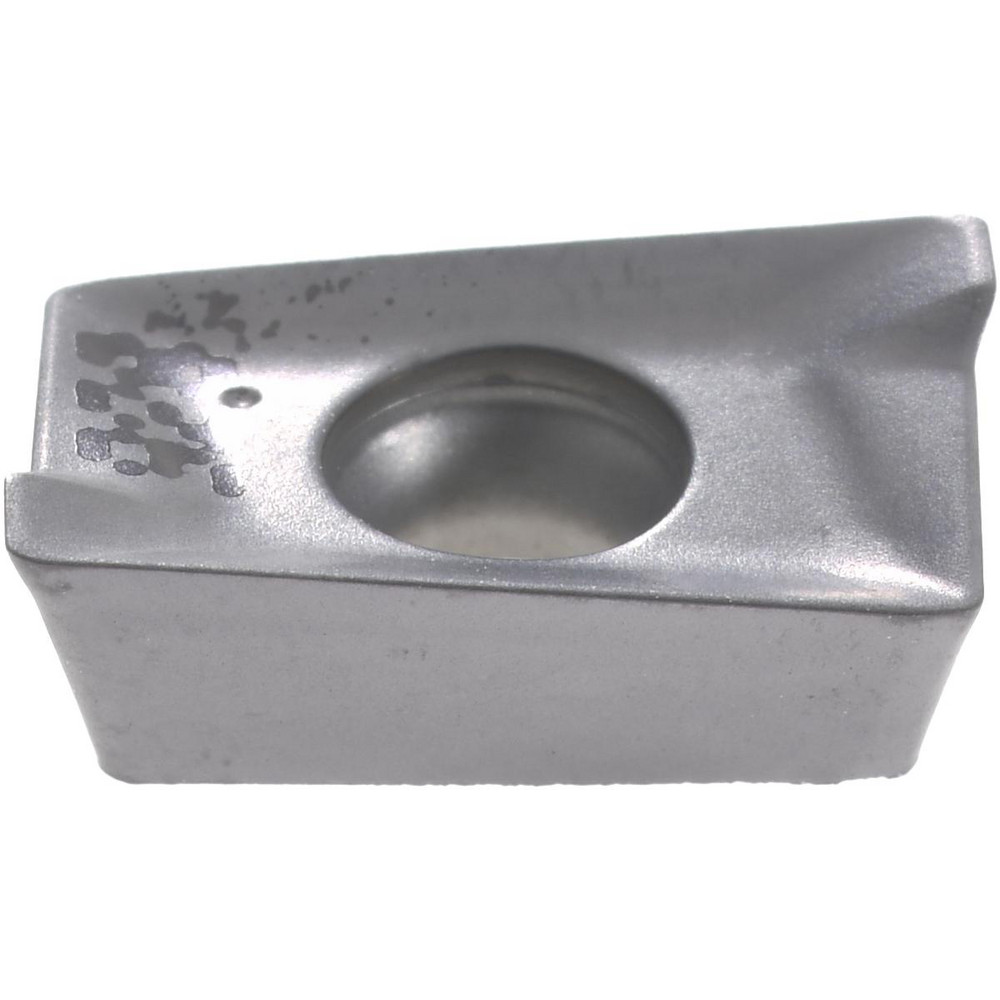

TiCN Finish, 0.1370" Thick, 0.2640" Wide
| Insert Style | APKT |
|---|---|
| Insert Size | 10 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | IC328 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Corner Radius (mm) | 0.50 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1370 |
| Coating/Finish | TiCN |
| Relief Angle | 11.00 |
| Insert Size Code | 1003 |
| Material Grade | C3; C5; C6; C2 |
| Inscribed Circle (Decimal Inch) | 0.2640 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Length Range (Decimal Inch) | 0.4000 to 0.4500 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3860 |
| Maximum Depth of Cut (mm) | 8.00 |
| Series | HELIMILL |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.3860 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | APKT 1003PDTR-76 IC328 |
| Iso Code | APKT 1003PDTR-76 |
| Standards | ISO 13399; ANSI |
| Cutting Edge Style | Honed; Chamfered |
| Manufacturers Catalog Number | APKT 1003PDTR-76 IC328 |
| Cutter Series Compatibility | HM90-10 |
| Chip Breaker | 76 |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.2640 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4330 |
| Country of Origin | Israel |
