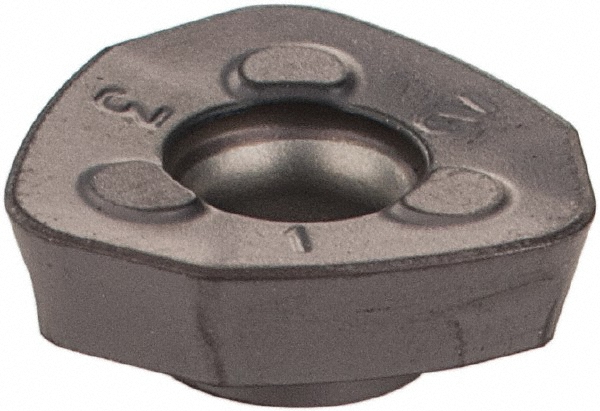

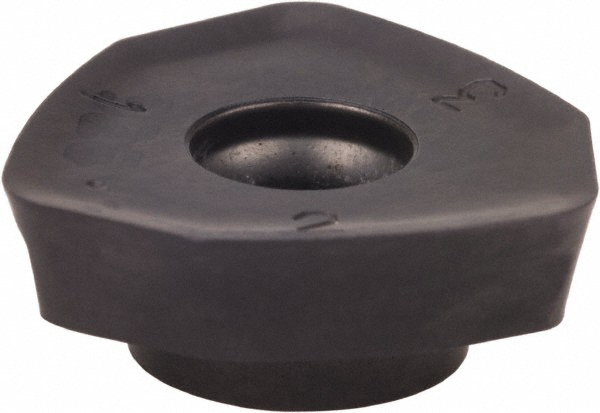

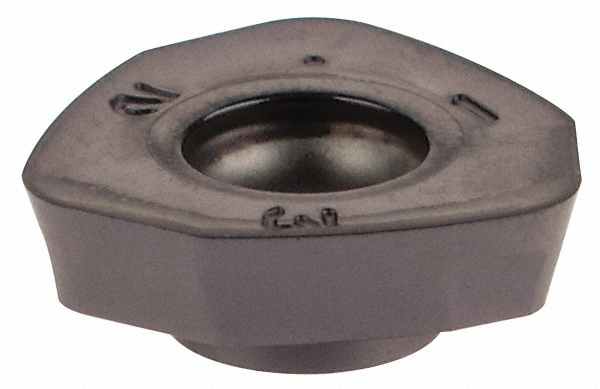

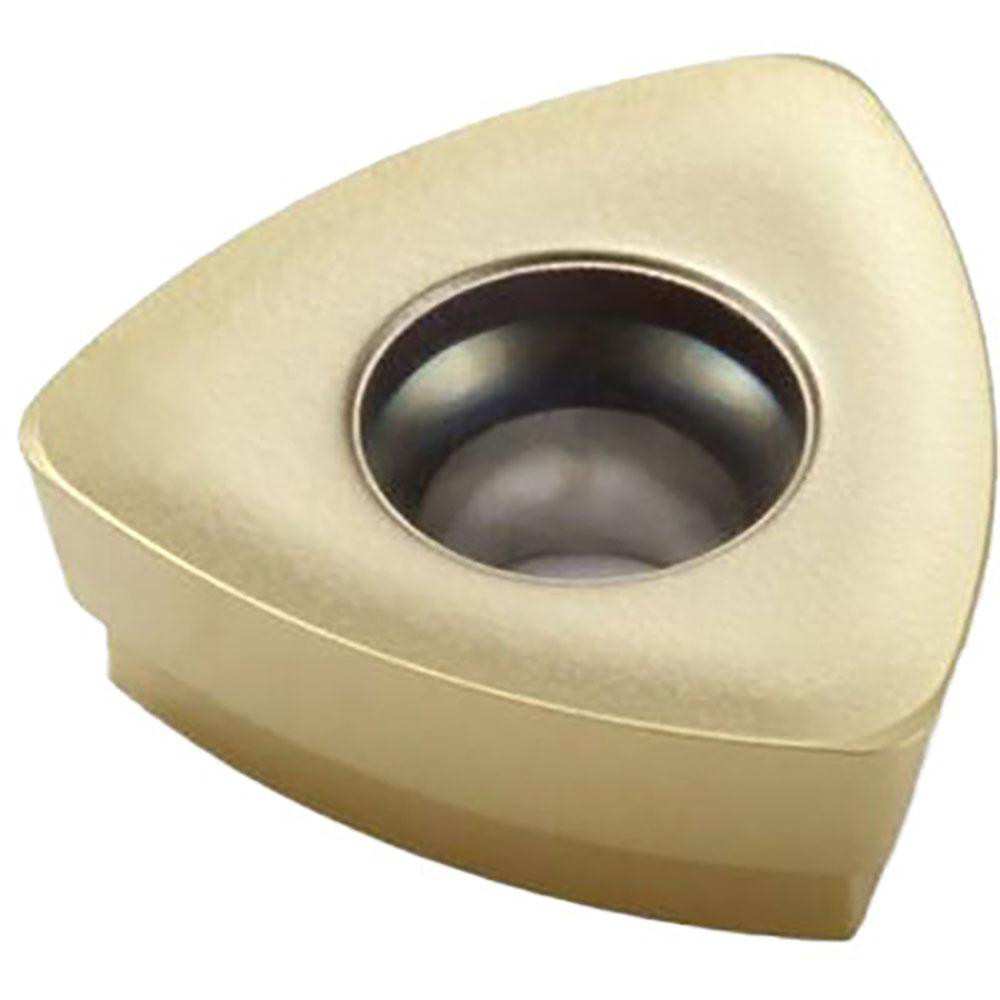

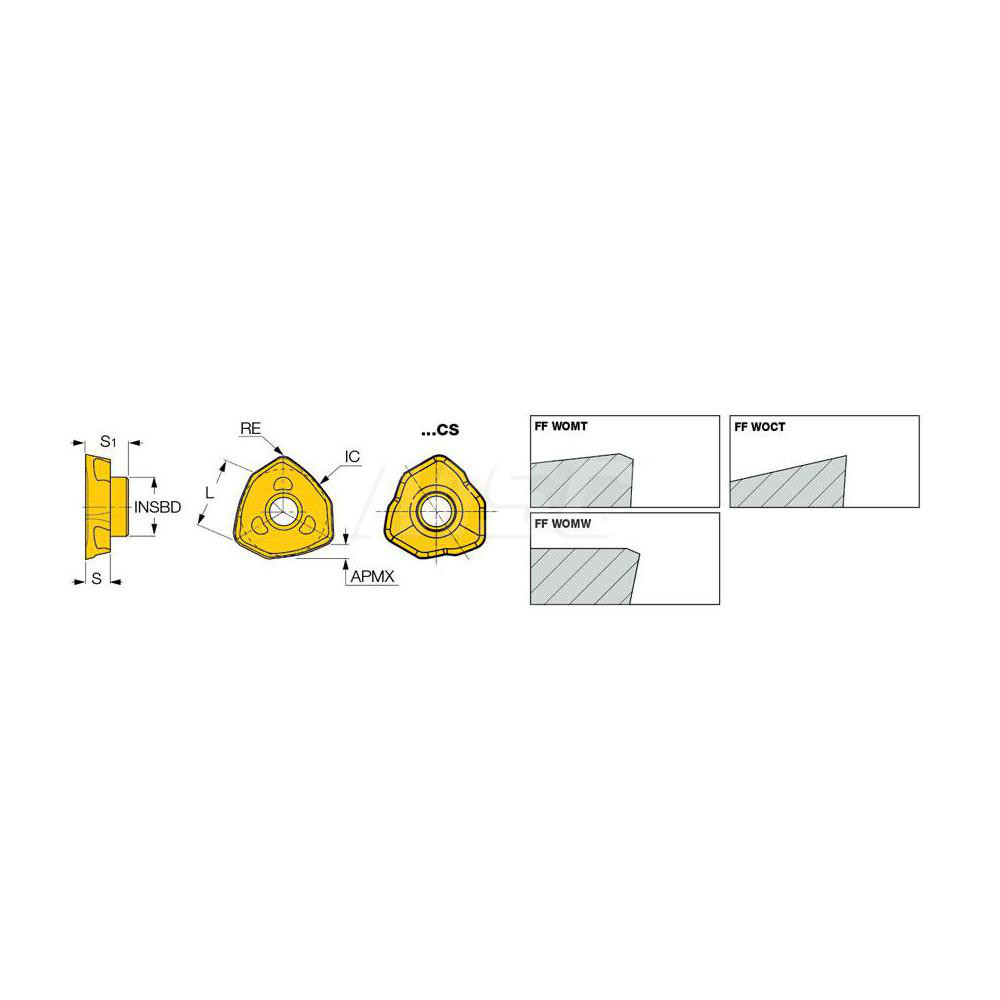

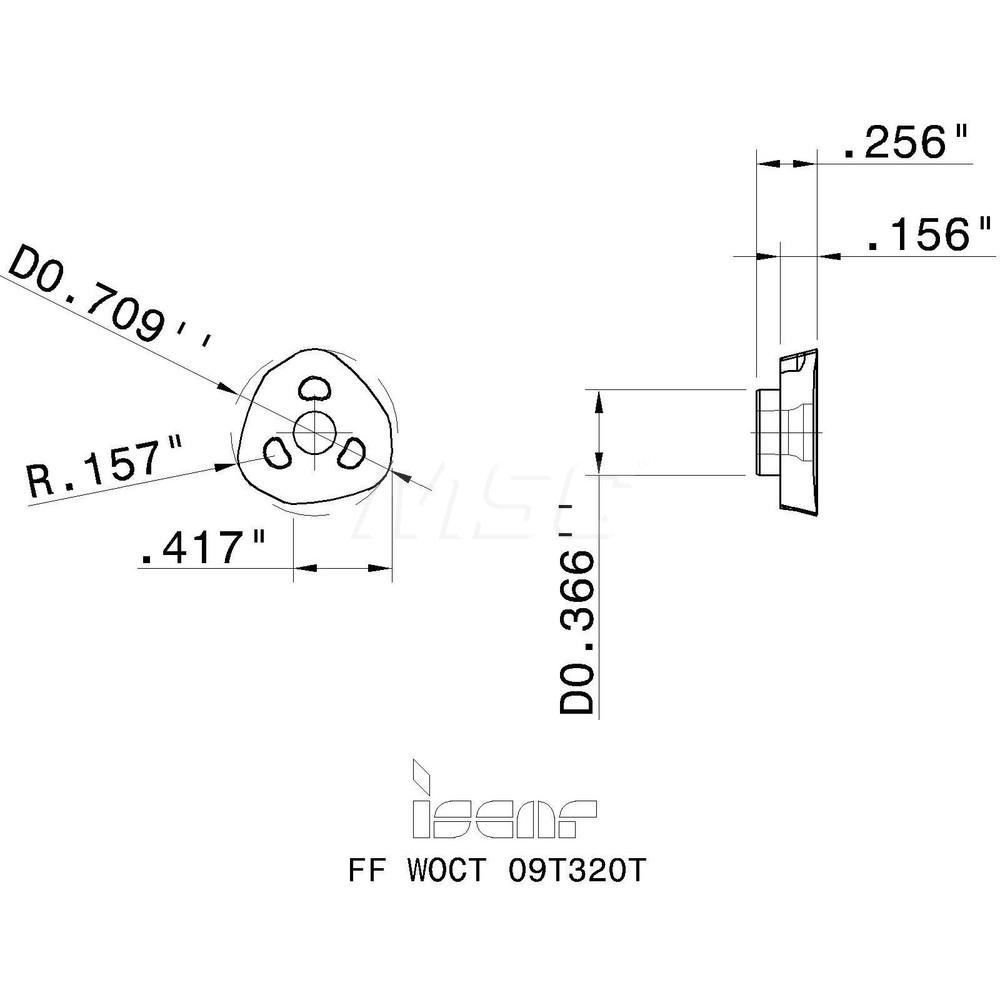

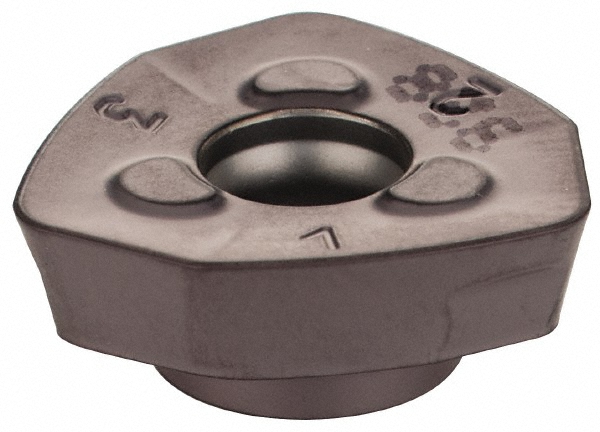

TiAlN Finish, 0.1560" Thick, 0.5709" Wide
| Insert Style | WOCT |
|---|---|
| Insert Size | 09 |
| Insert Material | Solid Carbide |
| Insert Shape | Trigon |
| Manufacturer Grade | IC928 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (mm) | 2.00 |
| Number Of Cutting Edges | 3 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1560 |
| Coating/Finish | TiAlN |
| Insert Size Code | 09T320 |
| Material Grade | C5; C6; C1; C2 |
| Thickness (Inch) | 5/32 |
| Inscribed Circle (Decimal Inch) | 0.5709 |
| Inscribed Circle (mm) | 18.00 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 to 0.6000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Maximum Depth of Cut (mm) | 2.00 |
| Series | FEEDMILL |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.4173 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material Code | S |
| Ansi Code | FF WOCT 09T320T IC928 |
| Iso Code | FF WOCT 09T320T |
| Standards | ISO 13399; ANSI |
| Cutting Edge Style | High Feed Rate |
| Manufacturers Catalog Number | FF WOCT 09T320T IC928 |
| Cutter Series Compatibility | FF EW; FF FW |
| Chip Breaker | T |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 80 |
| Width (Decimal Inch - 4 Decimals) | 0.5709 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5709 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 65279275 |
