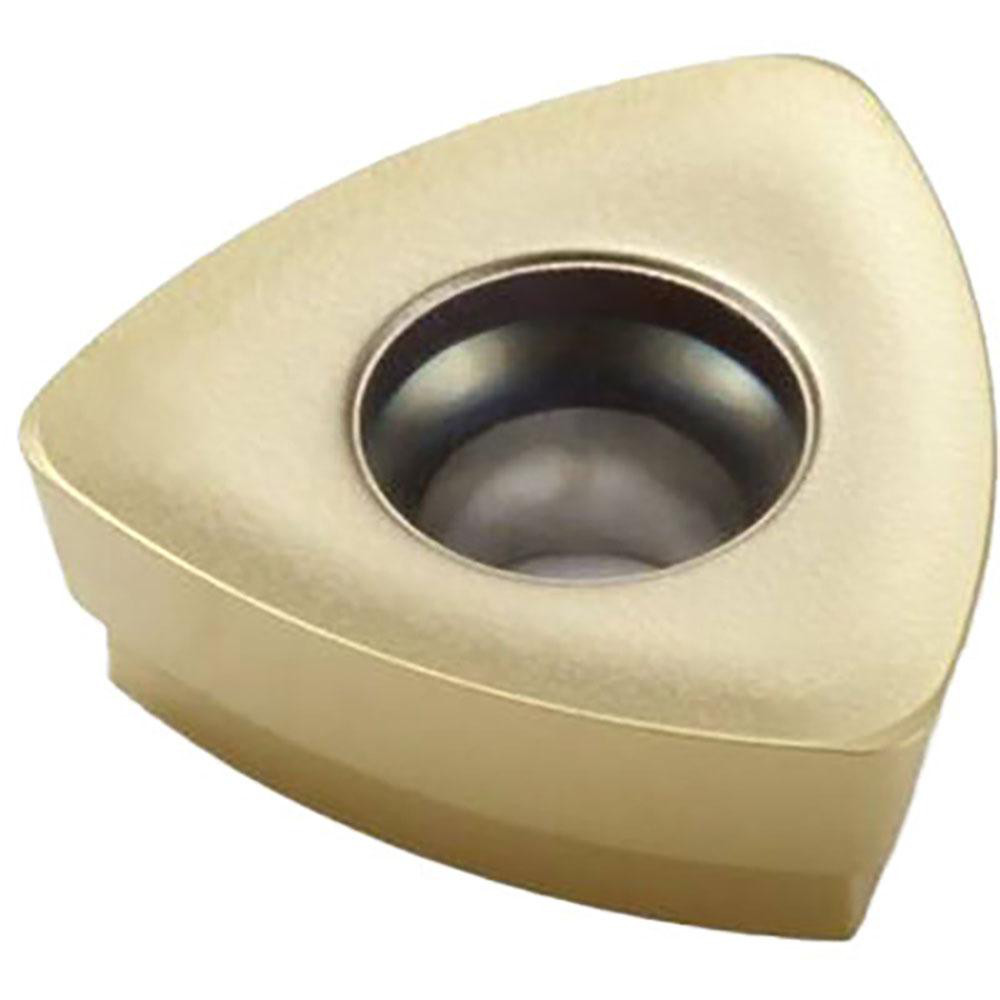

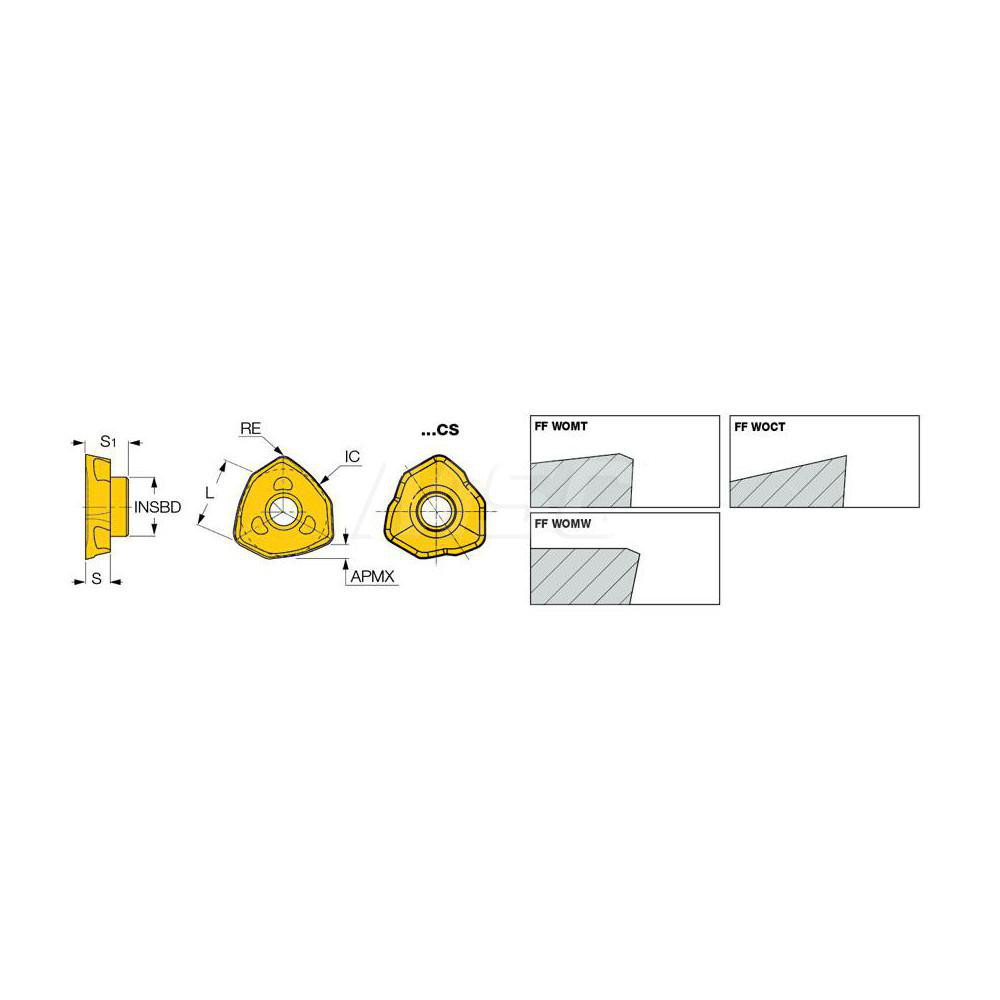

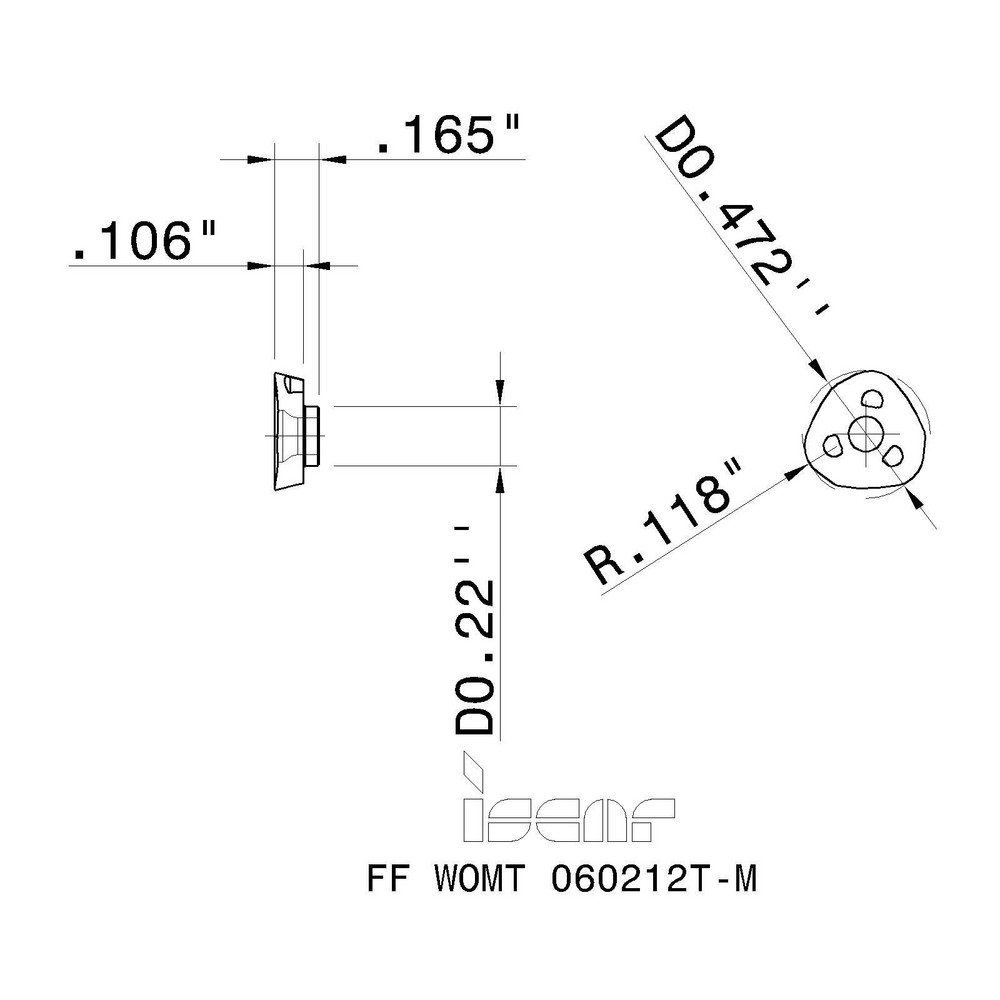

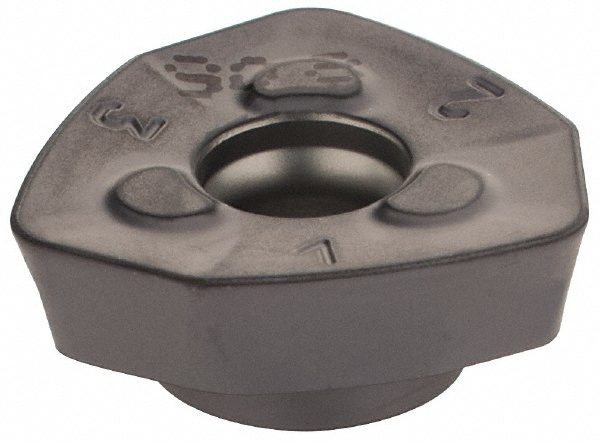

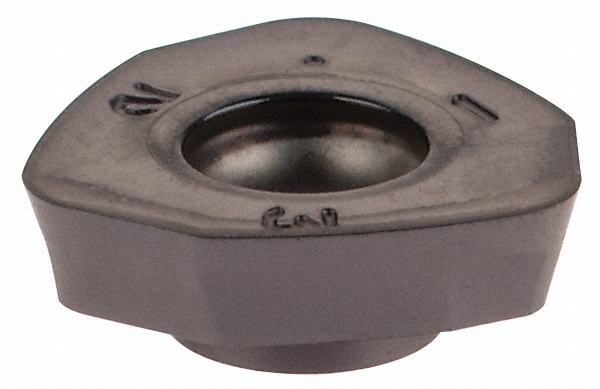

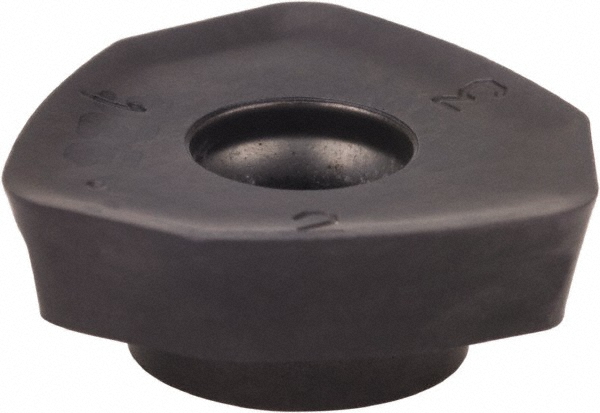

TiAlN Finish, 0.1060" Thick, 0.3882" Wide
| Insert Style | WOMT |
|---|---|
| Insert Size | 06 |
| Insert Material | Solid Carbide |
| Insert Shape | Trigon |
| Manufacturer Grade | IC908 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (mm) | 2.00 |
| Number Of Cutting Edges | 3 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1060 |
| Coating/Finish | TiAlN |
| Insert Size Code | 060212 |
| Material Grade | Submicron |
| Inscribed Circle (Decimal Inch) | 0.3882 |
| Inscribed Circle (mm) | 12.00 |
| Thickness Range (Decimal Inch) | 0.1000 to 0.1250 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.0470 |
| Maximum Depth of Cut (mm) | 1.50 |
| Series | FEEDMILL |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.2756 |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Secondary Workpiece Material Code | S; H |
| Ansi Code | FF WOMT 060212T-M IC908 |
| Iso Code | FF WOMT 060212T-M |
| Standards | ISO 13399; ANSI |
| Cutting Edge Style | High Feed Rate |
| Manufacturers Catalog Number | FF WOMT 060212T-M IC908 |
| Cutter Series Compatibility | FF EW; FF FW |
| Chip Breaker | M |
| UNSPSC Code | 23291601 |
| Material Application | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 80 |
| Width (Decimal Inch - 4 Decimals) | 0.3882 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3882 |
| Country of Origin | Israel |
| MSC Number | MSC# 01738749 |
