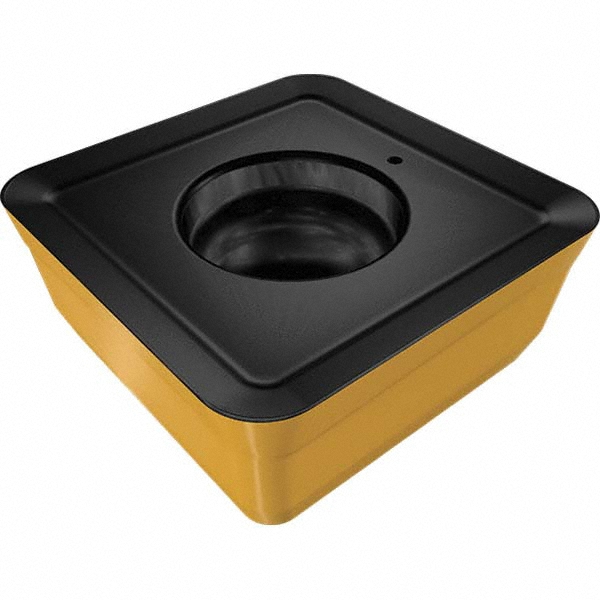

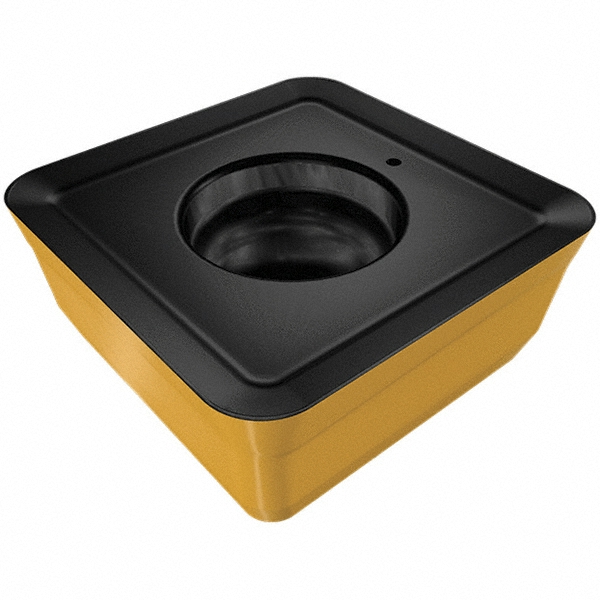

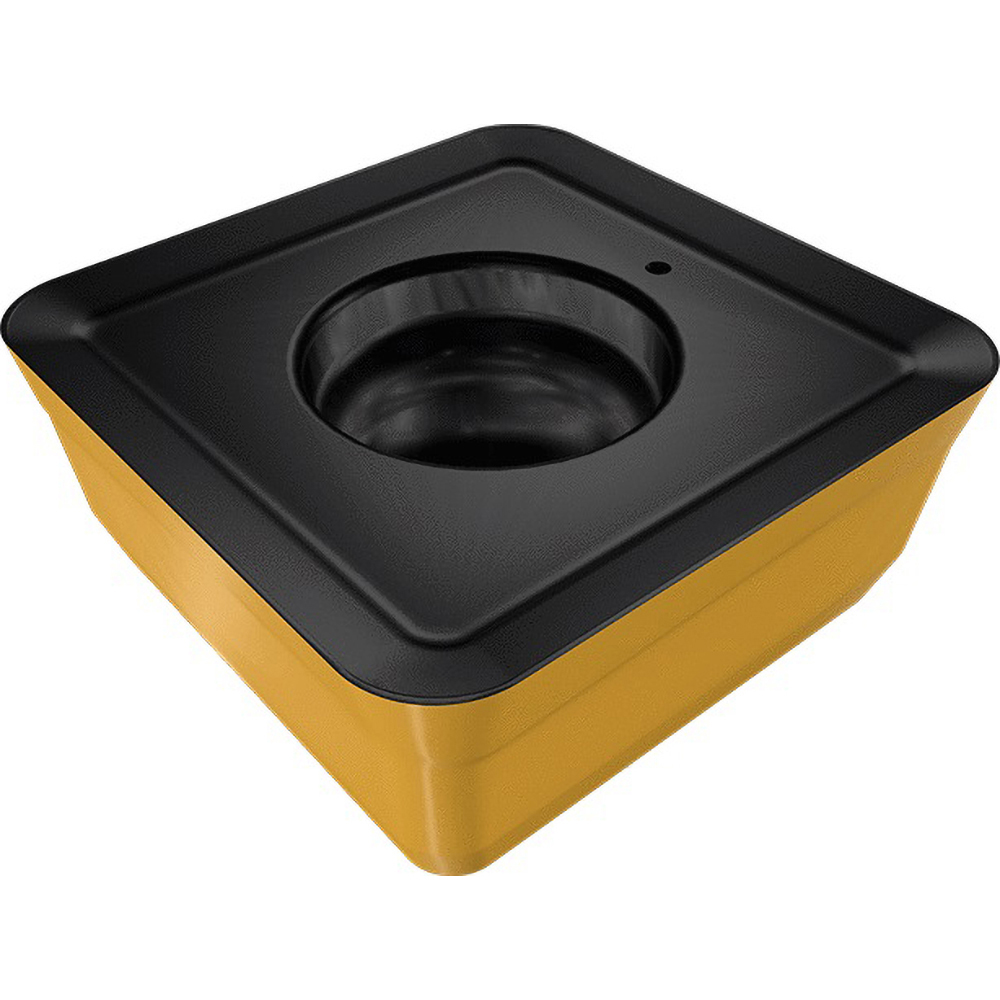

AlTiN & TiN Finish, 3.90 mm Thick, 8.50 mm Wide
| Insert Style | SOMT |
|---|---|
| Insert Size | 09 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | IC830 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Corner Radius (mm) | 1.20 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1540 |
| Thickness (mm) | 3.90 |
| Coating/Finish | AlTiN; TiN |
| Insert Size Code | 090412 |

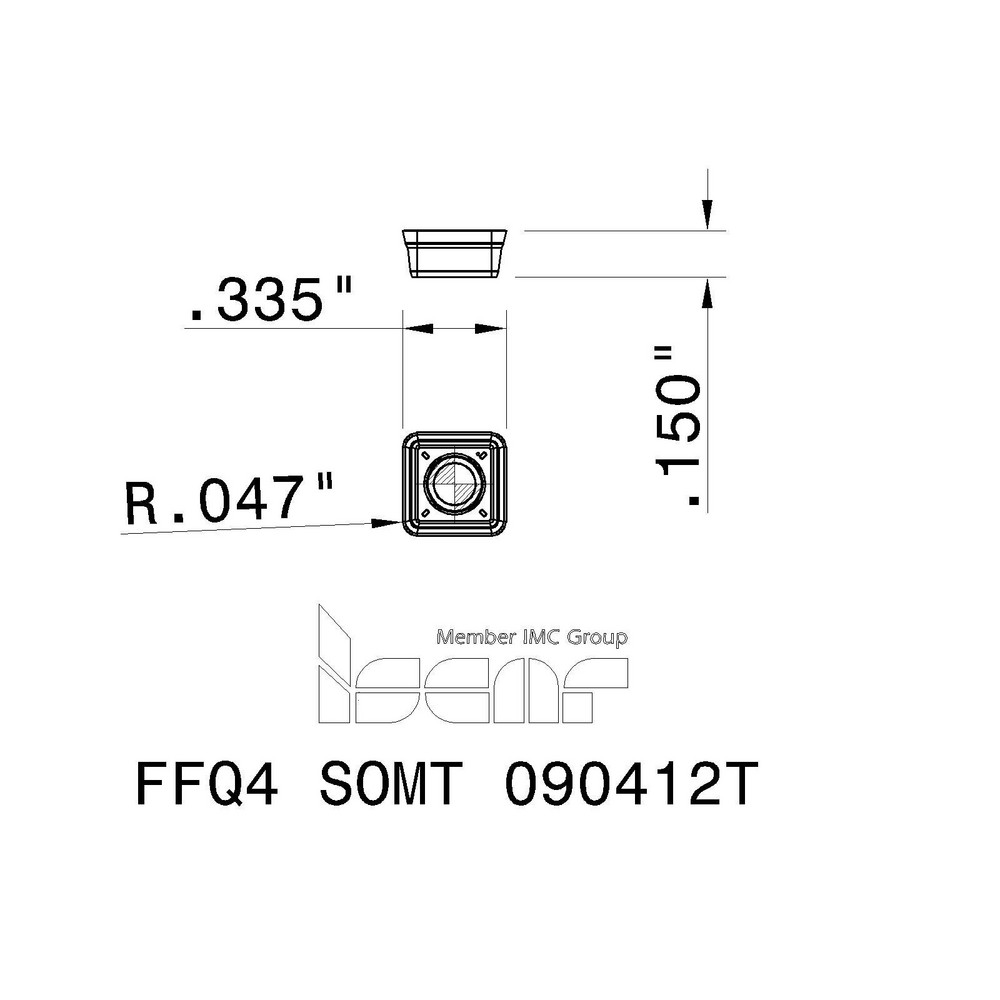

| Inscribed Circle (Decimal Inch) | 0.3350 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Corner Radius (Inch) | 3/64 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.0390 |
| Maximum Depth of Cut (mm) | 1.50 |
| Series | MILL4FEED |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.2874 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material Code | S |
| Ansi Code | FFQ4 SOMT 090412T IC830 |
| Iso Code | FFQ4 SOMT 090412T |
| Standards | ISO 13399; ANSI |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | FFQ4 SOMT 090412T IC830 |

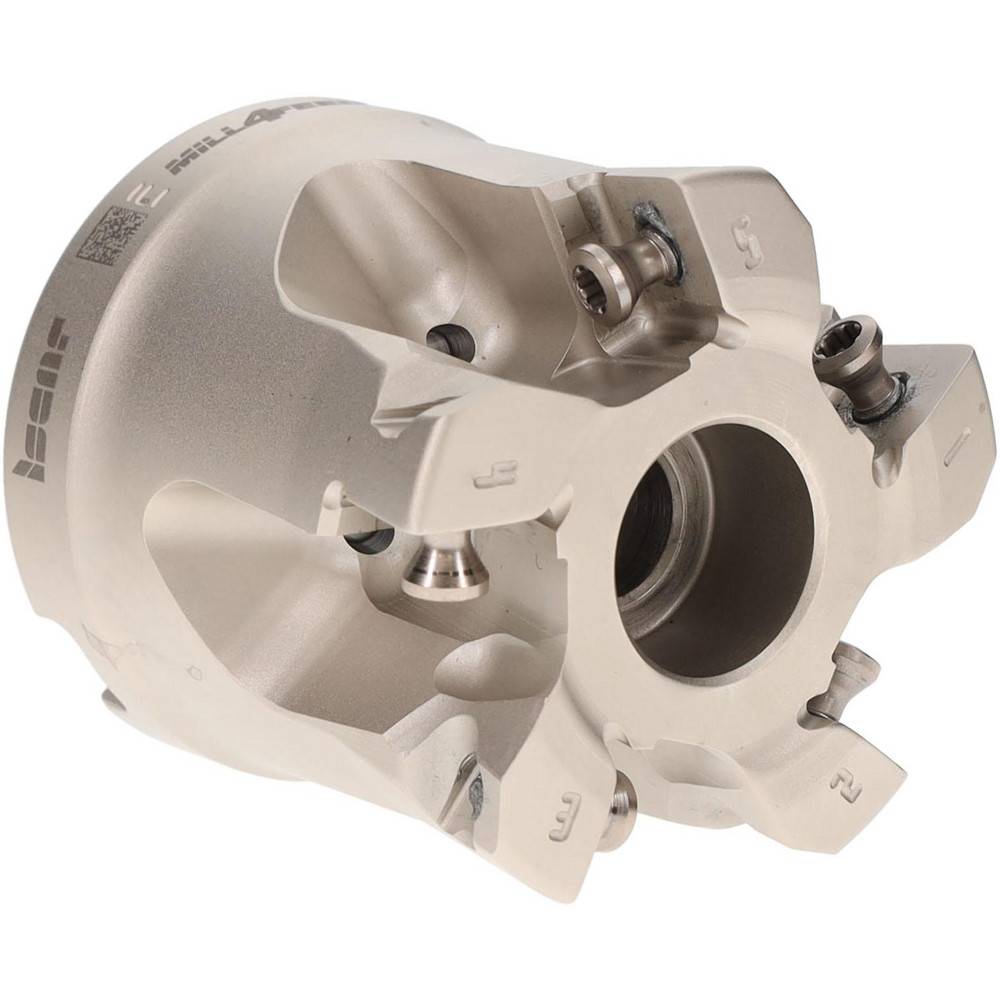

| Cutter Series Compatibility | FFQ4 |

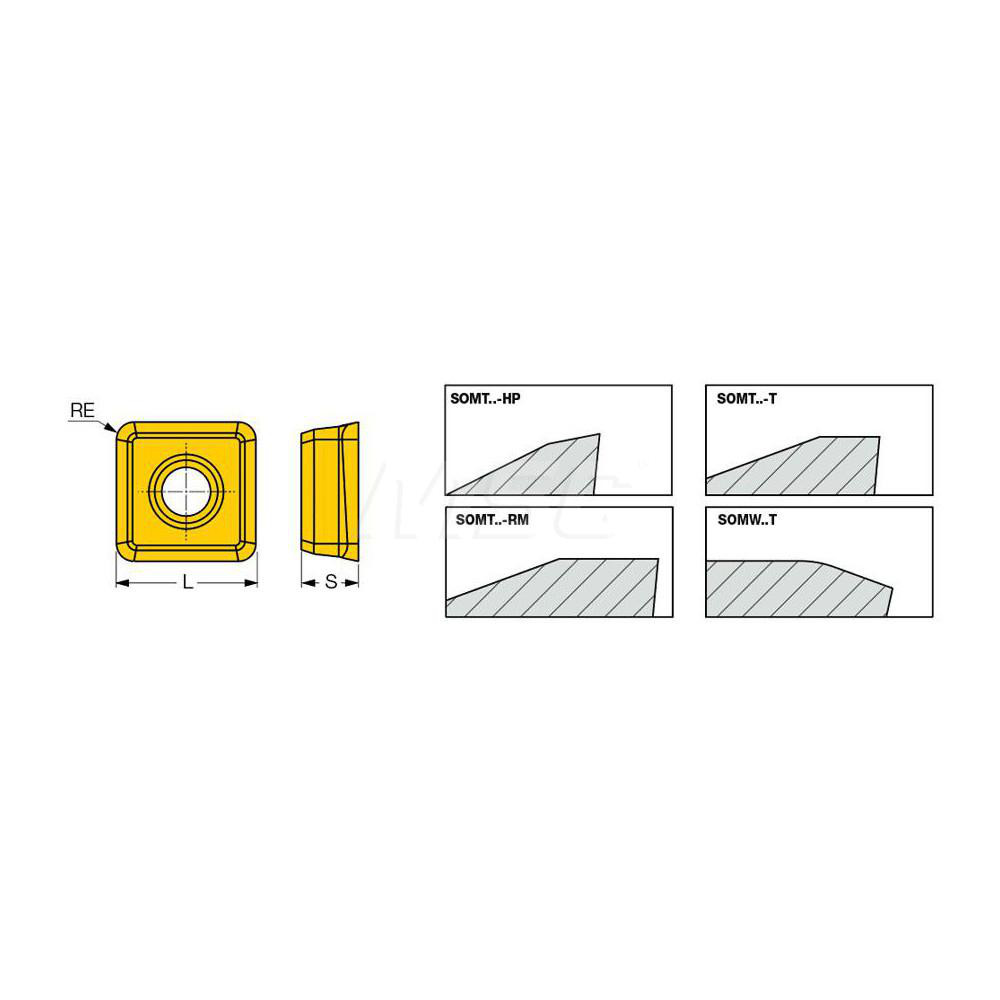

| Chip Breaker | T |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | Sumotec PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Length (mm) | 8.60 |
| Width (Decimal Inch - 4 Decimals) | 0.3346 |
| Width (mm - 2 Decimals) | 8.50 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3346 |
| Country of Origin | Israel |
