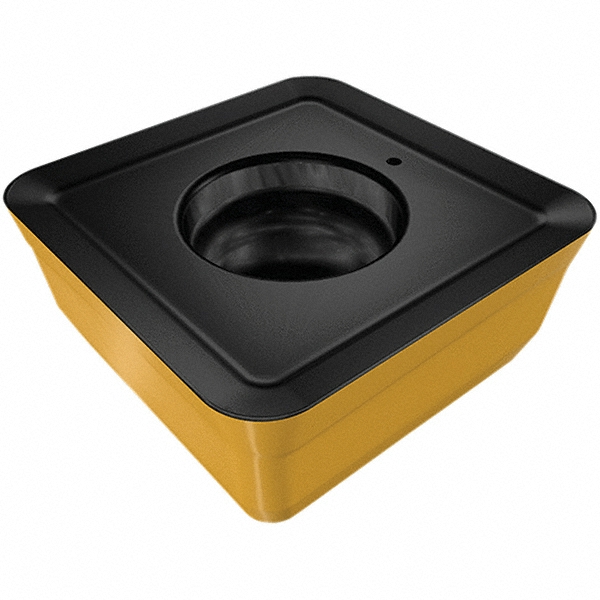

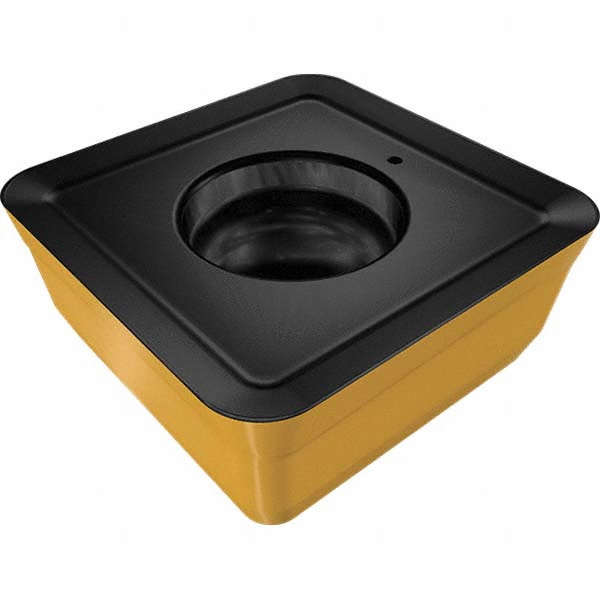

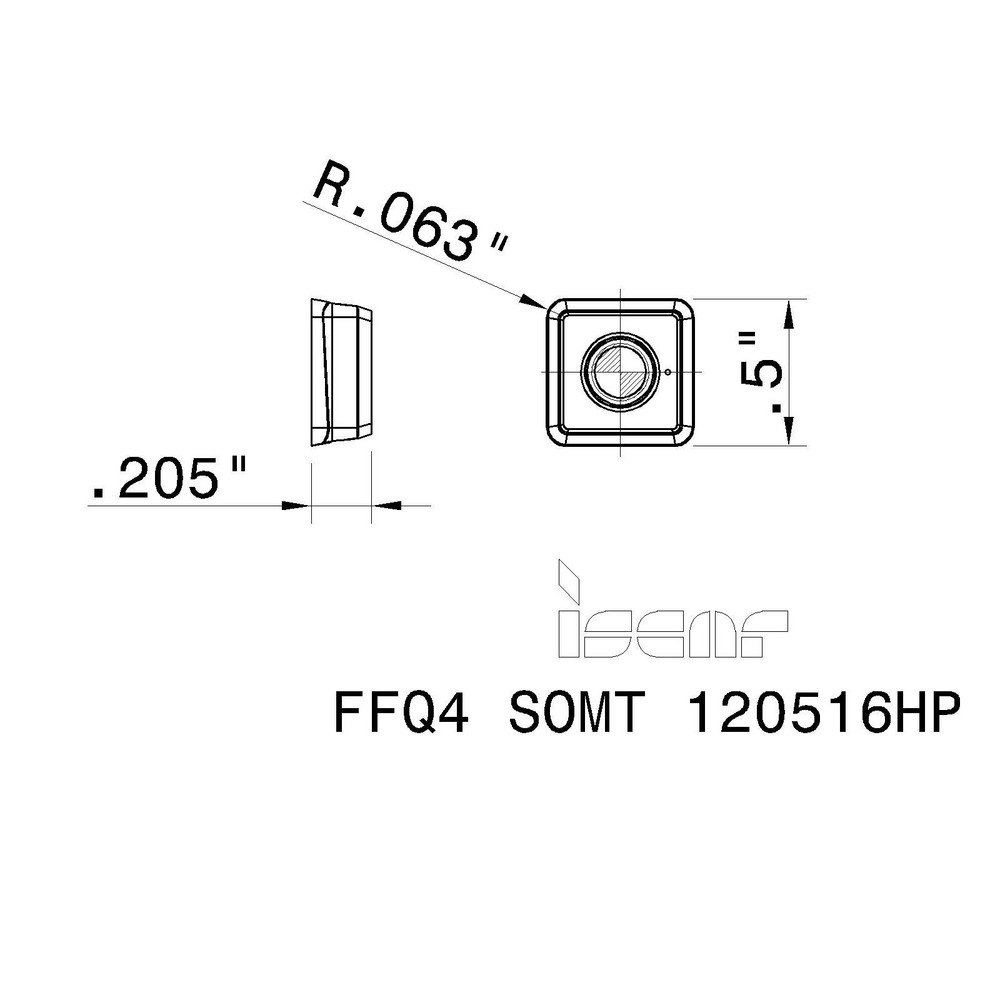

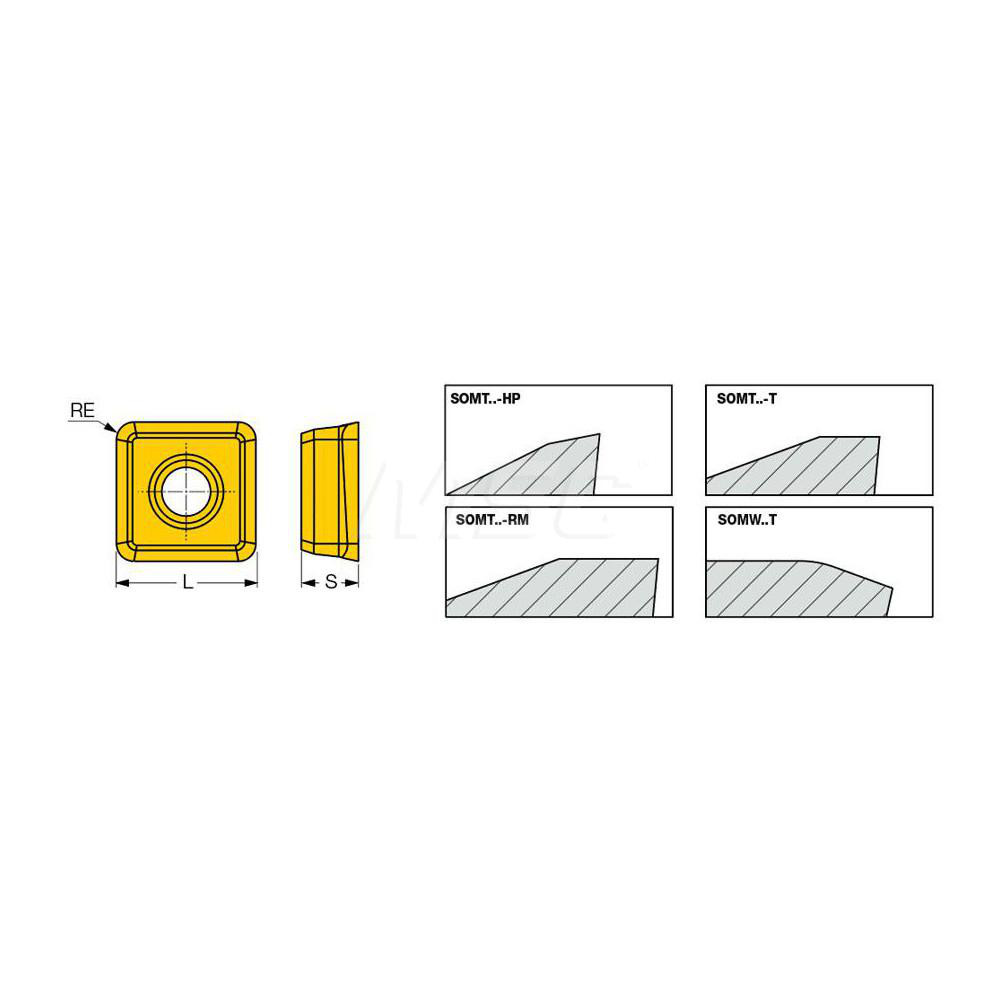

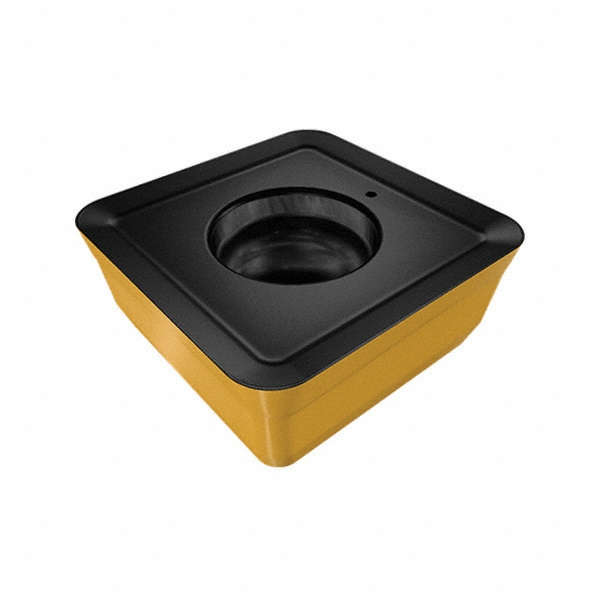

AlTiN & TiN Finish, 5.20 mm Thick, 12.70 mm Wide
| Insert Style | SOMT |
|---|---|
| Insert Size | 12 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | IC830 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2050 |
| Thickness (mm) | 5.20 |
| Coating/Finish | AlTiN; TiN |
| Relief Angle | 25.00 |
| Insert Size Code | 120516 |
| Width (Inch) | 1/2 |
| Length (Inch) | 1/2 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Corner Radius (Inch) | 1/16 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.5100 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Series | MILL4FEED |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.2640 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material Code | S |
| Ansi Code | FFQ4 SOMT 120516HP IC830 |
| Iso Code | FFQ4 SOMT 120516HP |
| Standards | ISO 13399; ANSI |
| Cutting Edge Style | Continuous |
| Manufacturers Catalog Number | FFQ4 SOMT 120516HP IC830 |
| Cutter Series Compatibility | FFQ4 |
| Chip Breaker | HP |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | Sumotec PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Length (mm) | 12.70 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Width (mm - 2 Decimals) | 12.70 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5000 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 46672598 |
