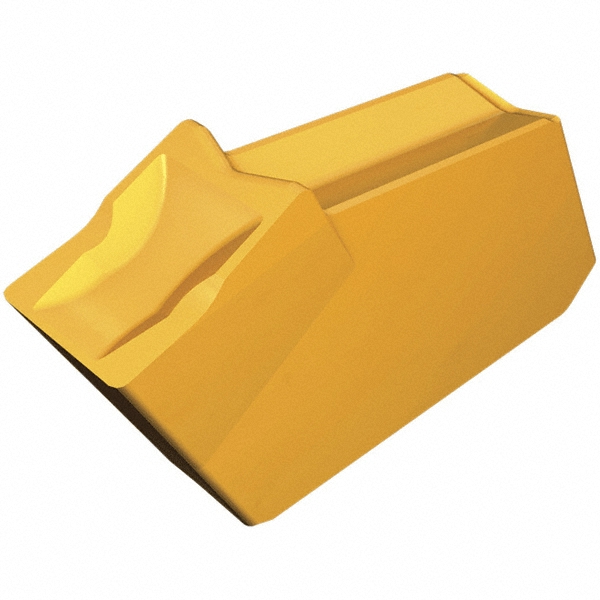

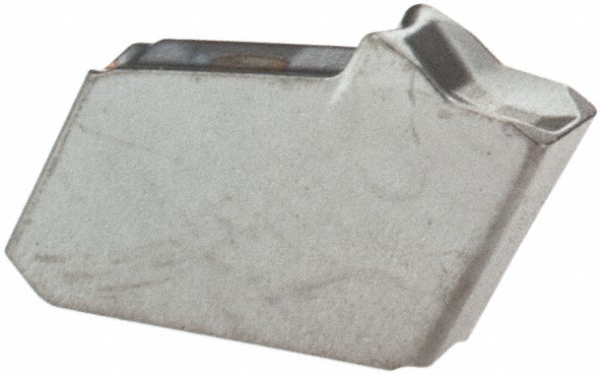

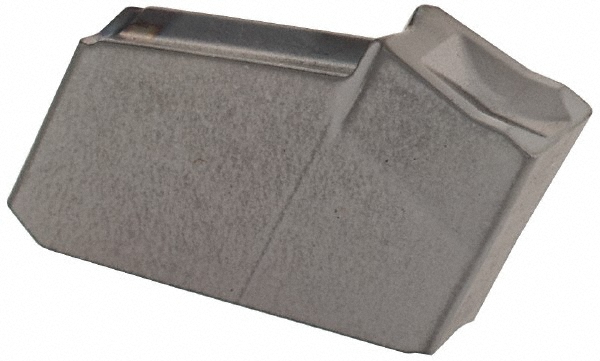

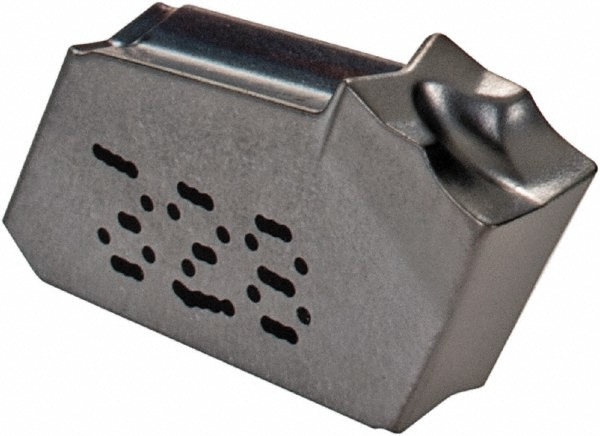

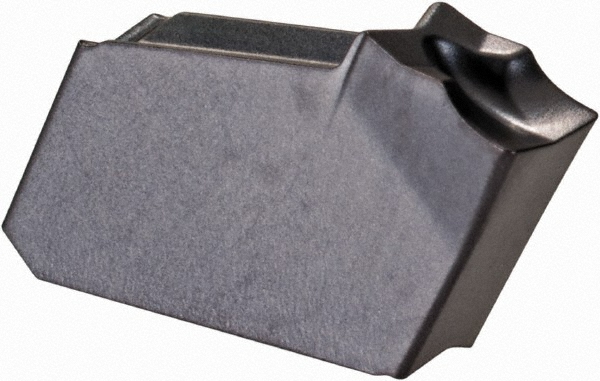

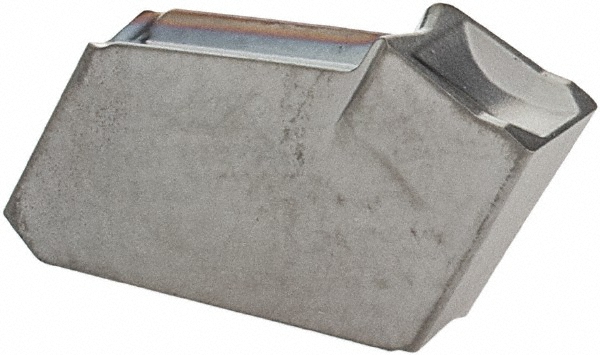

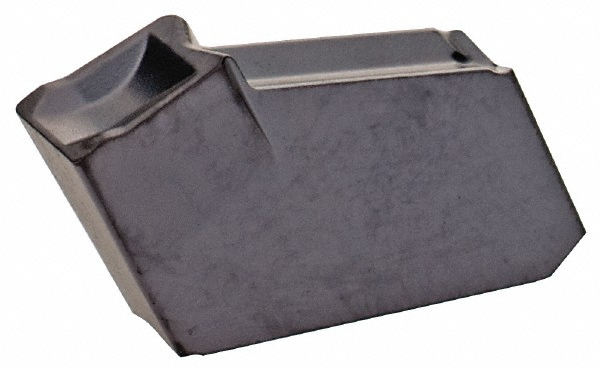

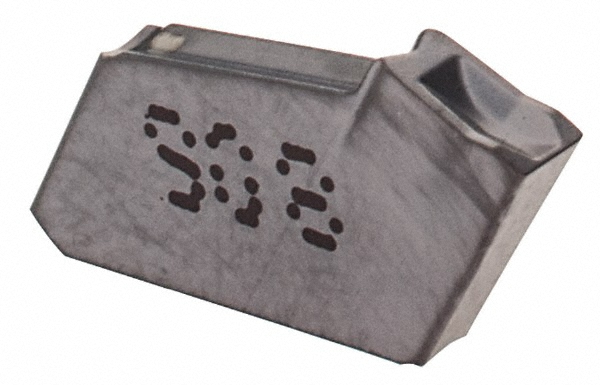

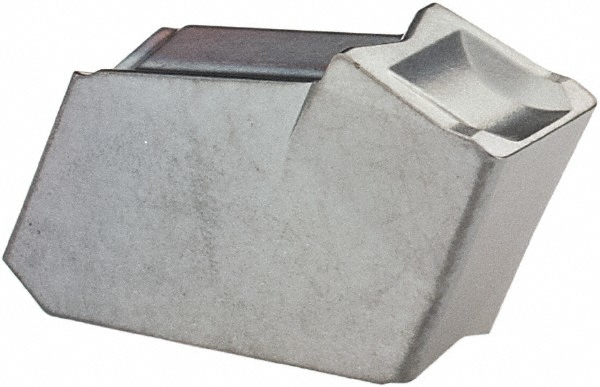

TiCN Finish

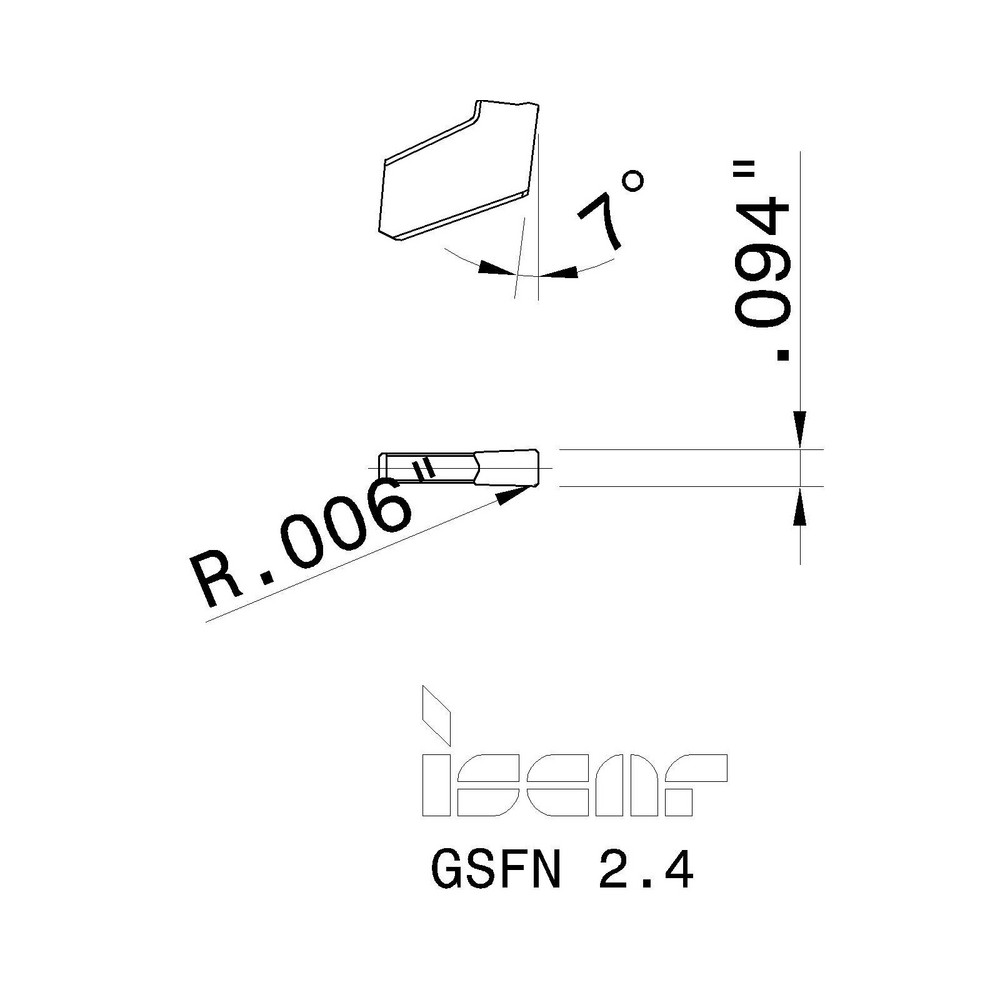

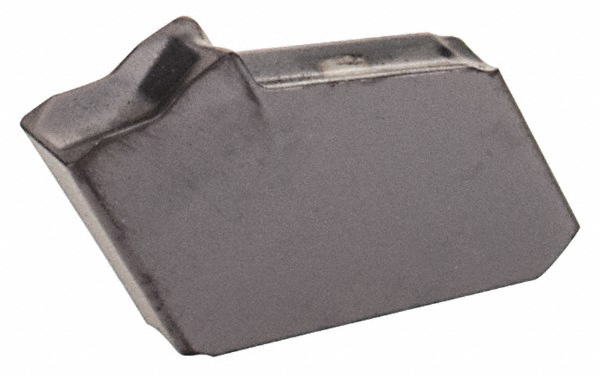

| Insert Style | GSFN |
|---|---|
| Insert Size | 2.4 |
| Insert Material | Solid Carbide |
| Insert Shape | Rectangle |
| Manufacturer Grade | IC328 |

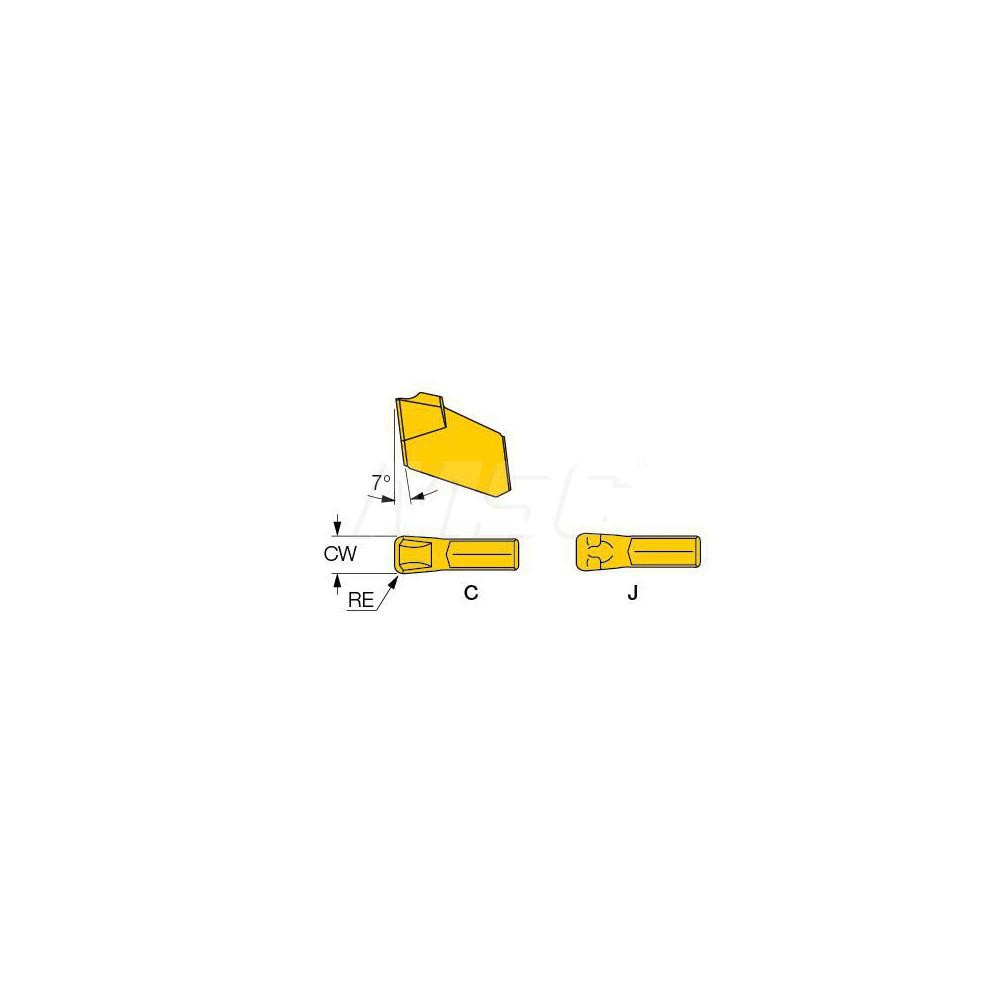

| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Number Of Cutting Edges | 1 |
| Coating/Finish | TiCN |
| Relief Angle | 7.00 |
| Insert Size Code | 2.4 |
| Material Grade | C3; C5; C6; C2 |
| Inscribed Circle (Decimal Inch) | 0.0949 |
| Corner Radius (Inch) | 1/128 |
| Inscribed Circle Range (Decimal Inch) | 0.0000 to 0.2500 |
| Insert Hand | Neutral |
| Series | Self Grip |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.0950 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material Code | S |
| Ansi Code | GSFN 2.4 IC328 |
| Iso Code | GSFN 2.4 |
| Standards | ISO 13399; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | GSFN 2.4 IC328 |
| Cutter Series Compatibility | SGSF |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Self Grip |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.0949 |
| Multi-Use Tool | Yes |
| Country of Origin | Israel |
| MSC Number | MSC# 52717808 |
