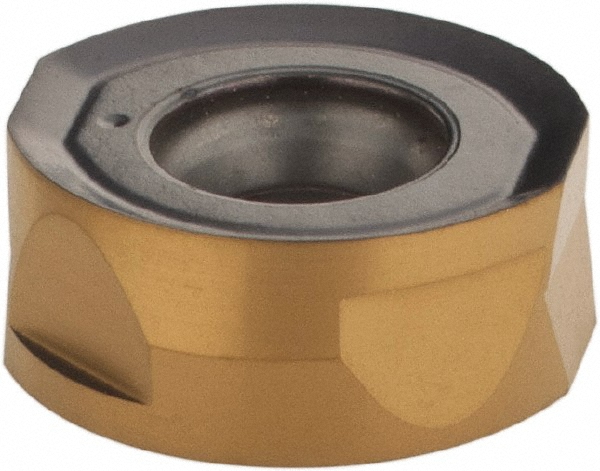

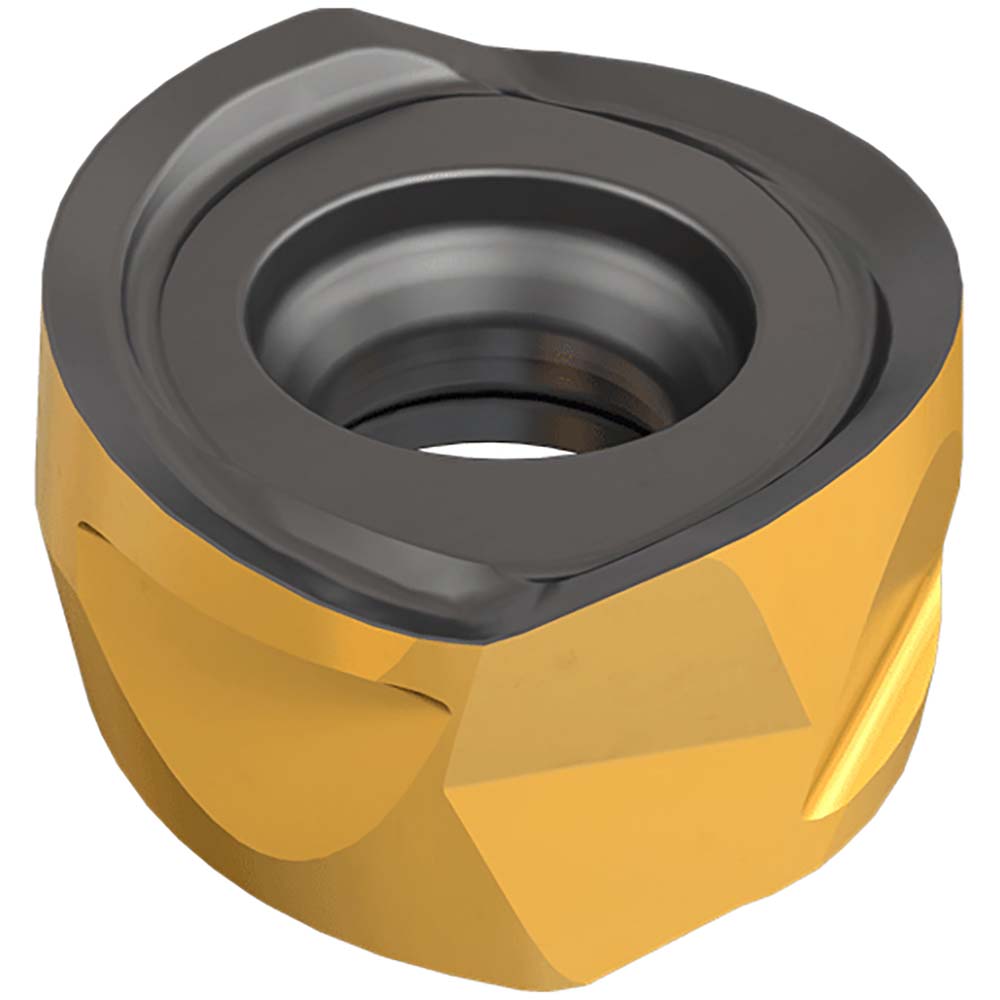

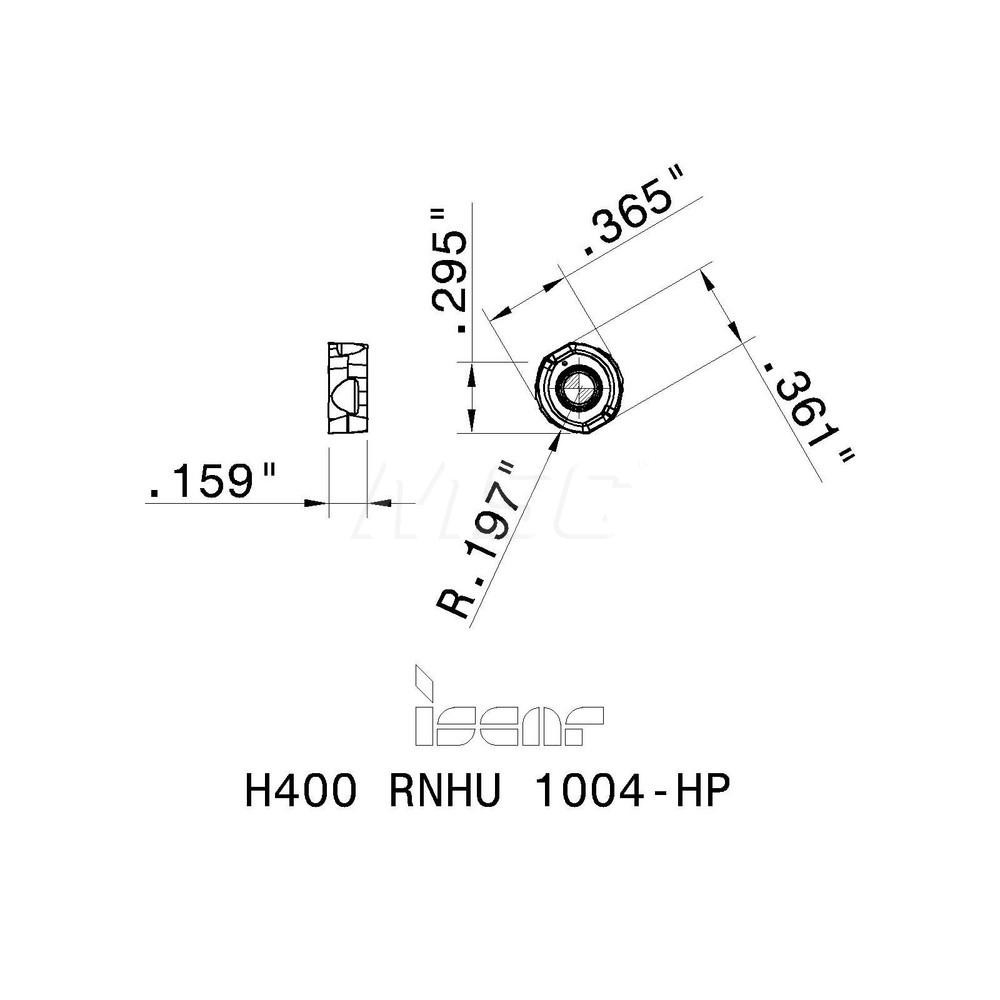

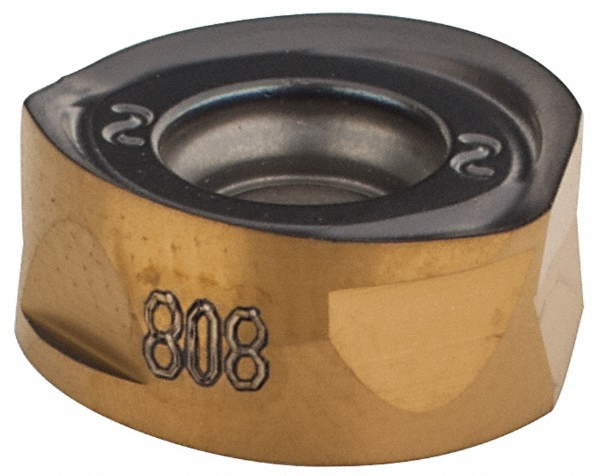

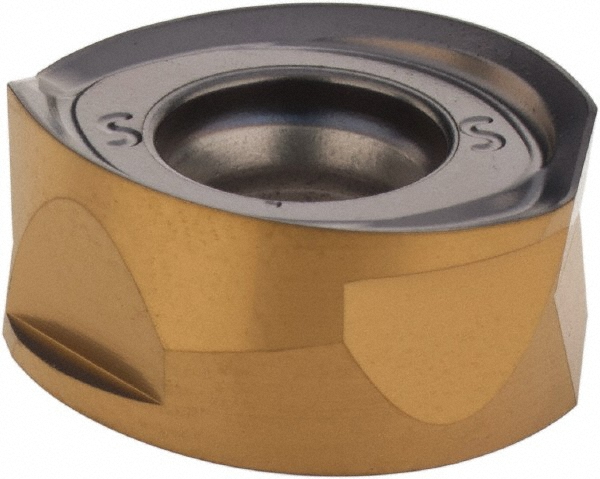

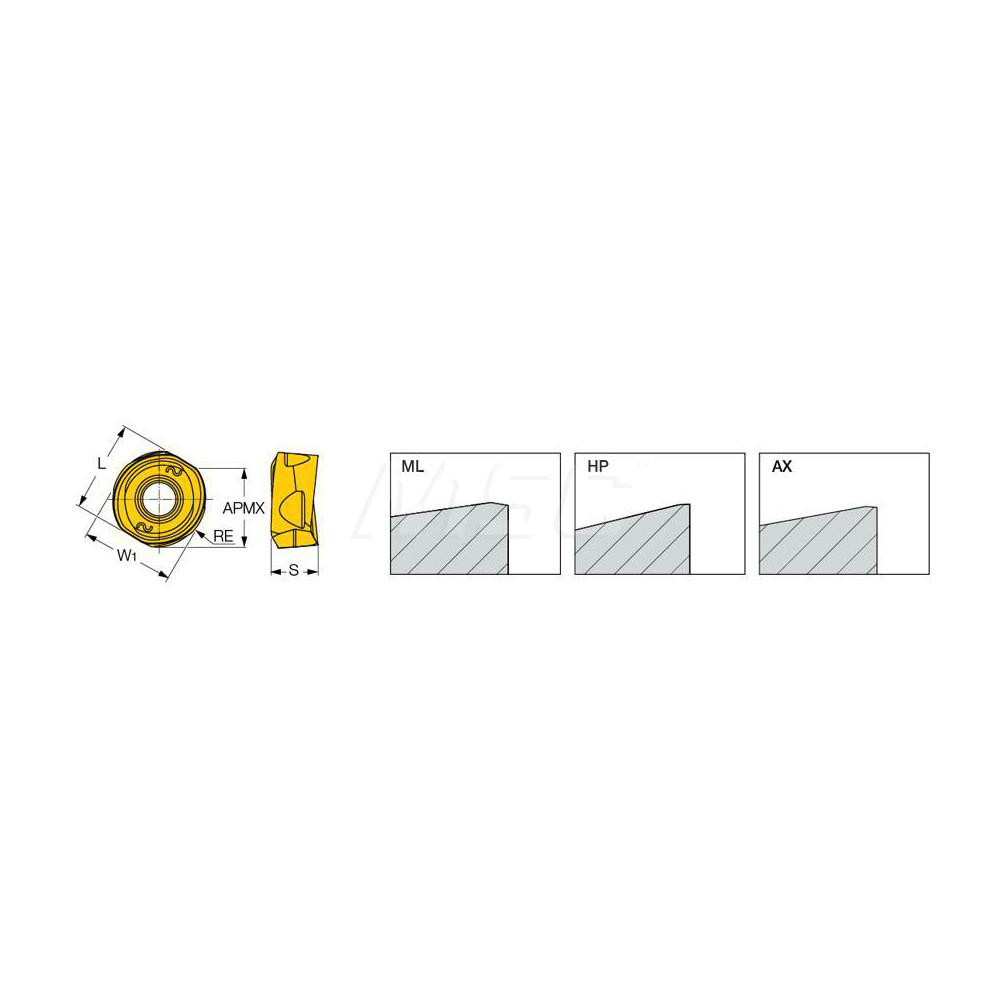

AlTiN & TiN Finish, 0.1590" Thick, 0.6299" Wide
| Insert Style | RNHU |
|---|---|
| Insert Size | 10 |
| Insert Material | Solid Carbide |
| Insert Shape | Round |
| Manufacturer Grade | IC830 |
| Corner Radius (Decimal Inch) | 0.1969 |
| Corner Radius (mm) | 5.00 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1590 |
| Coating/Finish | AlTiN; TiN |
| Relief Angle | 0.00 |
| Insert Size Code | 1004 |
| Inscribed Circle (Decimal Inch) | 0.3620 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (mm) | 7.50 |
| Series | HELIDO |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.6299 |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material Code | S |
| Ansi Code | H400 RNHU 1004-HP IC830 |
| Iso Code | H400 RNHU 1004-HP |
| Standards | ISO 13399; ANSI |
| Rake Angle | 14 |
| Cutting Edge Style | Continuous |
| Manufacturers Catalog Number | H400 RNHU 1004-HP IC830 |
| Cutter Series Compatibility | H400-10 |
| Chip Breaker | HP |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | Sumotec PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 360 |
| Width (Decimal Inch - 4 Decimals) | 0.6299 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6299 |
| Country of Origin | Israel |
| MSC Number | MSC# 71993380 |
