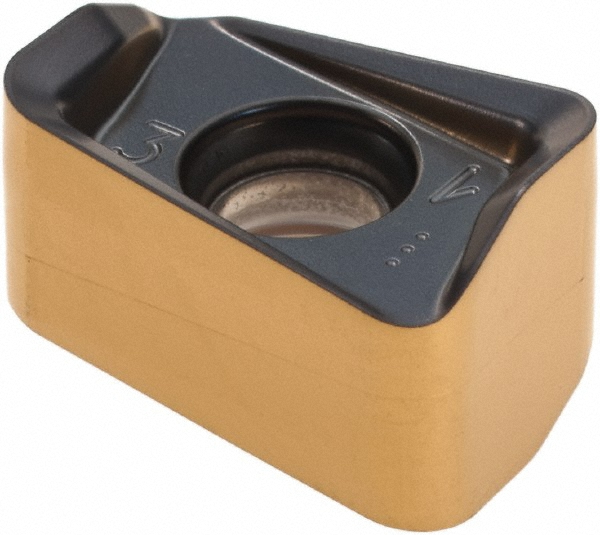

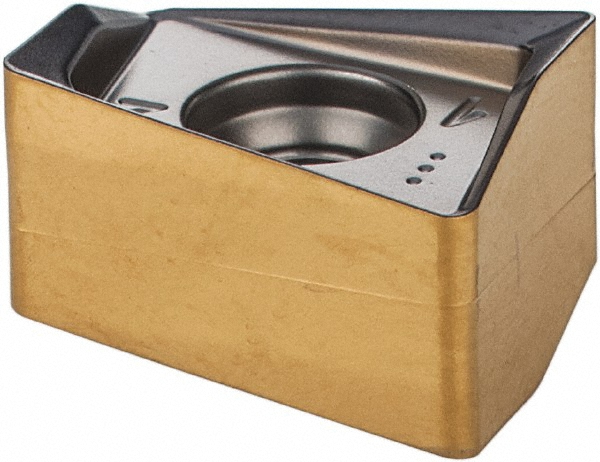

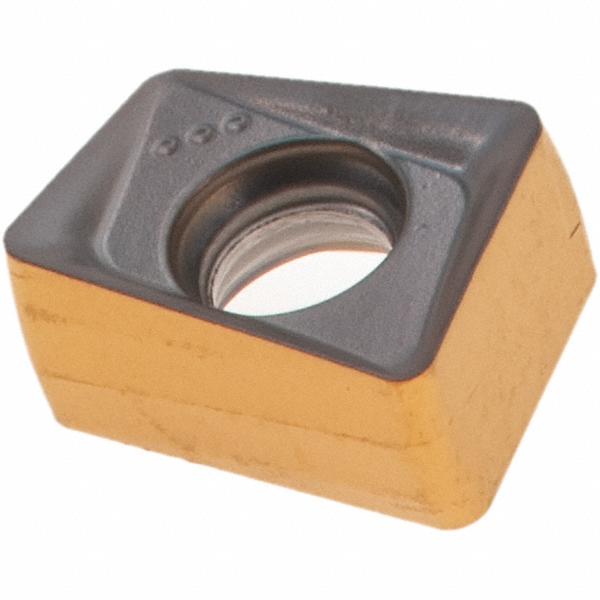

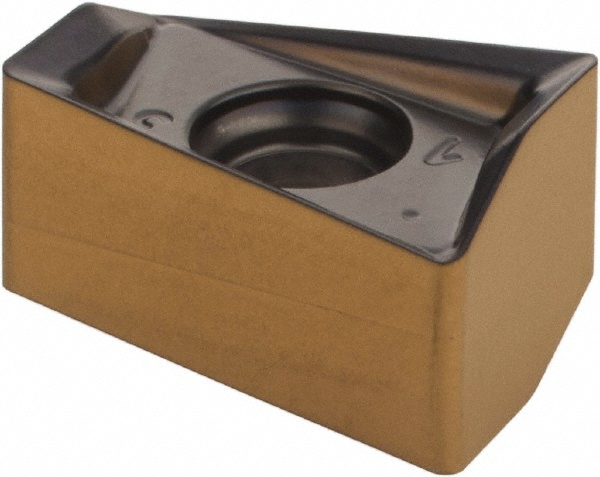

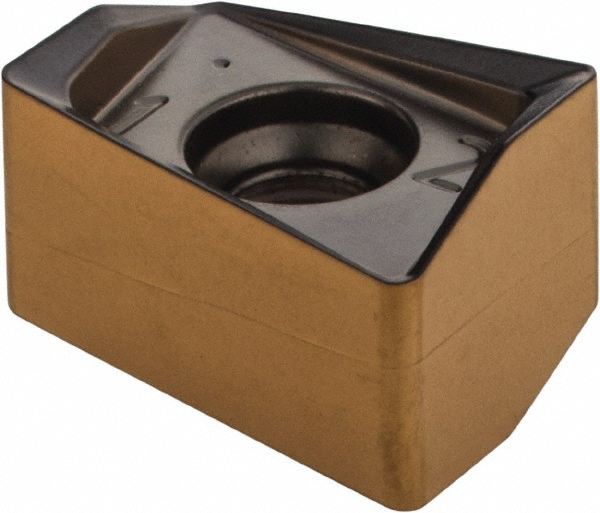

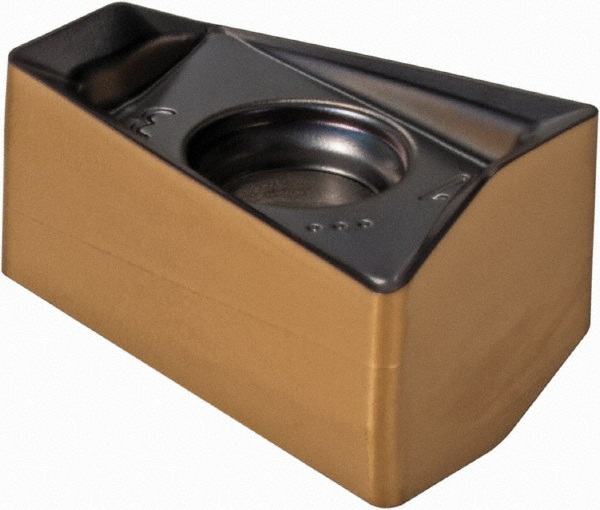

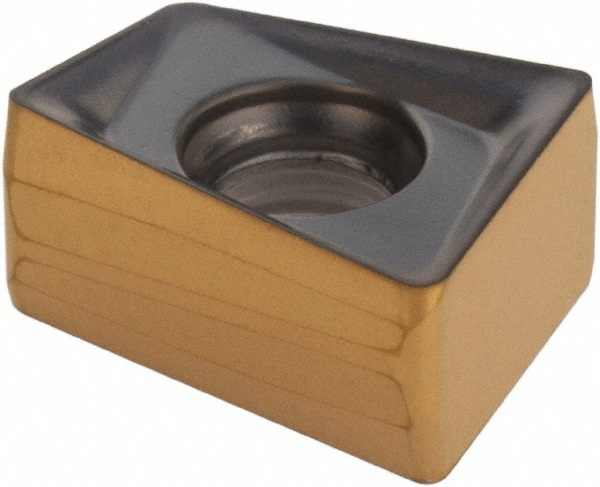

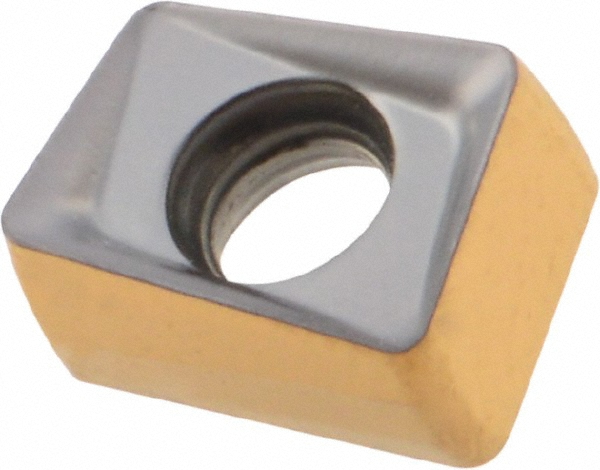

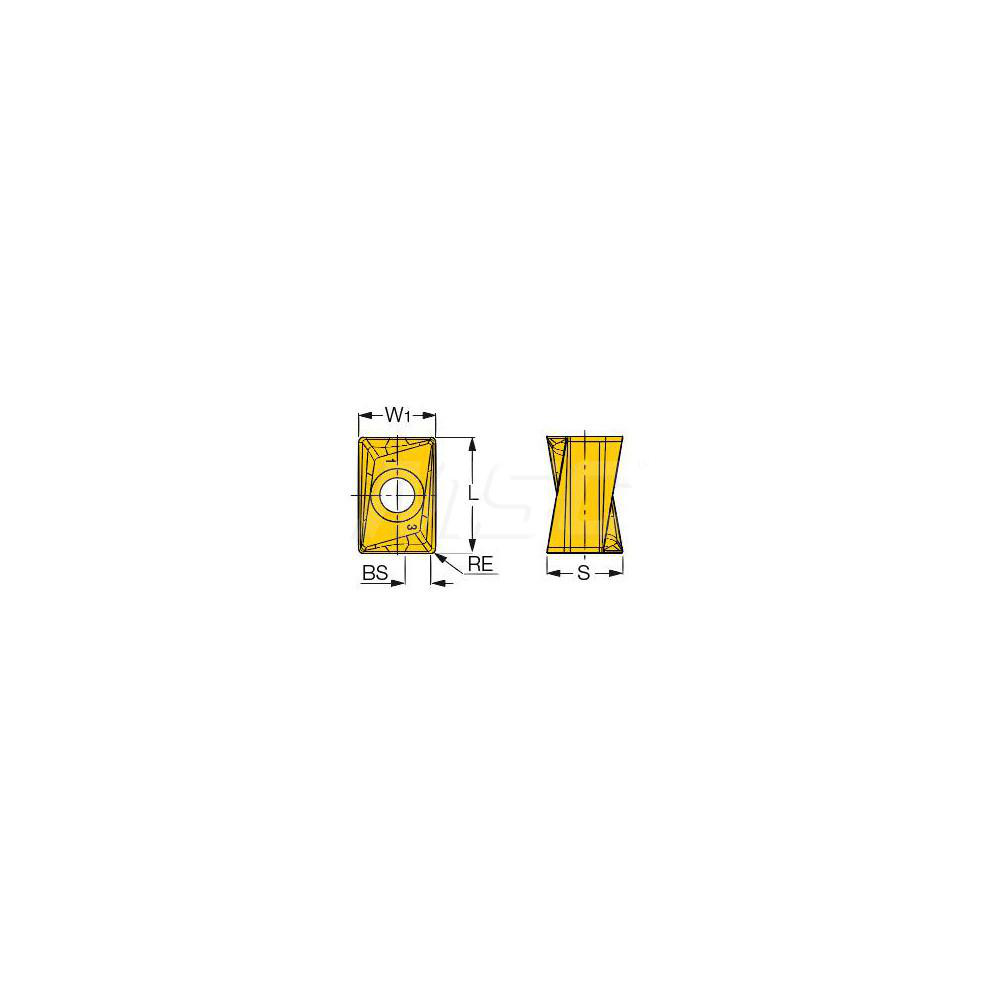

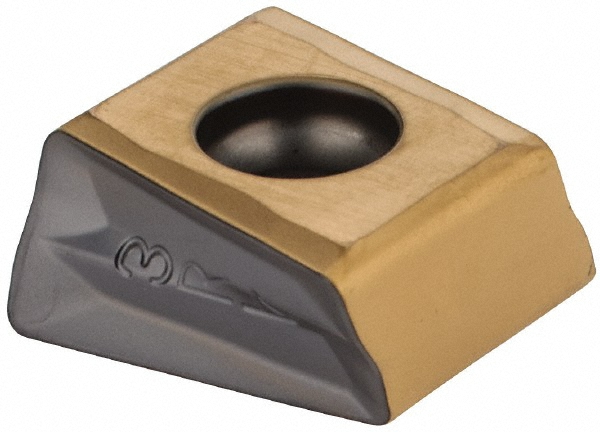

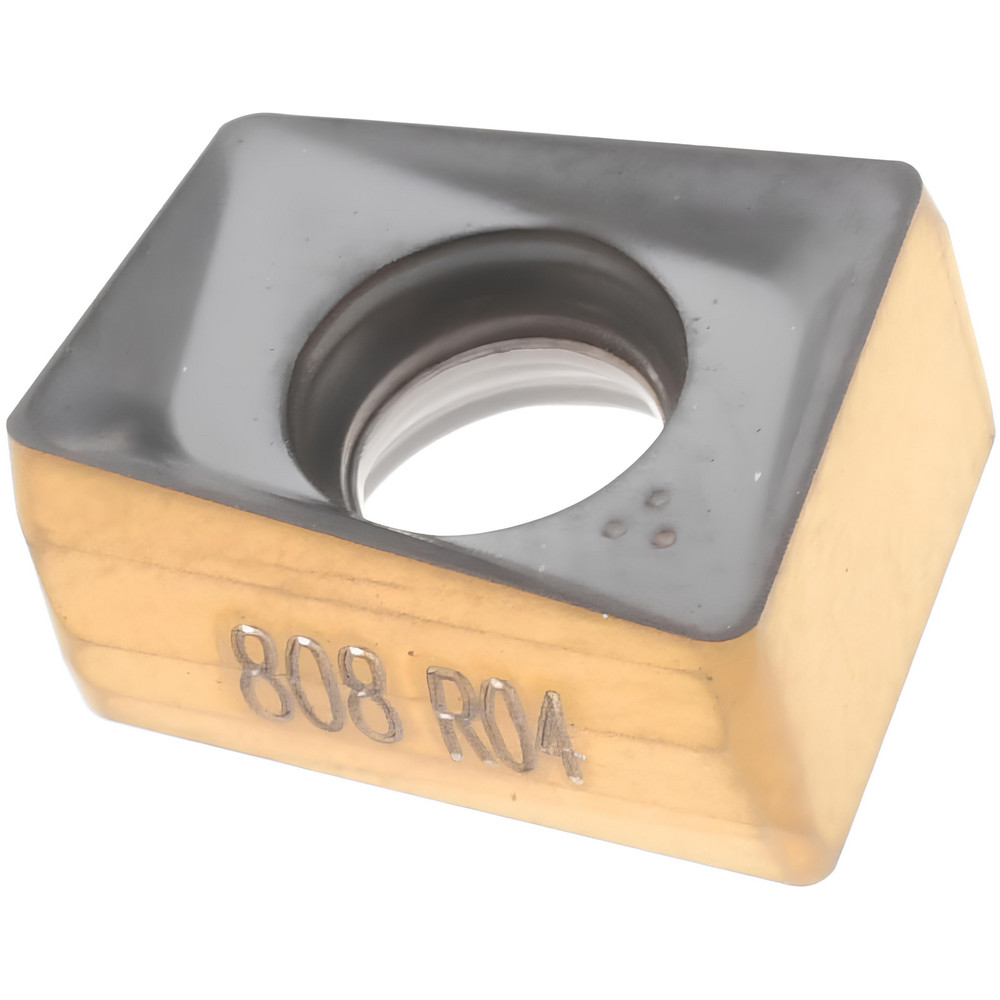

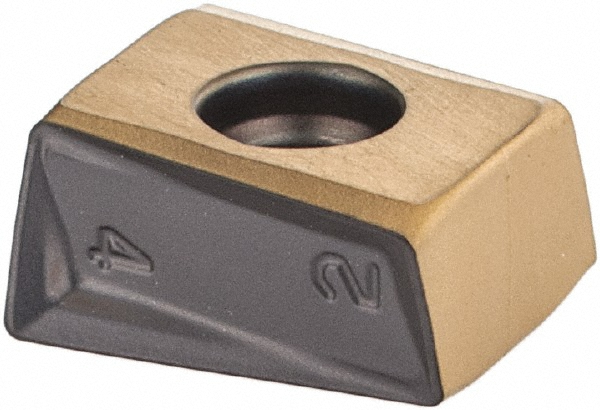

TiAlN, AlTiN & TiN Finish, 0.2050" Thick, 0.2560" Wide
| Insert Style | ANKX |
|---|---|
| Insert Size | 09 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | IC808 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2050 |
| Coating/Finish | AlTiN; TiN; TiAlN |
| Relief Angle | 0.00 |
| Insert Size Code | 090408 |
| Material Grade | Submicron |
| Inscribed Circle (Decimal Inch) | 0.2560 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Series | HELIDO |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.3150 |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Secondary Workpiece Material Code | S; H |

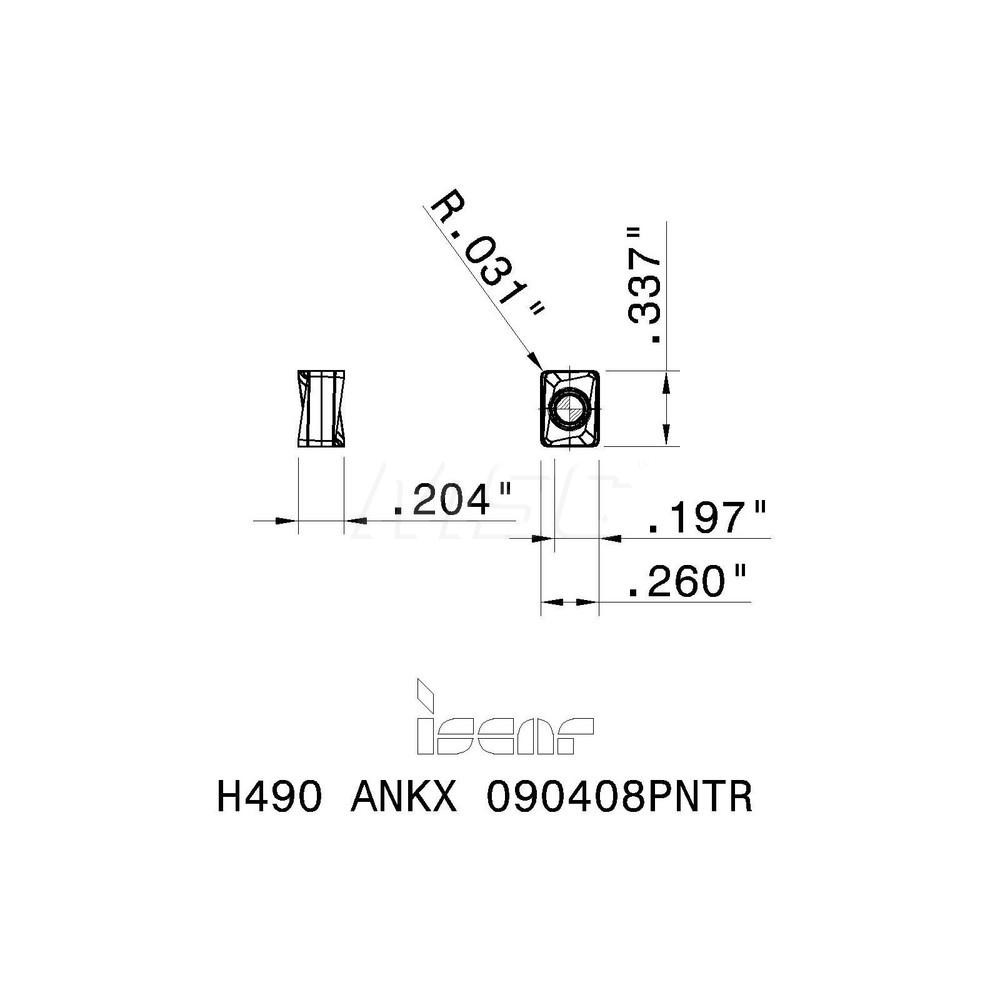

| Ansi Code | H490 ANKX 090408PNTR IC808 |
| Iso Code | H490 ANKX 090408PNTR |
| Standards | ISO 13399; ANSI |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | H490 ANKX 090408PNTR IC808 |
| Cutter Series Compatibility | H490 ANK09 |
| Chip Breaker | PNTR |
| UNSPSC Code | 23291601 |
| Material Application | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | Sumotec PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.2560 |
| Width (mm - 2 Decimals) | 6.50 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3354 |
| Country of Origin | Israel |
| MSC Number | MSC# 63636856 |
