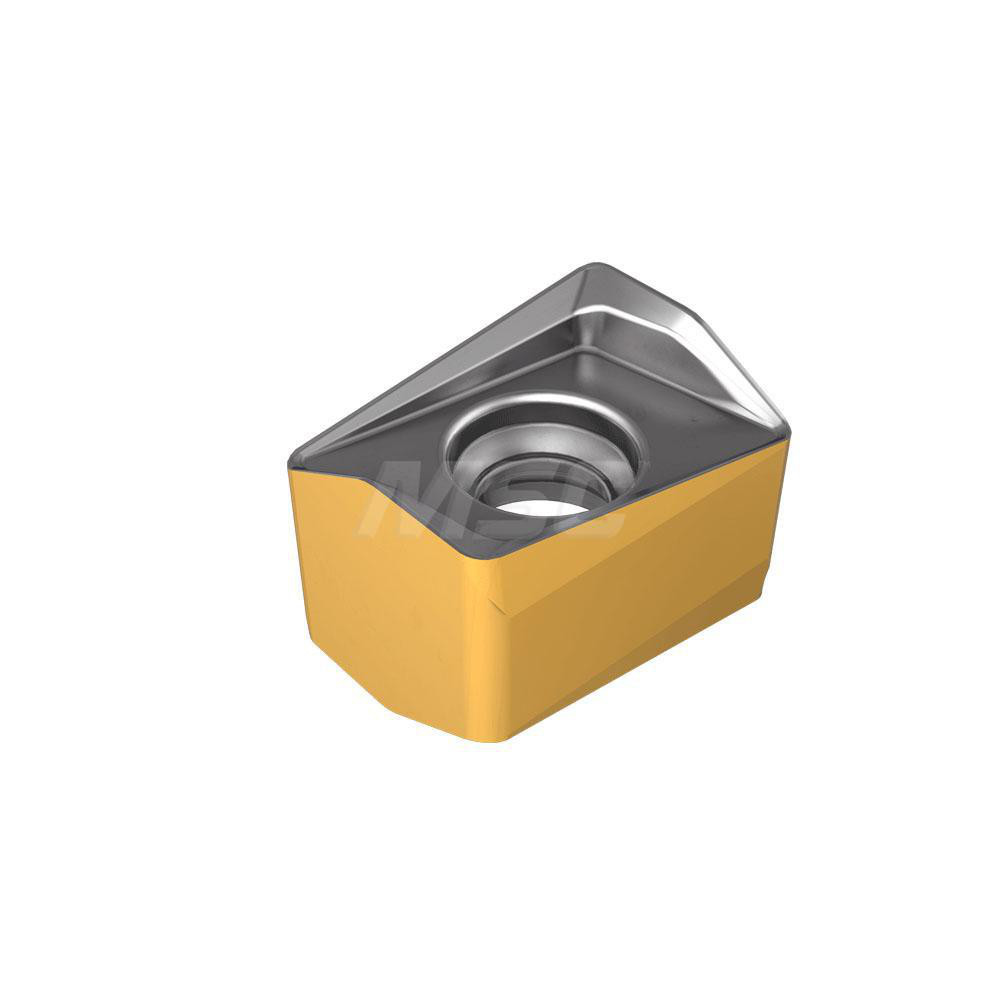

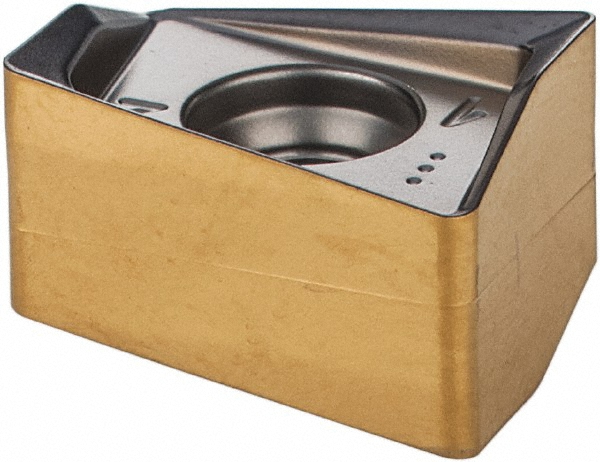

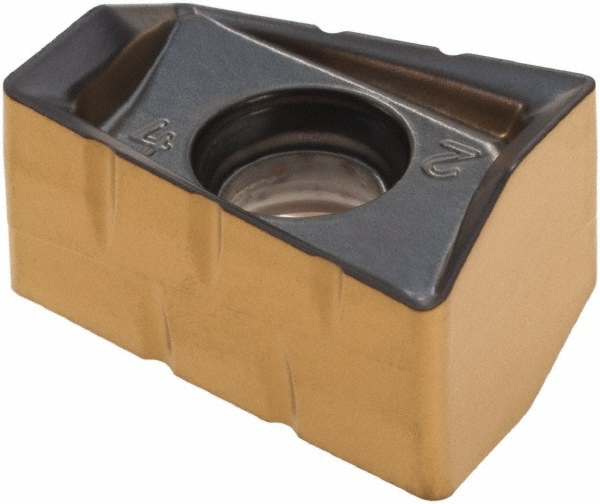

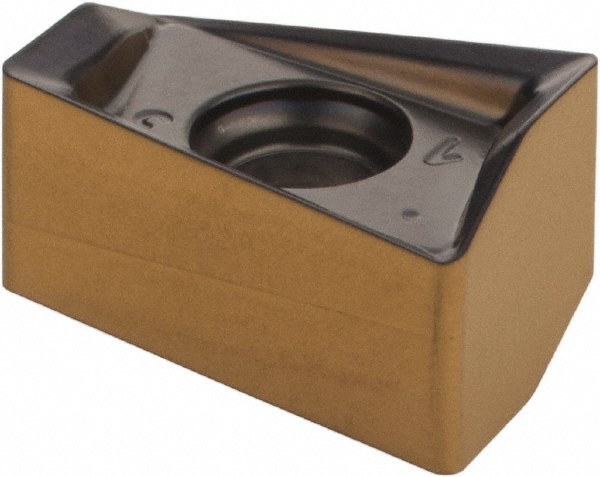

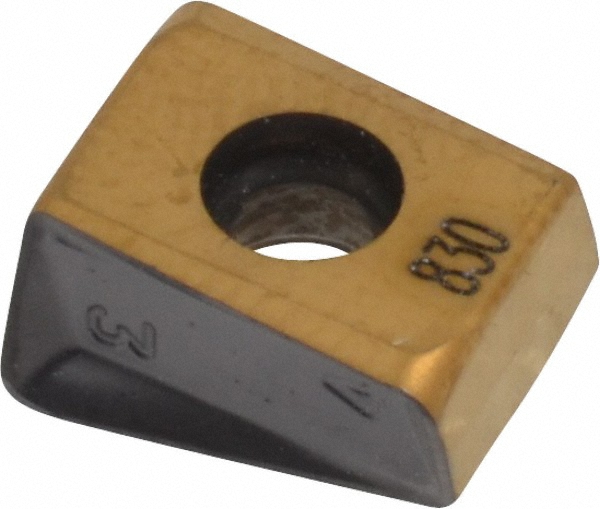

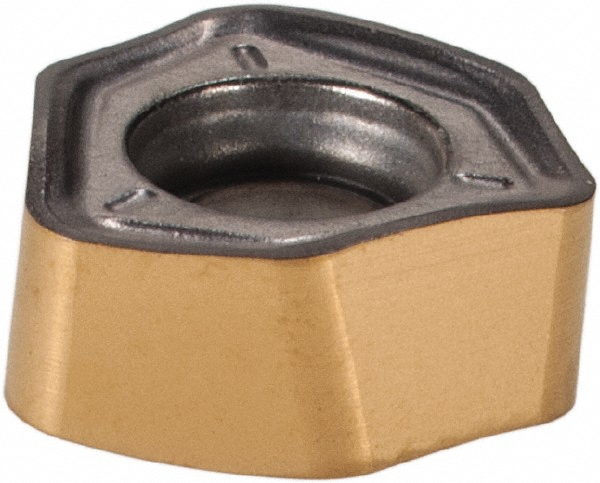

AlTiN & TiN Finish, 0.3600" Thick, 0.3940" Wide
| Insert Style | ANKX |
|---|---|
| Insert Size | 12 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | IC830 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.3600 |
| Coating/Finish | AlTiN; TiN |
| Relief Angle | 0.00 |
| Insert Size Code | 120508 |
| Inscribed Circle (Decimal Inch) | 0.3940 |
| Thickness Range (Decimal Inch) | 0.3500 to 0.5000 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4330 |
| Series | HELIDO |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.4330 |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material Code | S |

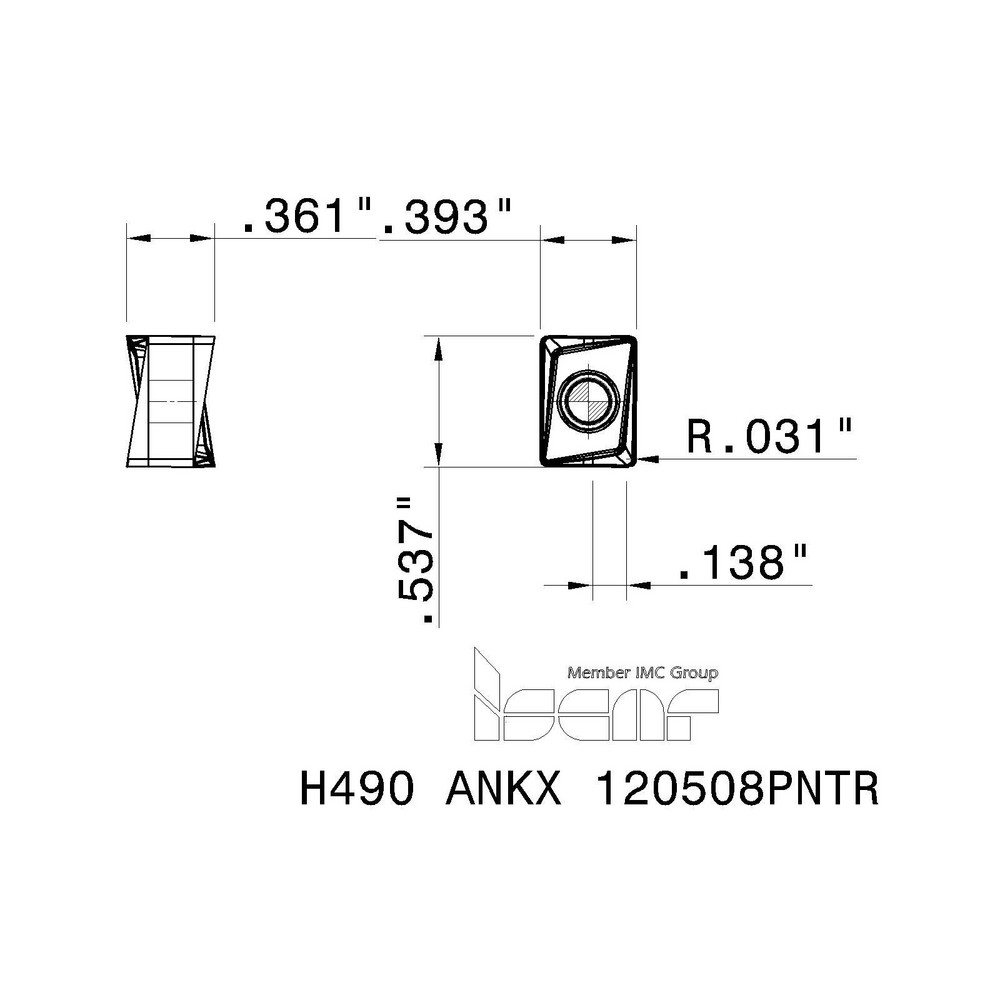

| Ansi Code | H490 ANKX 120508PNTR IC830 |
| Iso Code | H490 ANKX 120508PNTR |
| Standards | ISO 13399; ANSI |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | H490 ANKX 120508PNTR IC830 |

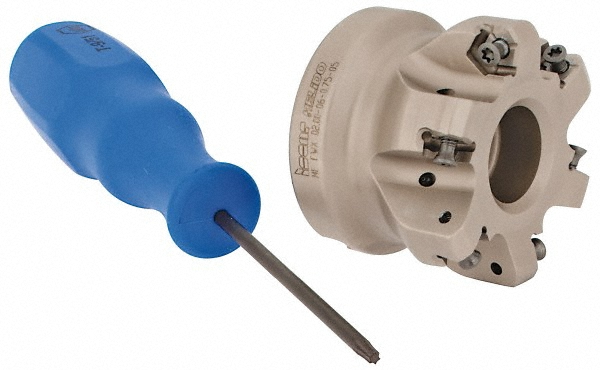

| Cutter Series Compatibility | H490 ANK12 |
| Chip Breaker | PNTR |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | Sumotec PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.3940 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5382 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 40632812 |
