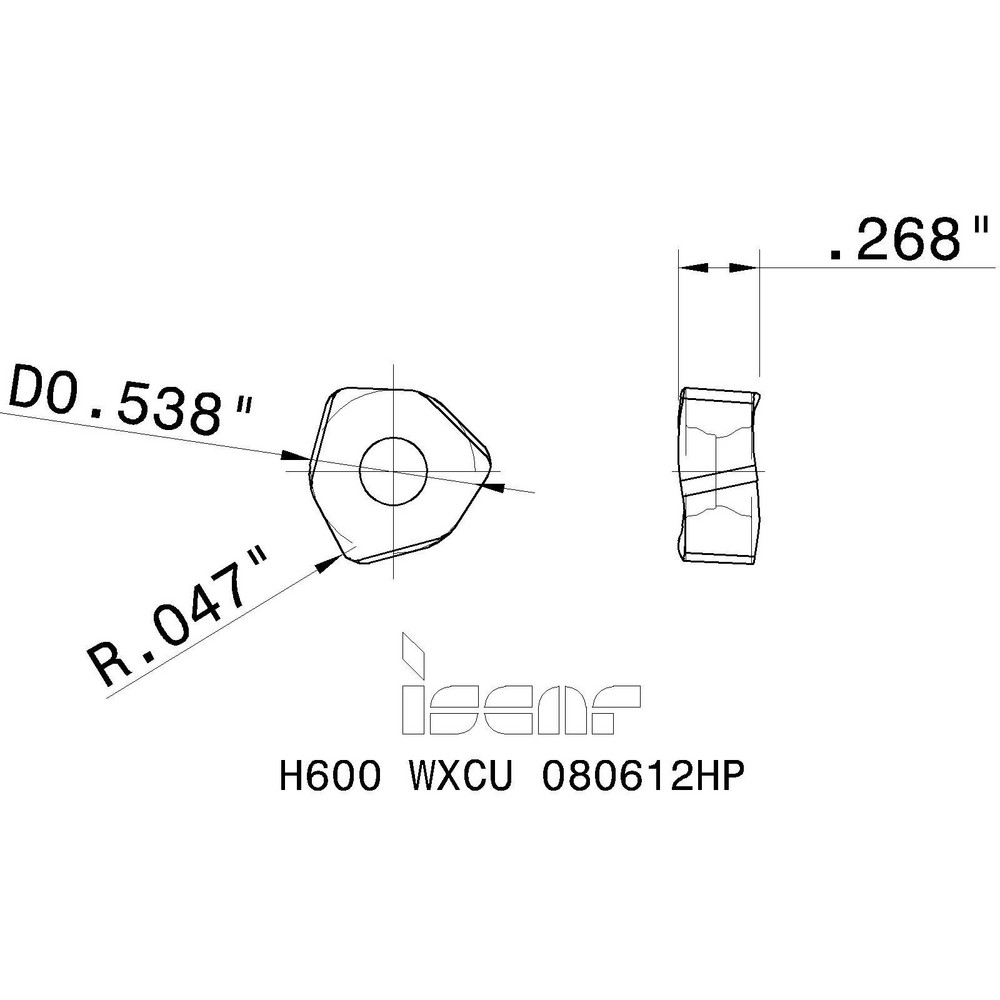

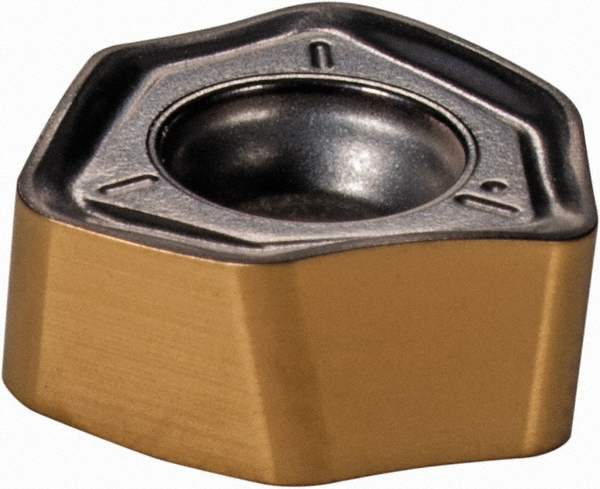

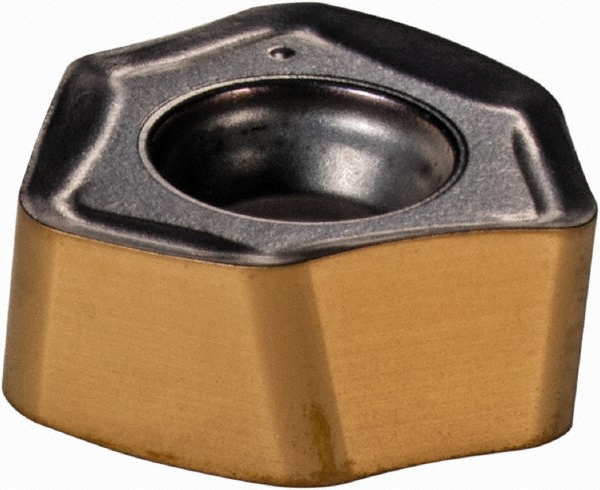

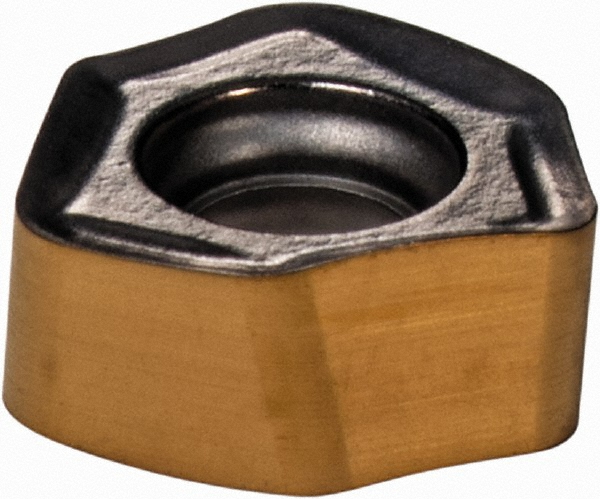

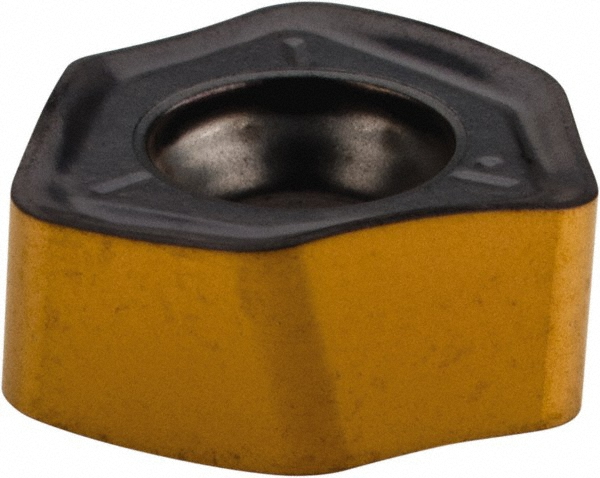

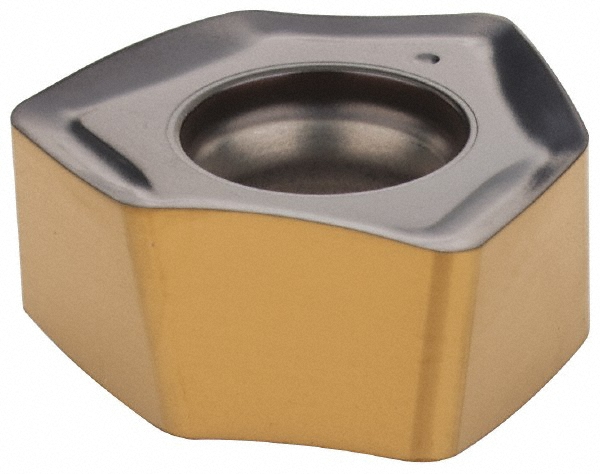

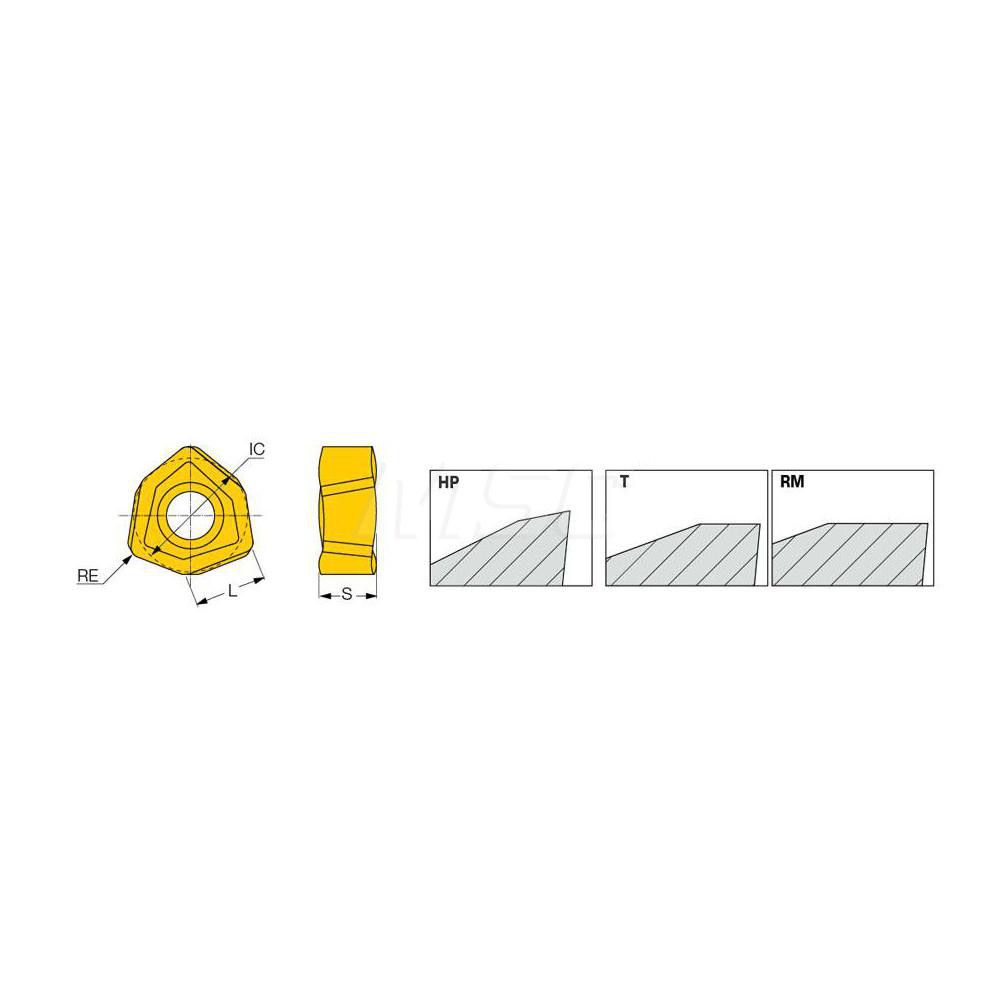

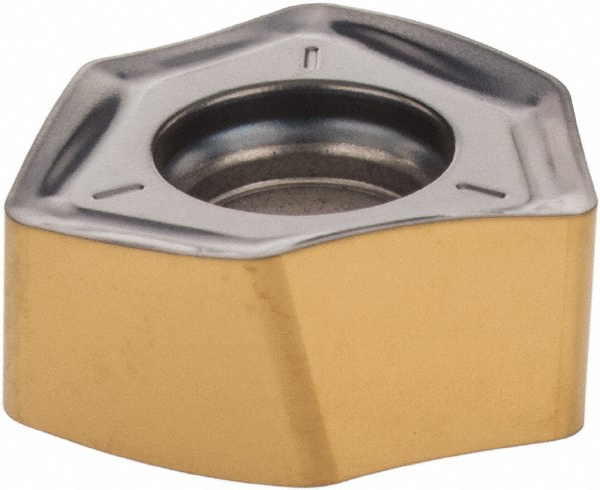

AlTiN, TiAlSiN & TiSiN Finish, 6.80 mm Thick
| Insert Style | WXCU |
|---|---|
| Insert Size | 08 |
| Insert Material | Solid Carbide |
| Insert Shape | Trigon |
| Manufacturer Grade | IC882 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Corner Radius (mm) | 1.20 |
| Number Of Cutting Edges | 6 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2680 |
| Thickness (mm) | 6.80 |
| Coating/Finish | TiSiN; TiAlSiN; AlTiN |
| Relief Angle | 0.00 |
| Insert Size Code | 080612 |
| Inscribed Circle (Decimal Inch) | 0.5374 |
| Inscribed Circle (mm) | 13.65 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Corner Radius (Inch) | 3/64 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 to 0.6000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3465 |
| Series | HELI6FEED |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.3465 |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material Code | S |
| Ansi Code | H600 WXCU 080612HP IC882 |
| Iso Code | H600 WXCU 080612HP |
| Standards | ISO 13399; ANSI |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | H600 WXCU 080612HP IC882 |
| Cutter Series Compatibility | FWX |
| Chip Breaker | HP |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 80 |
| Length (mm) | 8.80 |
| Width (Decimal Inch - 4 Decimals) | 0.5374 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5374 |
| Country of Origin | Israel |
| MSC Number | MSC# 55683726 |
