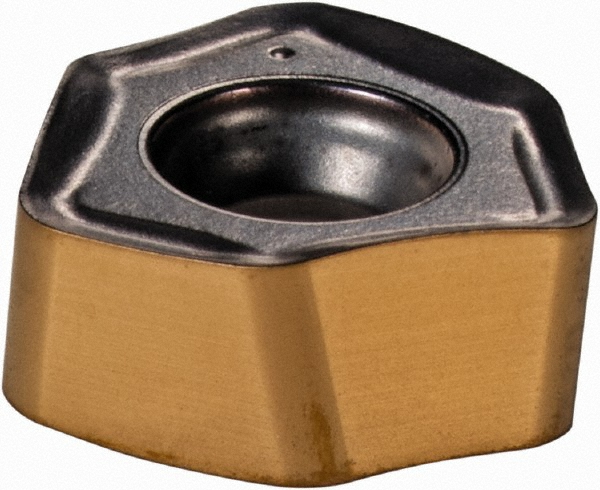

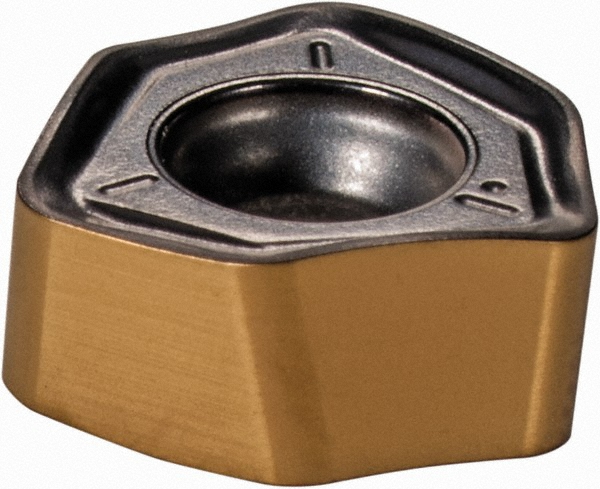

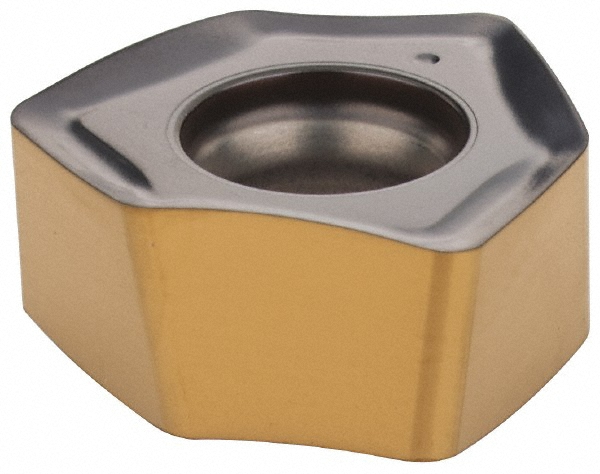

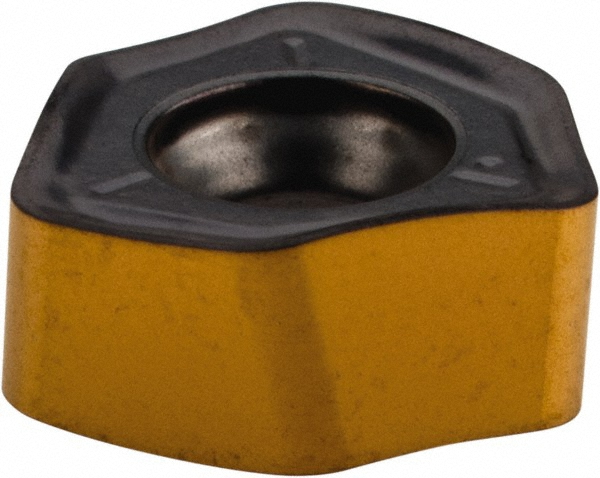

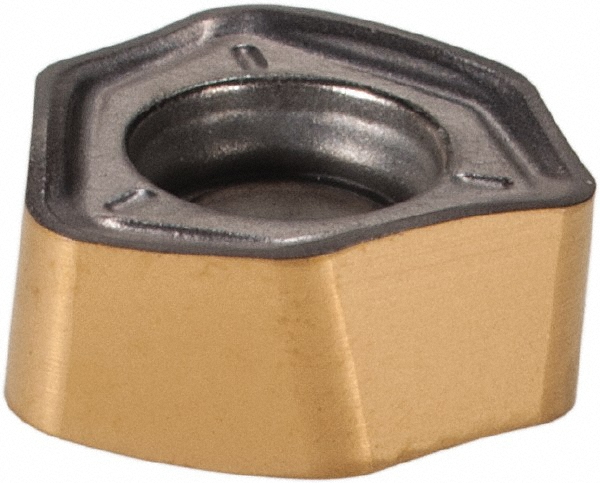

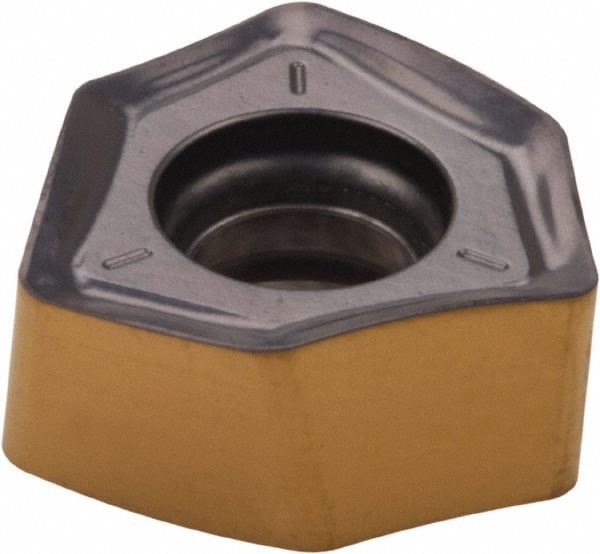

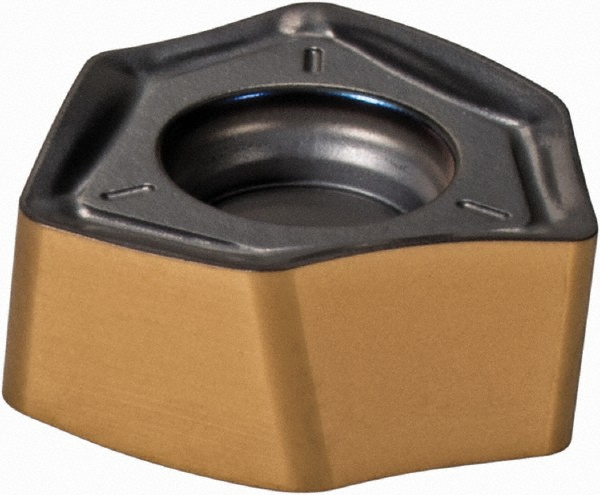

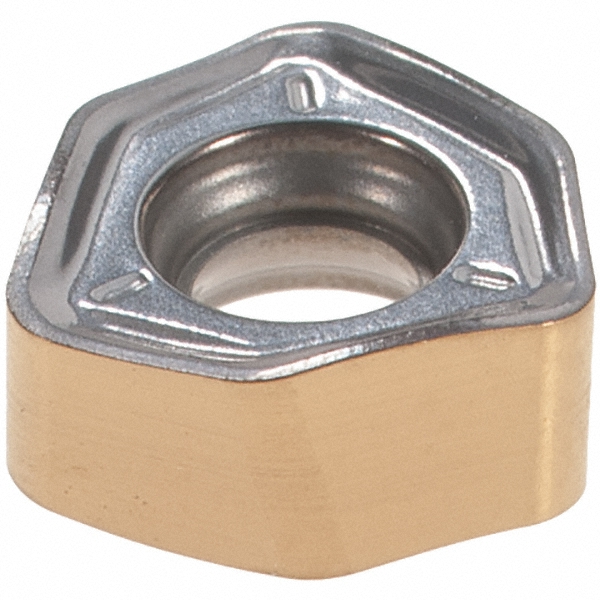

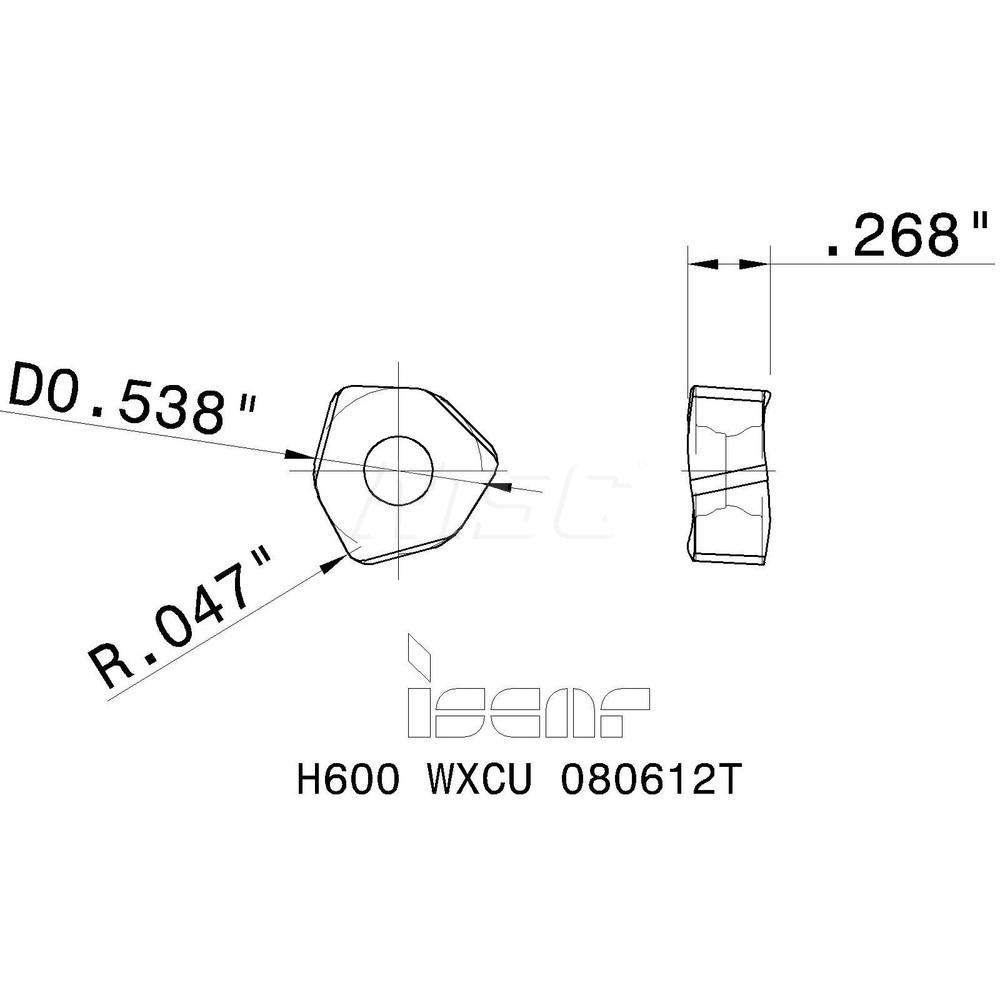

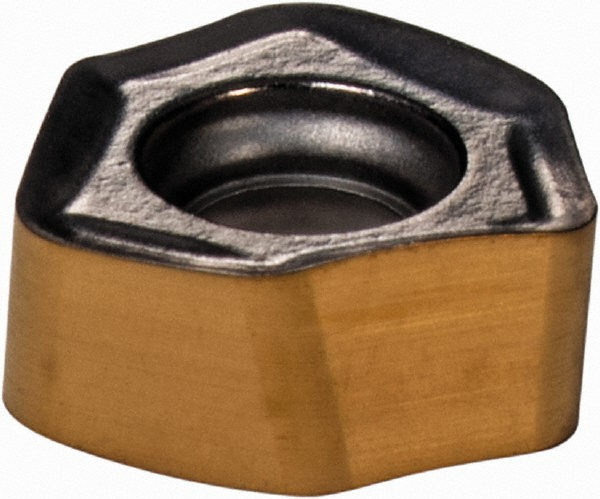

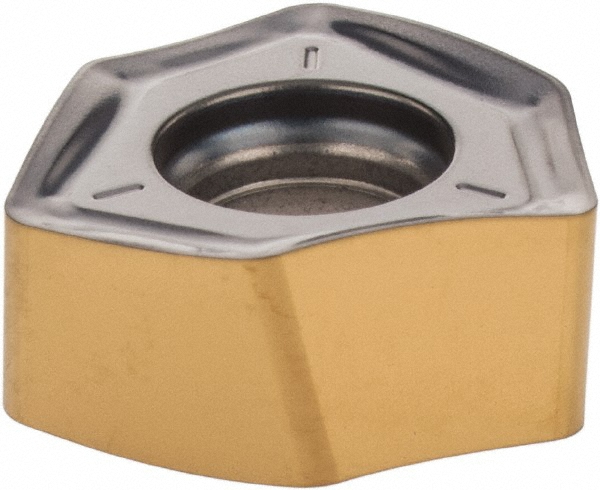

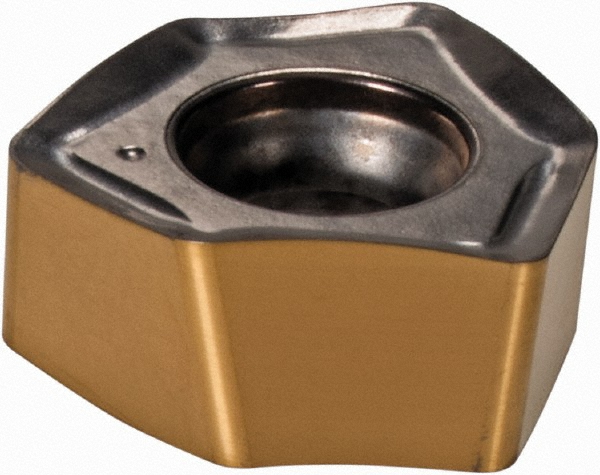

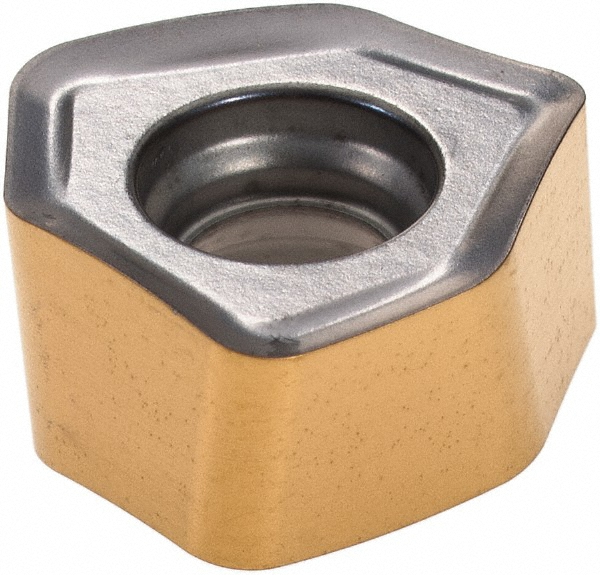

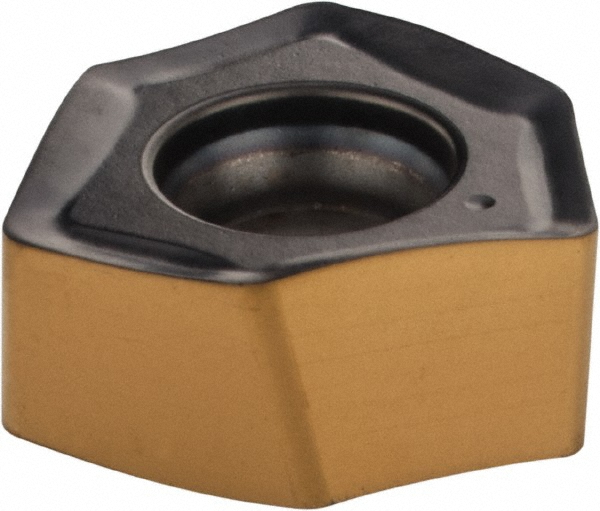

AlTiCrN & TiN Finish, 0.2680" Thick, 0.5374" Wide
| Insert Style | WXCU |
|---|---|
| Insert Size | 08 |
| Insert Material | Solid Carbide |
| Insert Shape | Trigon |
| Manufacturer Grade | IC810 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Corner Radius (mm) | 1.19 |
| Number Of Cutting Edges | 6 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2680 |
| Coating/Finish | TiN; AlTiCrN |
| Relief Angle | 0.00 |
| Insert Size Code | 080612 |
| Inscribed Circle (Decimal Inch) | 0.5374 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Corner Radius (Inch) | 3/64 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 to 0.6000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3465 |
| Series | HELI6FEED |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.3465 |
| Rake | Negative |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Ansi Code | H600 WXCU 080612T IC810 |
| Iso Code | H600 WXCU 080612T |
| Standards | ISO 13399; ANSI |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | H600 WXCU 080612T IC810 |
| Cutter Series Compatibility | FWX |

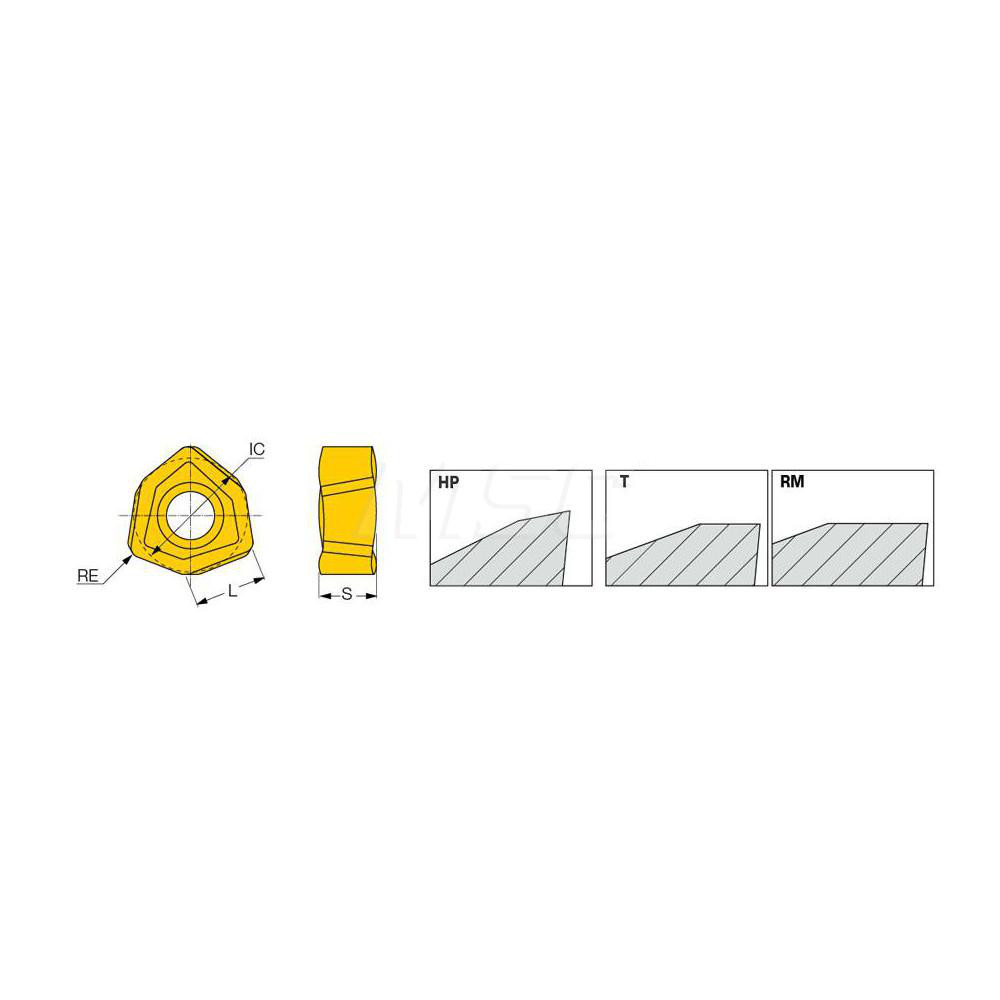

| Chip Breaker | T |
| UNSPSC Code | 23291601 |
| Material Application | Cast Iron; Steel |
| Insert Holding Method | Screw |
| Coating Classification | Sumotec PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 80 |
| Width (Decimal Inch - 4 Decimals) | 0.5374 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5374 |
| Country of Origin | Israel |
| MSC Number | MSC# 76373984 |
