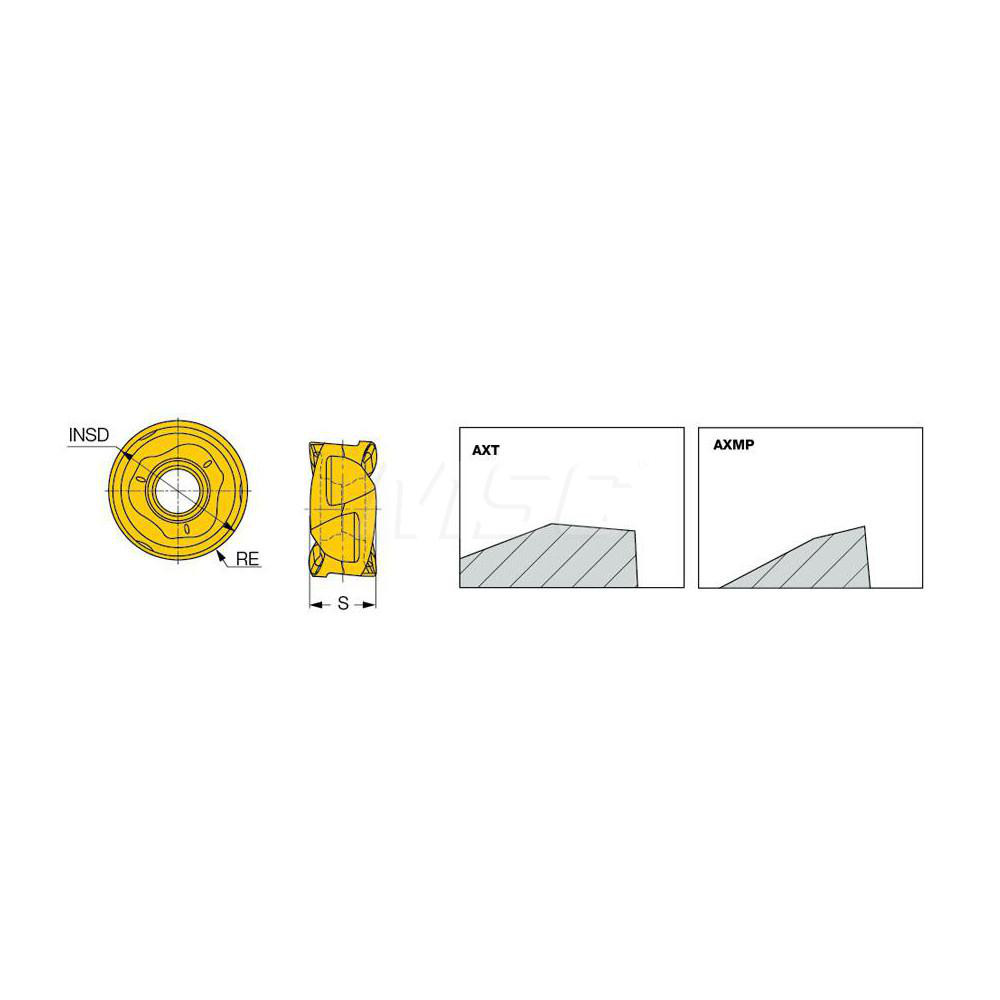

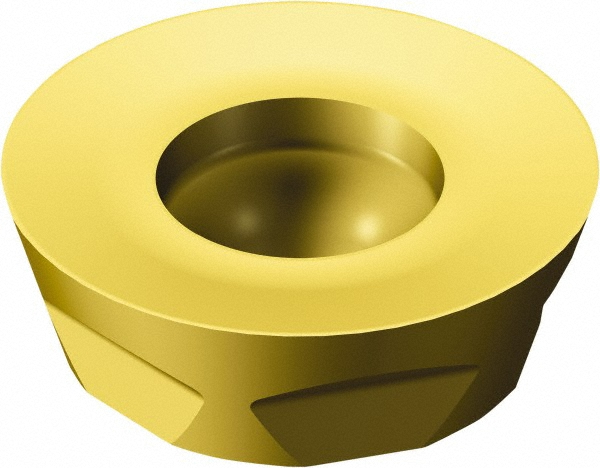

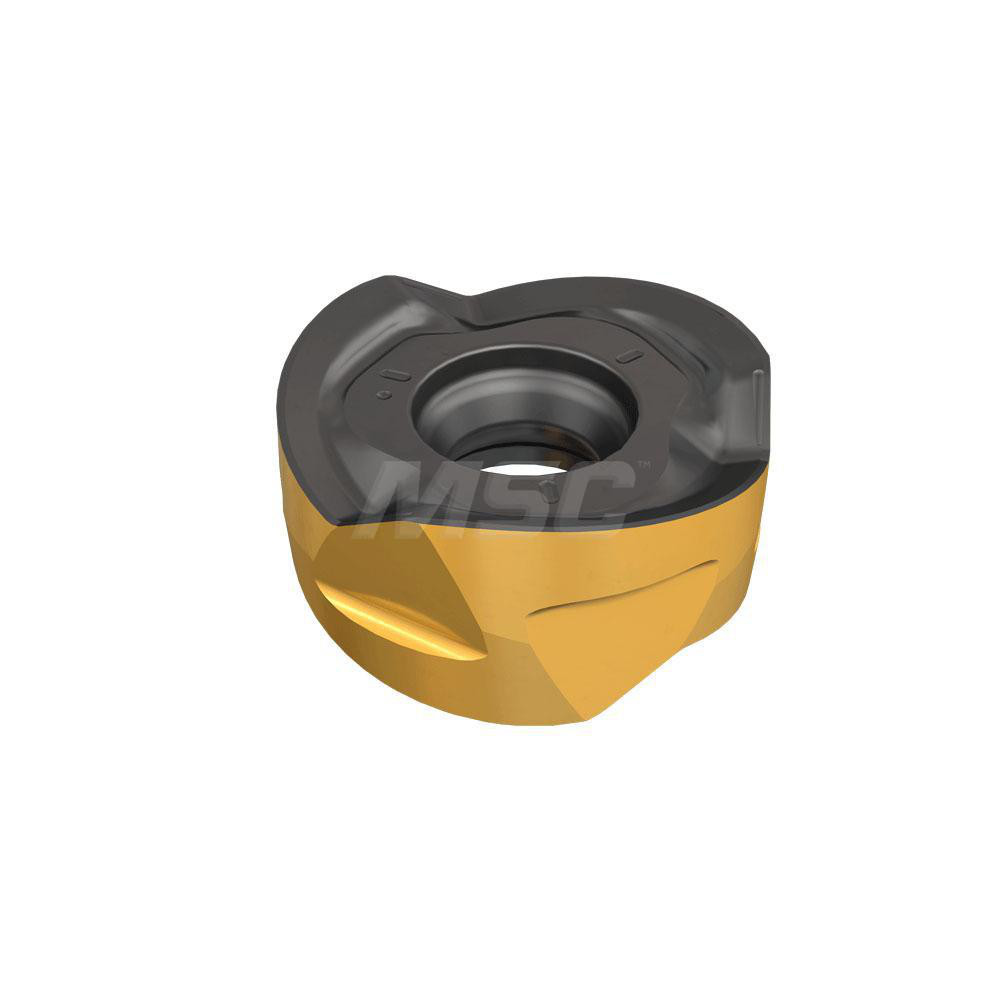

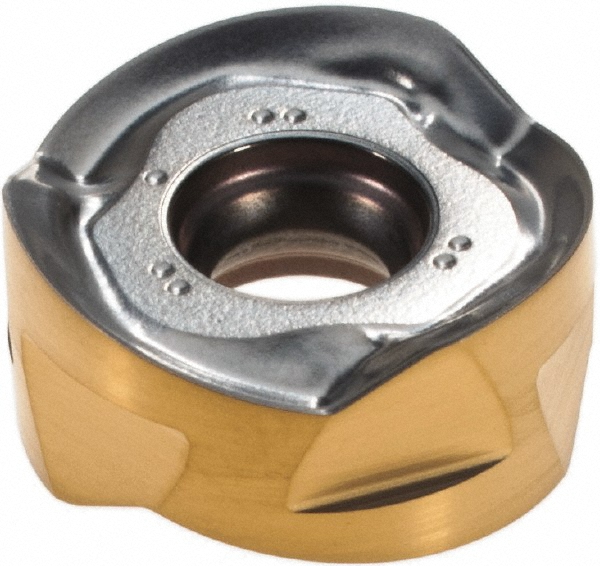

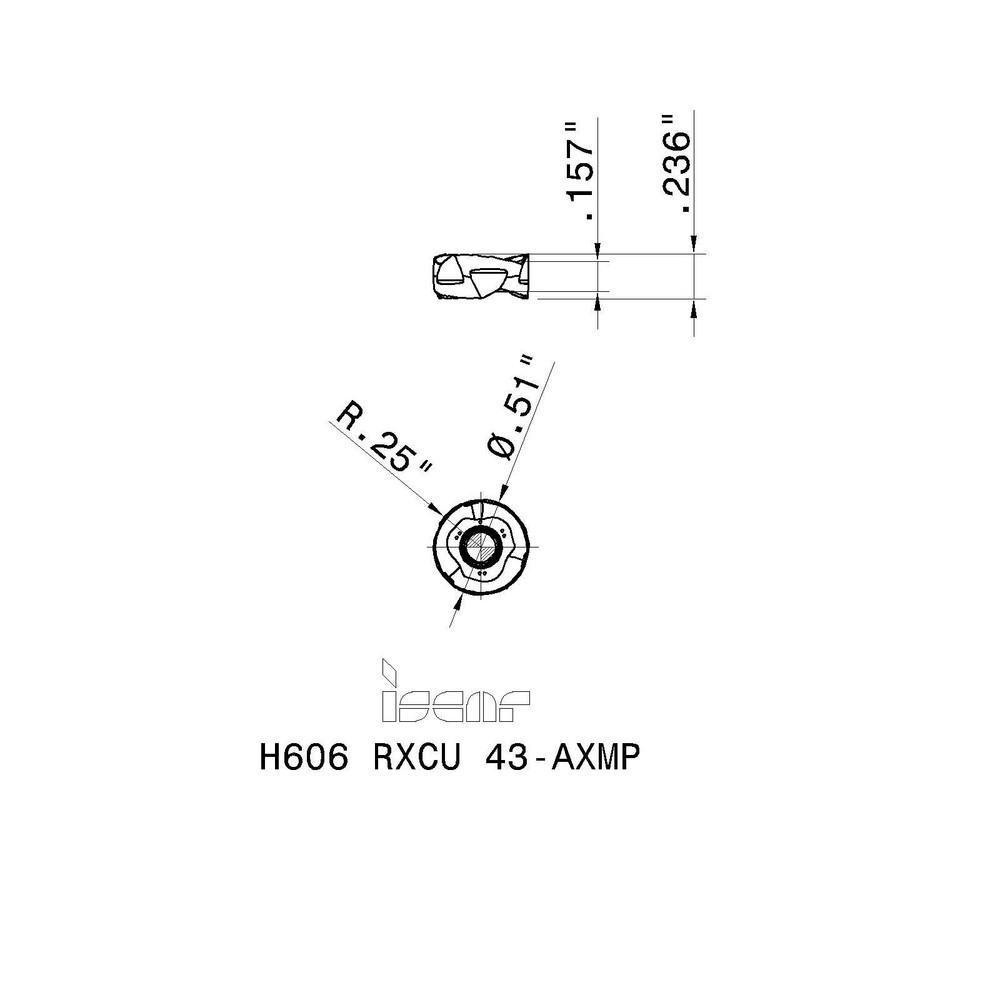

TiCN & TiN Finish, 0.2360" Thick, 0.5100" Wide
| Insert Style | RXCU |
|---|---|
| Insert Size | 43 |
| Insert Material | Solid Carbide |
| Insert Shape | Round |
| Manufacturer Grade | IC380 |
| Corner Radius (Decimal Inch) | 0.2500 |
| Number Of Cutting Edges | 6 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2360 |
| Coating/Finish | TiCN; TiN |
| Relief Angle | 0.00 |
| Insert Size Code | 43 |
| Material Grade | Submicron |
| Inscribed Circle (Decimal Inch) | 0.5100 |
| Thickness Range (Decimal Inch) | 0.2350 to 0.2500 |
| Corner Radius (Inch) | 1/4 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 to 0.6000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2550 |
| Series | HELIDO |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.5100 |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Superalloys & Titanium |
| Primary Workpiece Material Code | S; H |
| Ansi Code | H606 RXCU 43-AXMP IC380 |
| Iso Code | H606 RXCU 43-AXMP |
| Standards | ISO 13399; ANSI |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | H606 RXCU 43-AXMP IC380 |
| Cutter Series Compatibility | H606 FR.50 |
| Chip Breaker | AXMP |
| UNSPSC Code | 23291601 |
| Material Application | Hard Material; Superalloys & Titanium |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 360 |
| Width (Decimal Inch - 4 Decimals) | 0.5100 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5100 |
| Country of Origin | Israel |
| MSC Number | MSC# 30731004 |
