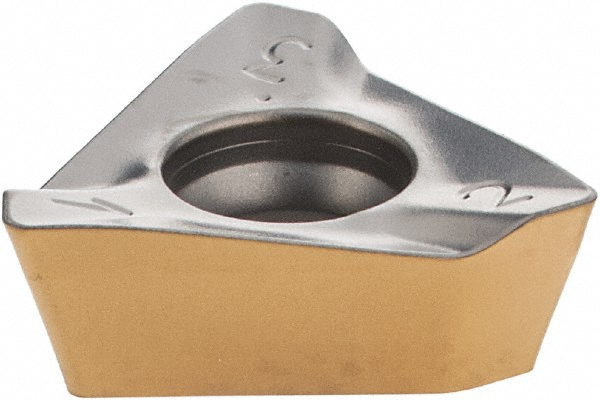

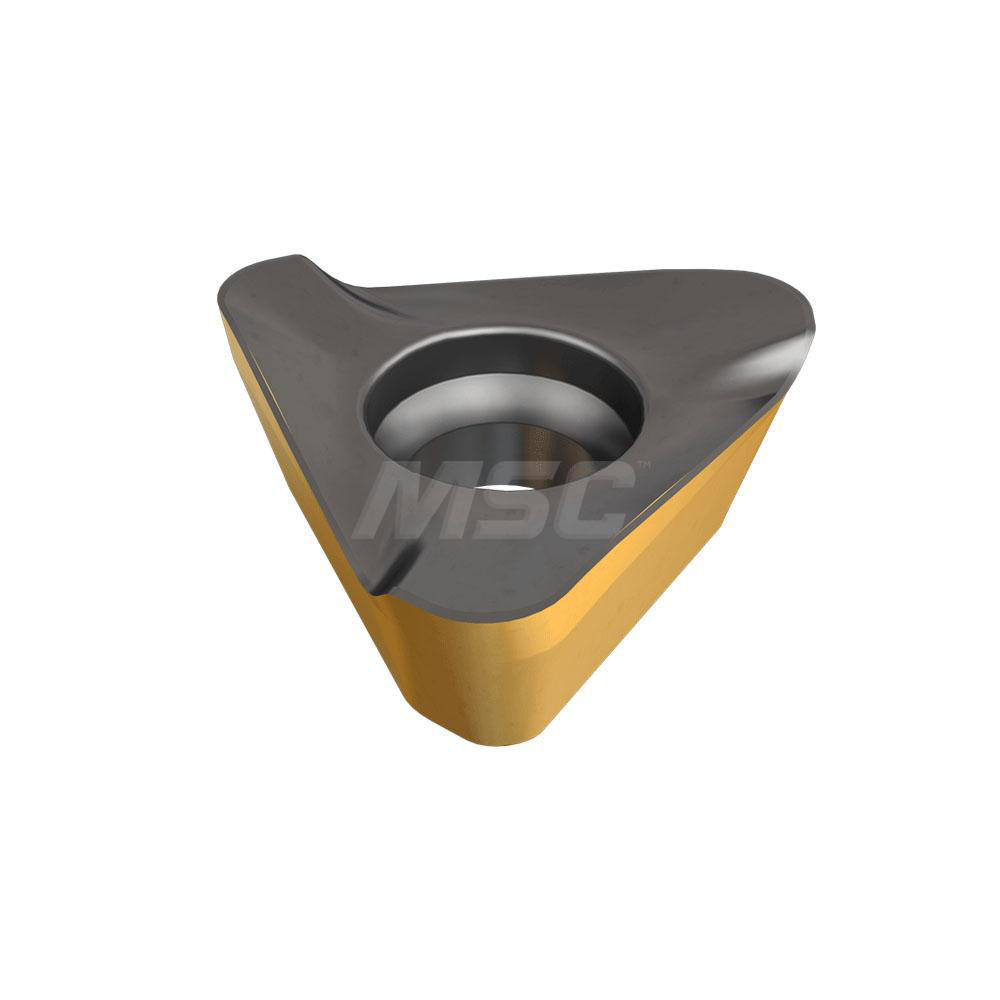

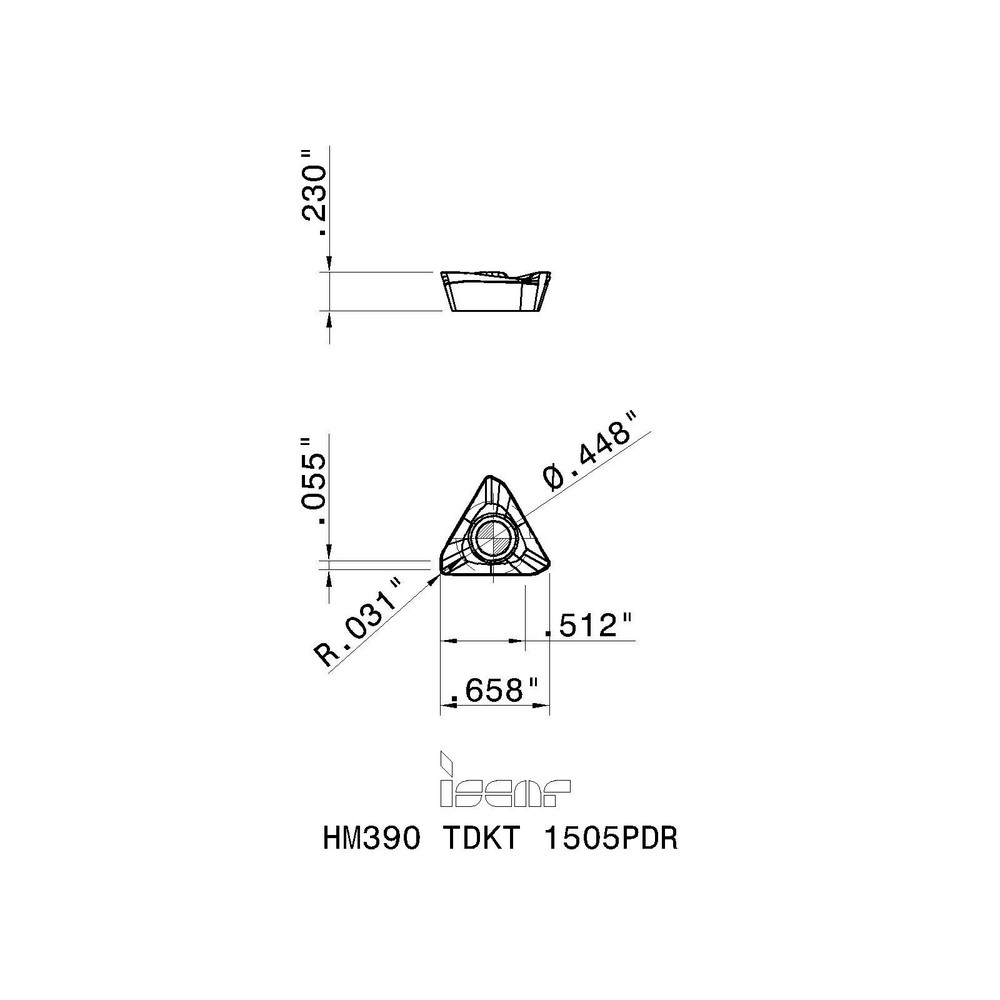

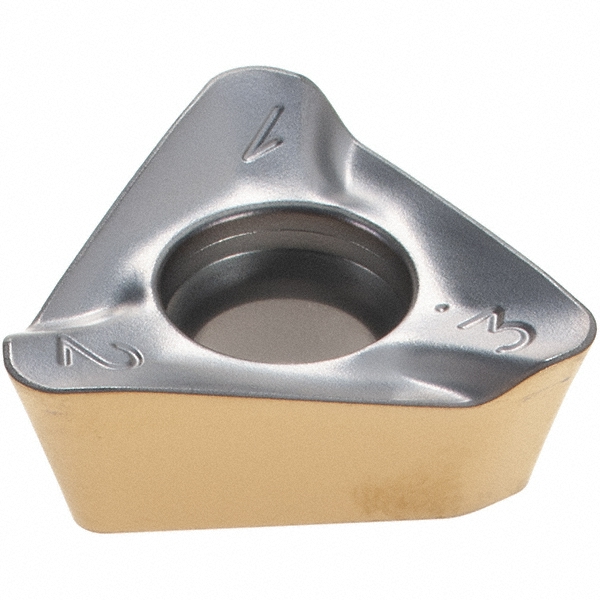

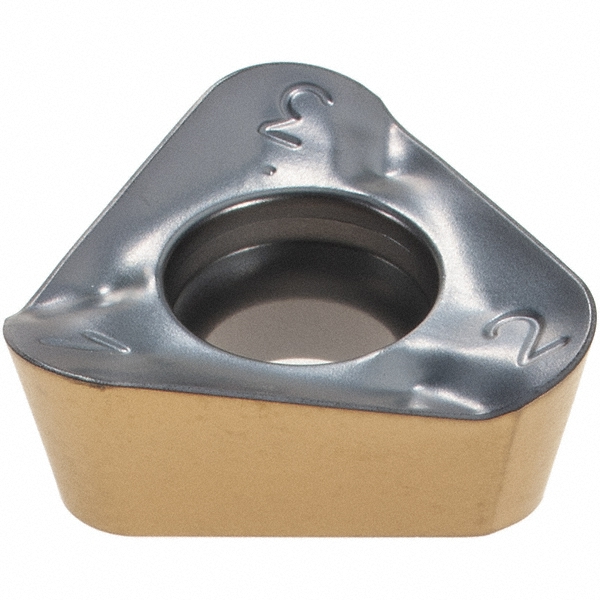

AlTiN, TiAlSiN & TiSiN Finish, 5.85 mm Thick
| Insert Style | TDKT |
|---|---|
| Insert Size | 15 |
| Insert Material | Solid Carbide |
| Insert Shape | Triangle |
| Manufacturer Grade | IC882 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 3 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2300 |
| Thickness (mm) | 5.85 |
| Coating/Finish | TiSiN; TiAlSiN; AlTiN |
| Relief Angle | 15.00 |
| Insert Size Code | 1505 |
| Inscribed Circle (Decimal Inch) | 0.4490 |
| Inscribed Circle (mm) | 11.40 |
| Thickness Range (Decimal Inch) | 0.2200 to 0.2350 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.6500 to 0.7000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5120 |
| Maximum Depth of Cut (mm) | 13.00 |
| Series | HELI3MILL |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.5120 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material Code | S |
| Ansi Code | HM390 TDKT 1505PDR IC882 |
| Iso Code | HM390 TDKT 1505PDR |
| Standards | ISO 13399; ANSI |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | HM390 TDKT 1505PDR IC882 |
| Cutter Series Compatibility | HM390-15 |
| Chip Breaker | PDR |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium |

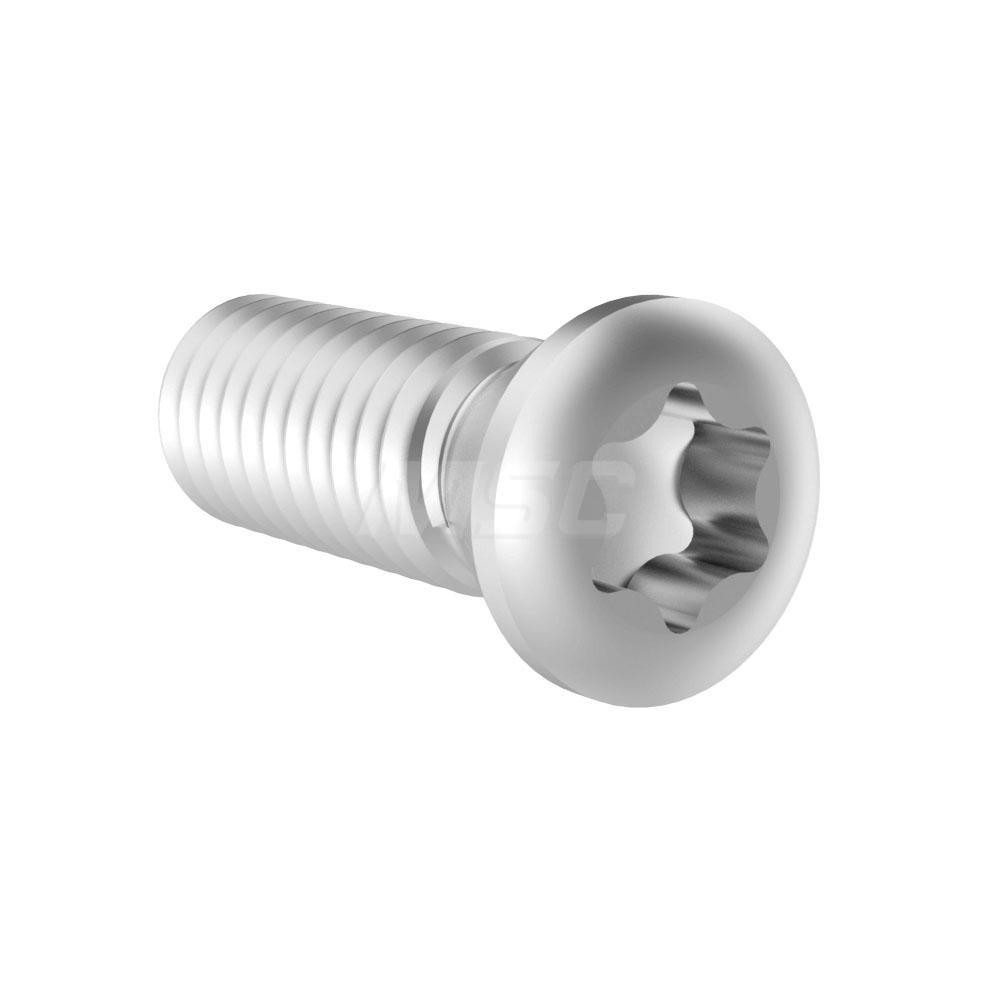

| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 60 |
| Length (mm) | 16.70 |
| Width (Decimal Inch - 4 Decimals) | 0.6580 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6580 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 46654216 |
