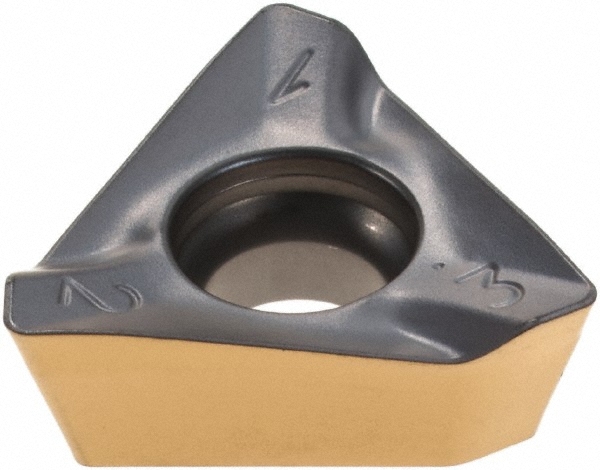

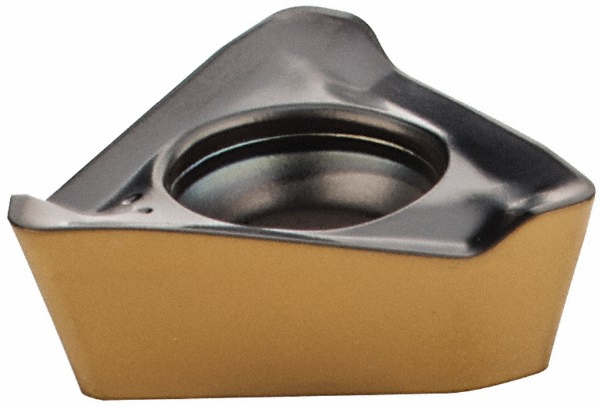

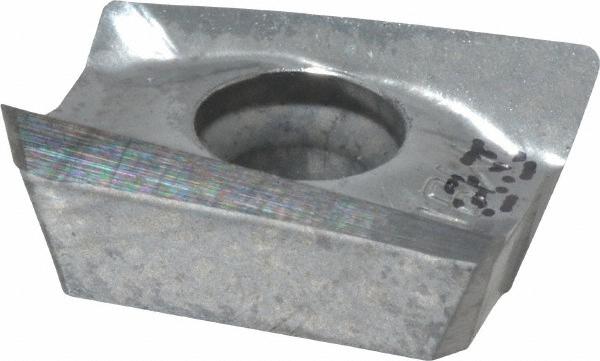

Bright/Uncoated Finish, 4.00 mm Thick
| Insert Style | TPCR |
|---|---|
| Insert Size | 10 |
| Insert Material | Solid Carbide |
| Insert Shape | Triangle |
| Manufacturer Grade | IC28 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 3 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1570 |
| Thickness (mm) | 4.00 |
| Coating/Finish | Bright/Uncoated |
| Relief Angle | 11.00 |
| Insert Size Code | 1003 |
| Inscribed Circle (Decimal Inch) | 0.2953 |
| Inscribed Circle (mm) | 7.50 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Length Range (Decimal Inch) | 0.4000 to 0.4500 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 8.00 |
| Series | HELI3MILL |
| Coating Process | Uncoated |
| Cutting Edge Effective Length (Decimal Inch) | 0.3150 |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |

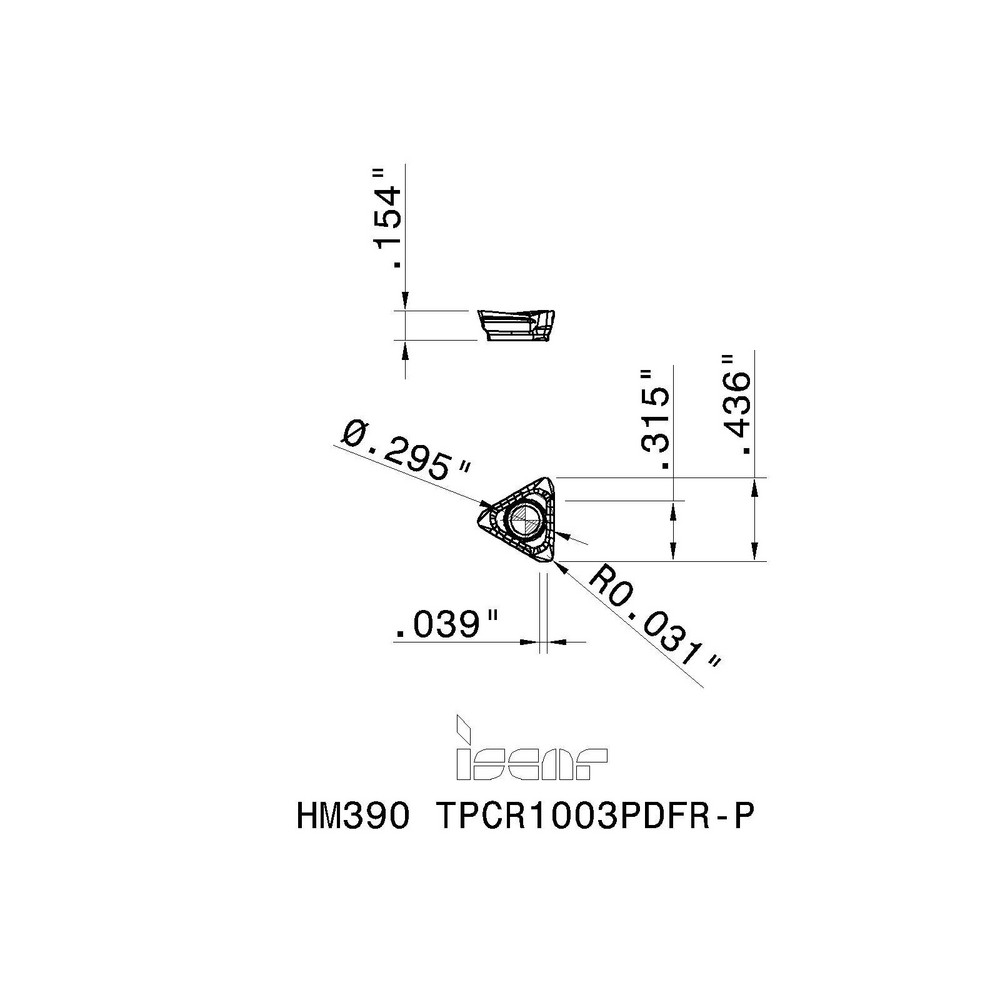

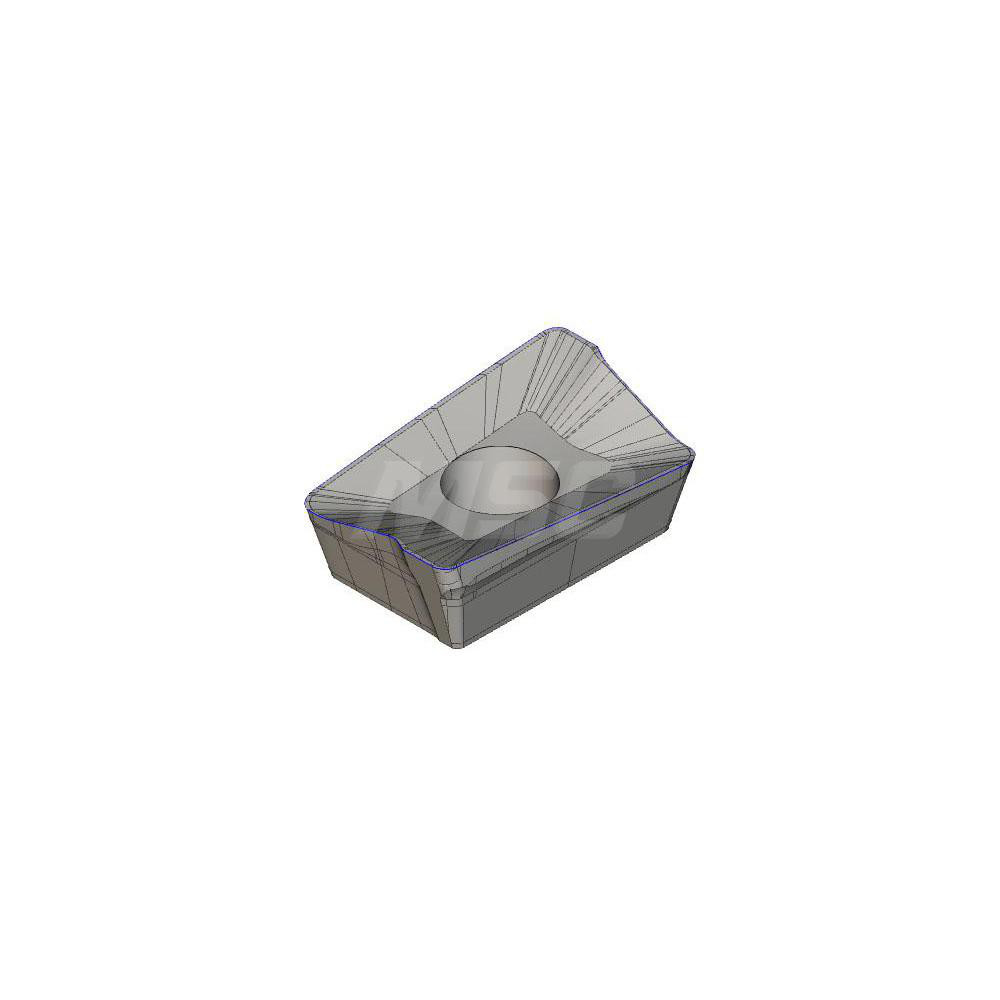

| Ansi Code | HM390 TPCR1003PDFR-P IC28 |
| Iso Code | HM390 TPCR1003PDFR-P |
| Standards | ISO 13399; ANSI |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | HM390 TPCR1003PDFR-P IC28 |
| Cutter Series Compatibility | HM390-10 |
| Chip Breaker | PDFR-P |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 60 |
| Length (mm) | 10.90 |
| Width (Decimal Inch - 4 Decimals) | 0.4290 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4290 |
| Country of Origin | Israel |
| MSC Number | MSC# 55908529 |
