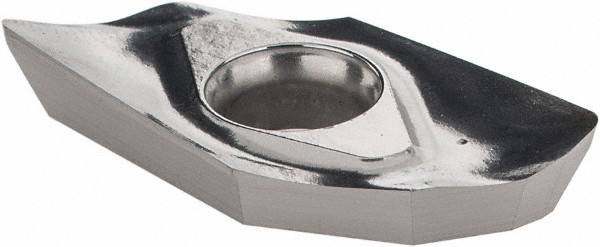

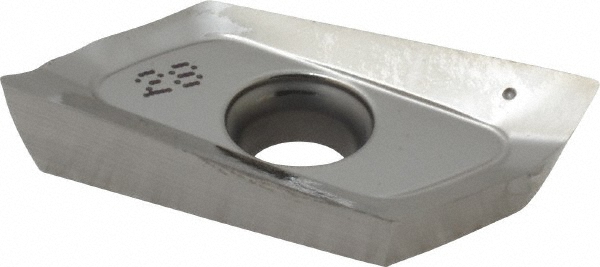

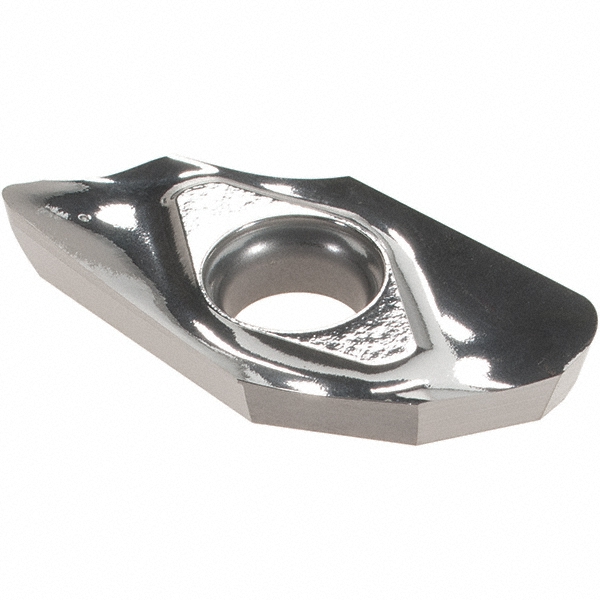

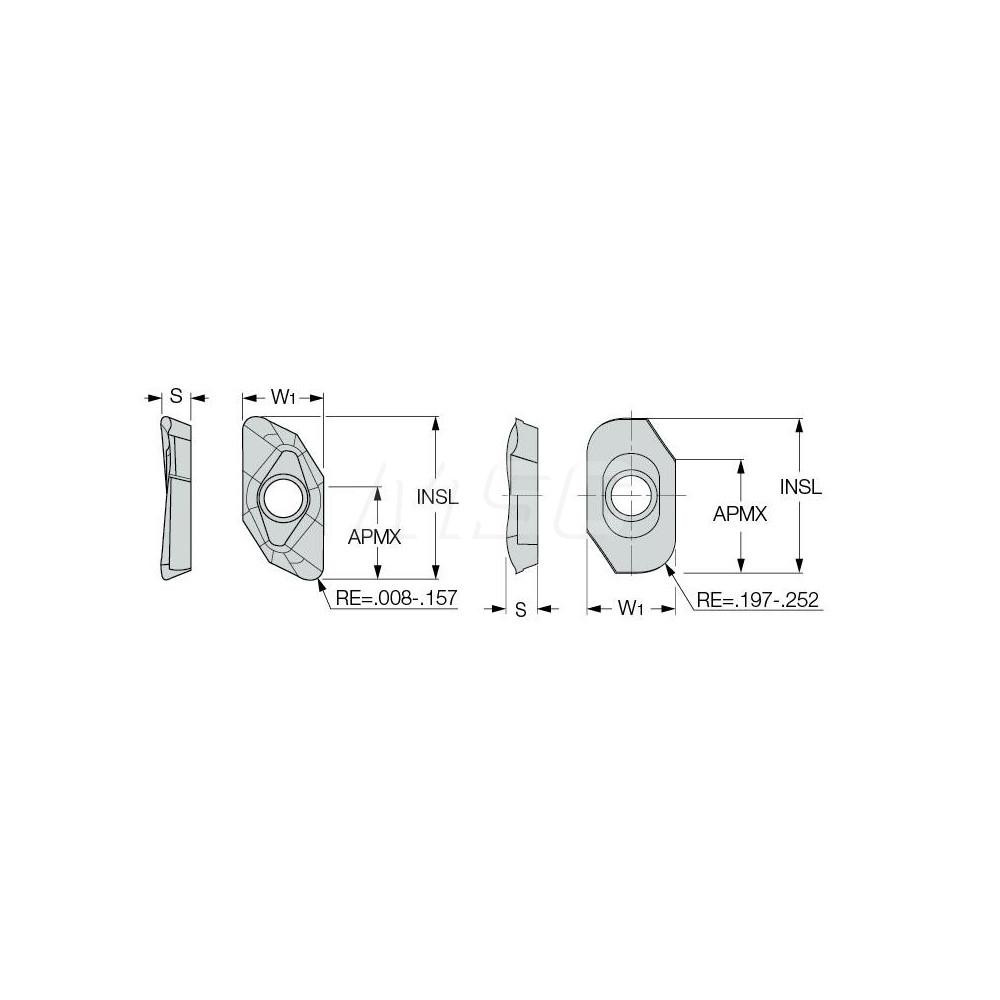

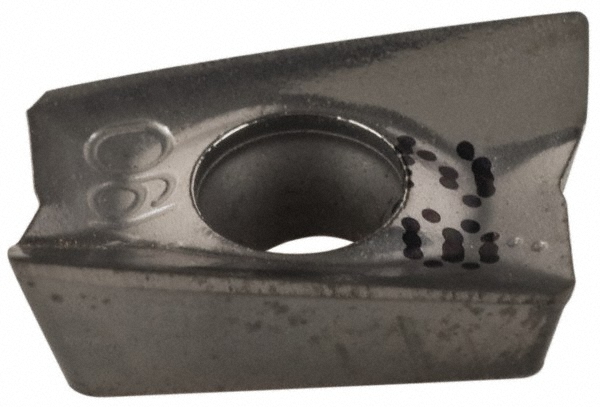

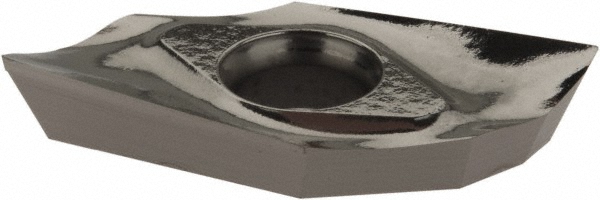

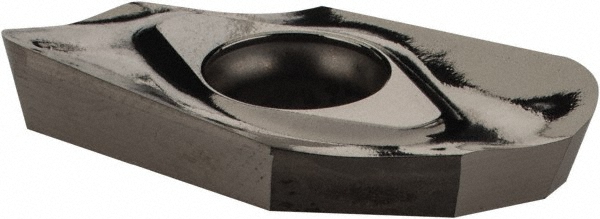

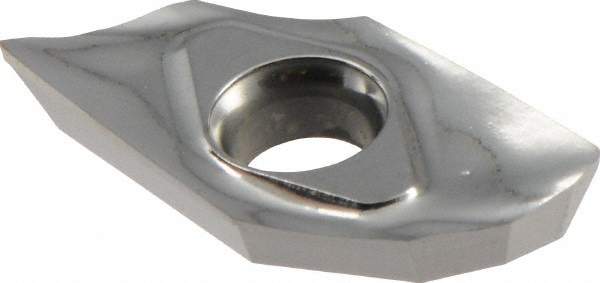

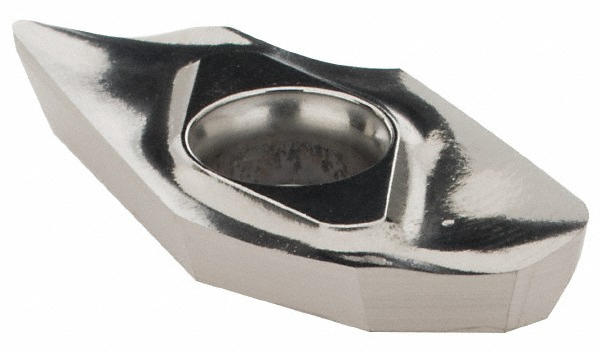

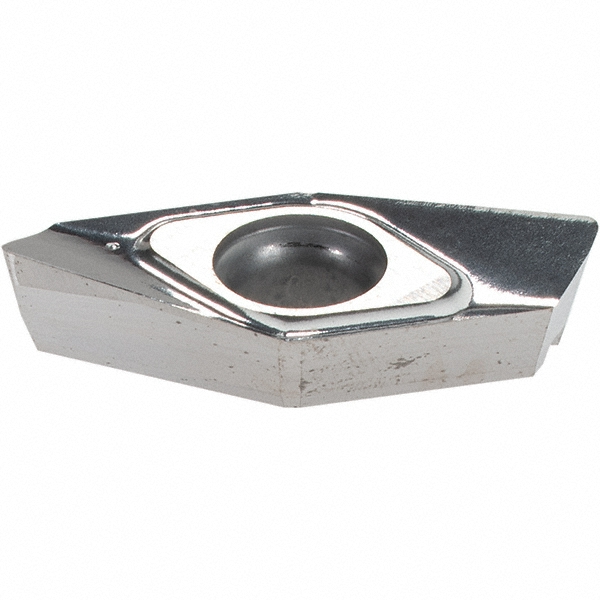

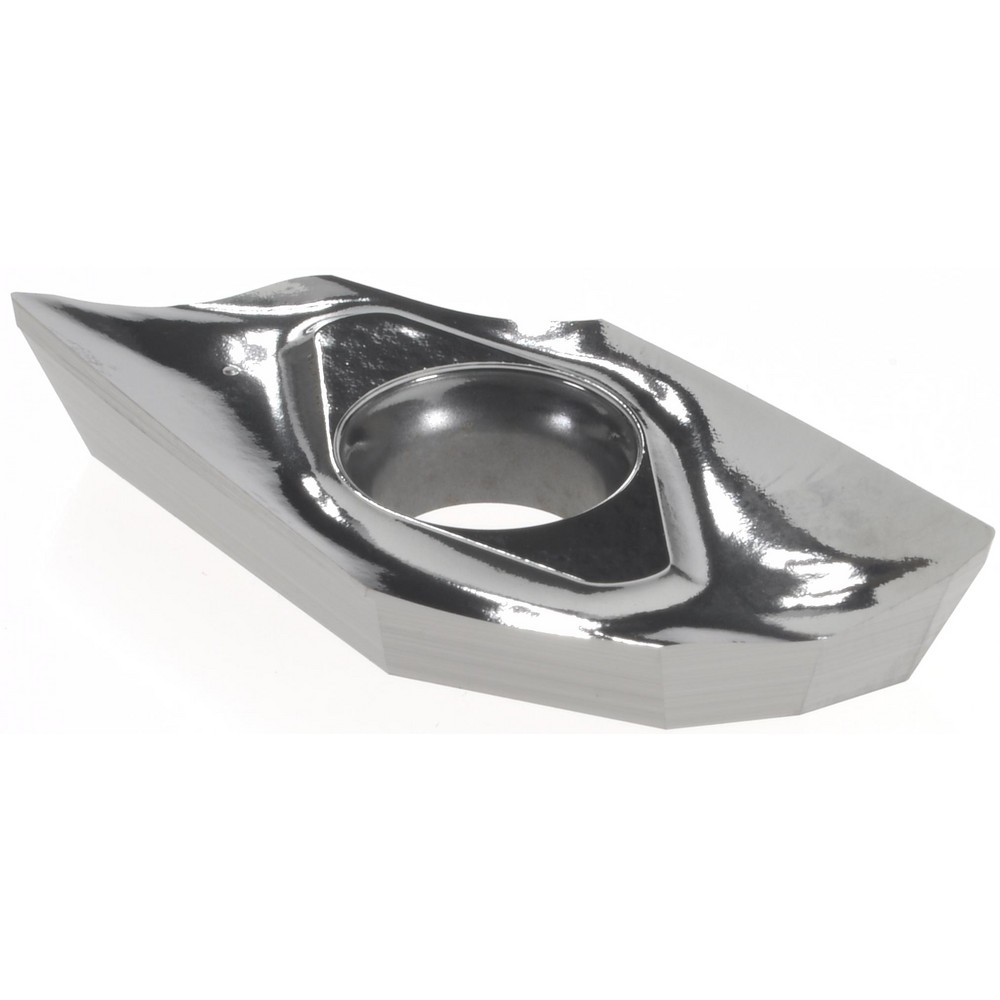

Bright/Uncoated Finish, 0.1890" Thick, 0.5040" Wide
| Insert Style | APCR |
|---|---|
| Insert Size | 16 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | IC28 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1890 |
| Coating/Finish | Bright/Uncoated |
| Relief Angle | 11.00 |
| Insert Size Code | 160520 |
| Length (Inch) | 1 |
| Inscribed Circle (Decimal Inch) | 0.5040 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.5100 |
| Length Range (Decimal Inch) | 1.0000+ |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6102 |
| Maximum Depth of Cut (mm) | 15.50 |
| Series | HELIALU |
| Coating Process | Uncoated |
| Cutting Edge Effective Length (Decimal Inch) | 0.6180 |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |

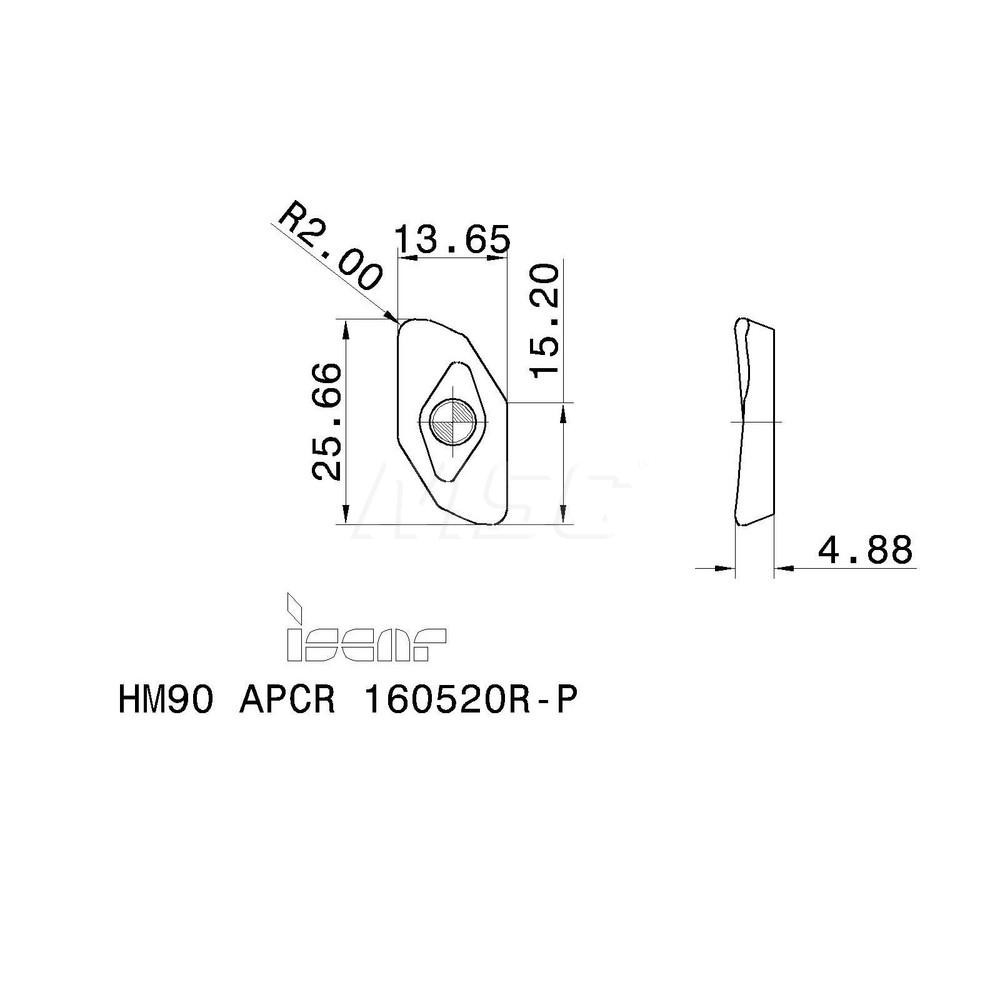

| Ansi Code | HM90 APCR 160520R-P IC28 |
| Iso Code | HM90 APCR 160520R-P |
| Standards | ISO 13399; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | HM90 APCR 160520R-P IC28 |
| Cutter Series Compatibility | HM90-16 |
| Chip Breaker | P |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal |

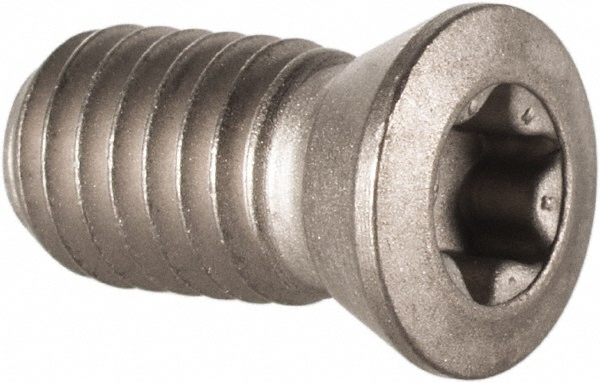

| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.5040 |
| Width (mm - 2 Decimals) | 12.80 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 1.0000 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 02794022 |
