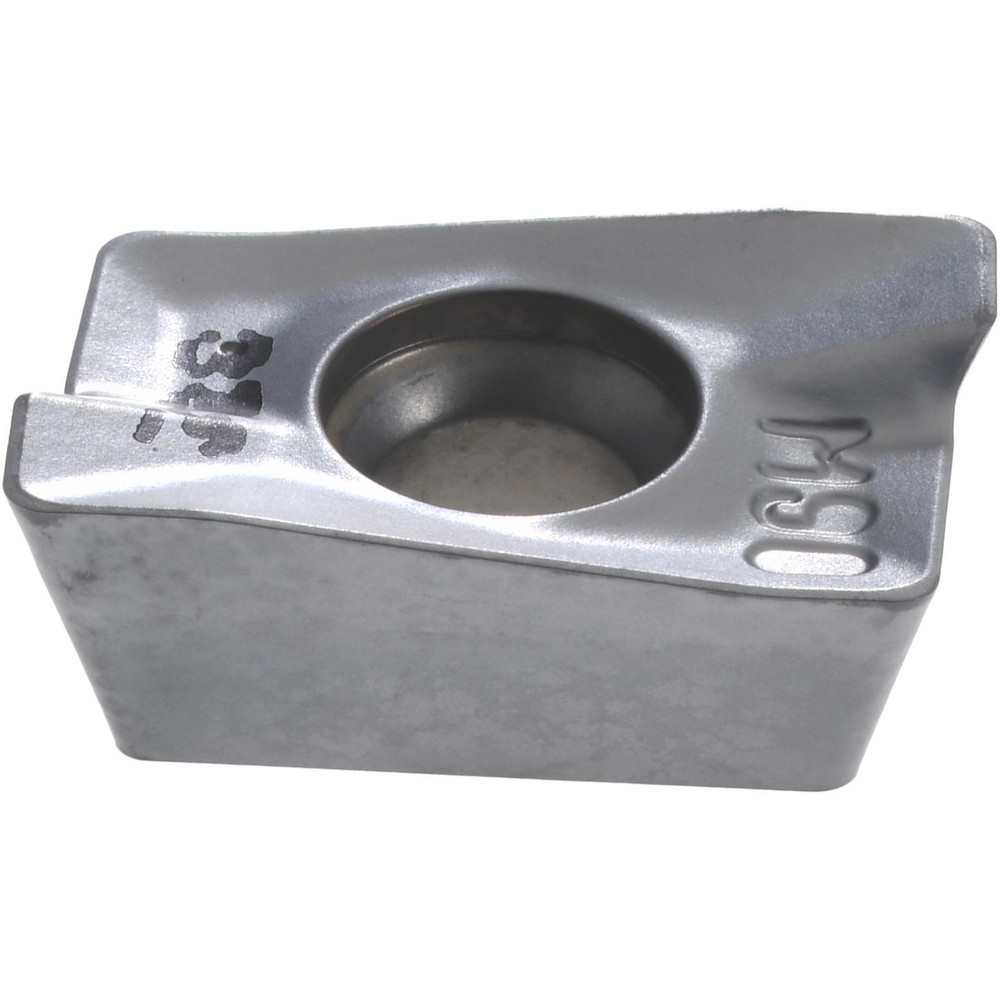

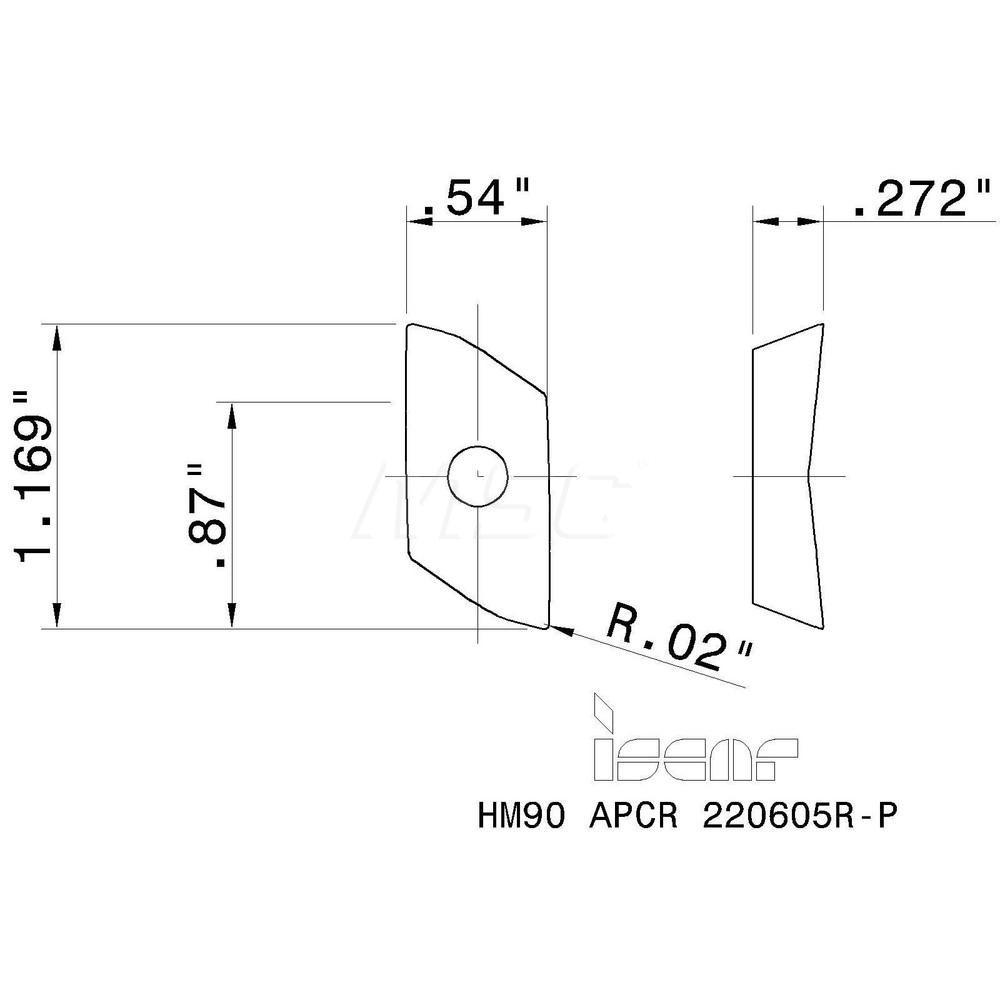

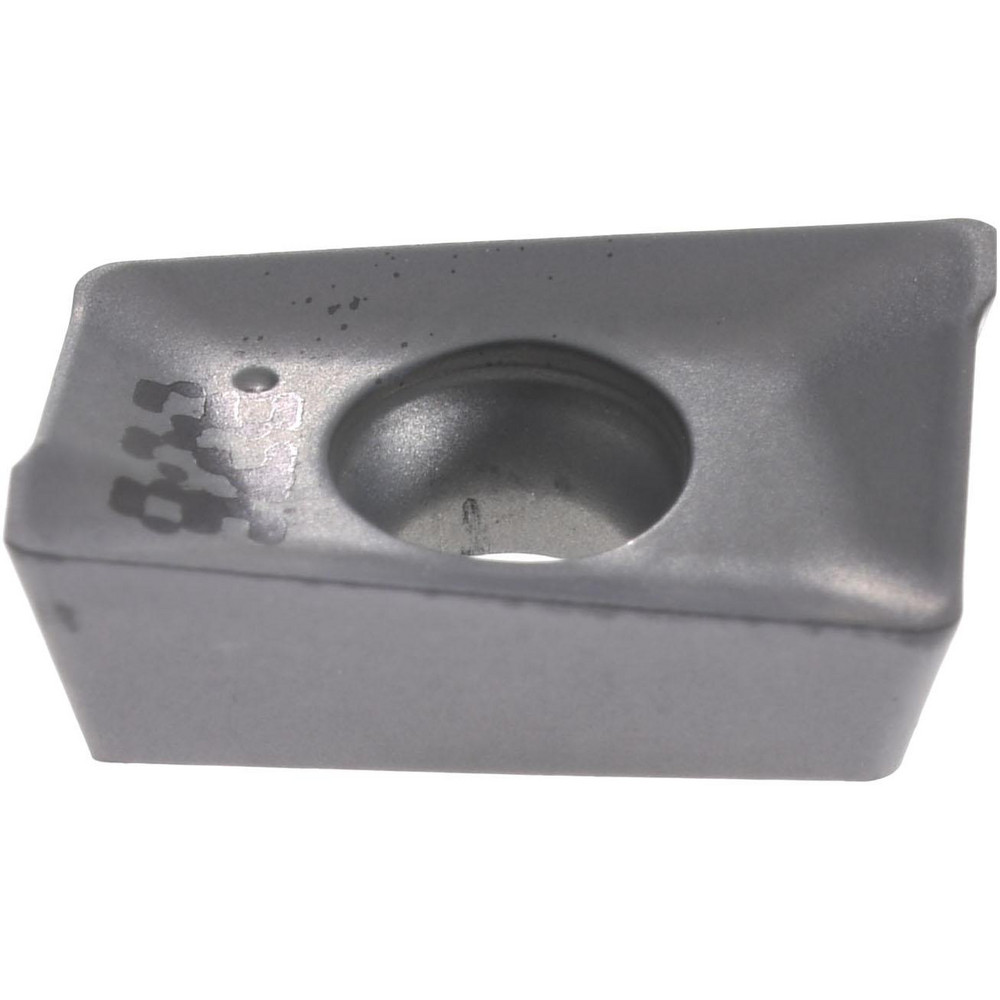

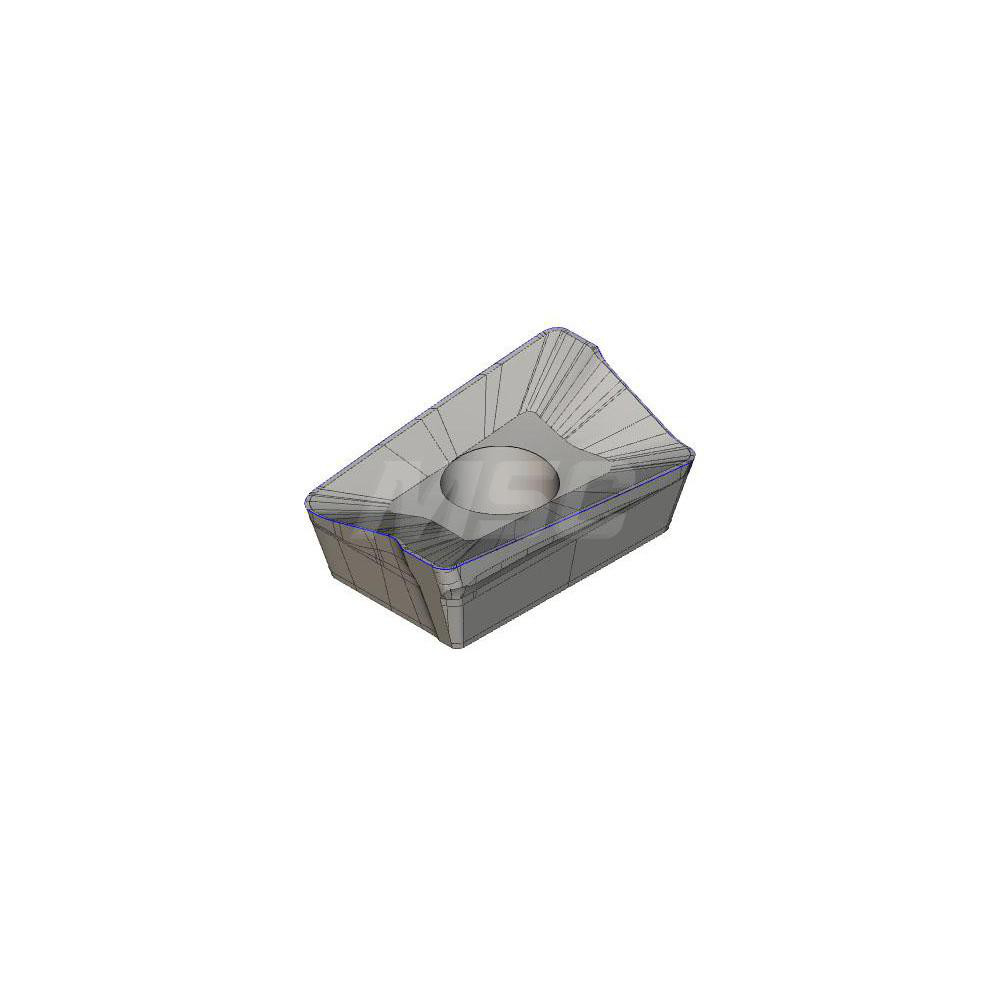

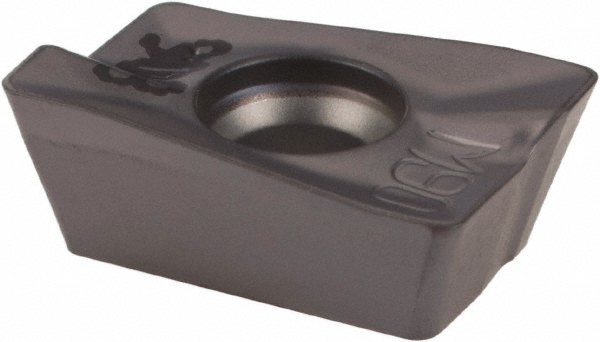

Bright/Uncoated Finish, 0.2720" Thick, 0.5470" Wide
| Insert Style | APCR |
|---|---|
| Insert Size | 22 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | IC28 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Corner Radius (mm) | 0.50 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2720 |
| Coating/Finish | Bright/Uncoated |
| Relief Angle | 11.00 |
| Insert Size Code | 220605 |
| Material Grade | C5; C6 |
| Width (Inch) | 35/64 |
| Inscribed Circle (Inch) | 35/64 |
| Inscribed Circle (Decimal Inch) | 0.5470 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 to 0.6000 |
| Length Range (Decimal Inch) | 1.0000+ |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.8660 |
| Maximum Depth of Cut (mm) | 20.00 |
| Series | HELIALU |
| Coating Process | Uncoated |
| Cutting Edge Effective Length (Decimal Inch) | 0.8700 |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | HM90 APCR 220605R-P IC28 |
| Iso Code | HM90 APCR 220605R-P |
| Standards | ISO 13399; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | HM90 APCR 220605R-P IC28 |

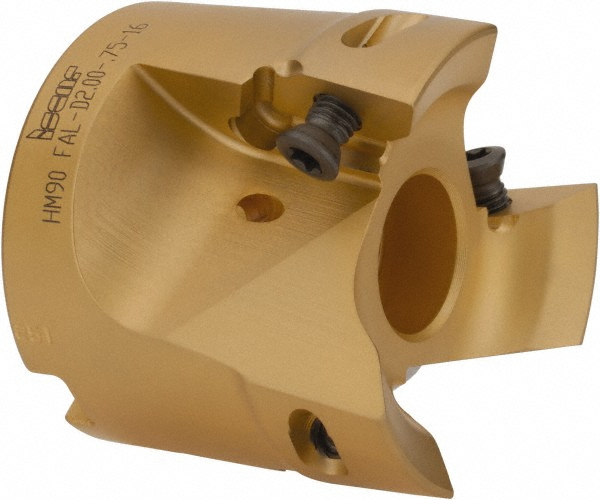

| Cutter Series Compatibility | HM90-22 |
| Chip Breaker | P |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.5470 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 1.2010 |
| Country of Origin | Israel |
