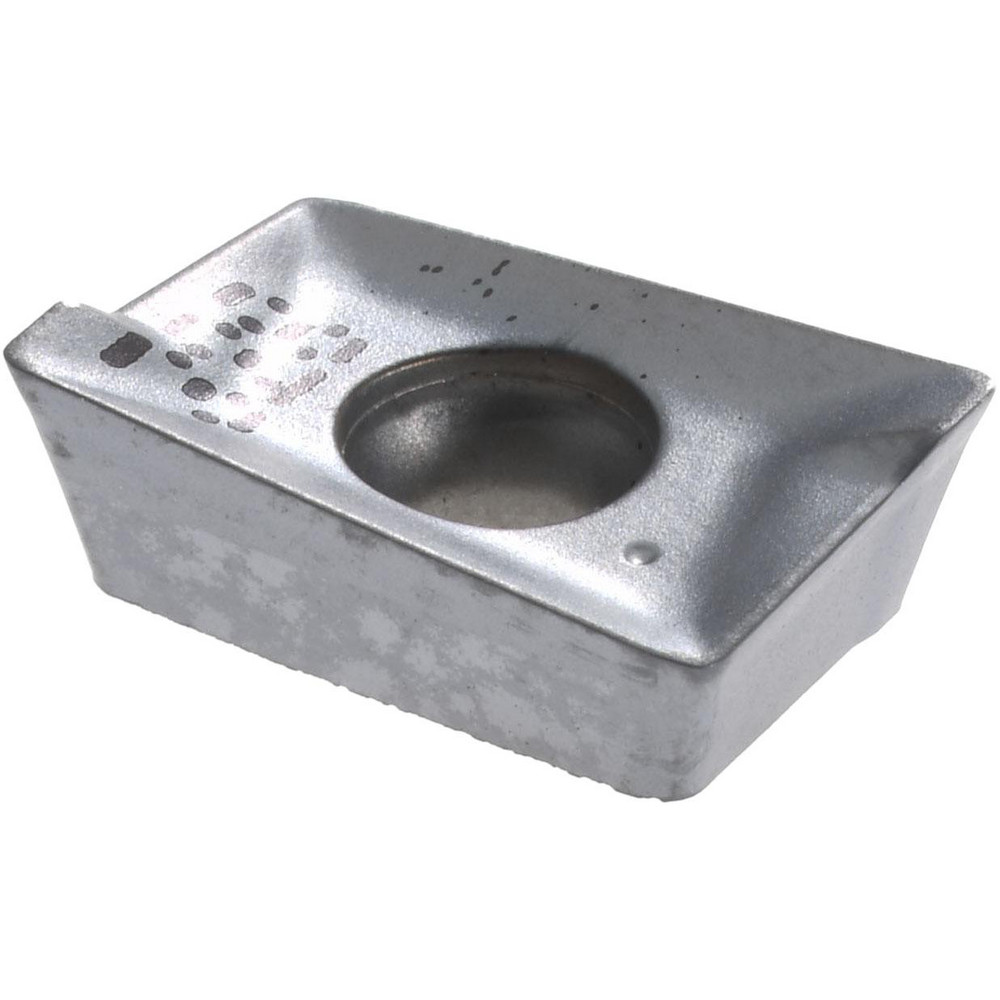

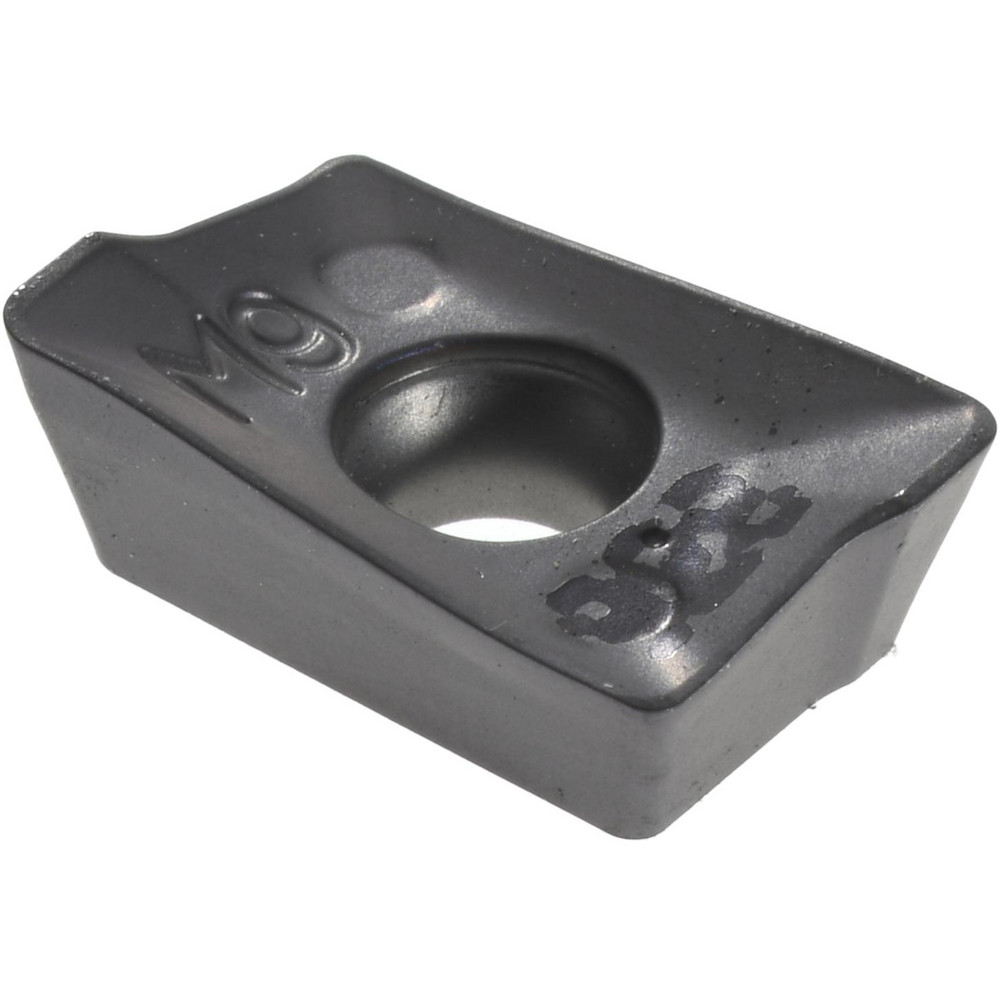

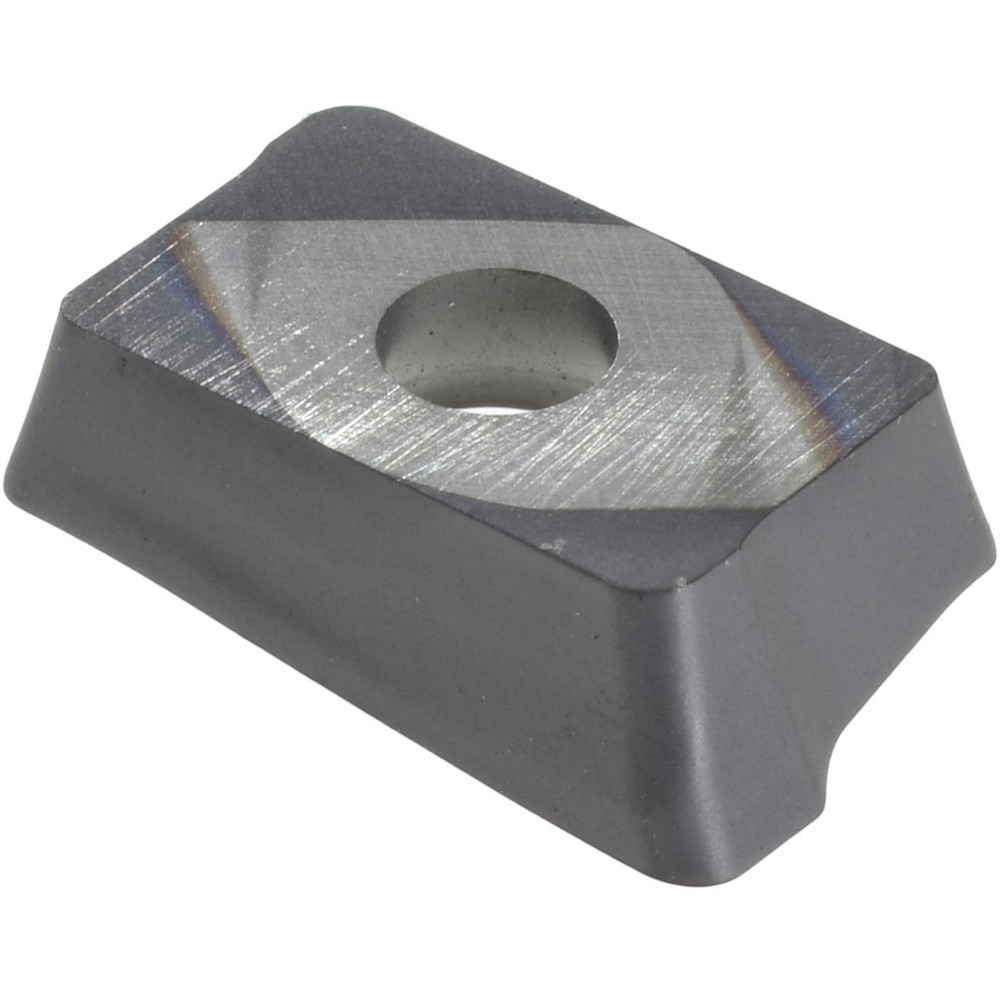

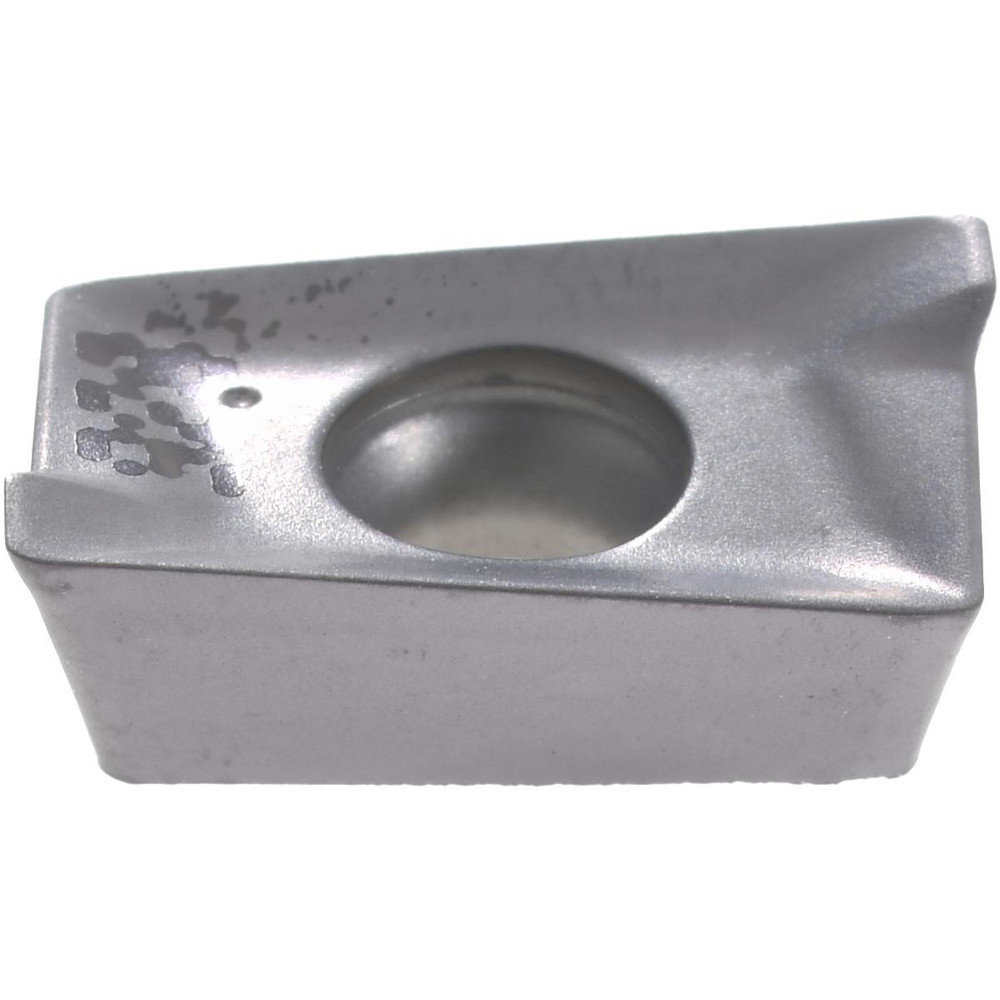

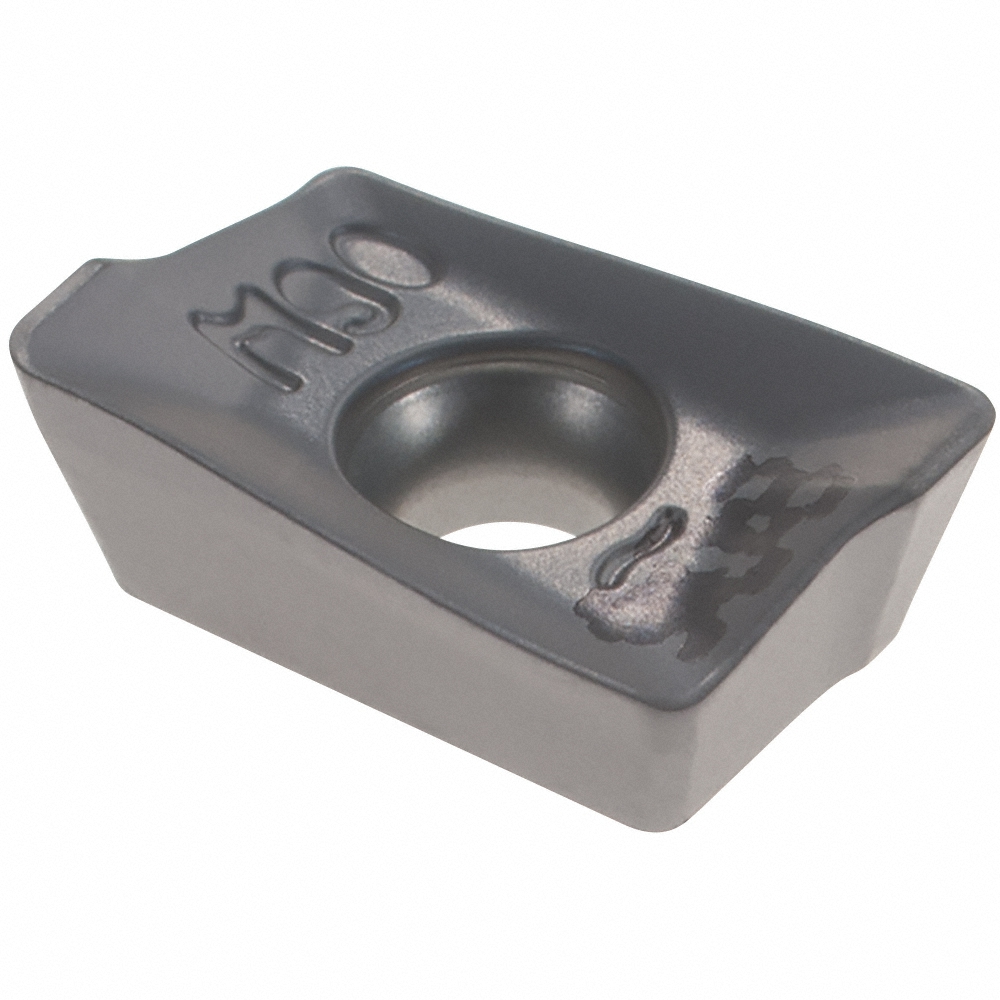

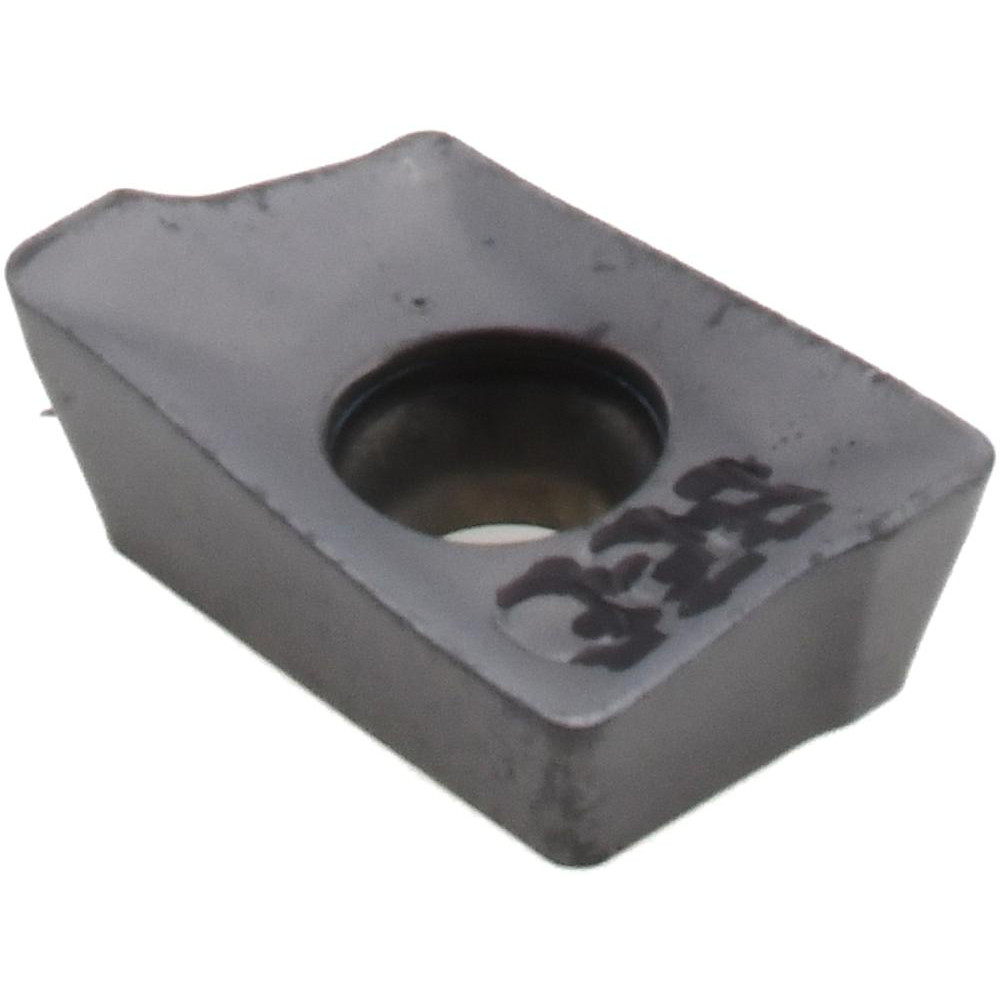

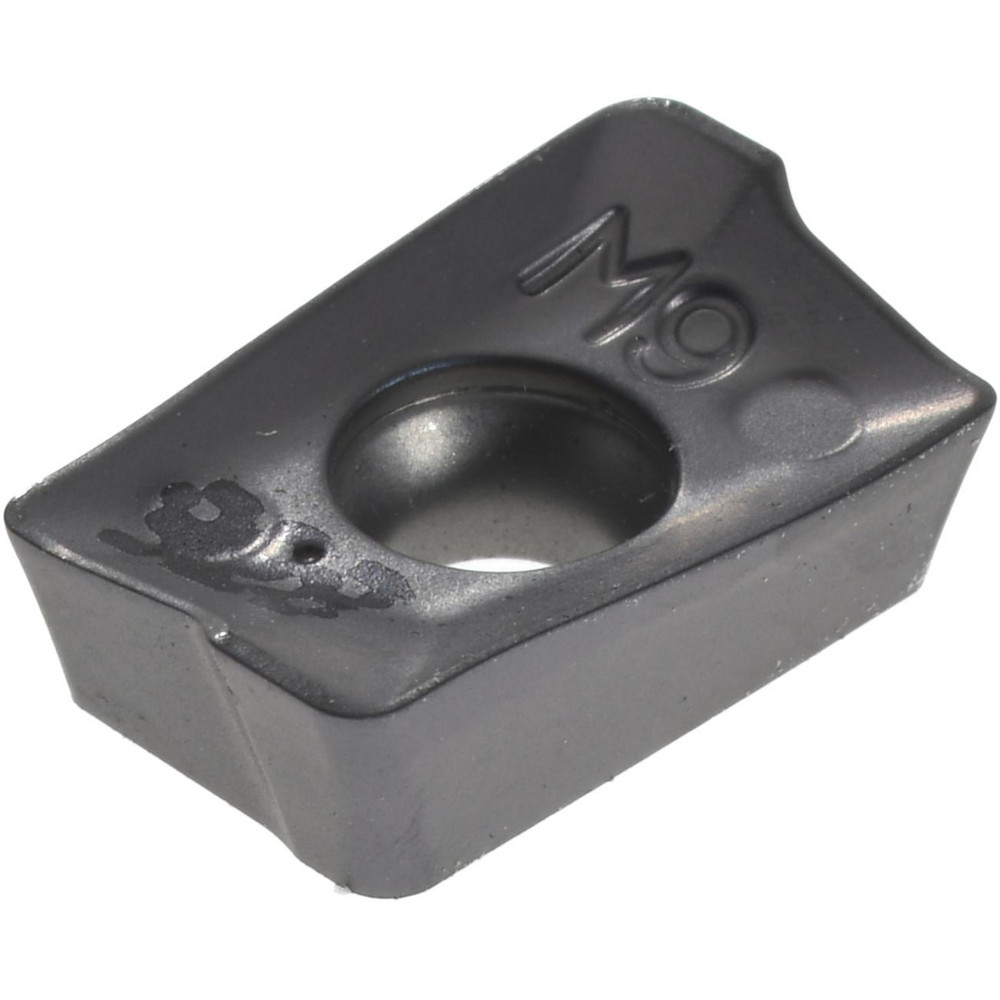

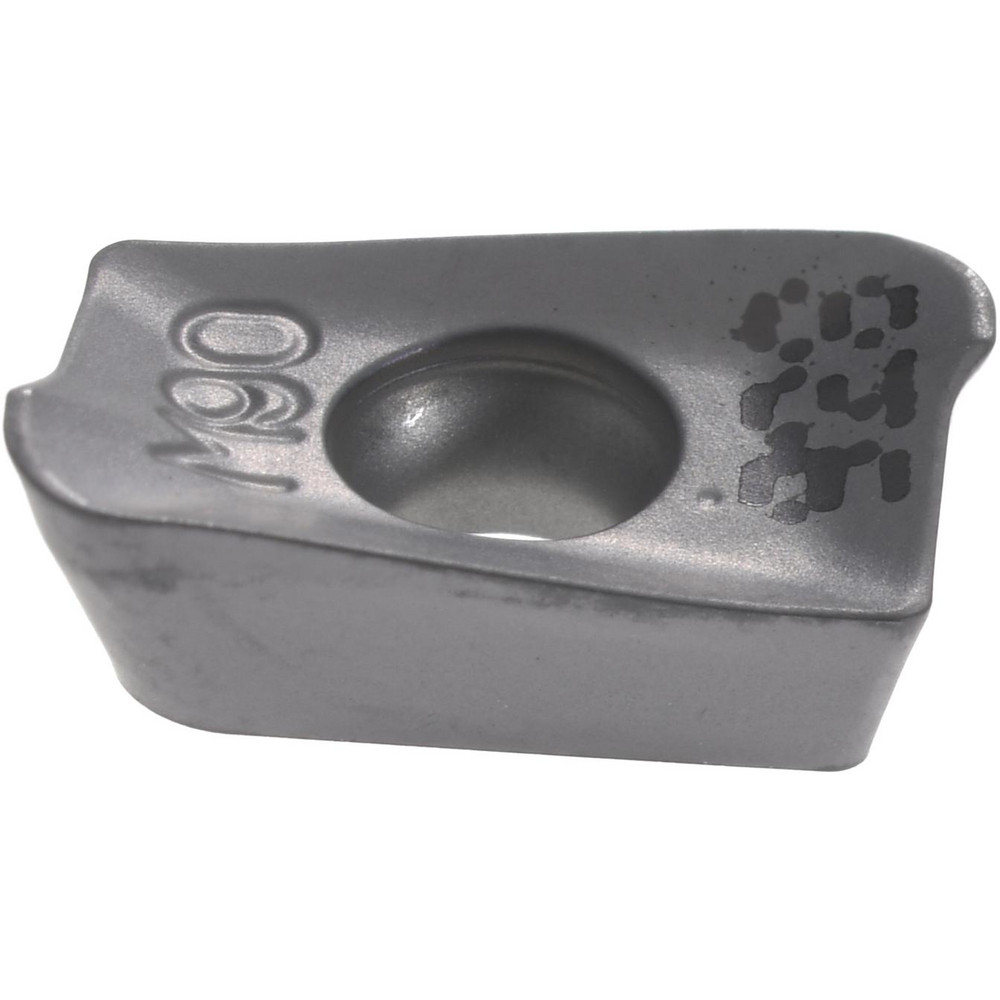

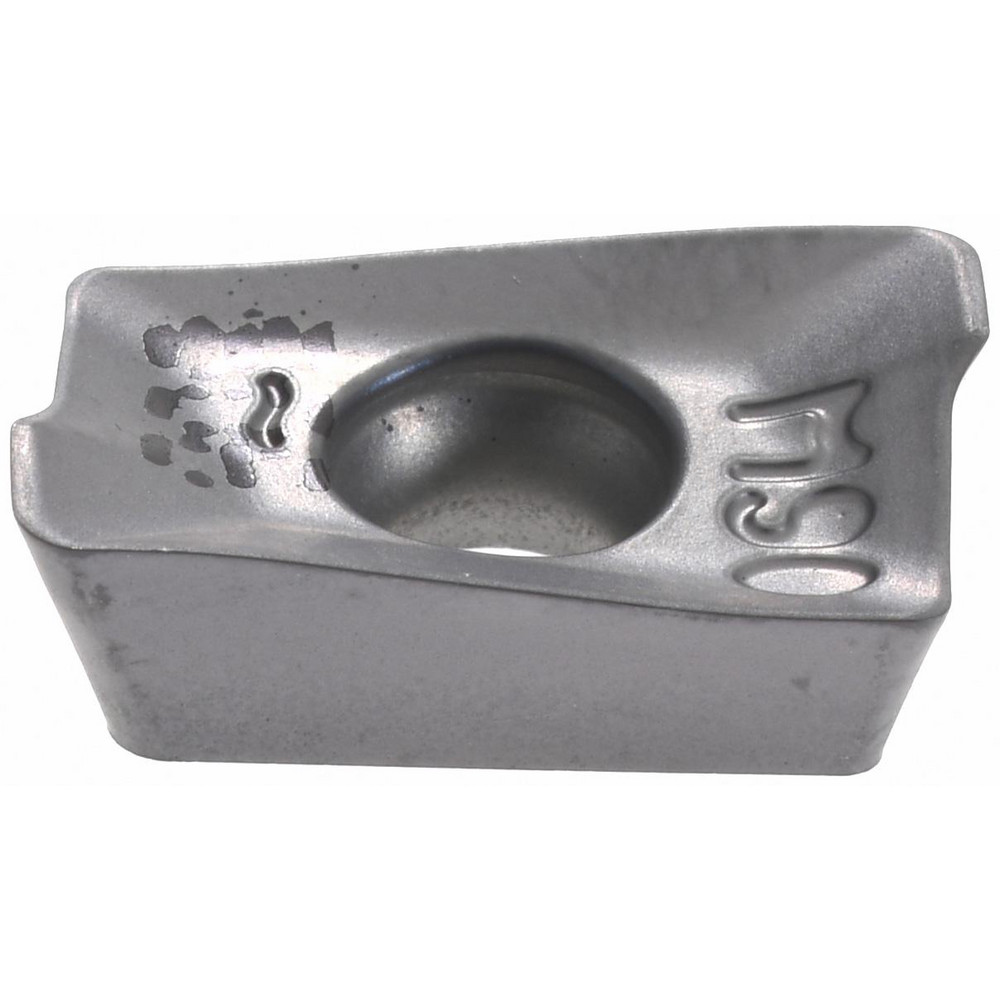

TiAlN Finish, 0.1390" Thick, 0.2660" Wide
| Insert Style | APKT |
|---|---|
| Insert Size | 10 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | IC928 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1390 |
| Coating/Finish | TiAlN |
| Relief Angle | 11.00 |
| Insert Size Code | 1003 |
| Material Grade | C5; C6; C1; C2 |
| Width (Inch) | 17/64 |
| Inscribed Circle (Inch) | 17/64 |
| Inscribed Circle (Decimal Inch) | 0.2660 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3860 |
| Maximum Depth of Cut (mm) | 8.00 |
| Series | HELI2000 |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.4040 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material Code | S |
| Ansi Code | HM90 APKT 1003PDR IC928 |
| Iso Code | HM90 APKT 1003PDR |
| Standards | ISO 13399; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | HM90 APKT 1003PDR IC928 |

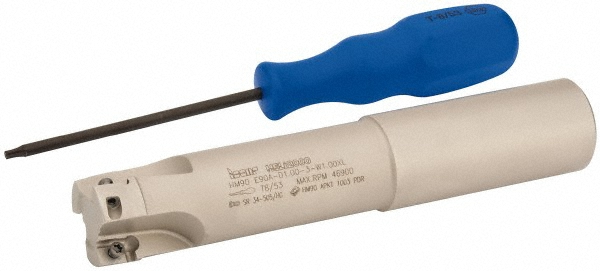

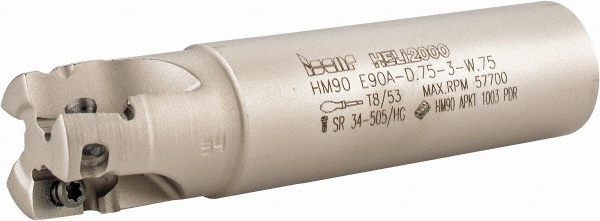

| Cutter Series Compatibility | HM90-10 |
| Chip Breaker | PDR |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.2660 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4510 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 48546634 |
