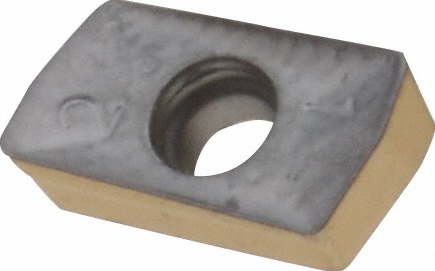

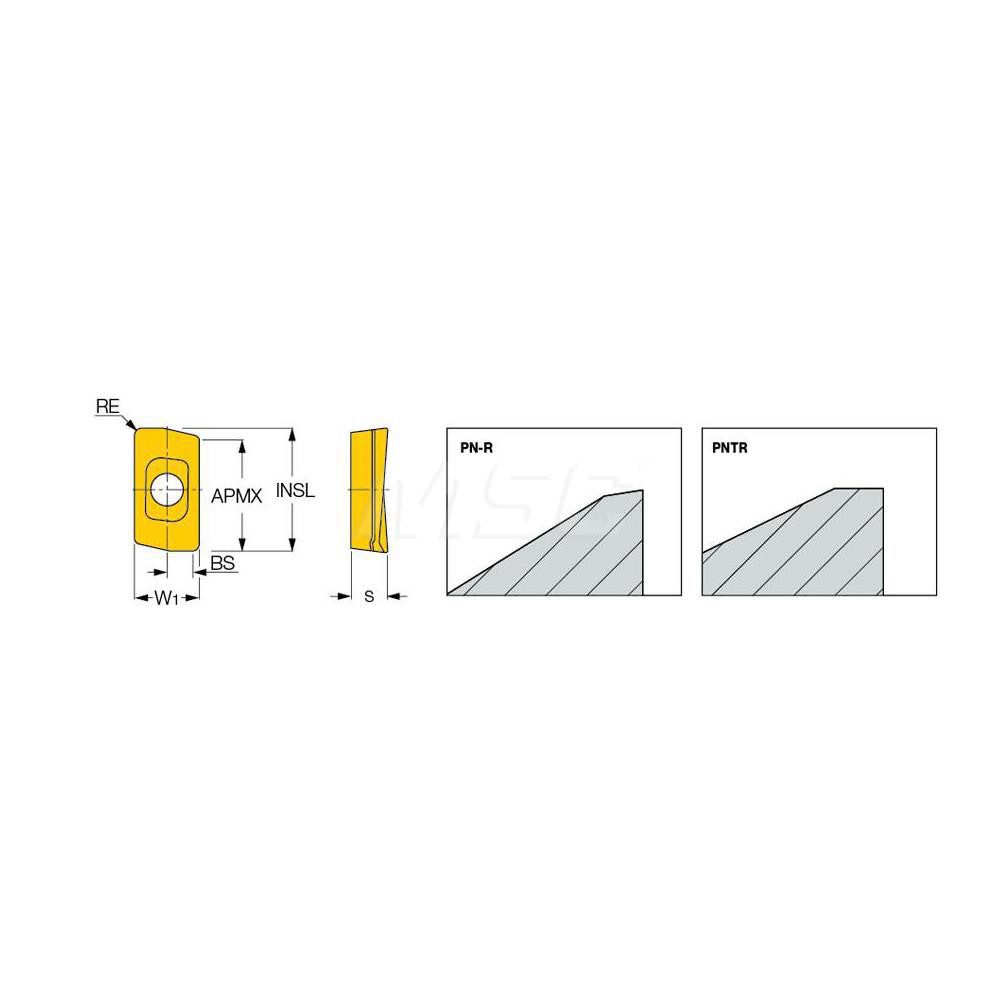

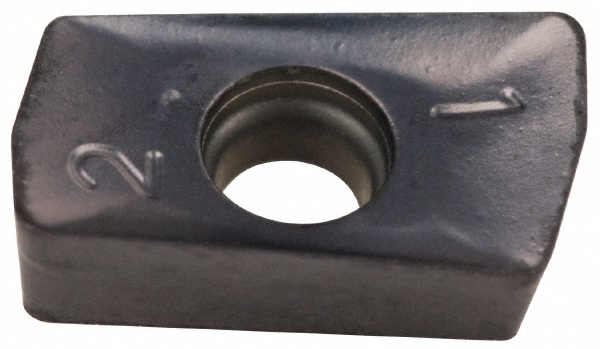

TiAlN Finish, 0.1020" Thick, 0.1770" Wide
| Insert Style | ANCT |
|---|---|
| Insert Size | 07 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | IC928 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1020 |
| Coating/Finish | TiAlN |
| Relief Angle | 0.00 |
| Insert Size Code | 070204 |
| Inscribed Circle (Decimal Inch) | 0.1770 |
| Thickness Range (Decimal Inch) | 0.1000 to 0.1250 |
| Corner Radius (Inch) | 1/64 |
| Inscribed Circle Range (Decimal Inch) | 0.0000 to 0.2500 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3030 |
| Maximum Depth of Cut (mm) | 7.70 |
| Series | HELIPLUS |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.3030 |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material Code | S |
| Ansi Code | HP ANCT 070204PN-R IC928 |
| Iso Code | HP ANCT 070204PN-R |
| Standards | ISO 13399; ANSI |
| Rake Angle | 32 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | HP ANCT 070204PN-R IC928 |
| Cutter Series Compatibility | HP-ANK-07; HP .90-07 |
| Chip Breaker | R |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 85 |

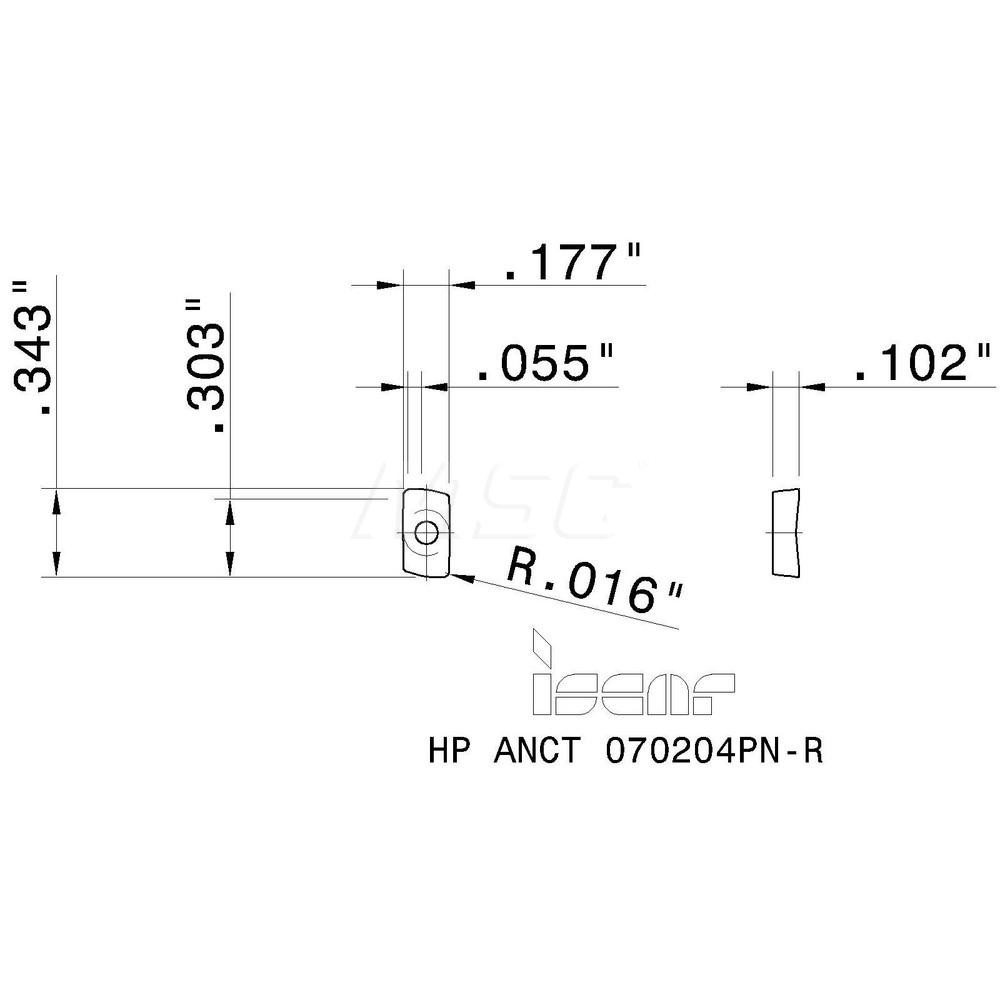

| Width (Decimal Inch - 4 Decimals) | 0.1770 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3430 |
| Country of Origin | Israel |
