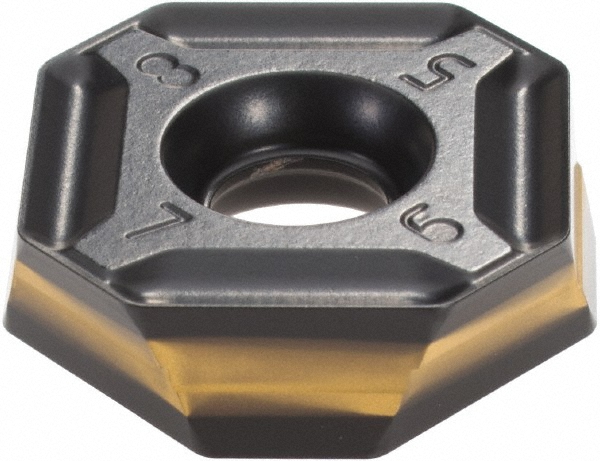

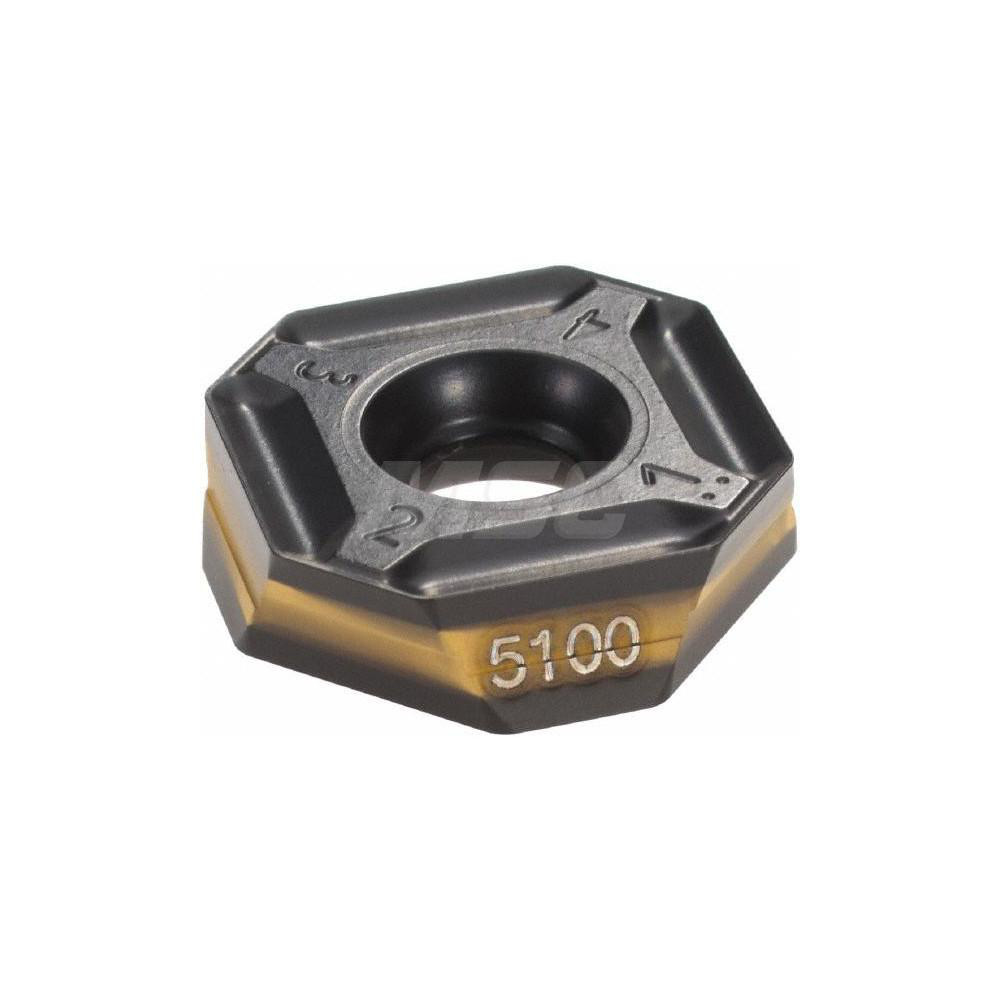

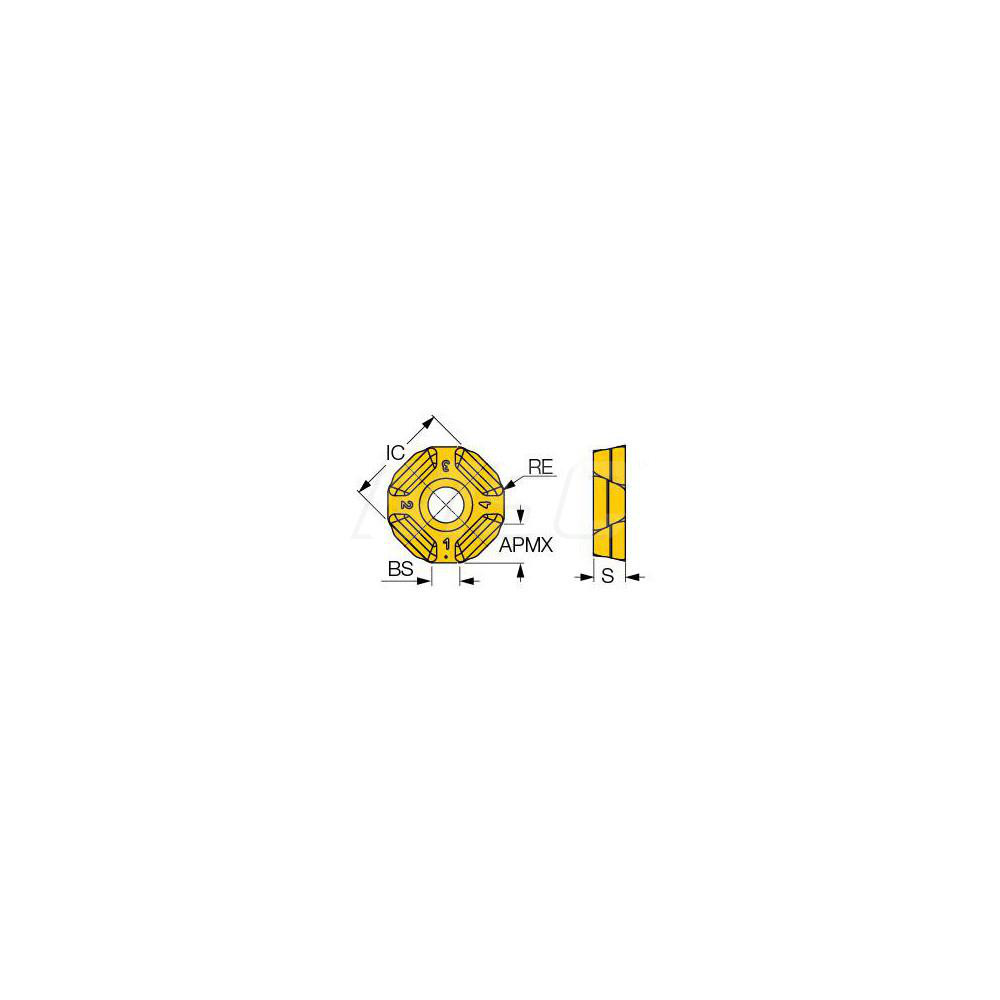

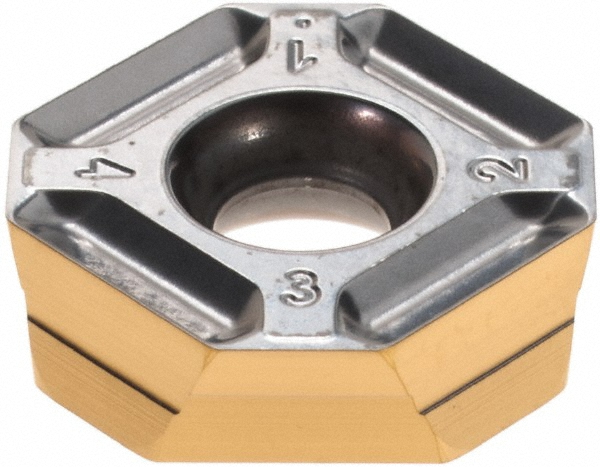

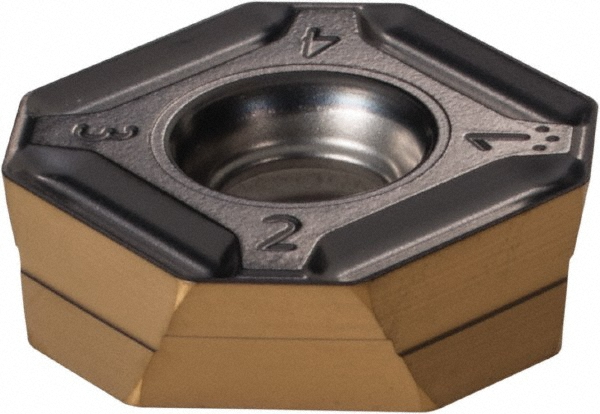

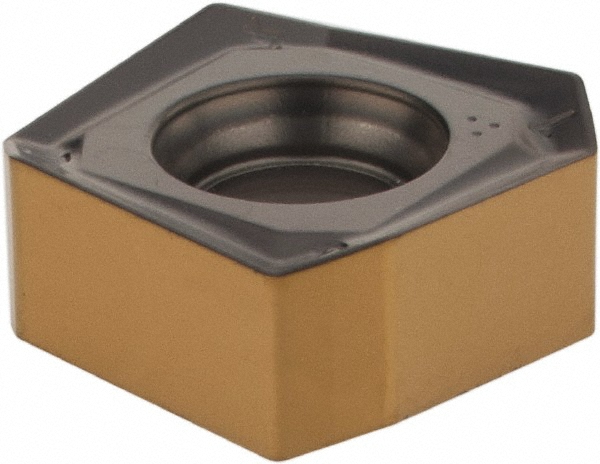

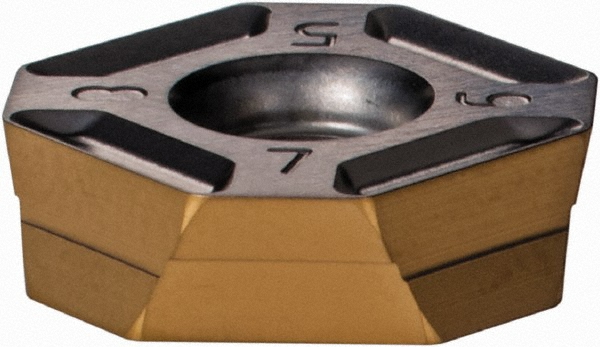

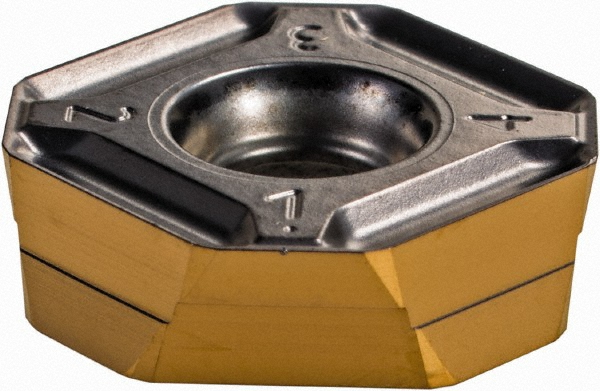

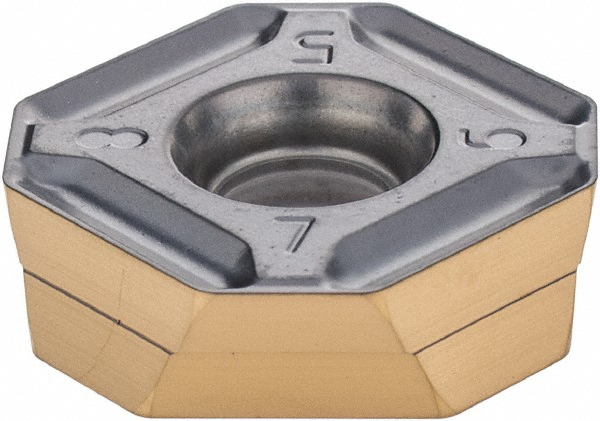

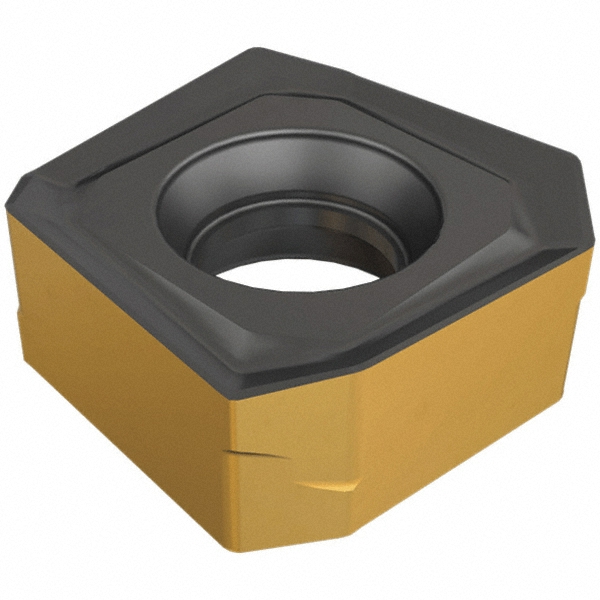

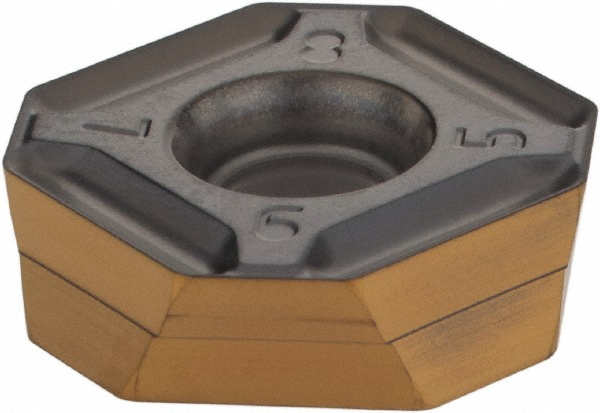

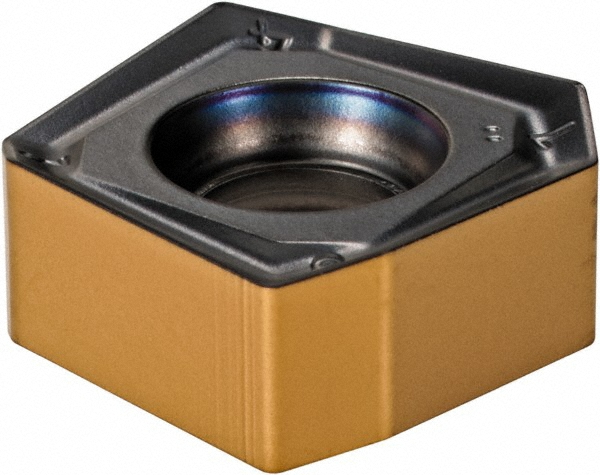

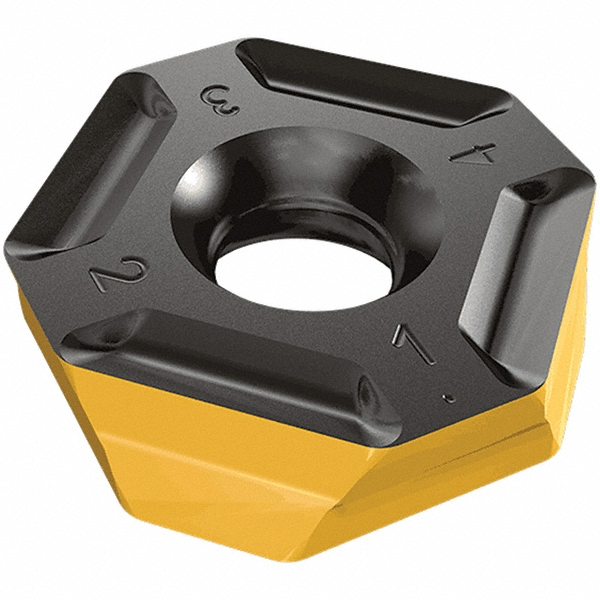

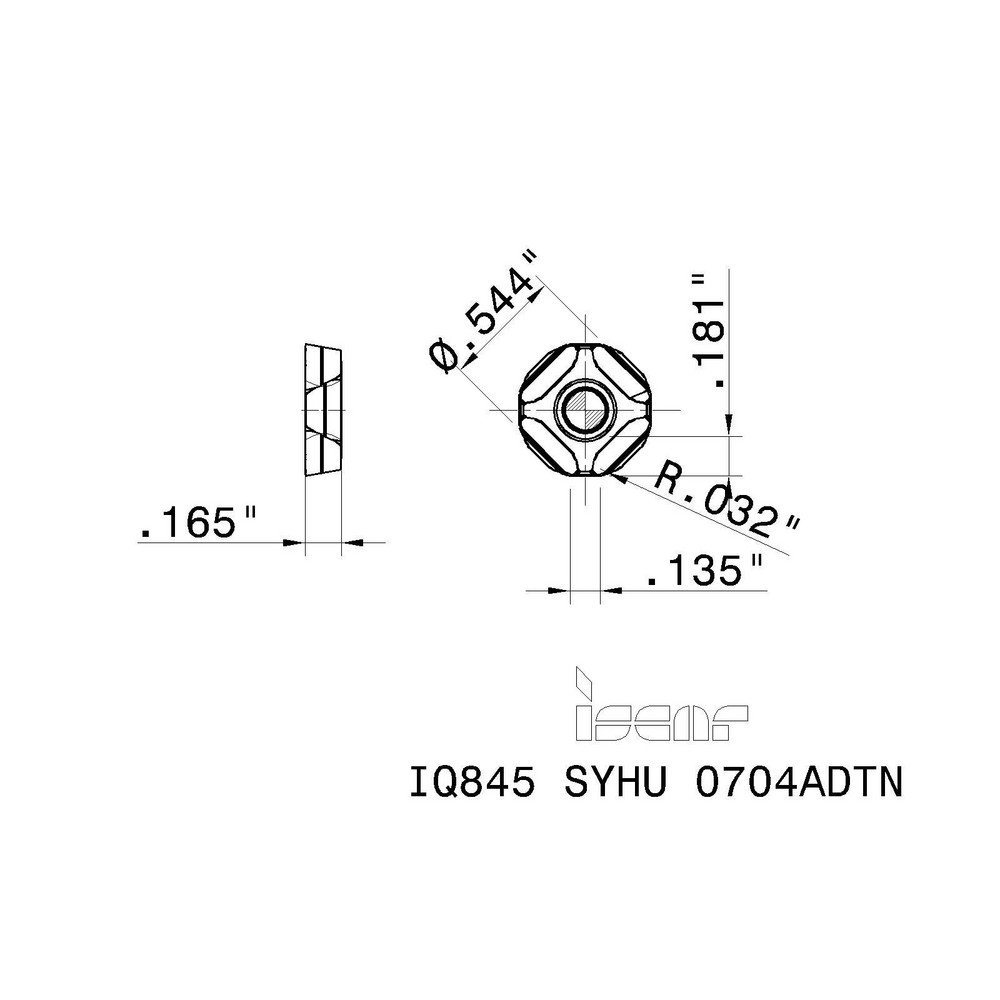

TiCN & Al2O3 Finish, 0.1650" Thick, 0.5433" Wide
| Insert Style | SYHU |
|---|---|
| Insert Size | 07 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | IC5100 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.79 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1650 |
| Coating/Finish | TiCN; Al2O3 |
| Relief Angle | 0.00 |
| Insert Size Code | 0704 |
| Inscribed Circle (Decimal Inch) | 0.5433 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 to 0.6000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.1810 |
| Maximum Depth of Cut (mm) | 4.60 |
| Series | DOVEIQMILL |
| Coating Process | CVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.5118 |
| Rake | Negative |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | IQ845 SYHU 0704ADTN IC5100 |
| Iso Code | IQ845 SYHU 0704ADTN |
| Standards | ISO 13399; ANSI |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | IQ845 SYHU 0704ADTN IC5100 |
| Cutter Series Compatibility | IQ845 |
| Chip Breaker | ADTN |
| UNSPSC Code | 23291601 |
| Material Application | Cast Iron |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5433 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5433 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 44977023 |
