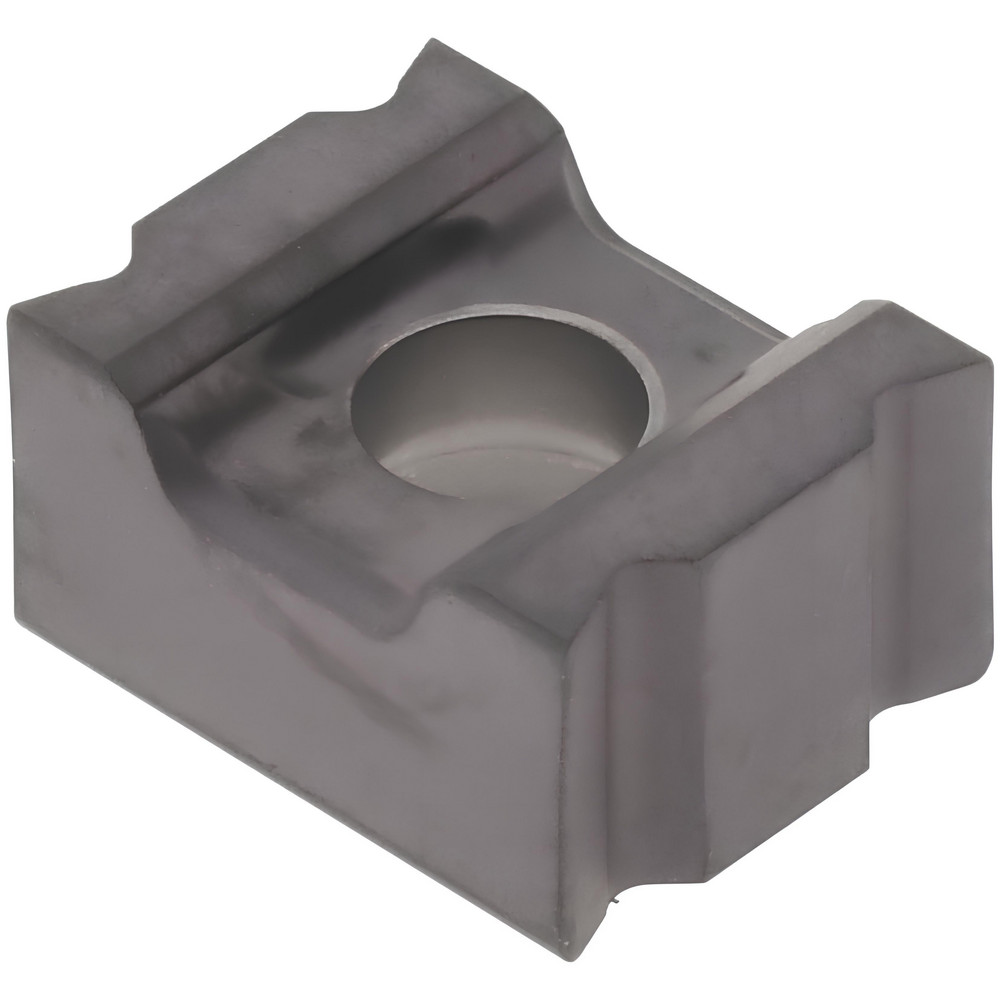

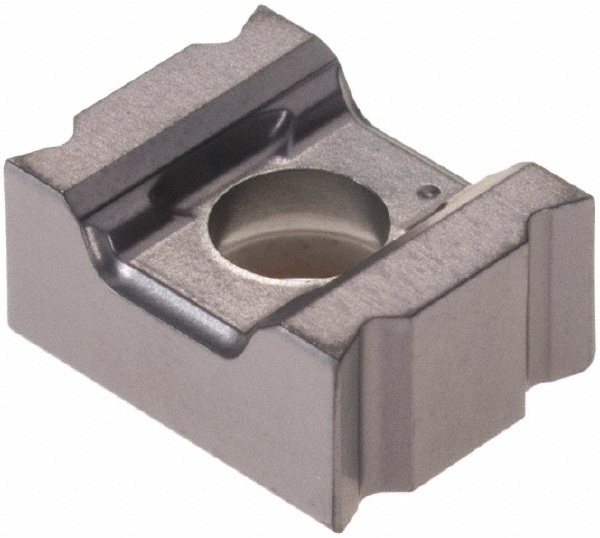

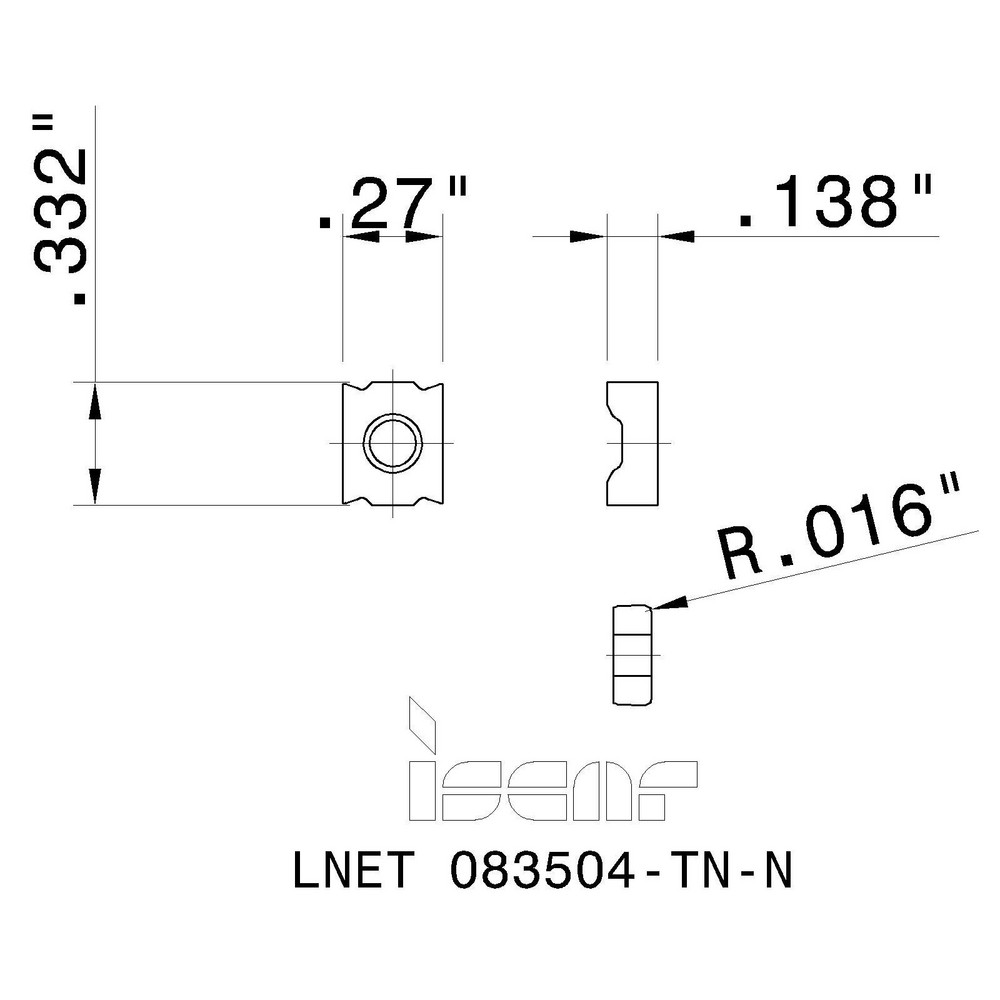

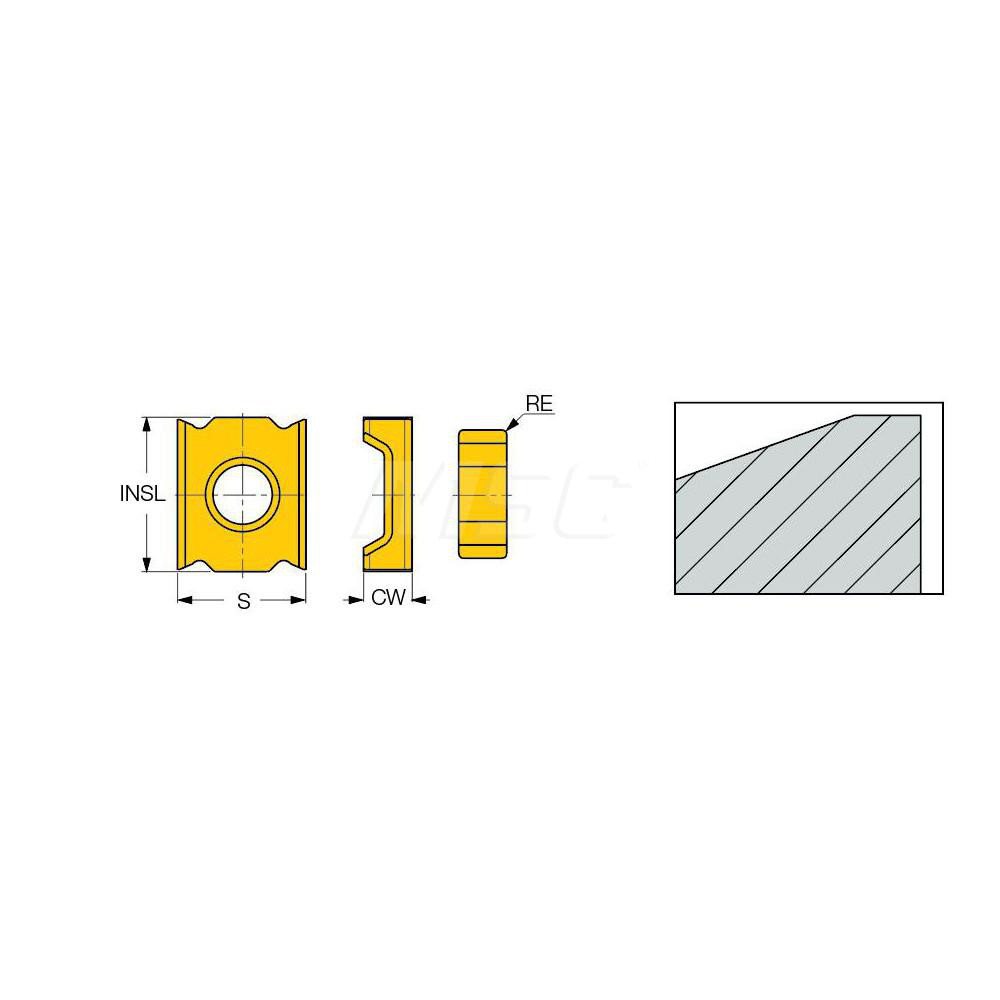

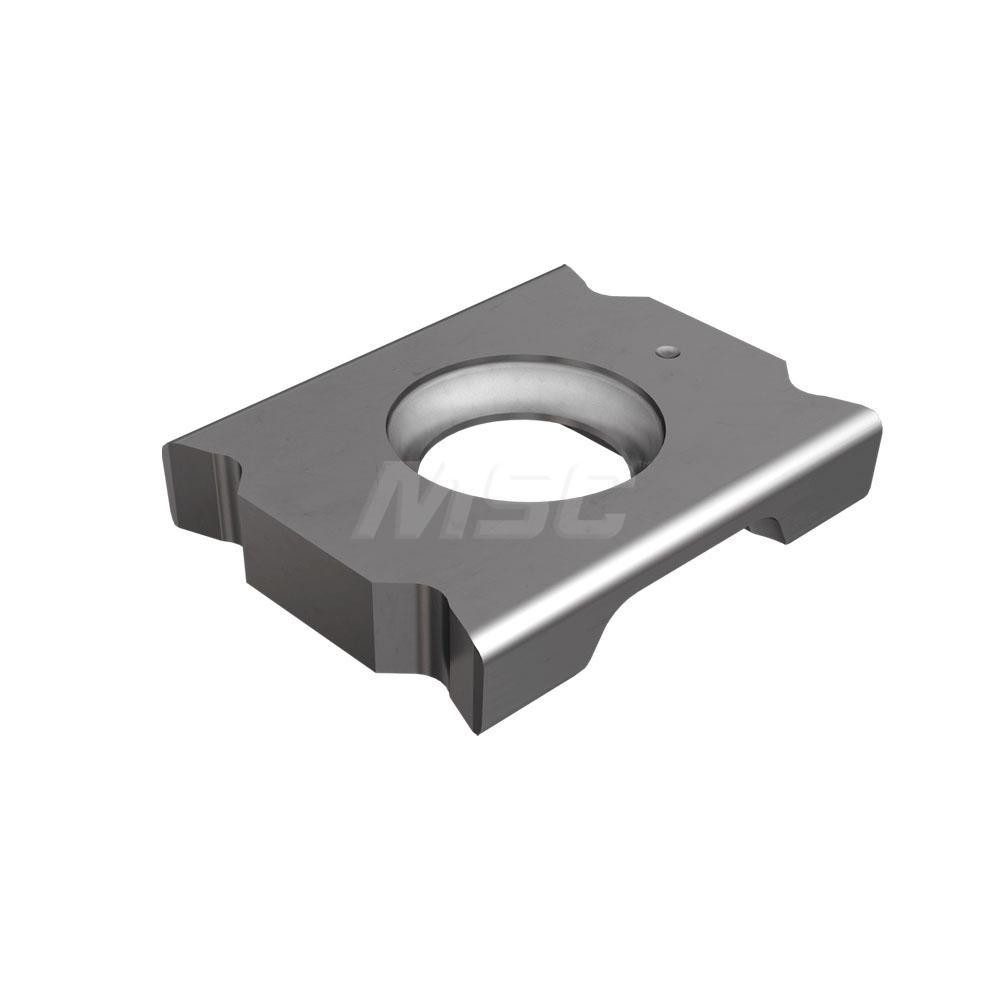

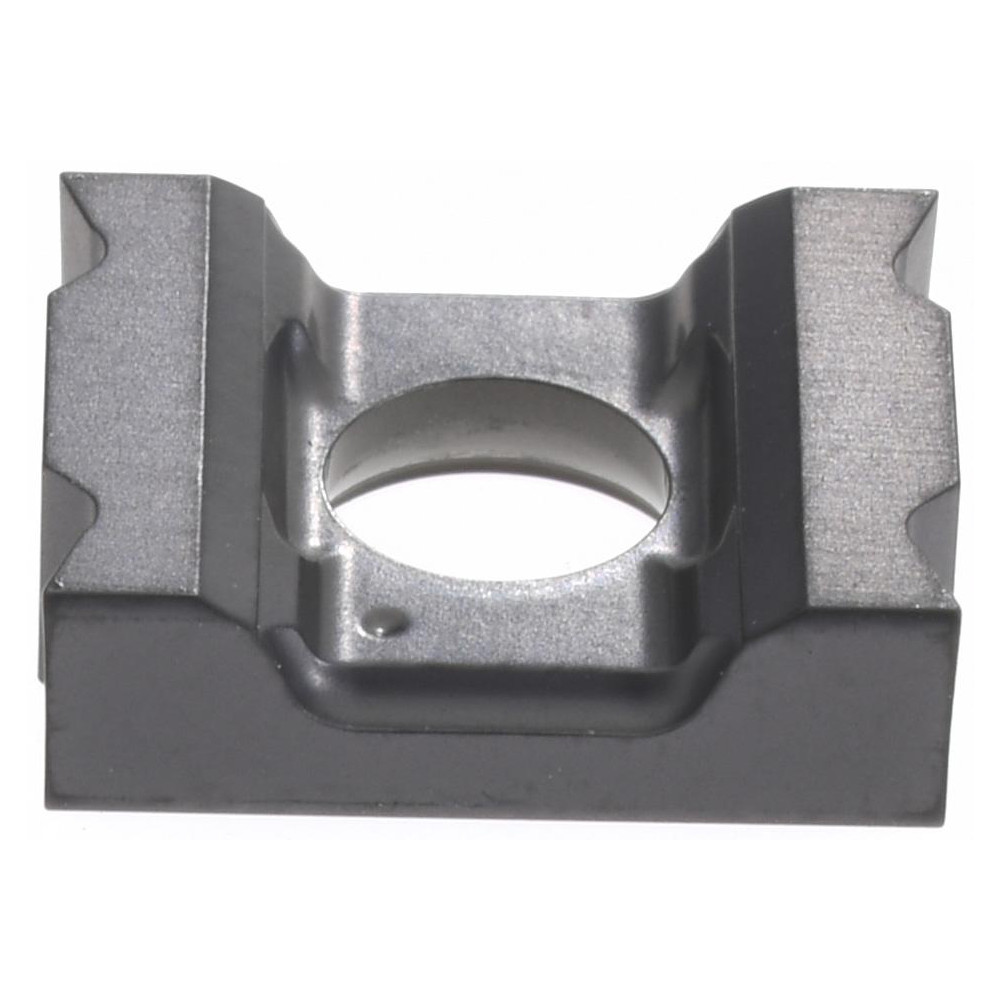

TiAlN Finish, 0.2700" Thick, 0.3310" Wide
| Insert Style | LNET |
|---|---|
| Insert Size | 08 |
| Insert Material | Solid Carbide |
| Insert Shape | Butterfly |
| Manufacturer Grade | IC928 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.41 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2700 |
| Coating/Finish | TiAlN |
| Relief Angle | 0.00 |
| Insert Size Code | 083504 |
| Inscribed Circle (Decimal Inch) | 0.3310 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Corner Radius (Inch) | 1/64 |
| Inscribed Circle Range (Decimal Inch) | 0.3000 to 0.3500 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.3310 |
| Series | TANGSLOT |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.3310 |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | LNET 083504-TN-N IC928 |
| Iso Code | LNET 083504-TN-N |
| Standards | ISO 13399; ANSI |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | LNET 083504-TN-N IC928 |
| Cutter Series Compatibility | FDN-LN08; ETS-LN08 |
| Chip Breaker | TN |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.3310 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3310 |
| Country of Origin | Israel |
| MSC Number | MSC# 00959981 |
