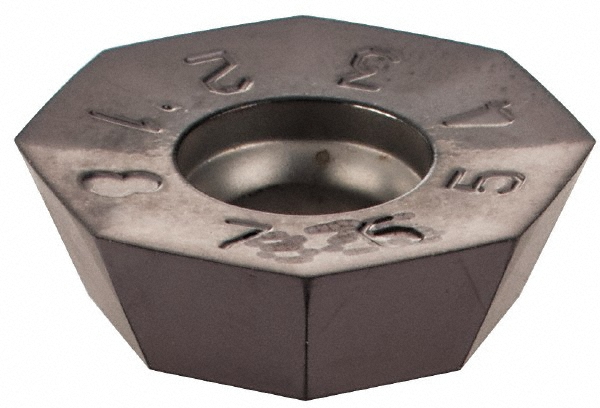

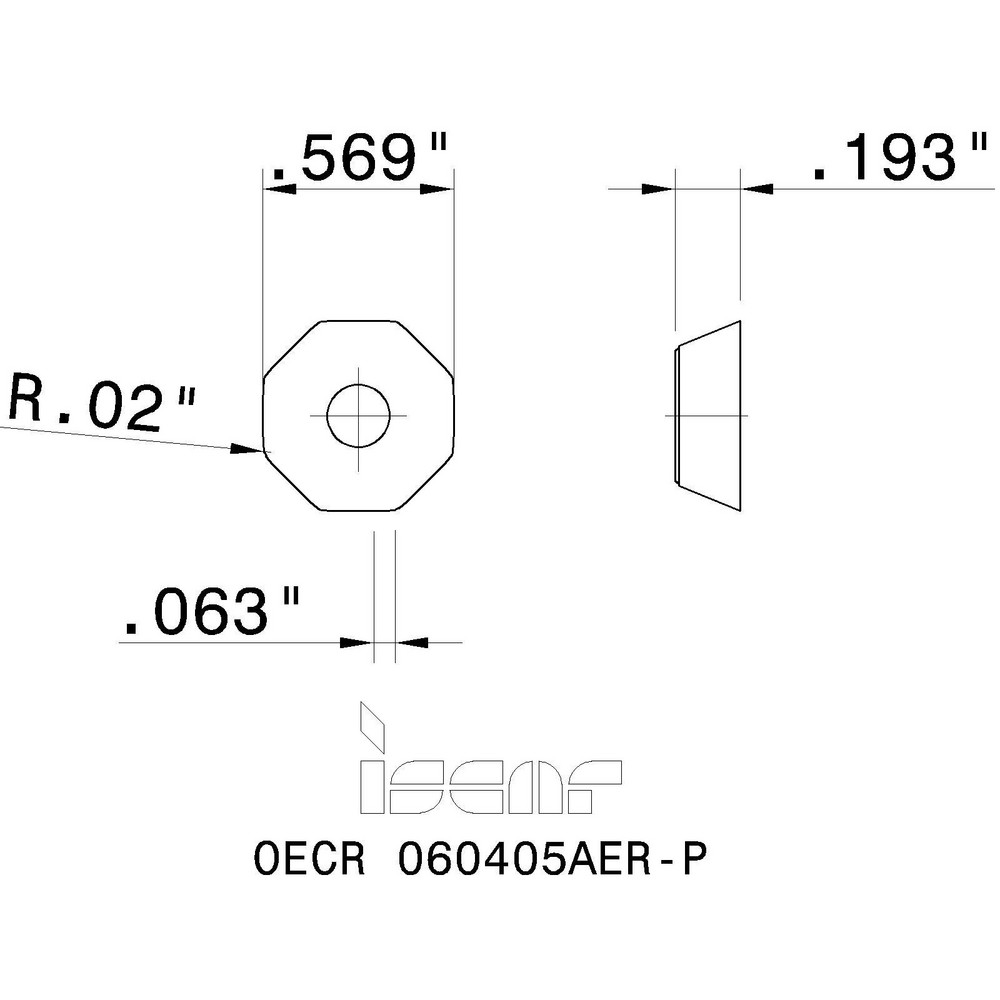

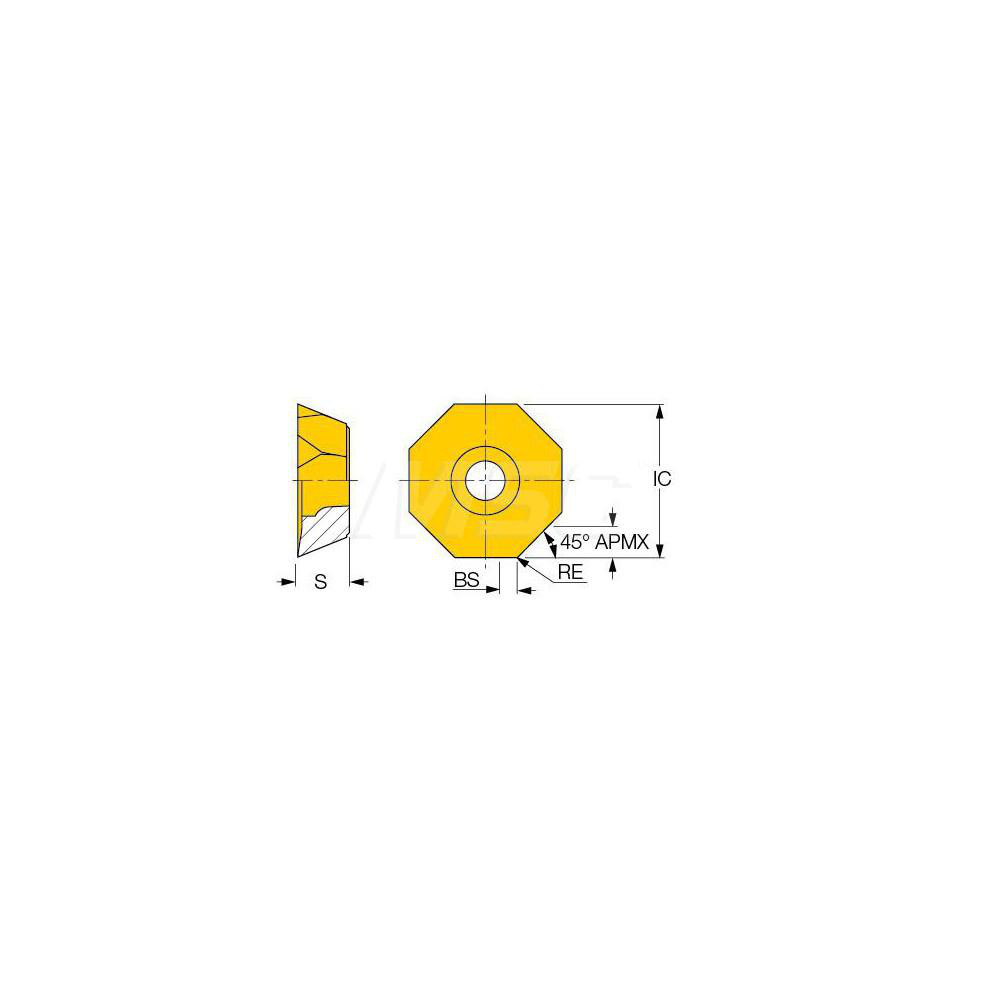

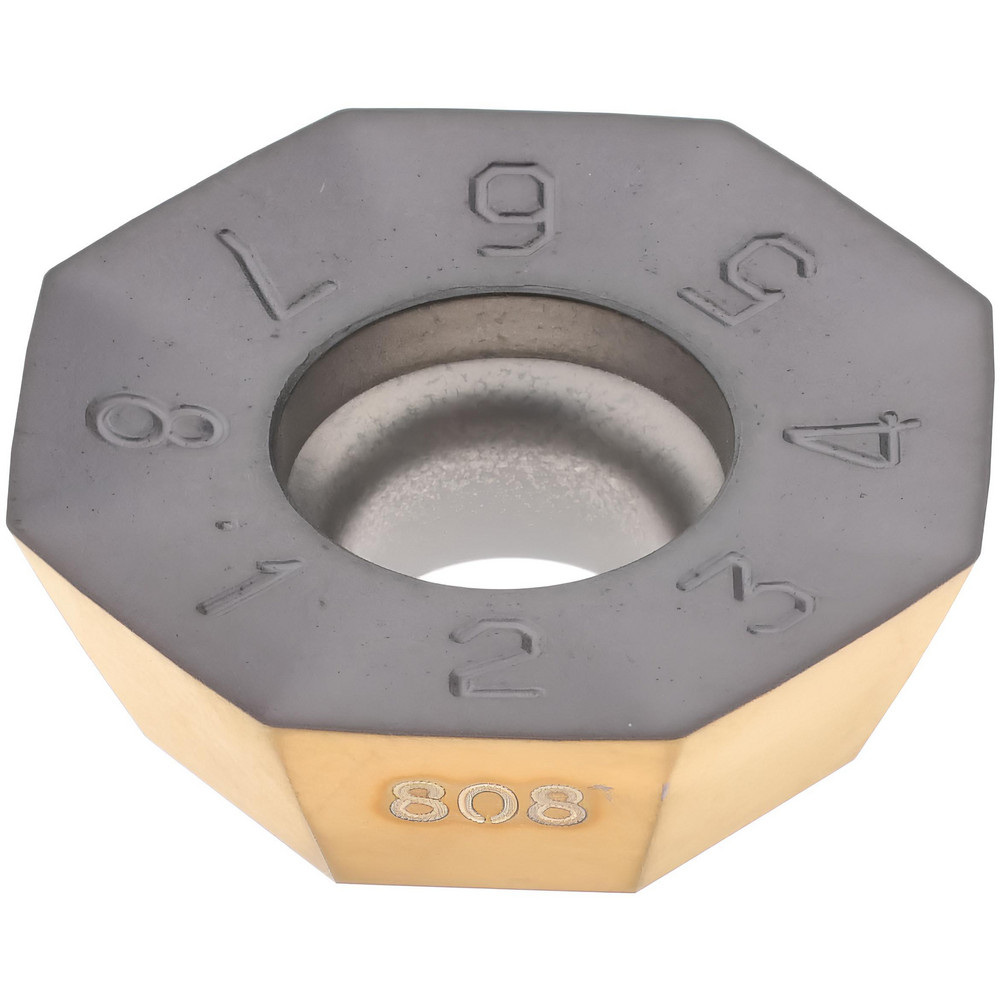

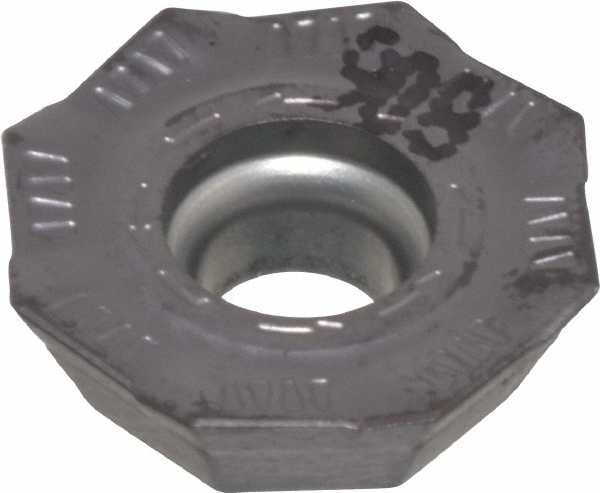

TiAlN Finish, 0.1930" Thick, 0.5689" Wide
| Insert Style | OECR |
|---|---|
| Insert Size | 06 |
| Insert Material | Solid Carbide |
| Insert Shape | Octagon |
| Manufacturer Grade | IC928 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Corner Radius (mm) | 0.50 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1930 |
| Coating/Finish | TiAlN |
| Relief Angle | 20.00 |
| Insert Size Code | 060405 |
| Material Grade | C5; C6; C1; C2 |
| Inscribed Circle (Decimal Inch) | 0.5689 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 to 0.6000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.1460 |
| Maximum Depth of Cut (mm) | 3.70 |
| Series | HELIOCTO |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.1460 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material Code | S |
| Ansi Code | OECR 060405AER-P IC928 |
| Iso Code | OECR 060405AER-P |
| Standards | ISO 13399; ANSI |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | OECR 060405AER-P IC928 |
| Cutter Series Compatibility | HOF-R06; HOE-R06 |
| Chip Breaker | P |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 135 |
| Width (Decimal Inch - 4 Decimals) | 0.5689 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5689 |
| Country of Origin | Israel |
| MSC Number | MSC# 07628746 |
