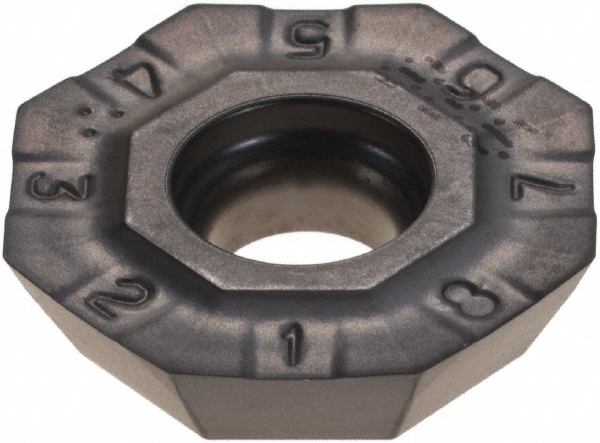

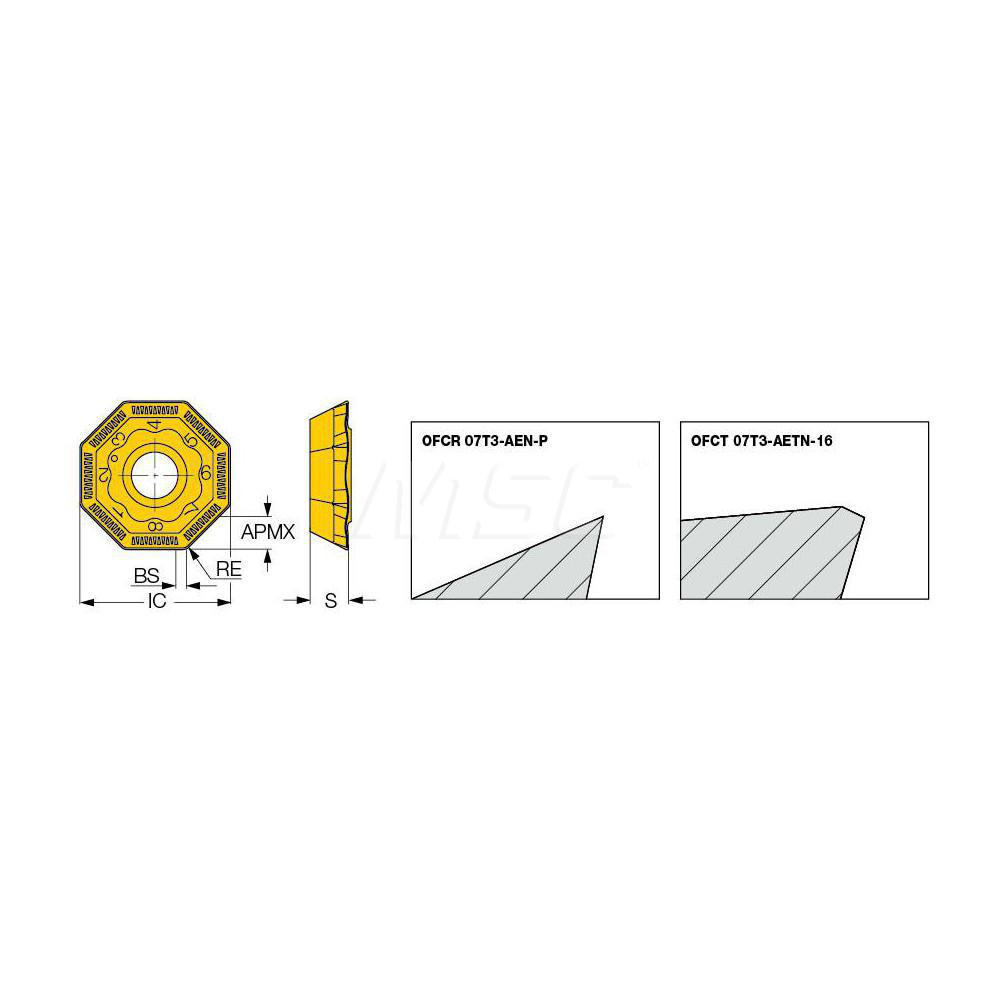

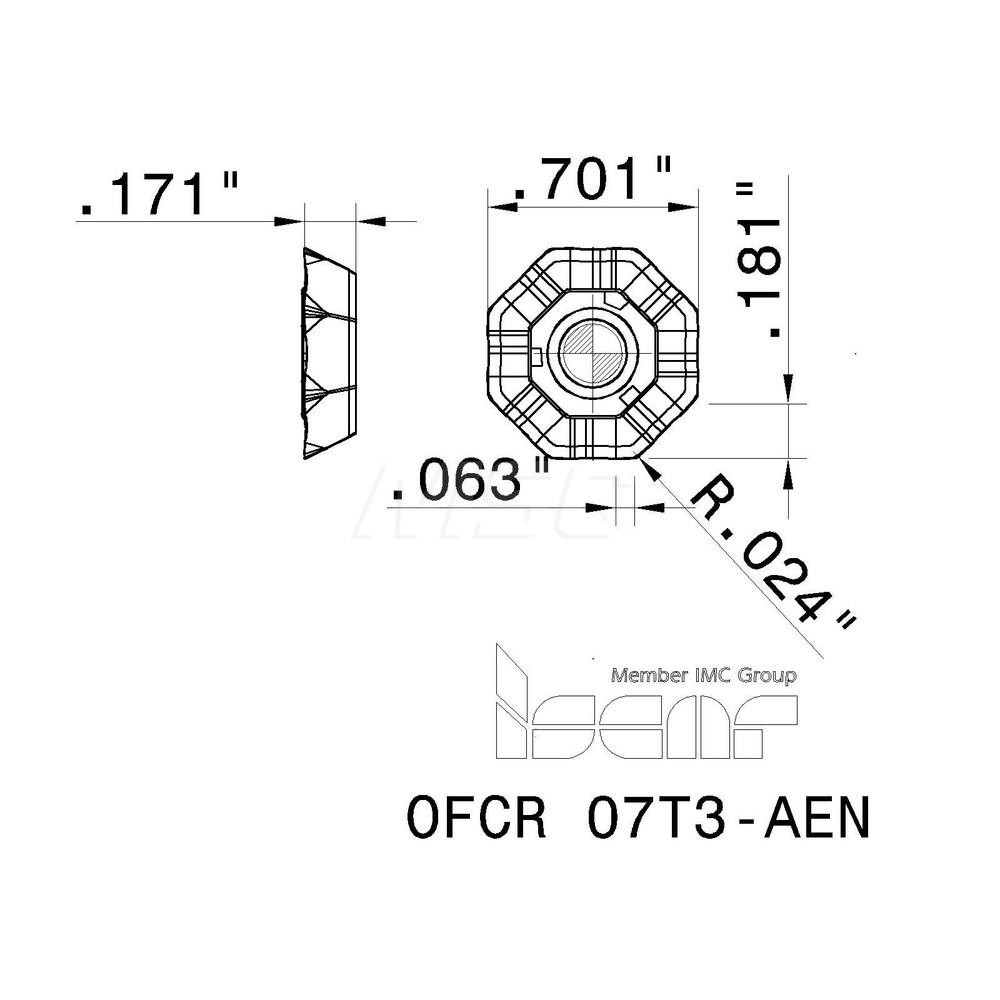

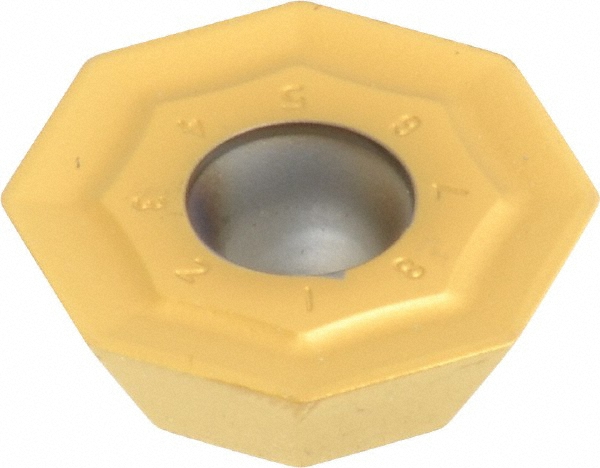

TiAlN Finish, 0.1710" Thick, 0.7008" Wide
| Insert Style | OFCR |
|---|---|
| Insert Size | 07 |
| Insert Material | Solid Carbide |
| Insert Shape | Octagon |
| Manufacturer Grade | IC908 |
| Corner Radius (Decimal Inch) | 0.0236 |
| Corner Radius (mm) | 0.60 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1710 |
| Coating/Finish | TiAlN |
| Relief Angle | 25.00 |
| Insert Size Code | 07T3 |
| Material Grade | Submicron |
| Inscribed Circle (Decimal Inch) | 0.7008 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Inscribed Circle Range (Decimal Inch) | 0.7000 to 1.0000 |
| Length Range (Decimal Inch) | 0.7000 to 0.9000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.1810 |
| Maximum Depth of Cut (mm) | 4.60 |
| Series | HELIOCTO |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.1810 |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Secondary Workpiece Material Code | S; H |
| Ansi Code | OFCR 07T3-AEN IC908 |
| Iso Code | OFCR 07T3-AEN |
| Standards | ISO 13399; ANSI |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | OFCR 07T3-AEN IC908 |
| Cutter Series Compatibility | HOF-R07 |
| Chip Breaker | AEN |
| UNSPSC Code | 23291601 |
| Material Application | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 135 |
| Width (Decimal Inch - 4 Decimals) | 0.7008 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.7008 |
| Country of Origin | Israel |
| MSC Number | MSC# 60649605 |
