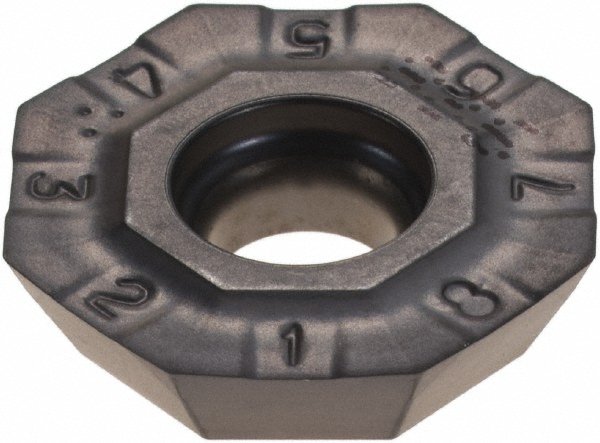

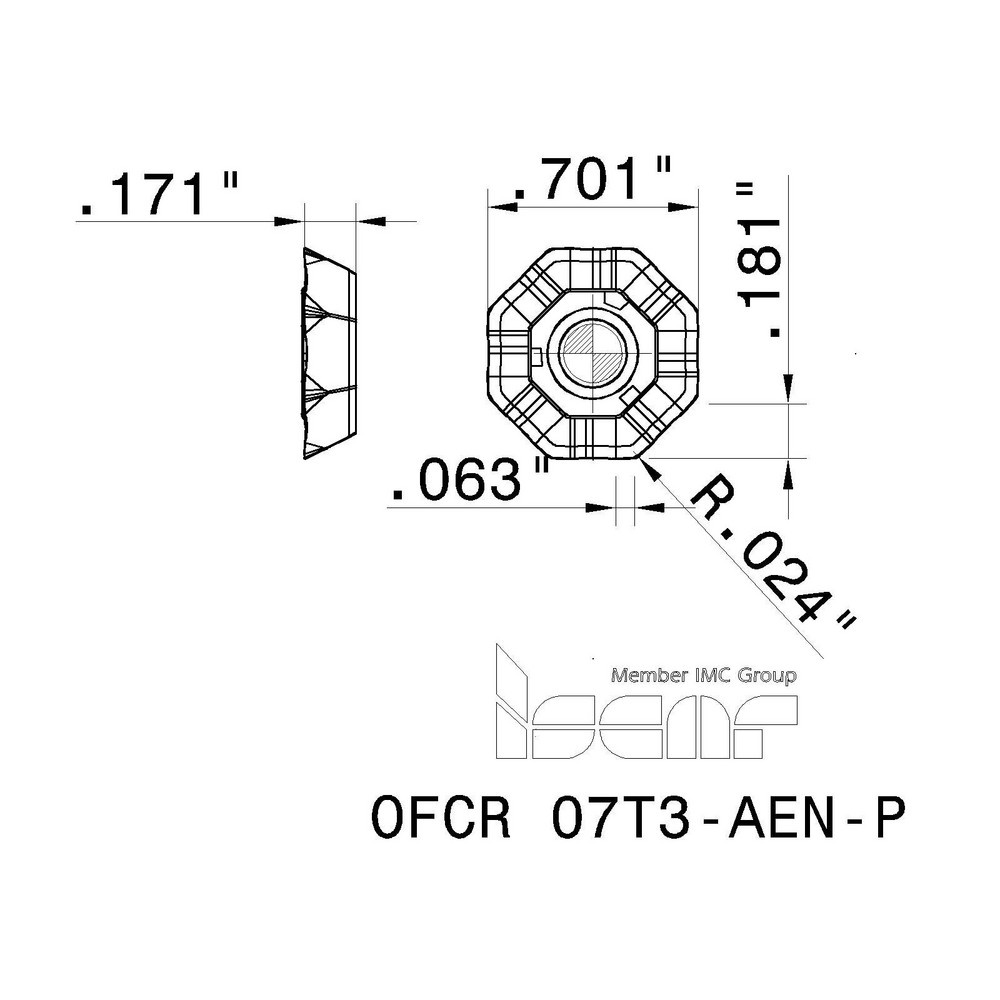

Bright/Uncoated Finish, 0.1710" Thick, 0.7008" Wide
| Insert Style | OFCR |
|---|---|
| Insert Size | 07 |
| Insert Material | Solid Carbide |

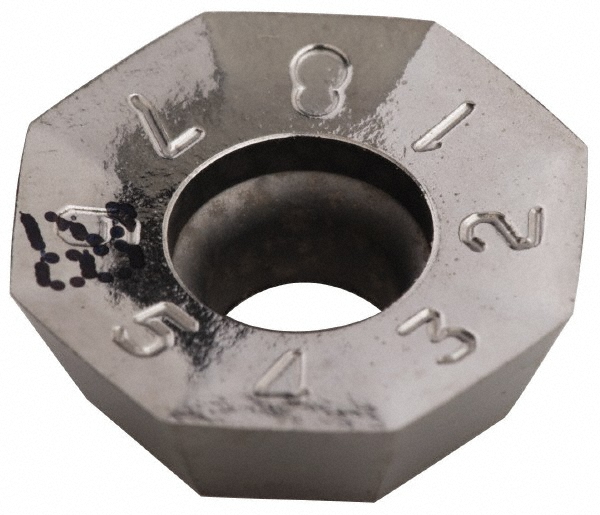

| Insert Shape | Octagon |
| Manufacturer Grade | IC28 |
| Corner Radius (Decimal Inch) | 0.0236 |
| Corner Radius (mm) | 0.60 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1710 |
| Coating/Finish | Bright/Uncoated |
| Relief Angle | 25.00 |
| Insert Size Code | 07T3 |
| Material Grade | C5; C6 |
| Inscribed Circle (Decimal Inch) | 0.7008 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Inscribed Circle Range (Decimal Inch) | 0.7000 to 1.0000 |
| Length Range (Decimal Inch) | 0.7000 to 0.9000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.1810 |
| Maximum Depth of Cut (mm) | 4.60 |
| Series | HELIOCTO |
| Coating Process | Uncoated |
| Cutting Edge Effective Length (Decimal Inch) | 0.1810 |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |

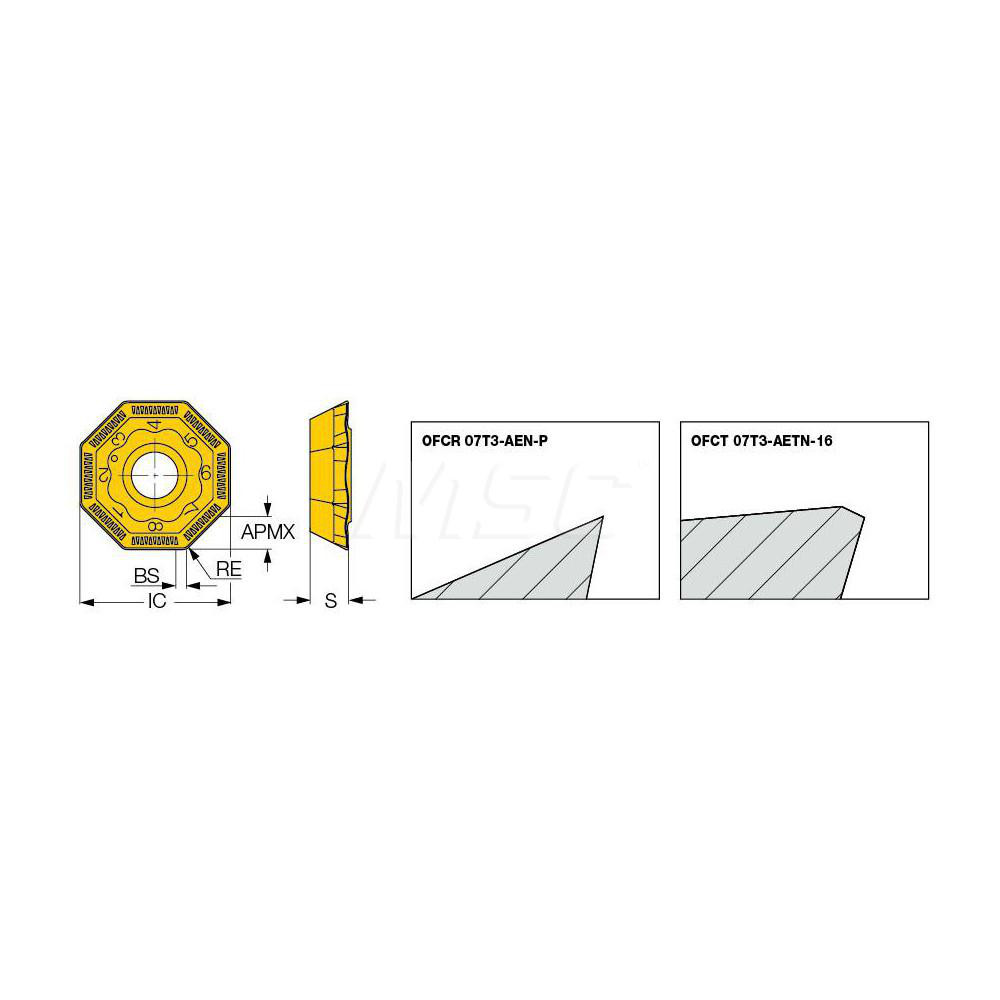

| Ansi Code | OFCR 07T3-AEN-P IC28 |
| Iso Code | OFCR 07T3-AEN-P |
| Standards | ISO 13399; ANSI |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | OFCR 07T3-AEN-P IC28 |
| Cutter Series Compatibility | HOF-R07 |
| Chip Breaker | P |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal |

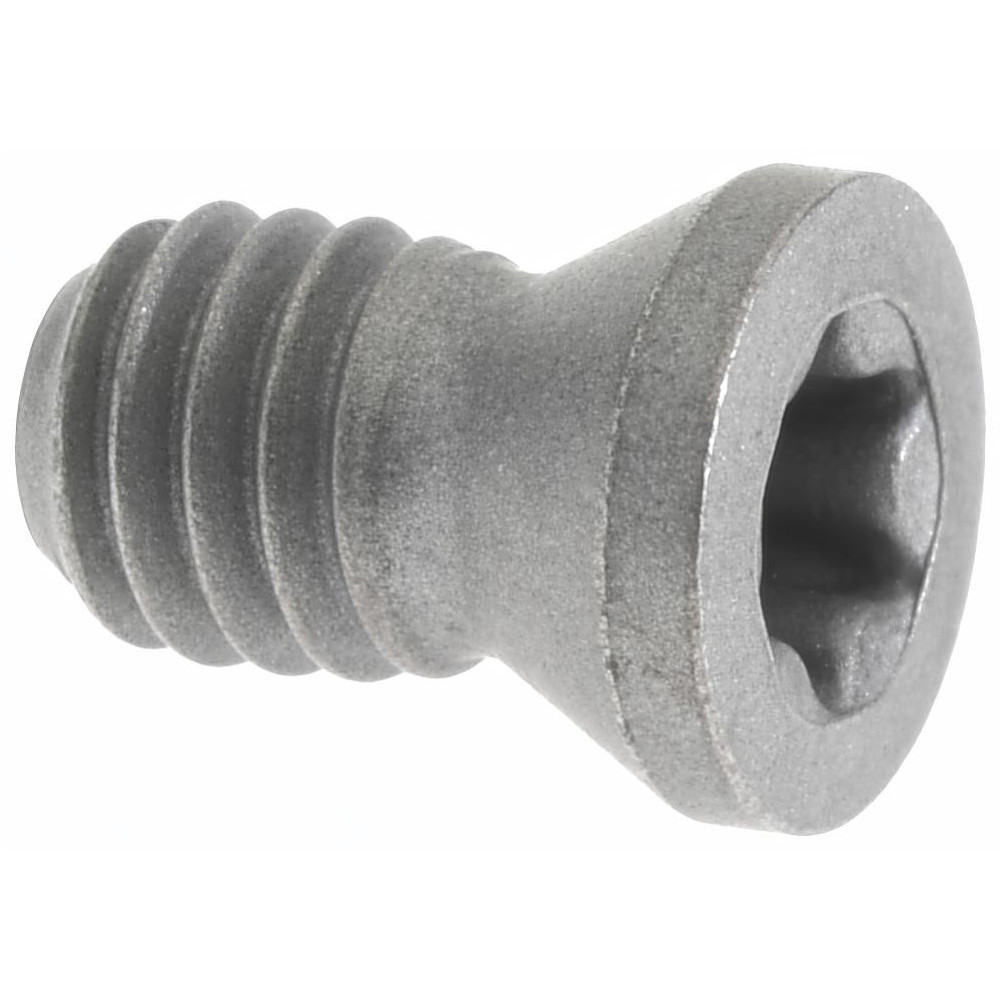

| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 135 |
| Width (Decimal Inch - 4 Decimals) | 0.7008 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.7008 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 40206013 |
