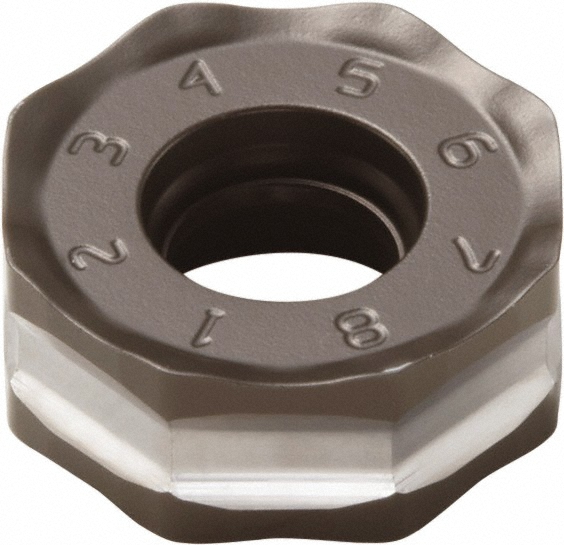

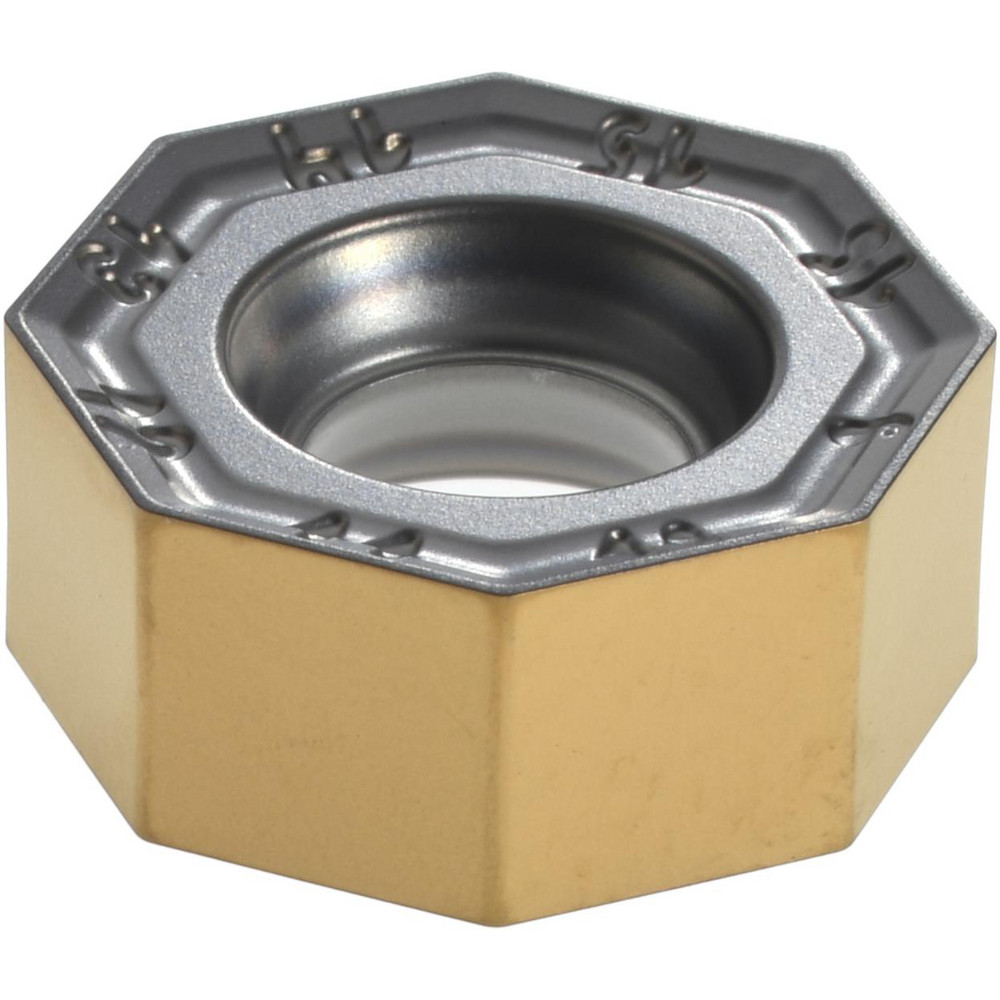

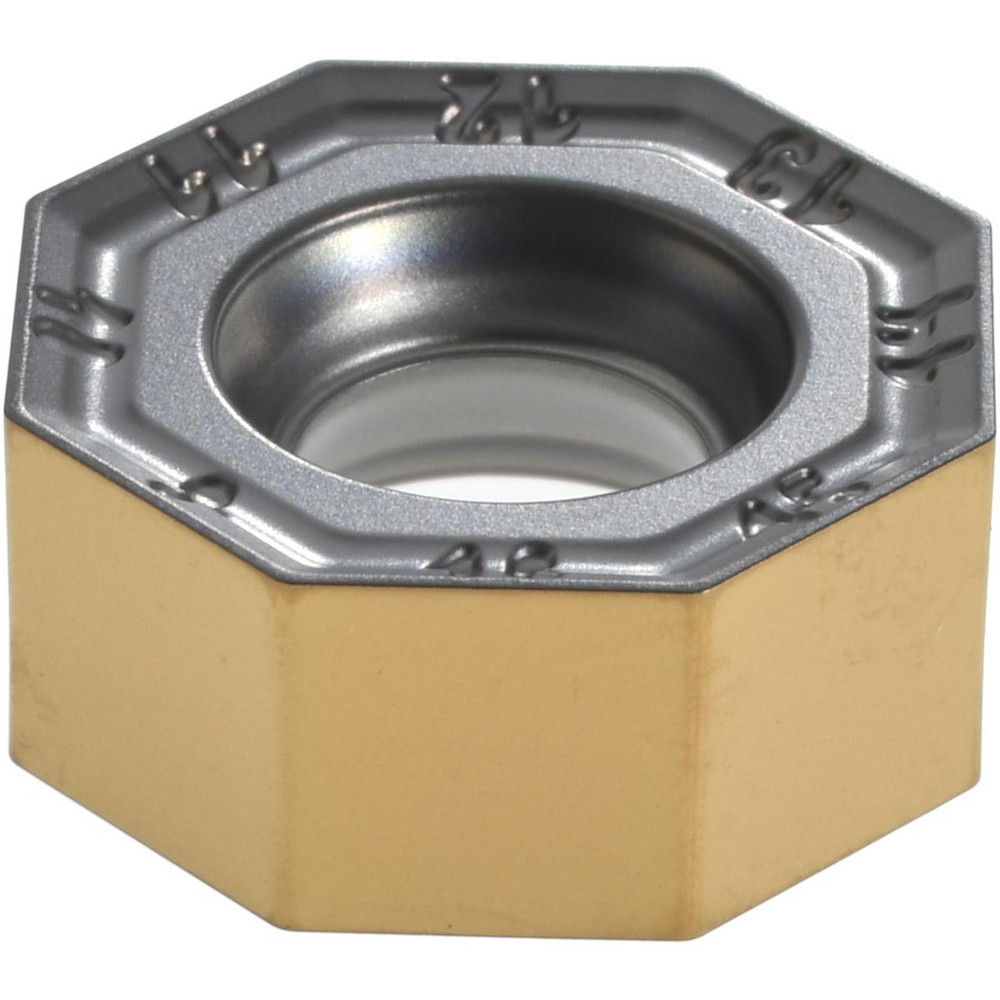

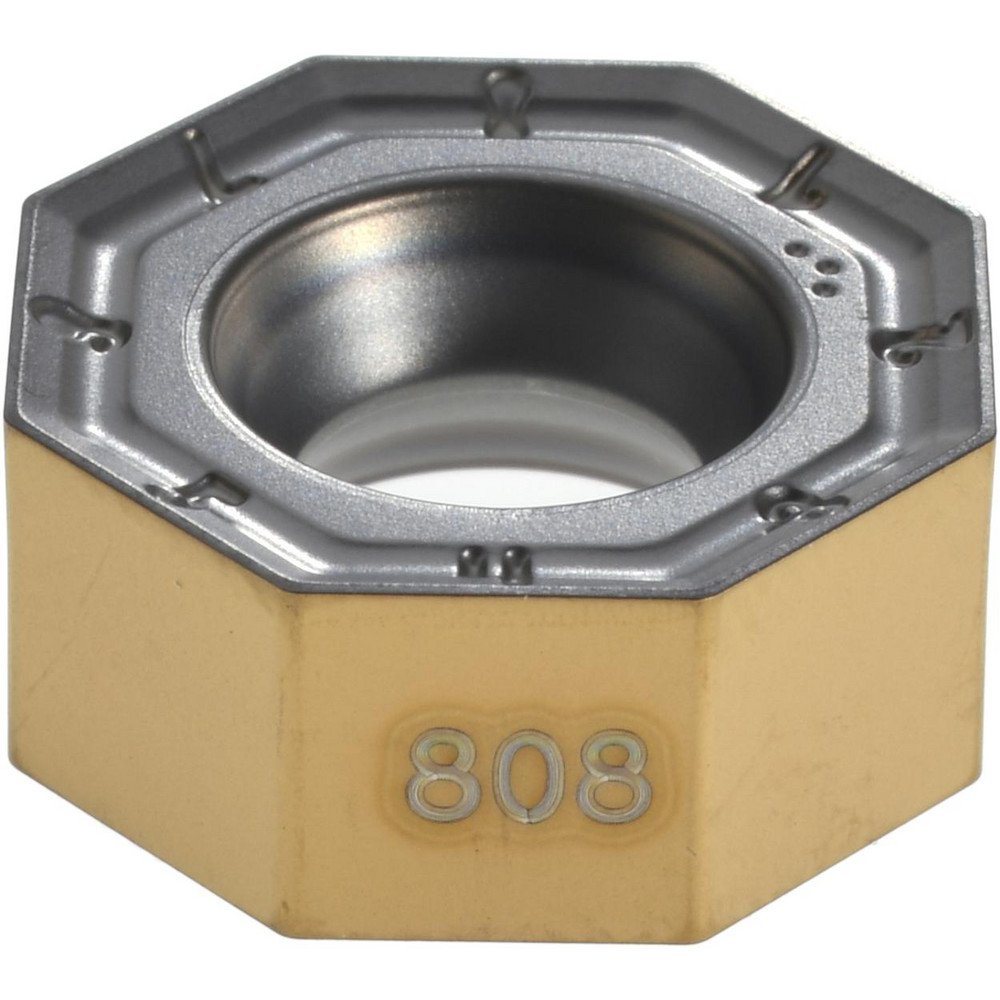

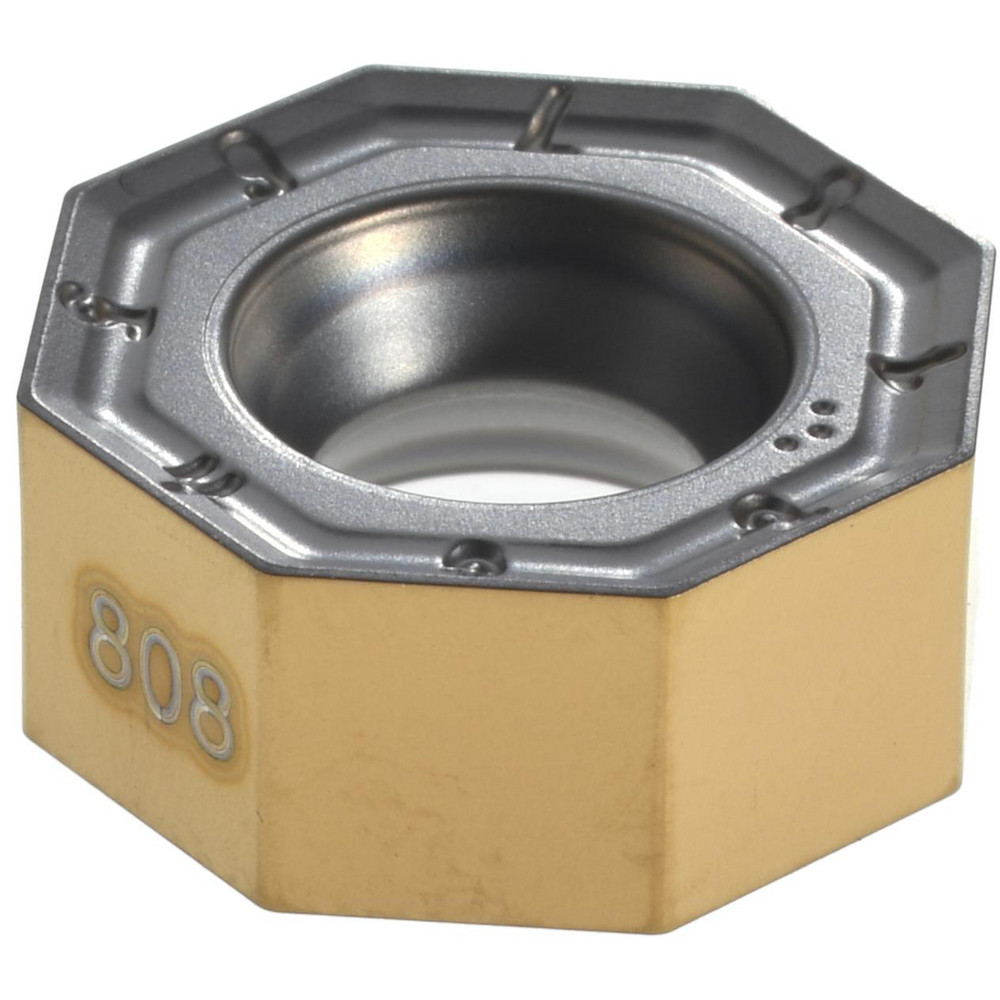

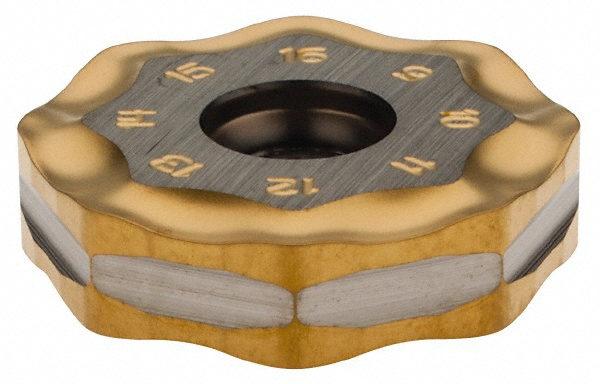

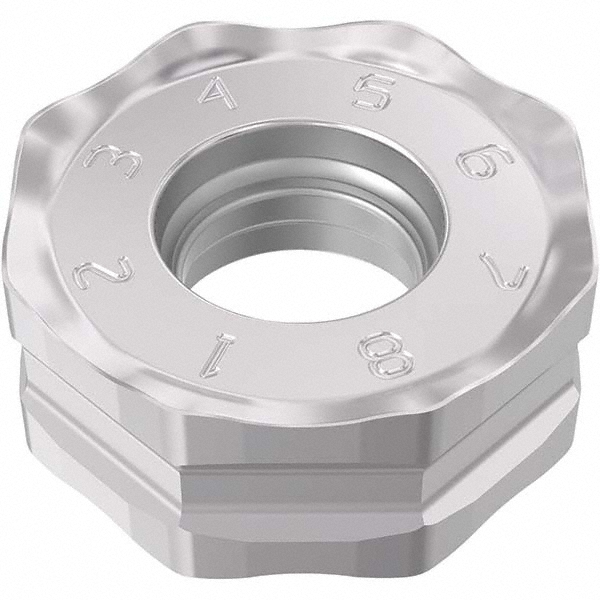

TiAlN, AlTiN & TiN Finish, 0.2000" Thick, 0.5118" Wide
| Insert Style | ONMU |
|---|---|
| Insert Size | 05 |
| Insert Material | Solid Carbide |
| Insert Shape | Octagon |
| Manufacturer Grade | IC808 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Corner Radius (mm) | 0.50 |
| Number Of Cutting Edges | 16 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2000 |
| Coating/Finish | AlTiN; TiN; TiAlN |
| Relief Angle | 0.00 |
| Insert Size Code | 050505 |
| Material Grade | Submicron |
| Inscribed Circle (Decimal Inch) | 0.5118 |
| Inscribed Circle (mm) | 13.00 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 to 0.6000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Maximum Depth of Cut (mm) | 3.50 |
| Series | HELIDO |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.1380 |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Secondary Workpiece Material Code | S; H |
| Ansi Code | ONMU 050505-TN-MM IC808 |
| Iso Code | ONMU 050505-TN-MM |
| Standards | ISO 13399; ANSI |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | ONMU 050505-TN-MM IC808 |
| Cutter Series Compatibility | FF SOF; SOE45; SOF45 |
| Chip Breaker | MM |
| UNSPSC Code | 23291601 |
| Material Application | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | Sumotec PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 135 |
| Width (Decimal Inch - 4 Decimals) | 0.5118 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5118 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 40185050 |
