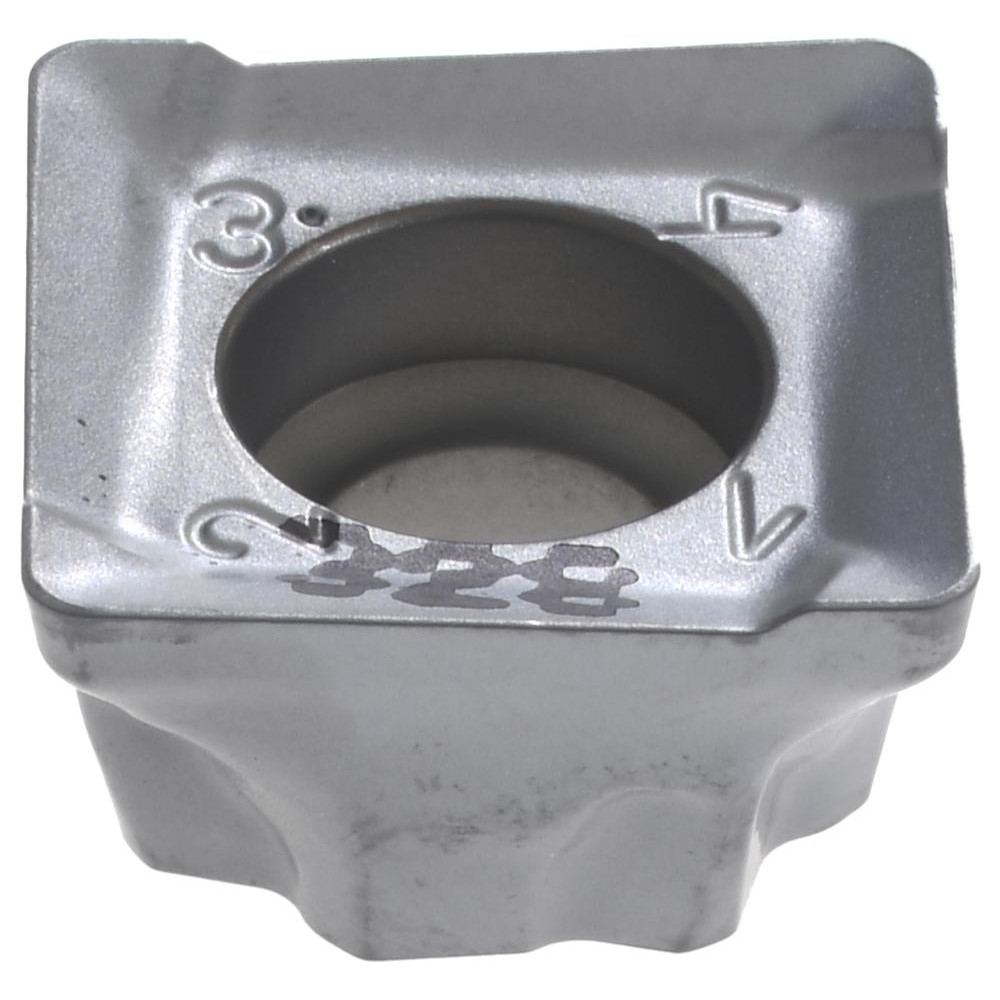

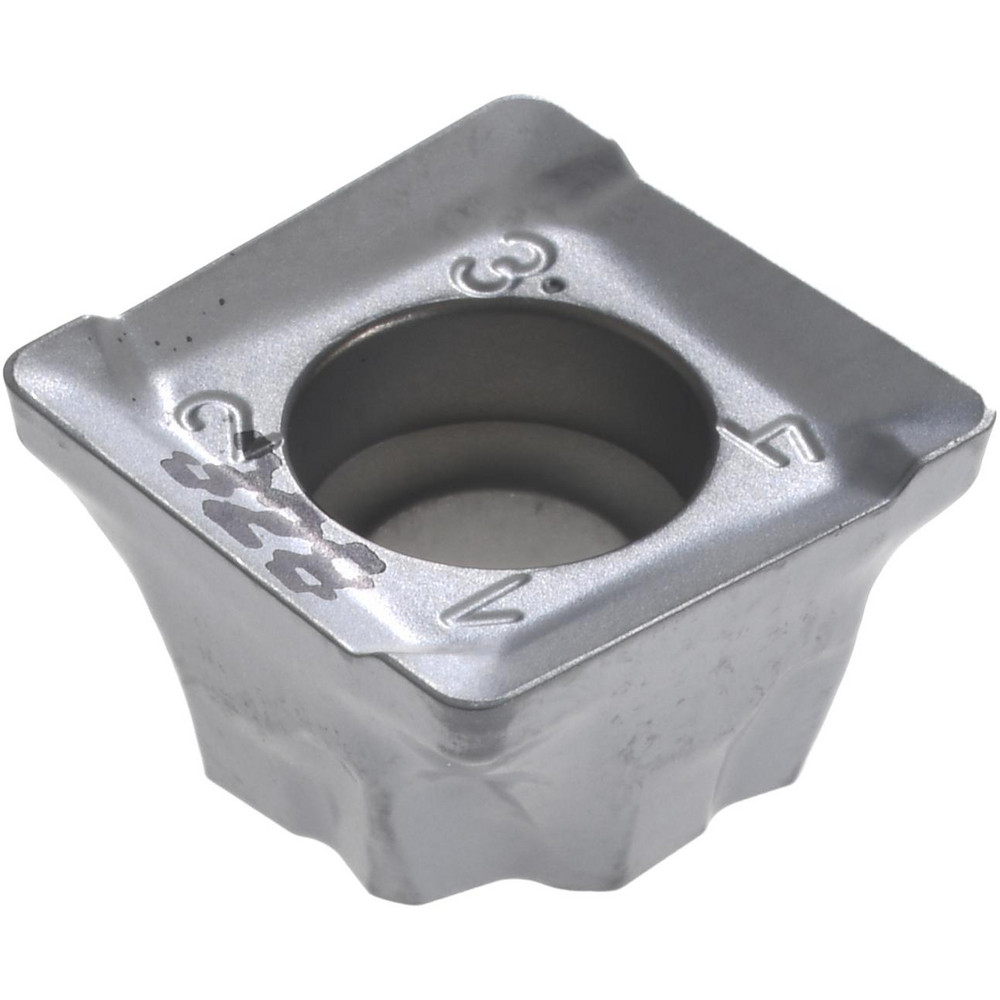

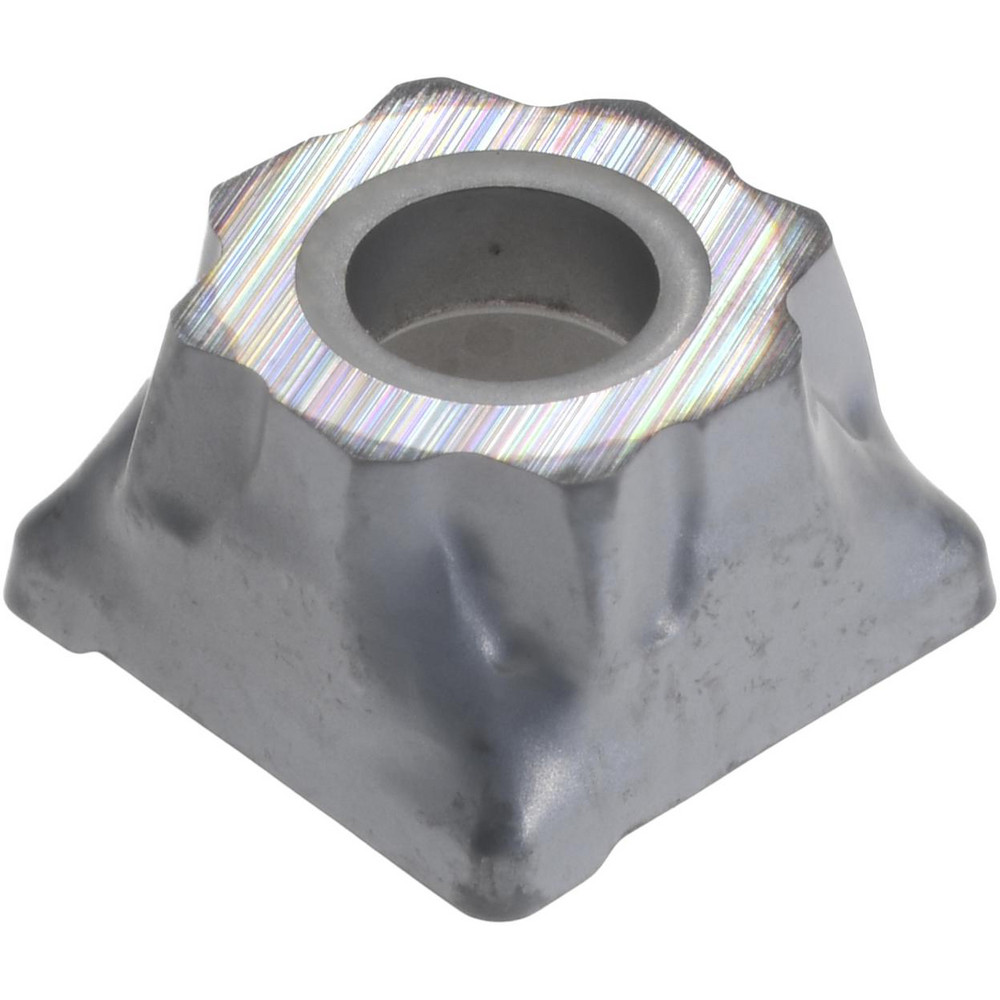

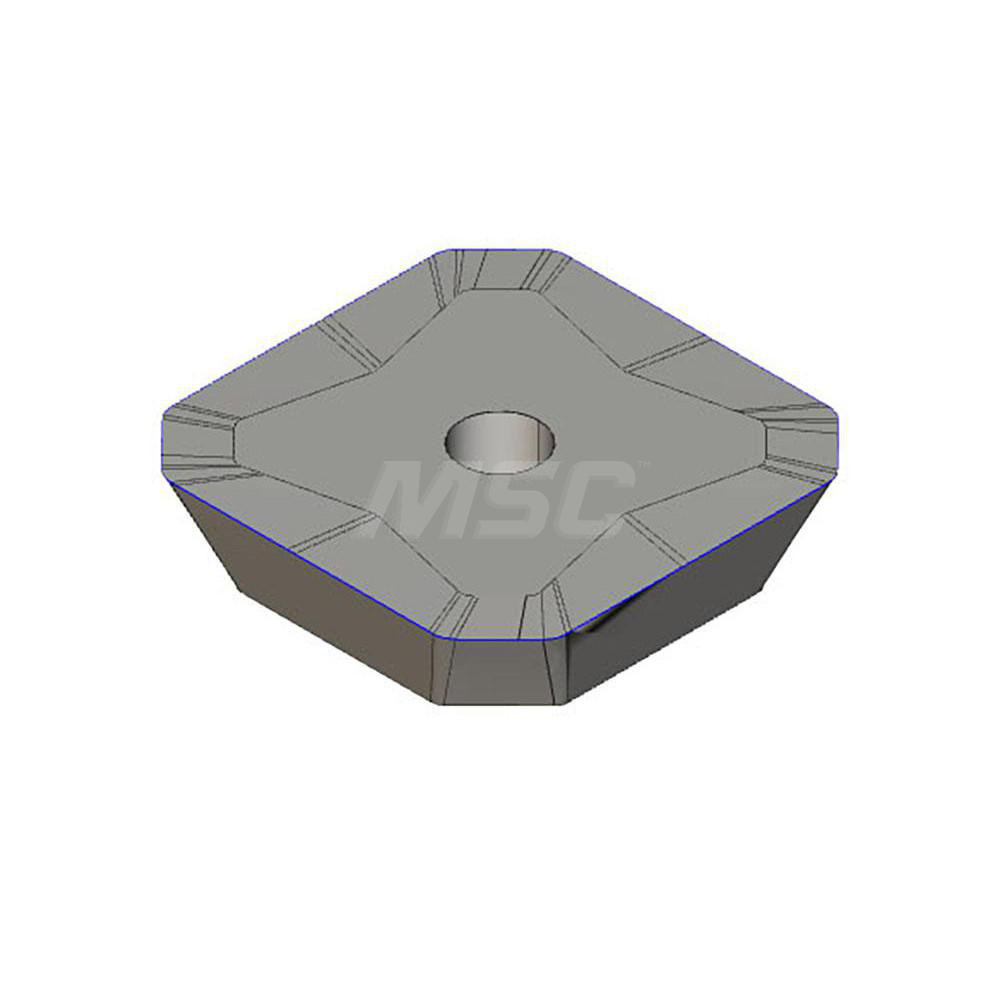

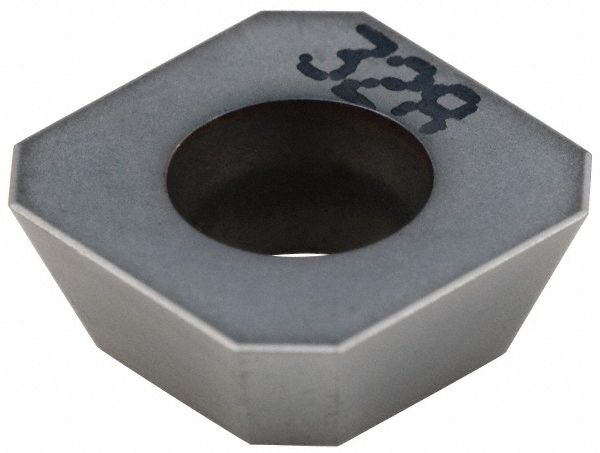

TiCN Finish, 0.2362" Thick, 0.4331" Wide
| Insert Style | S90MT |
|---|---|
| Insert Size | 1106 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | IC328 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2362 |
| Coating/Finish | TiCN |
| Insert Size Code | 1106 |
| Material Grade | C3; C5; C6; C2 |
| Inscribed Circle (Decimal Inch) | 0.4331 |
| Thickness Range (Decimal Inch) | 0.2350 to 0.2500 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.4000 to 0.4500 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.2887 |
| Series | ISCARMILL |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.4331 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | S90MT 1106PC-R IC328 |
| Iso Code | S90MT 1106PC-R |
| Standards | ISO 13399; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | S90MT 1106PC-R IC328 |
| Chip Breaker | R |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.4331 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4331 |
| Country of Origin | Israel |
| MSC Number | MSC# 52738184 |
