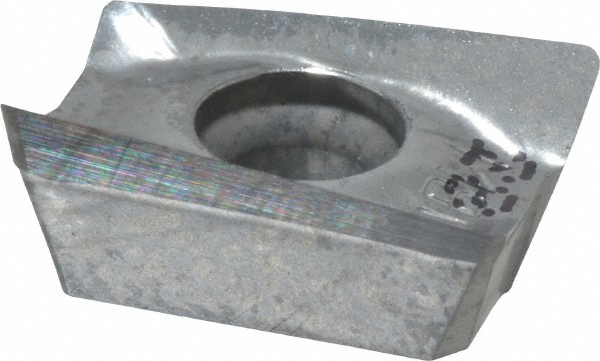

Bright/Uncoated Finish, 0.5120" Thick, 0.2620" Wide
| Insert Style | LNAR |
|---|---|
| Insert Size | 13 |
| Insert Material | Solid Carbide |
| Insert Shape | Butterfly |
| Manufacturer Grade | IC07 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.5120 |
| Coating/Finish | Bright/Uncoated |
| Relief Angle | 0.00 |
| Insert Size Code | 1306 |
| Material Grade | Submicron |
| Inscribed Circle (Decimal Inch) | 0.2620 |
| Thickness Range (Decimal Inch) | 0.5000+ |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4920 |
| Maximum Depth of Cut (mm) | 12.77 |
| Series | HELITANG |
| Coating Process | Uncoated |
| Cutting Edge Effective Length (Decimal Inch) | 0.4920 |
| Rake | Negative |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Superalloys & Titanium |
| Primary Workpiece Material Code | S; M; N |
| Secondary Workpiece Material Code | S; N |
| Ansi Code | T490 LNAR 1306PN-R-P IC07 |
| Iso Code | T490 LNAR 1306PN-R-P |
| Standards | ISO 13399; ANSI |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | T490 LNAR 1306PN-R-P IC07 |
| Cutter Series Compatibility | T490 LNK13 |
| Chip Breaker | P |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Superalloys & Titanium |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.2620 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5437 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 55377253 |
