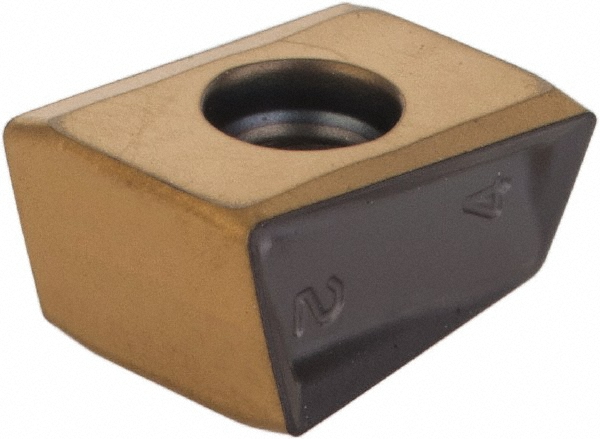

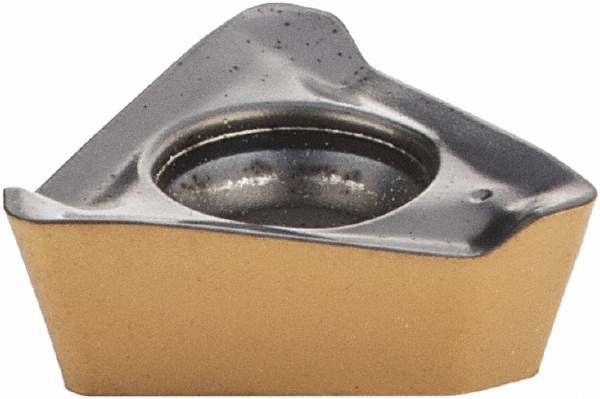

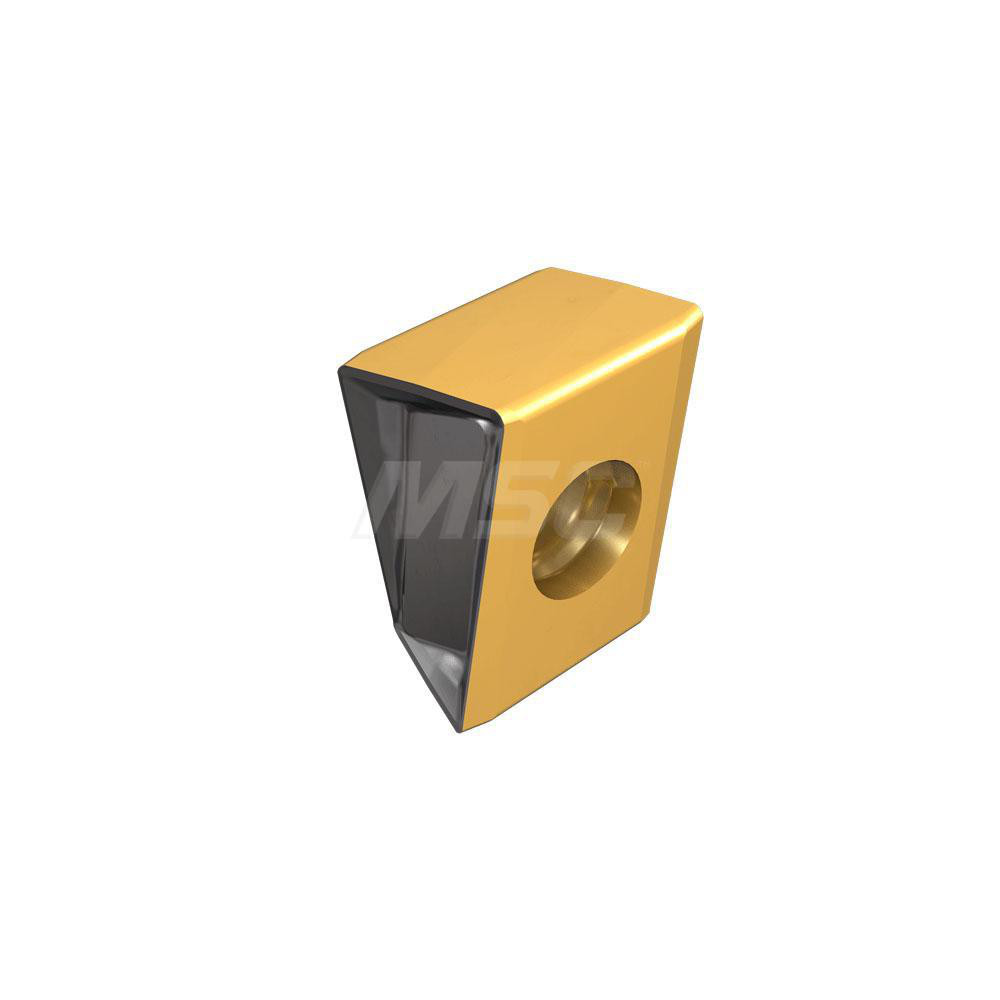

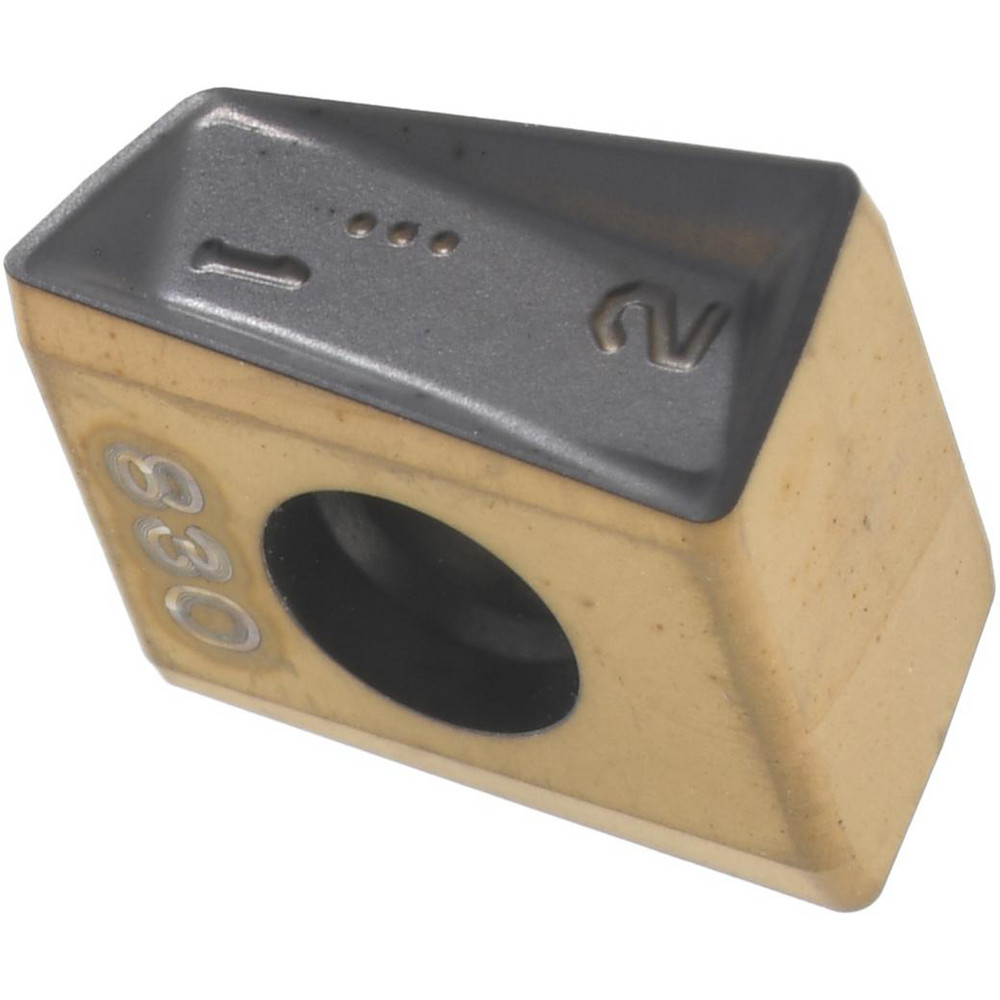

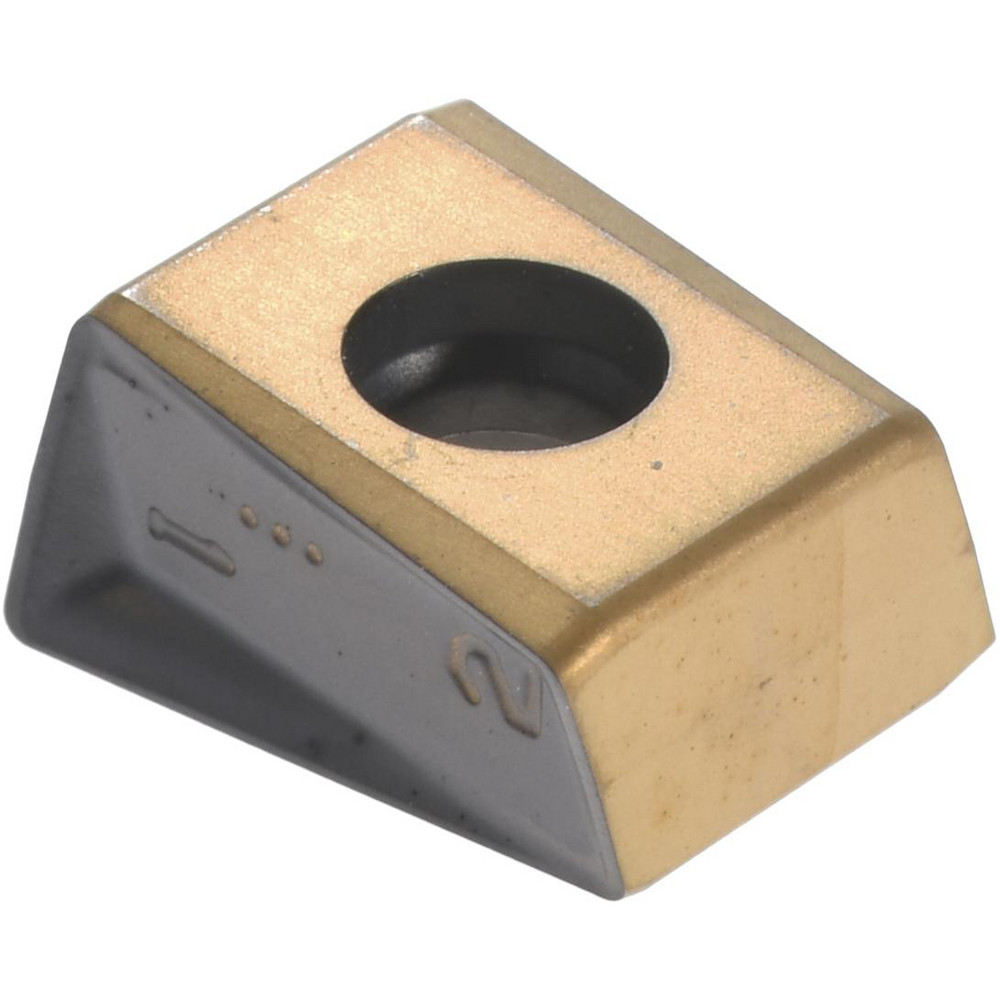

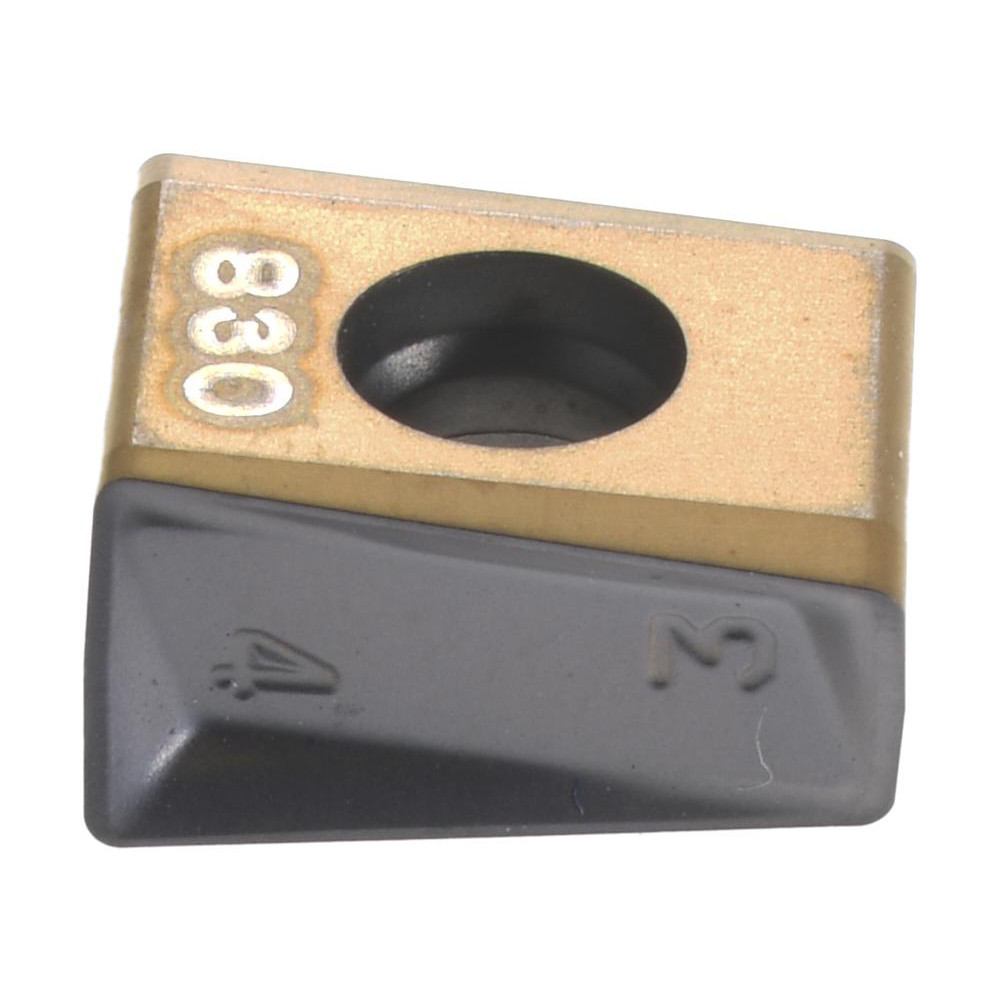

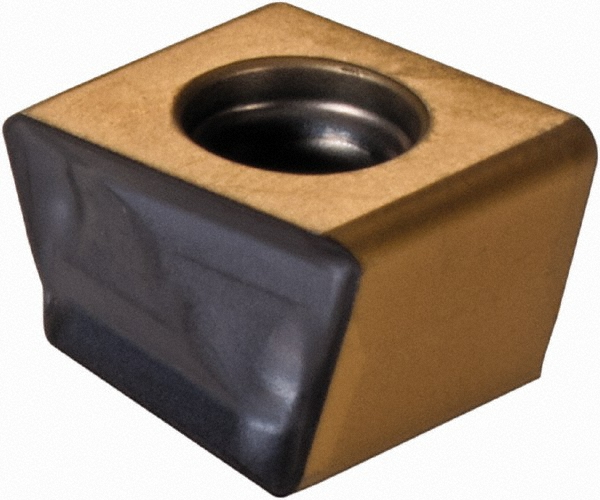

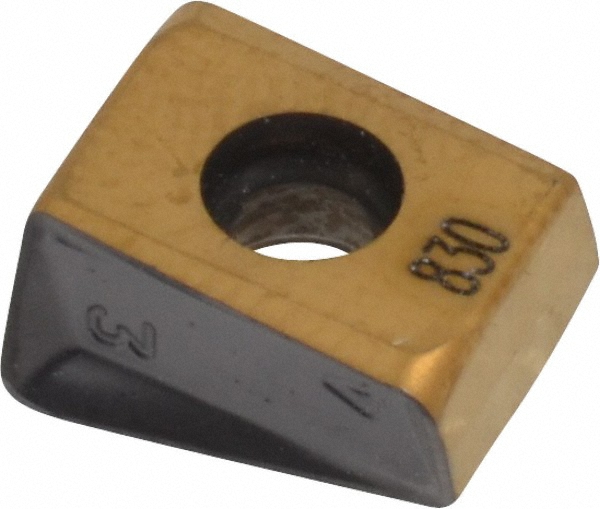

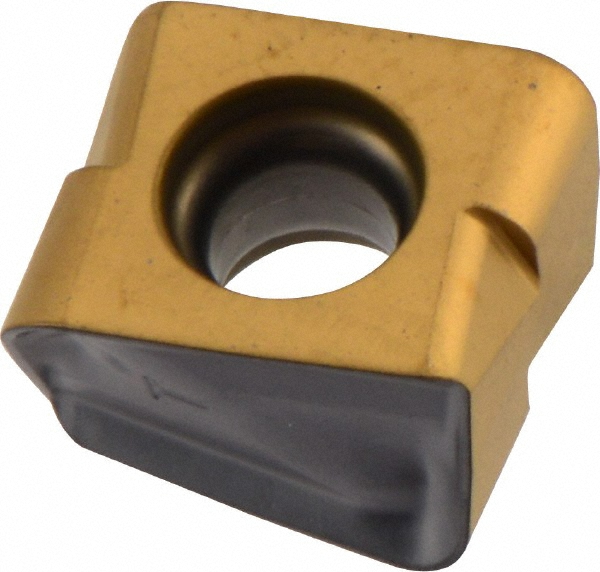

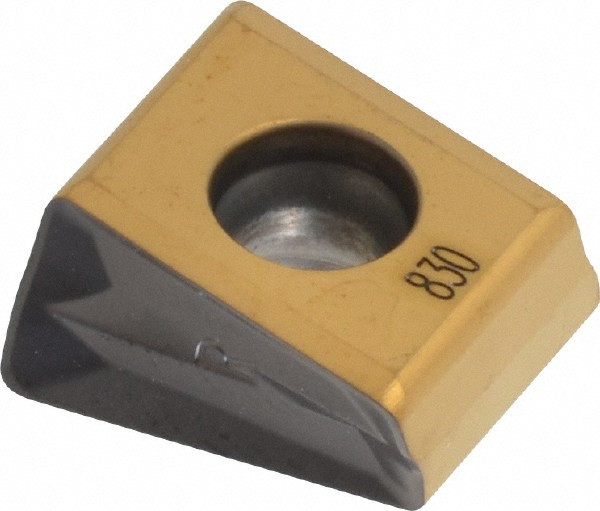

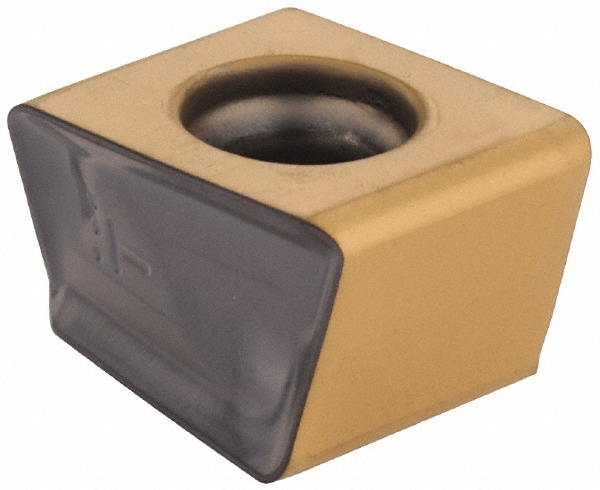

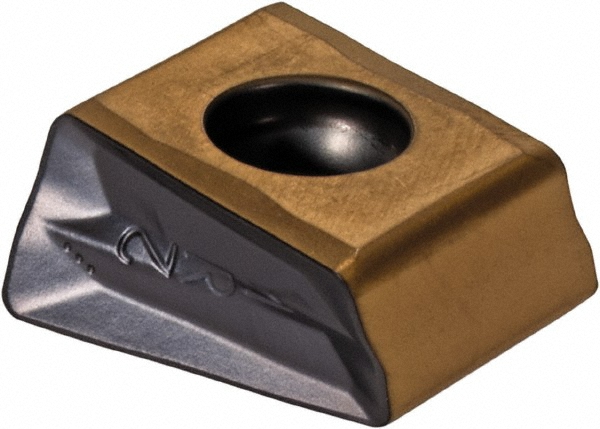

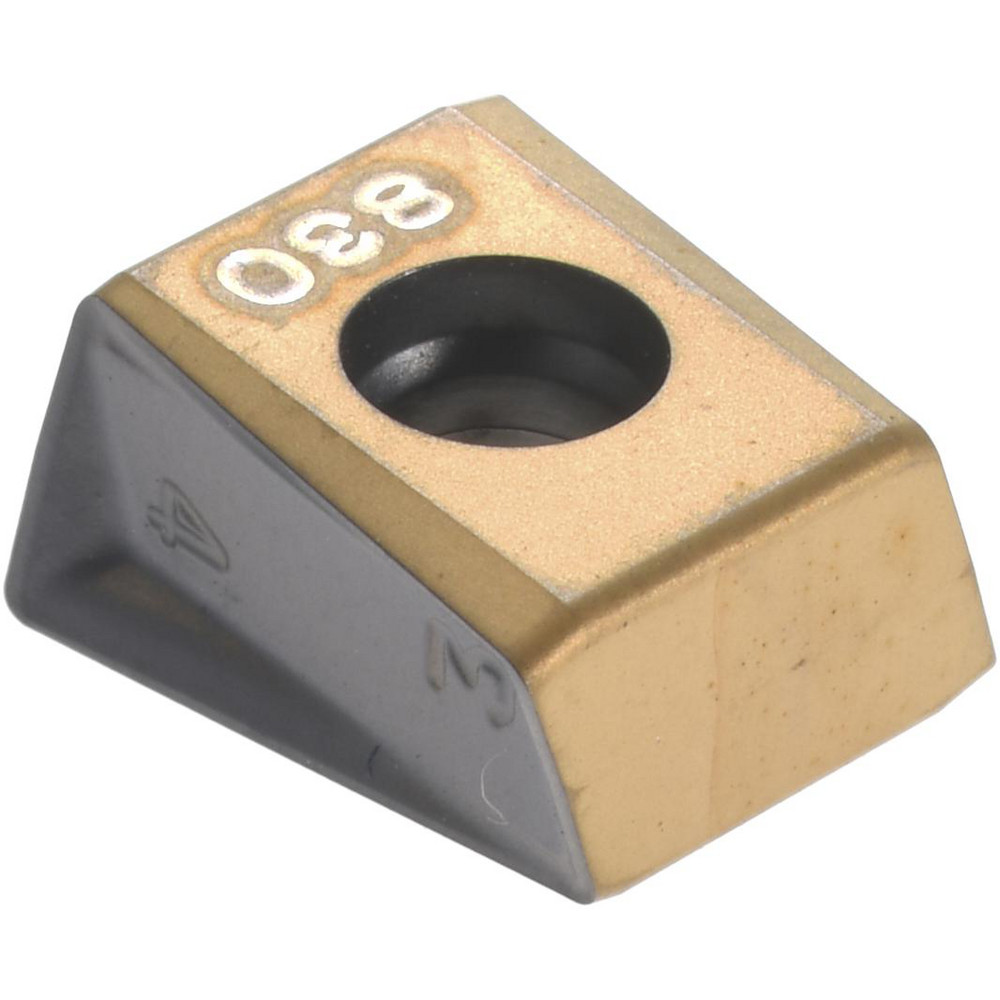

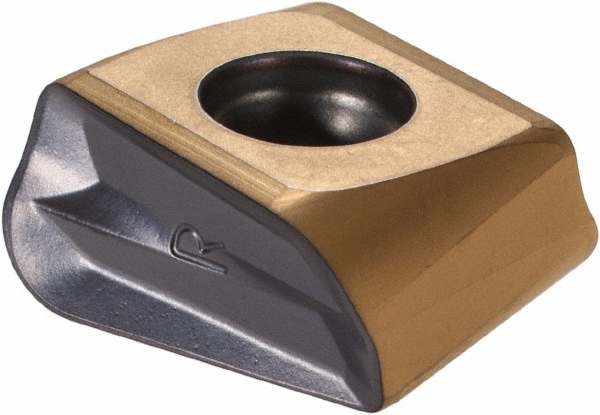

AlTiN & TiN Finish, 0.2960" Thick, 0.1670" Wide
| Insert Style | LNHT |
|---|---|
| Insert Size | 08 |
| Insert Material | Solid Carbide |
| Insert Shape | Butterfly |
| Manufacturer Grade | IC830 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2960 |
| Coating/Finish | AlTiN; TiN |
| Relief Angle | 0.00 |
| Insert Size Code | 080404 |
| Inscribed Circle (Decimal Inch) | 0.1670 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Corner Radius (Inch) | 1/64 |
| Inscribed Circle Range (Decimal Inch) | 0.0000 to 0.2500 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 8.00 |
| Series | HELITANG |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.3382 |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | T490 LNHT 080404PNR IC830 |
| Iso Code | T490 LNHT 080404PNR |
| Standards | ISO 13399; ANSI |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | T490 LNHT 080404PNR IC830 |
| Cutter Series Compatibility | T490 LNK08 |
| Chip Breaker | PNR |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | Sumotec PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.1670 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3382 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 60490257 |
