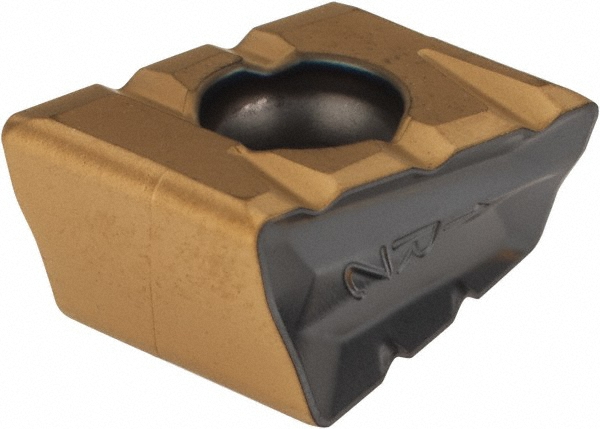

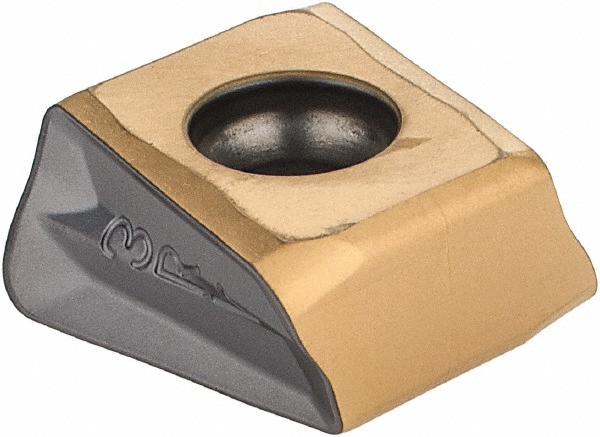

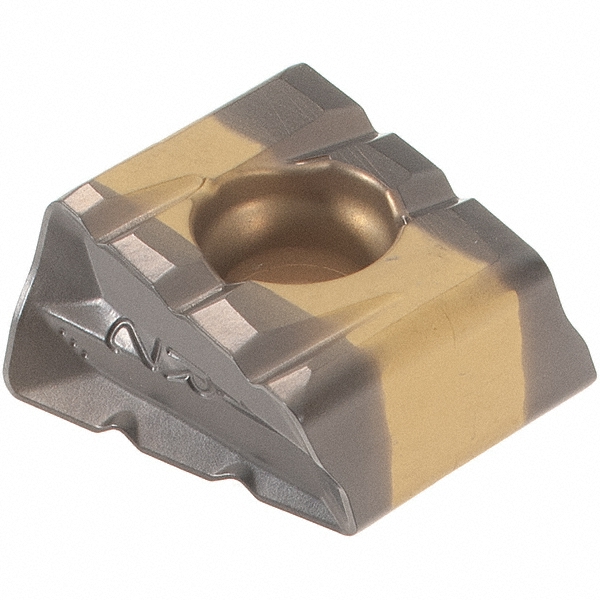

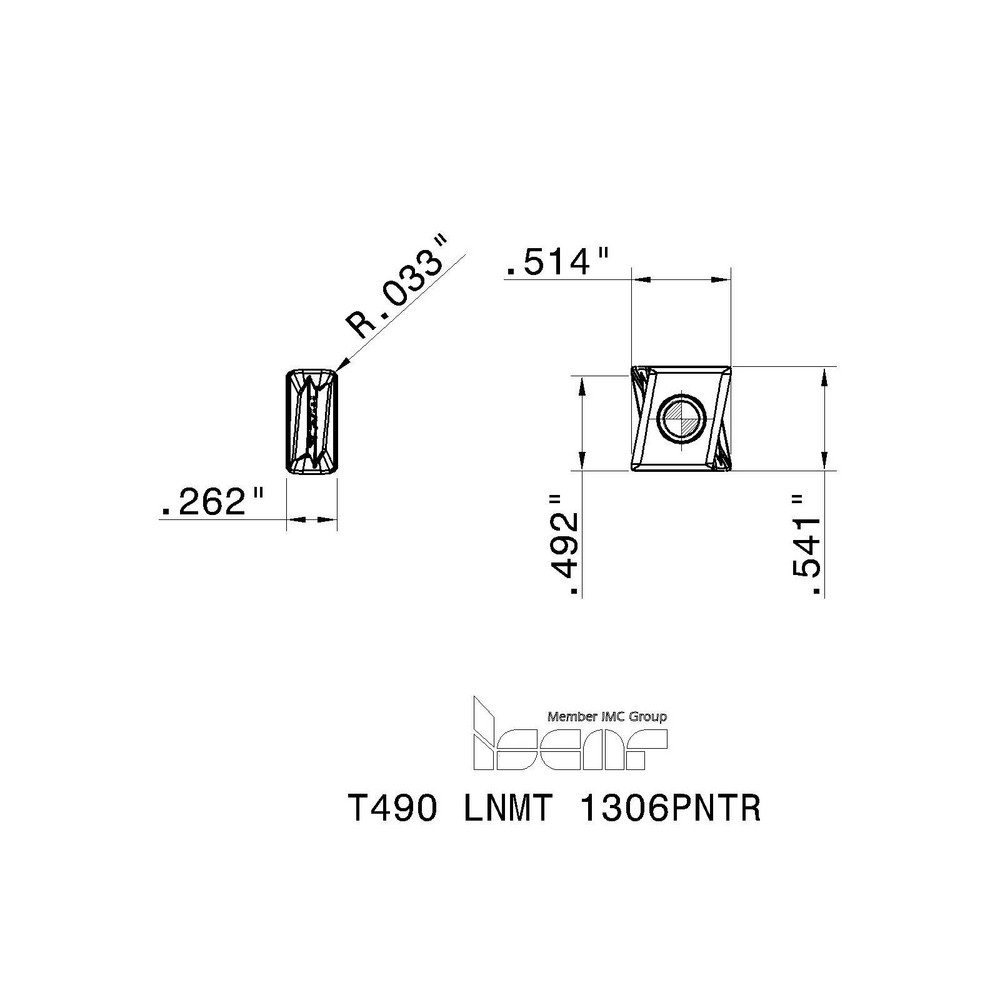

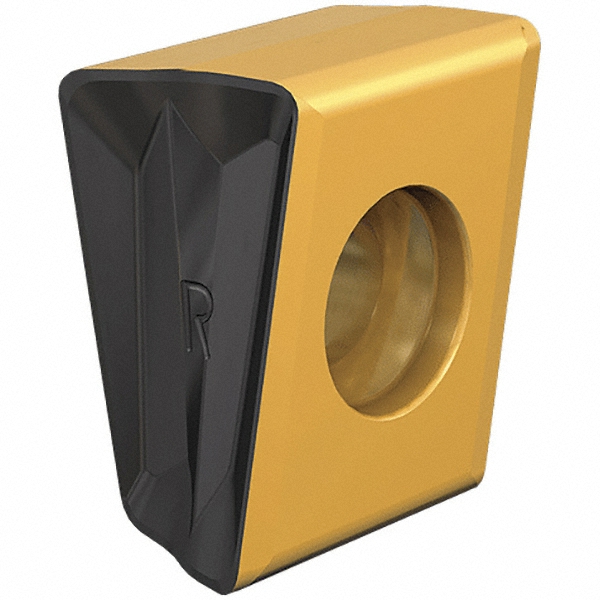

Al2O3 & TiAlN Finish, 0.5140" Thick, 0.2620" Wide
| Insert Style | LNMT |
|---|---|
| Insert Size | 13 |
| Insert Material | Solid Carbide |
| Insert Shape | Butterfly |
| Manufacturer Grade | DT7150 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.5140 |
| Coating/Finish | Al2O3; TiAlN |
| Relief Angle | 0.00 |
| Insert Size Code | 1306 |
| Inscribed Circle (Decimal Inch) | 0.2620 |
| Thickness Range (Decimal Inch) | 0.5000+ |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4920 |
| Maximum Depth of Cut (mm) | 12.50 |
| Series | HELITANG |
| Coating Process | MTCVD; PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.5409 |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Cast Iron |
| Primary Workpiece Material Code | H; K |
| Secondary Workpiece Material Code | H |
| Ansi Code | T490 LNMT 1306PNTR DT7150 |
| Iso Code | T490 LNMT 1306PNTR |
| Standards | ISO 13399; ANSI |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | T490 LNMT 1306PNTR DT7150 |
| Cutter Series Compatibility | T490 LNK13 |
| Chip Breaker | PNTR |
| UNSPSC Code | 23291601 |
| Material Application | Hard Material; Cast Iron |
| Insert Holding Method | Screw |
| Coating Classification | CVD; PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.2620 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5409 |
| Country of Origin | Israel |
| MSC Number | MSC# 45373248 |
