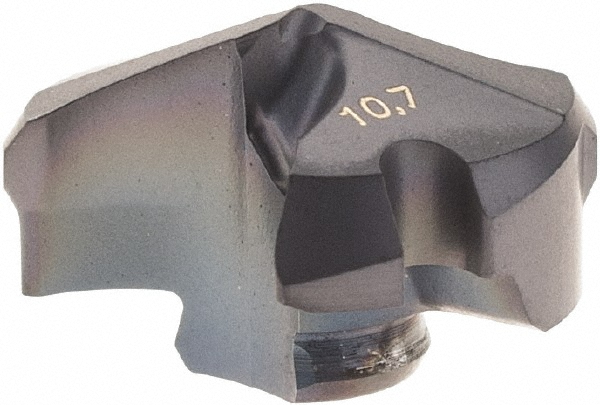

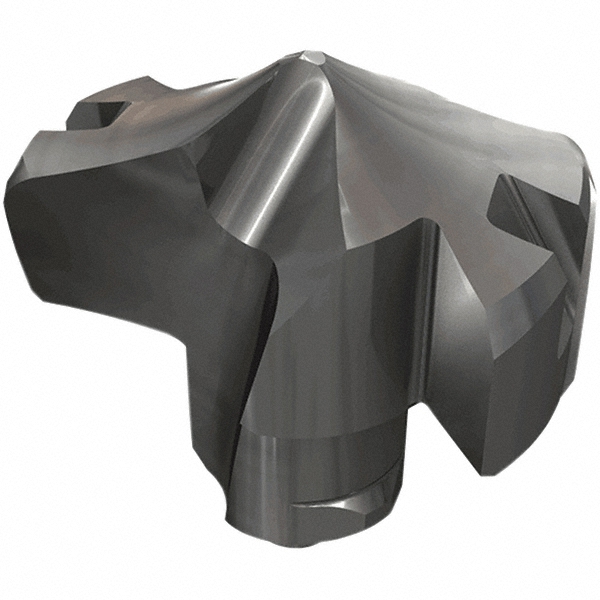

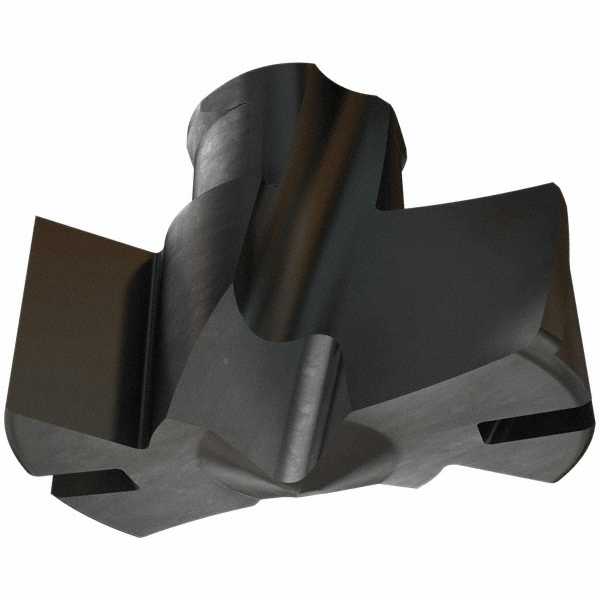

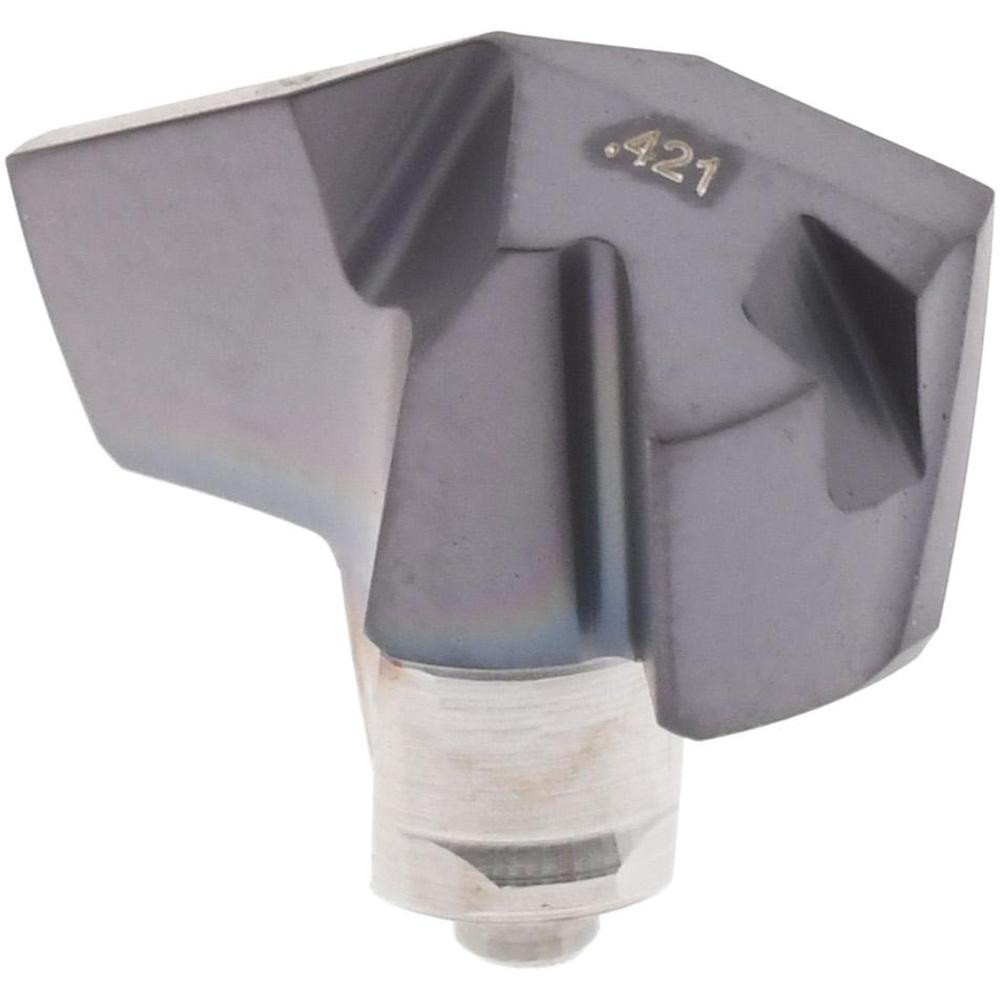

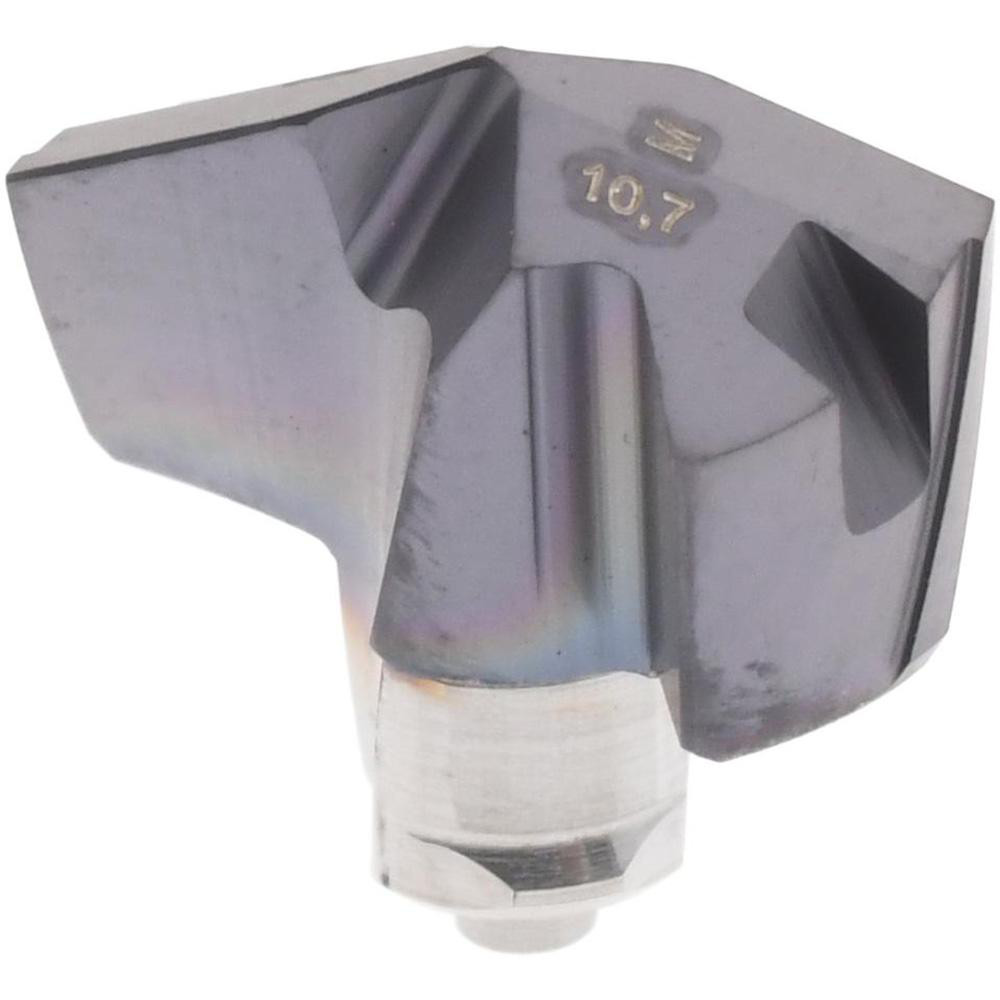

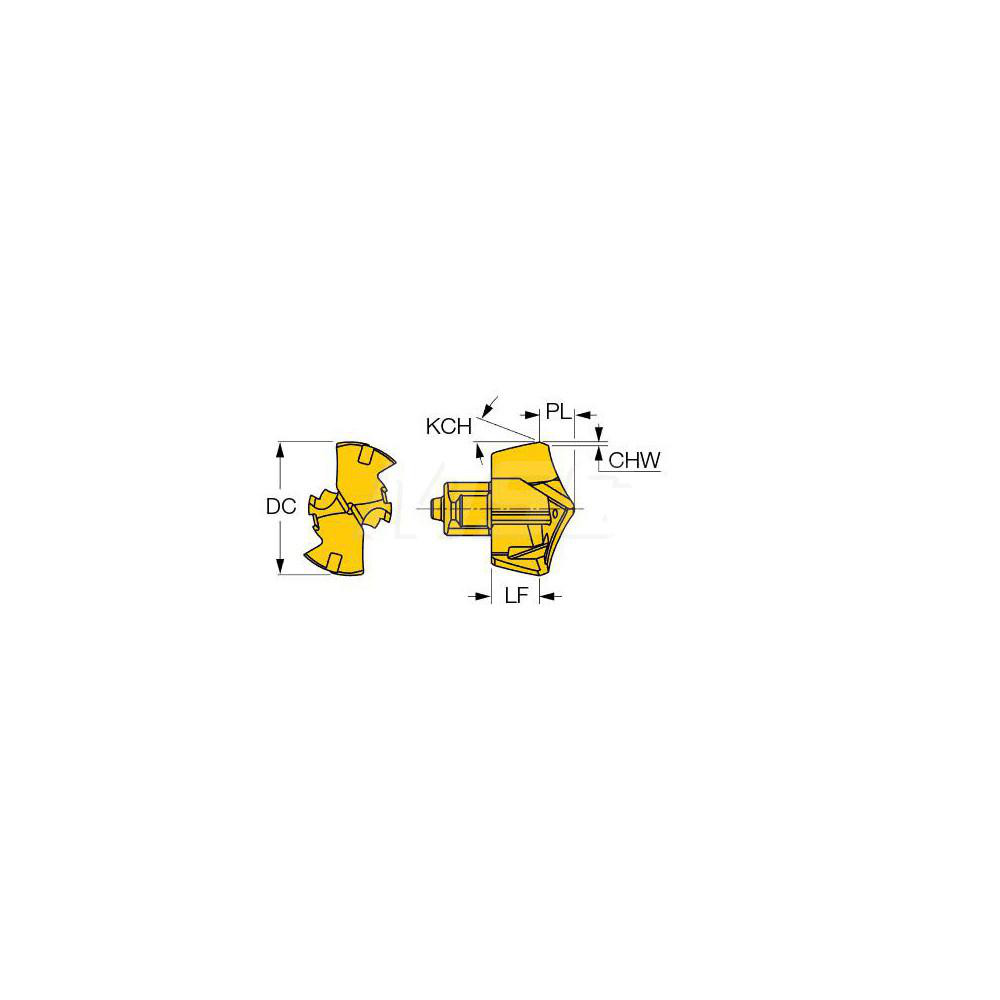

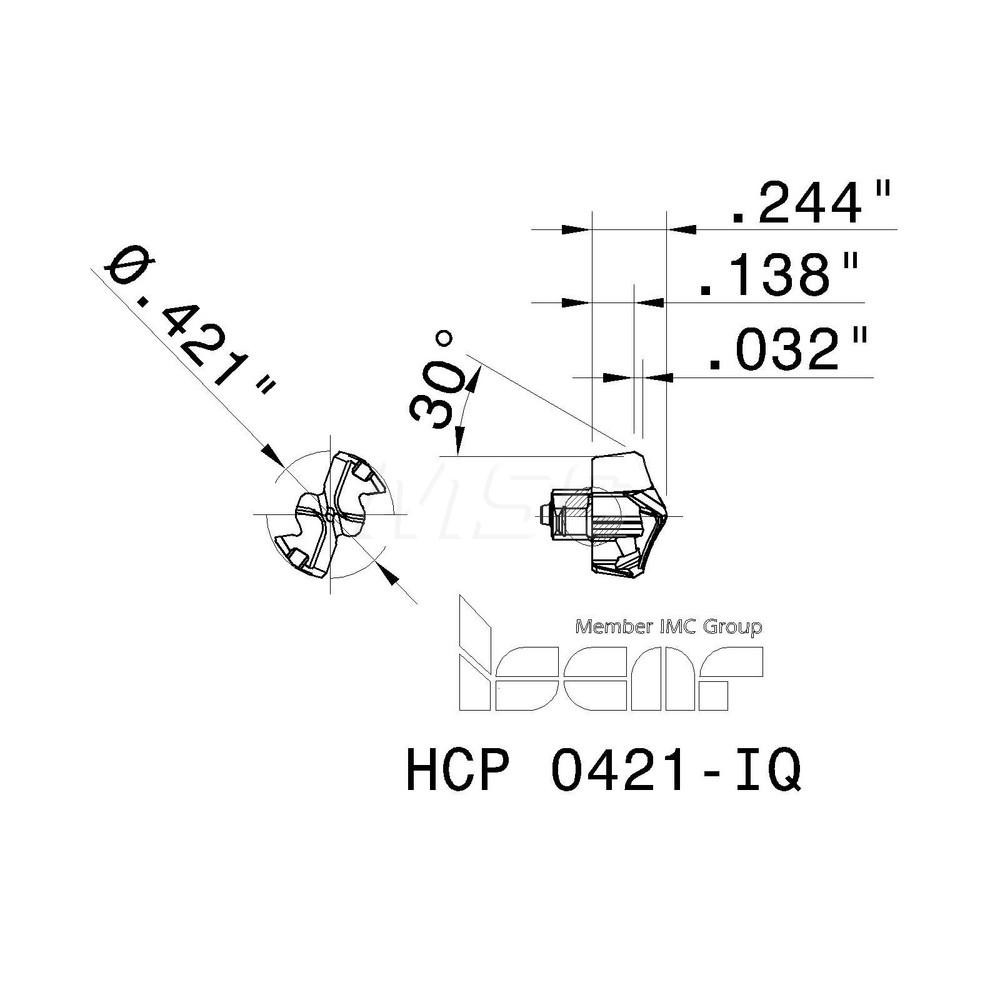

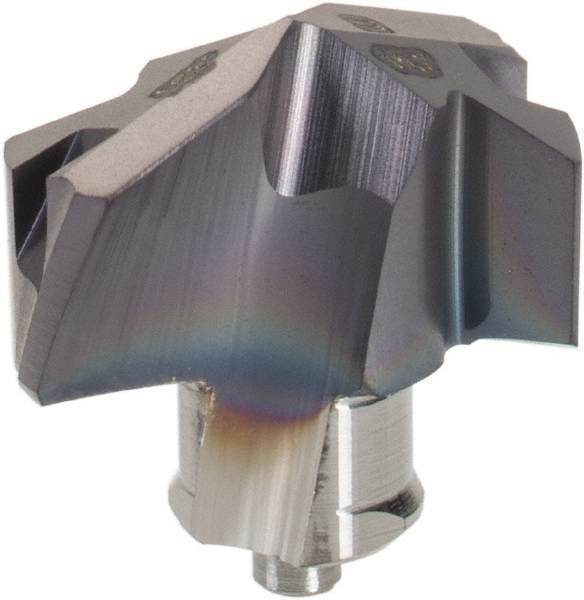

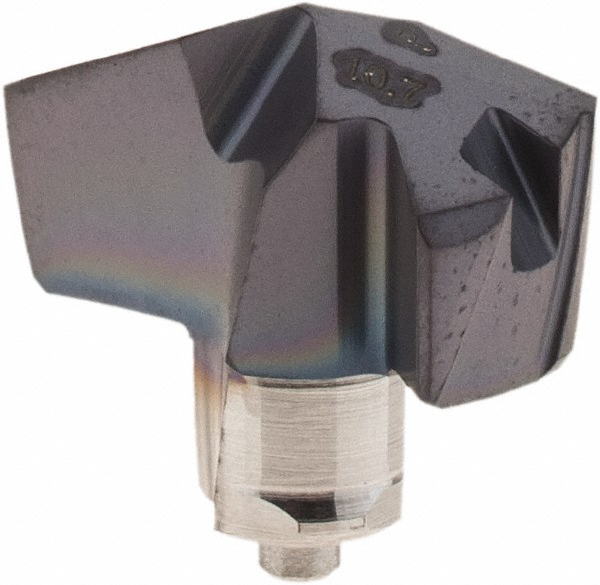

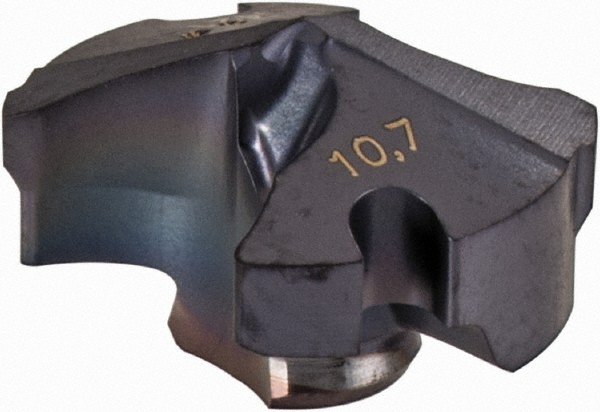

Seat Size 10, TiAlN Finish
| Cutting Diameter (Inch) | 27/64 |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.4216 |
| Cutting Diameter (mm) | 10.71 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | IC908 |
| Material Grade | Submicron |
| Series | HCP-IQ |
| Coating Process | PVD |
| Insert Geometry | P |
| Insert Seat Size | 10 |
| Functional Length (Decimal Inch) | 0.1371 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material | Hard Material; Stainless Steel; Superalloys & Titanium |
| Secondary Workpiece Material Code | S; H; M |
| Standards | ISO 13399 |
| Height (Decimal Inch) | 0.244 |
| Height (mm) | 6.00 |
| Overall Length/Projection (Decimal Inch) | 0.2443 |
| Web Thinning | Web Thinned |
| Drill Point Angle | 134 |
| Flute Type | Helical |
| Insert Holding Method | Clamp |
| ISO Number | HCP 107-IQ |
| Coolant Through | No |
| Flute Length (mm) | 3.00 |
| Point Type | Self Centering |
| Spiral Type | Regular Spiral |
| Style | HCP-IQ |
| UNSPSC Code | 23242105 |
| Applications | Drilling; Chamfering; Gundrills; Hole Making |
| Coating/Finish | TiAlN |
| Included Angle Degree | 134 |
| Number Of Flutes | 2 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 39483409 |
