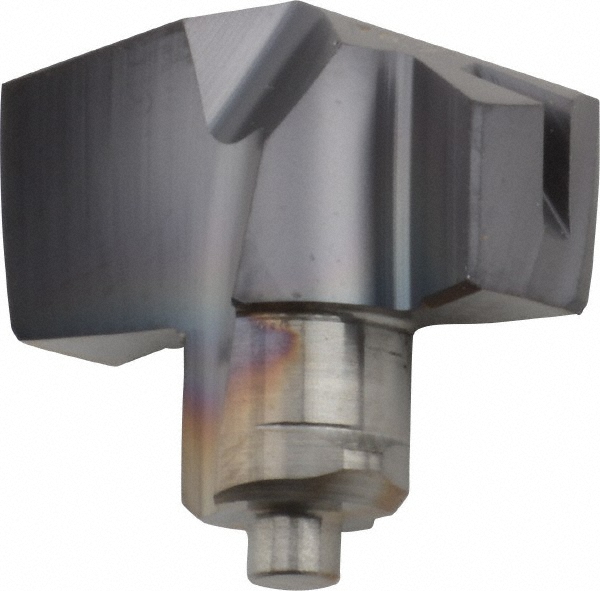

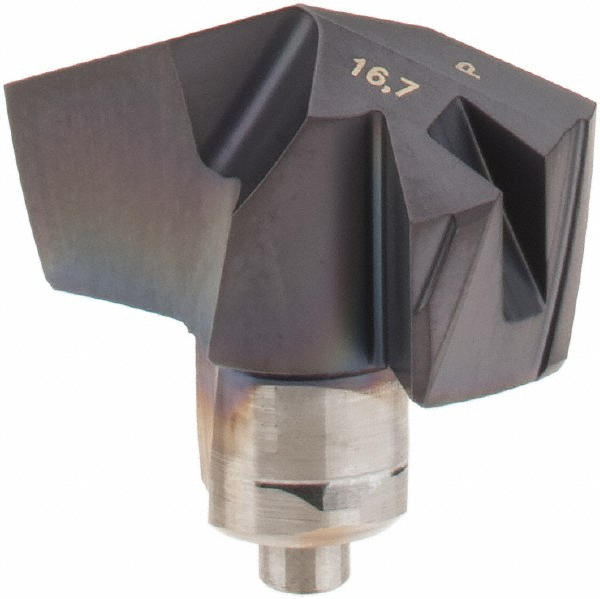

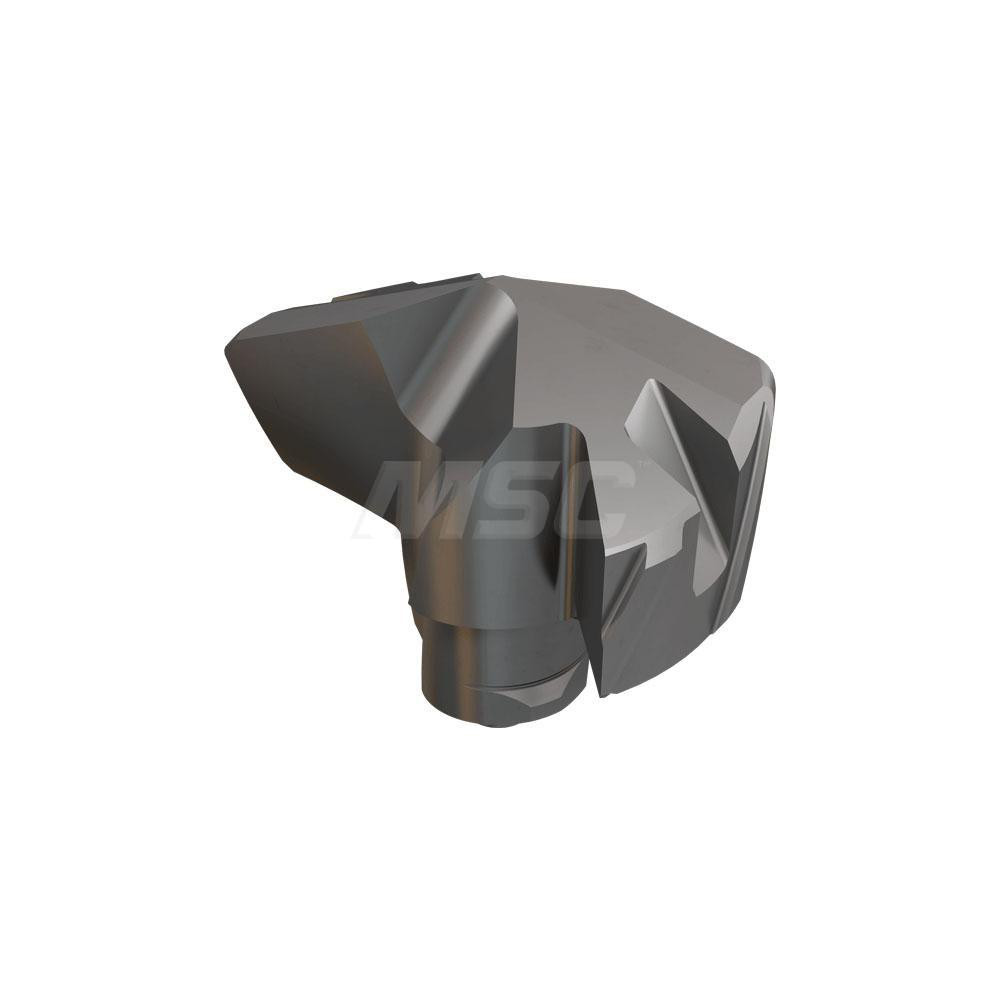

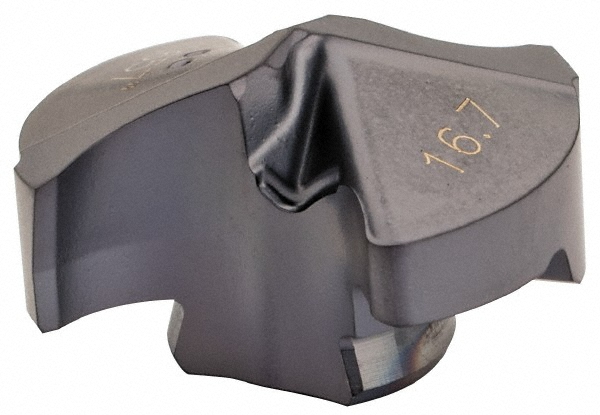

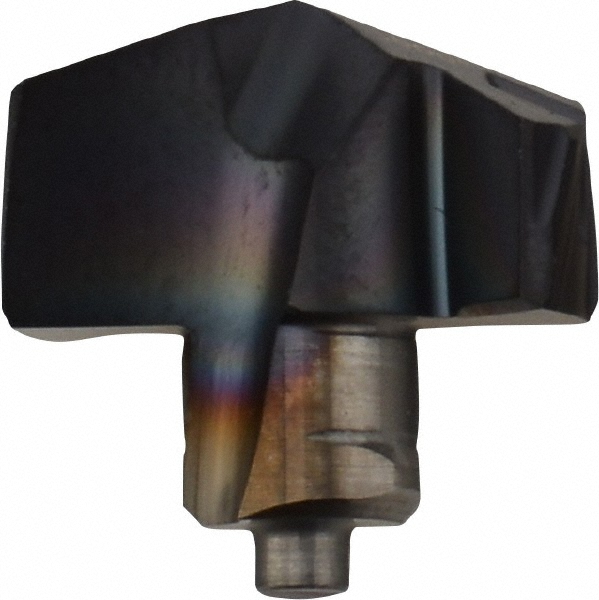

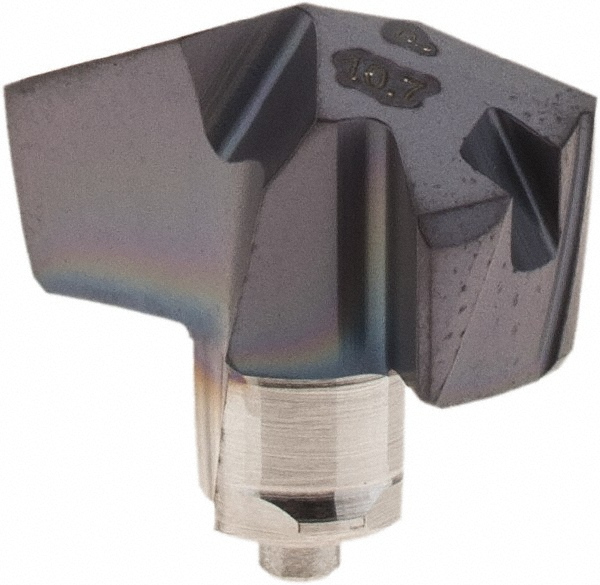

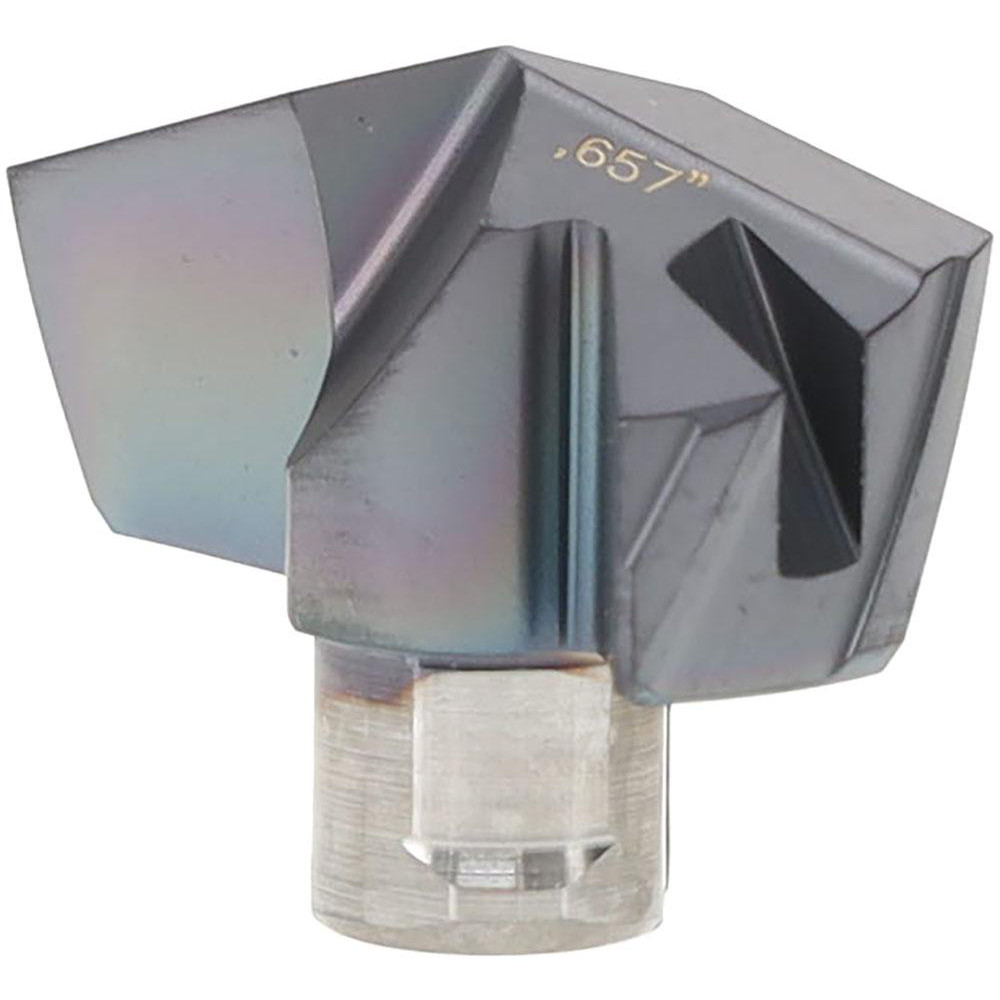

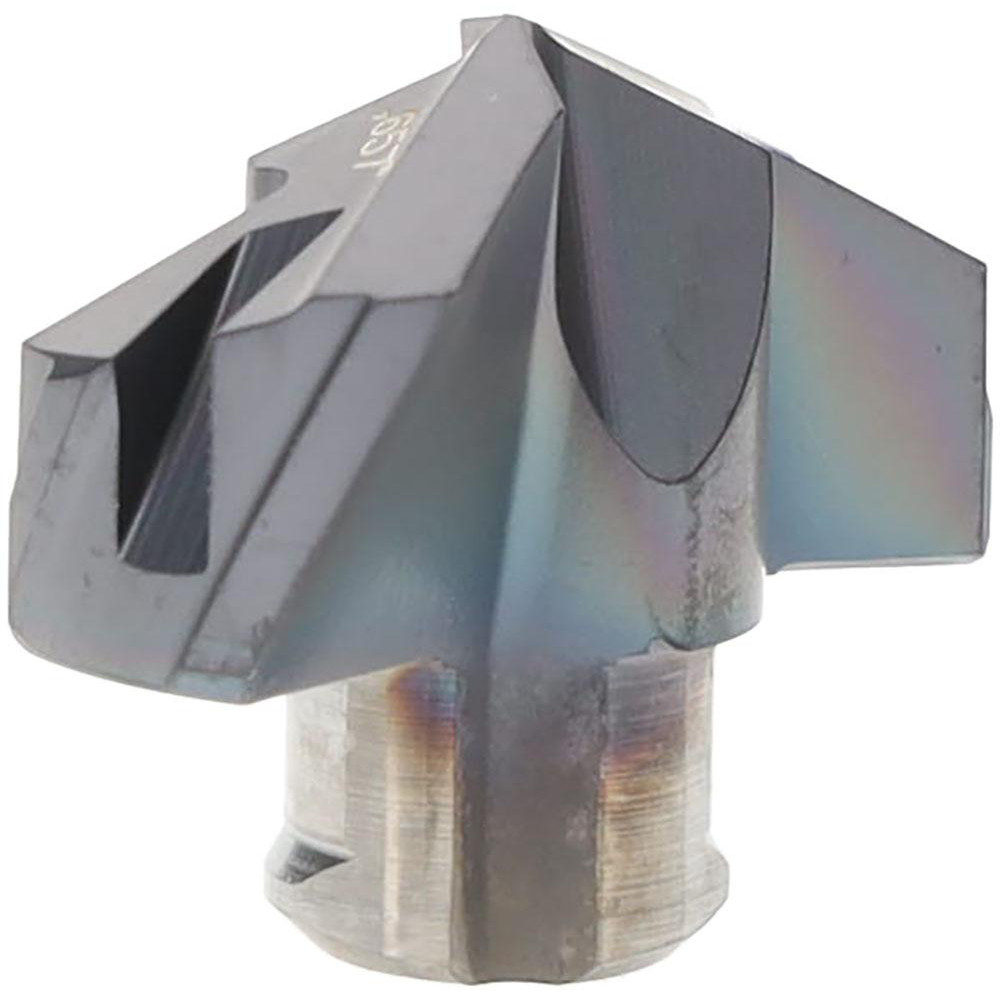

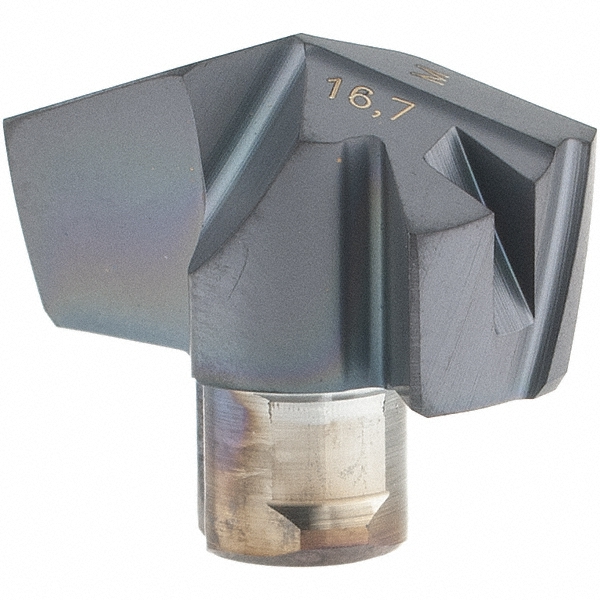

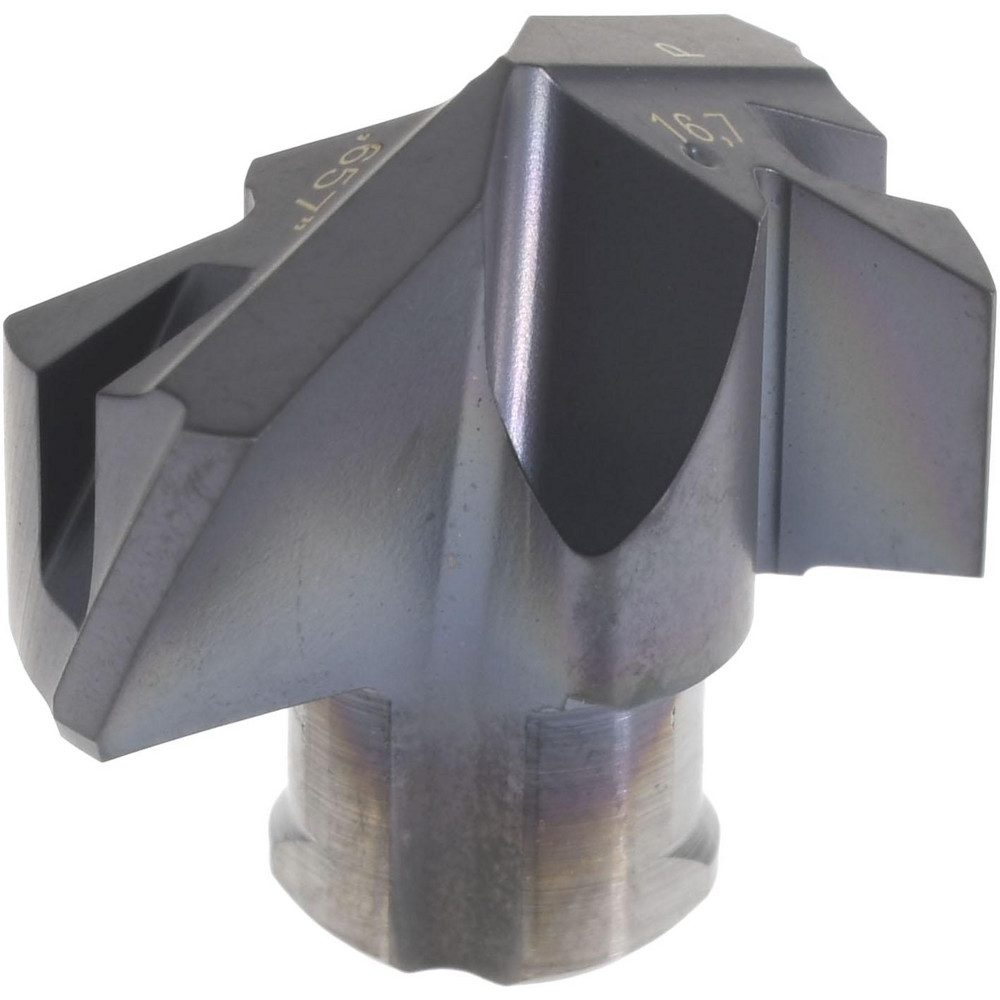

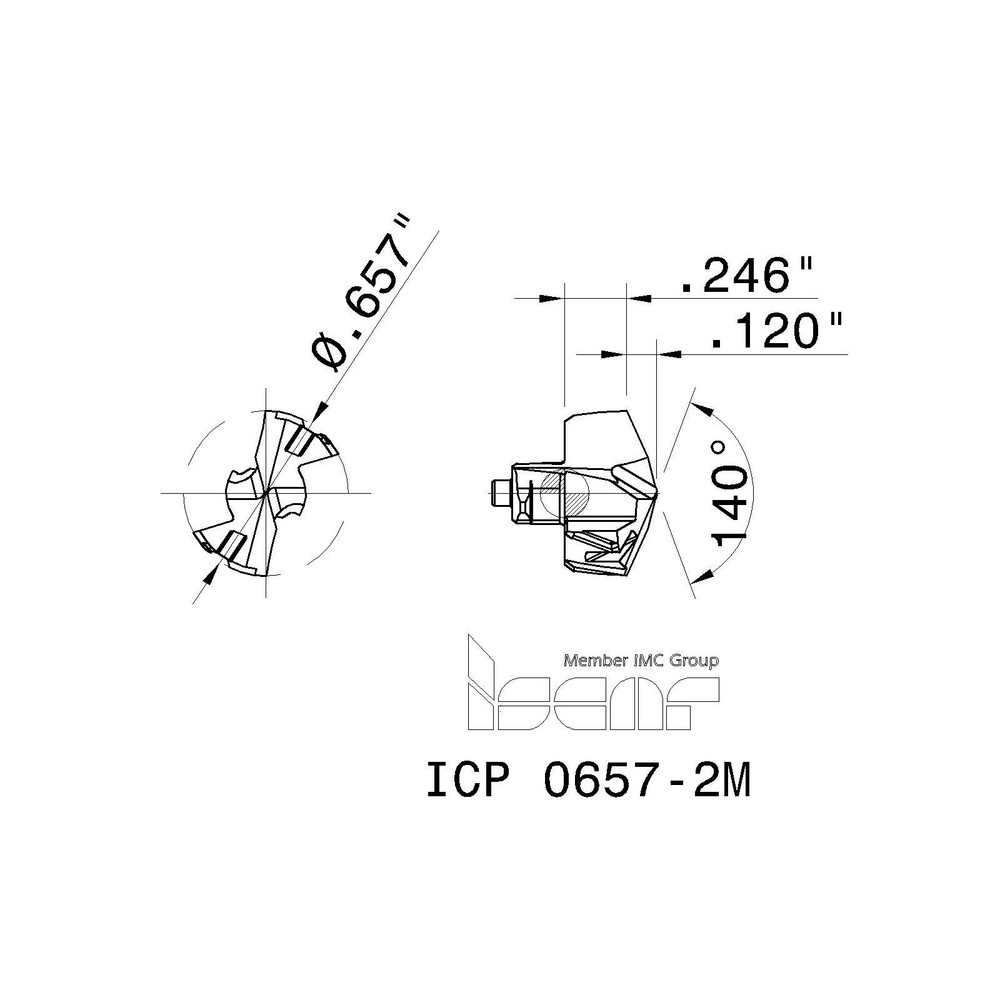

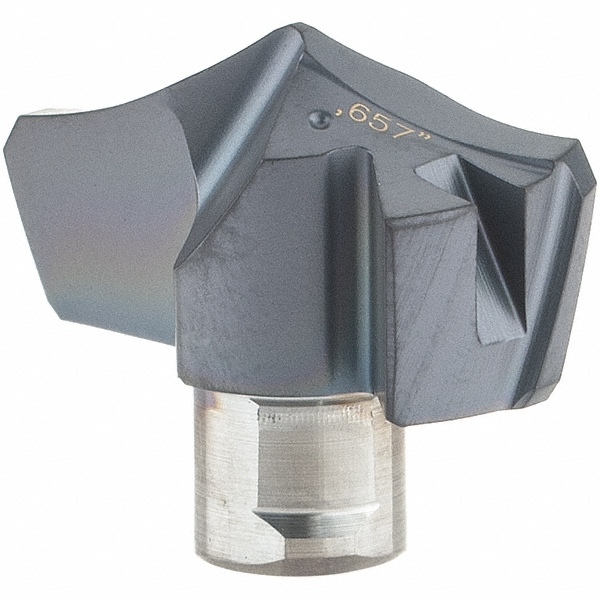

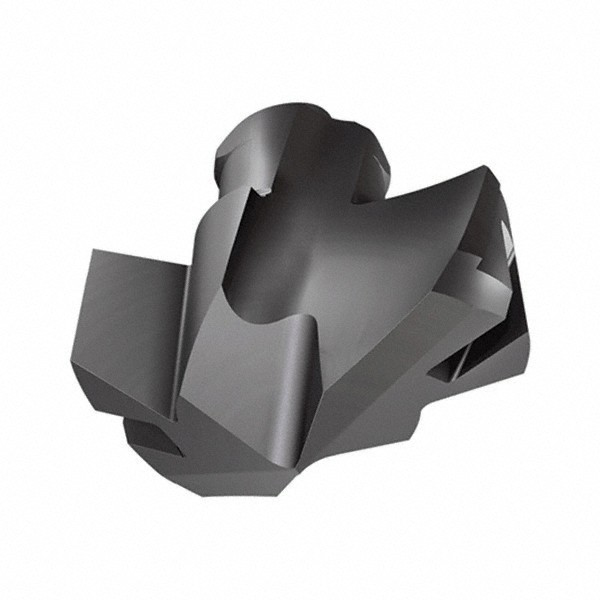

Seat Size 16, TiAlN Finish

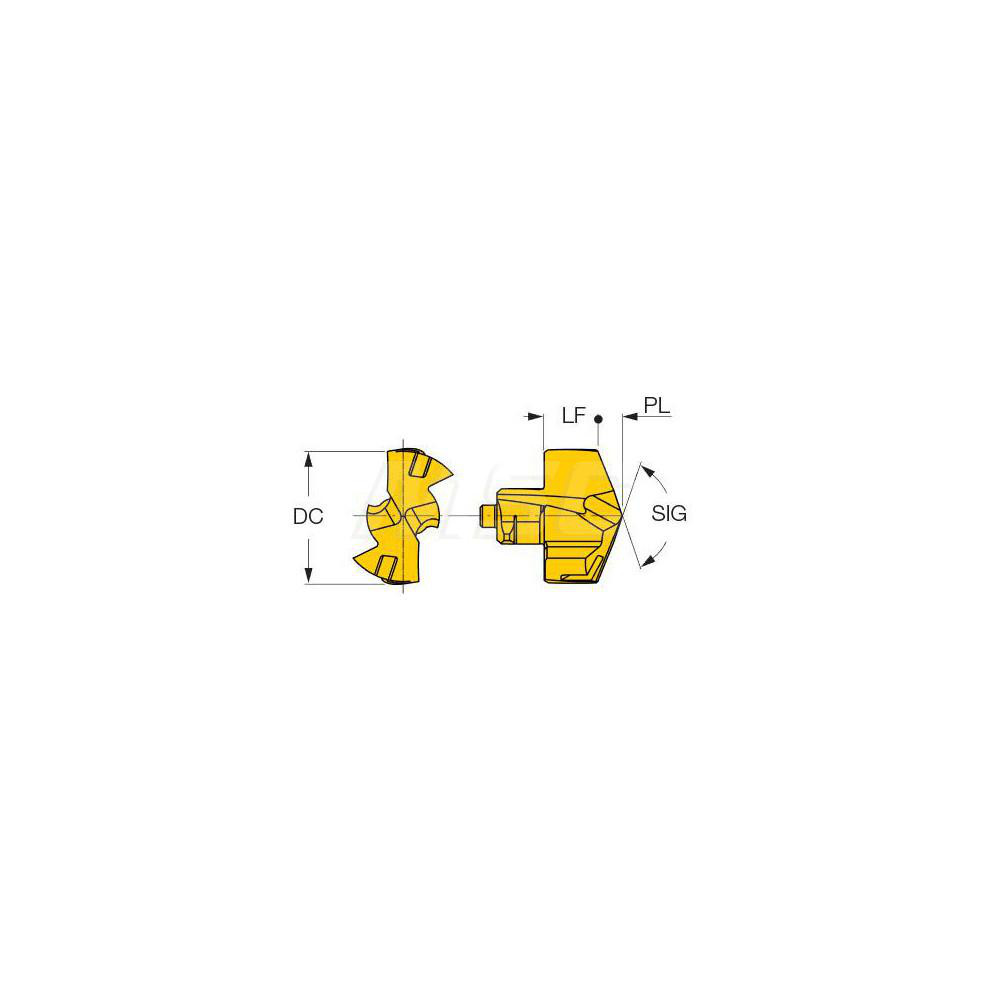

| Cutting Diameter (Decimal Inch) | 0.6570 |
|---|---|
| Cutting Diameter (mm) | 16.69 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | IC908 |
| Material Grade | Submicron |
| Series | ICP-2M |
| Coating Process | PVD |
| Insert Geometry | P |
| Insert Seat Size | 16 |
| Functional Length (Decimal Inch) | 0.2660 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium |
| Secondary Workpiece Material Code | S; H; K; M |
| Standards | ISO 13399 |
| Height (Decimal Inch) | 0.366 |
| Height (mm) | 9.00 |
| Overall Length/Projection (Decimal Inch) | 0.3665 |
| Web Thinning | Web Thinned |
| Drill Point Angle | 140 |
| Flute Type | Helical |
| Insert Holding Method | Clamp |
| ISO Number | ICP 167-2M |
| Coolant Through | No |
| Flute Length (mm) | 7.00 |
| Point Type | Standard |
| Spiral Type | Regular Spiral |
| Style | ICP-2M |
| UNSPSC Code | 23242105 |
| Applications | Drilling; Chamfering; Gundrills; Hole Making |
| Coating/Finish | TiAlN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
| Country of Origin | Israel |
| MSC Number | MSC# 91444927 |
