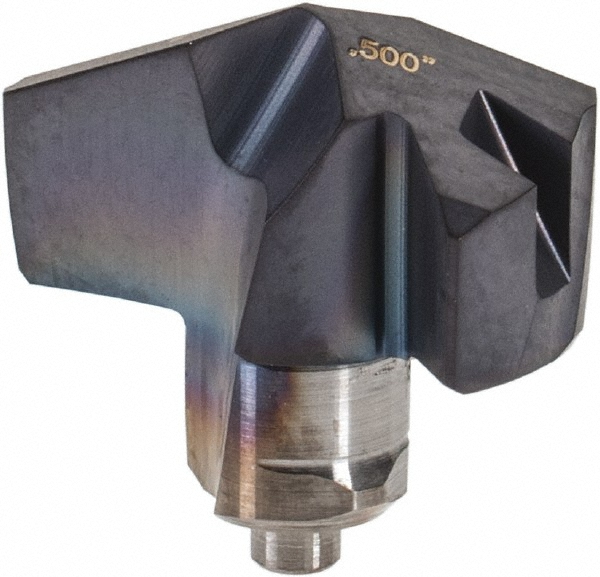

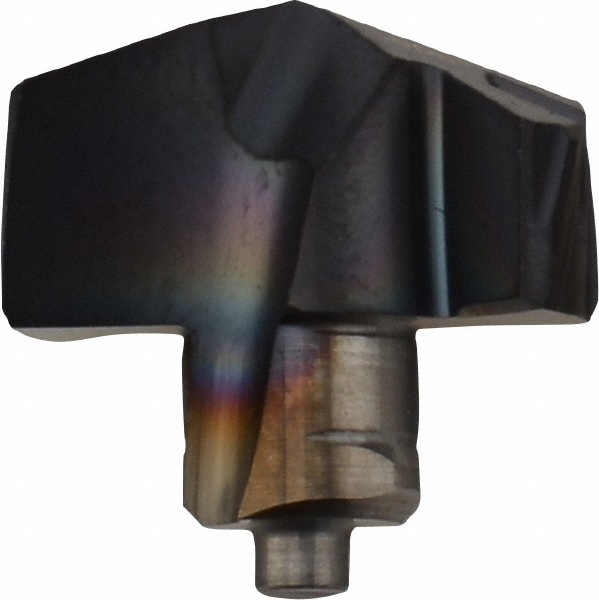

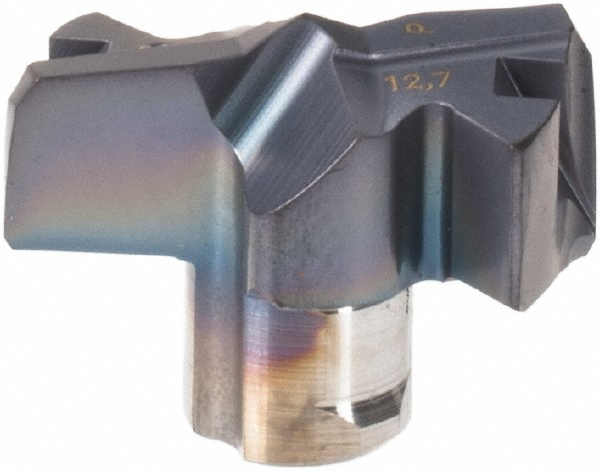

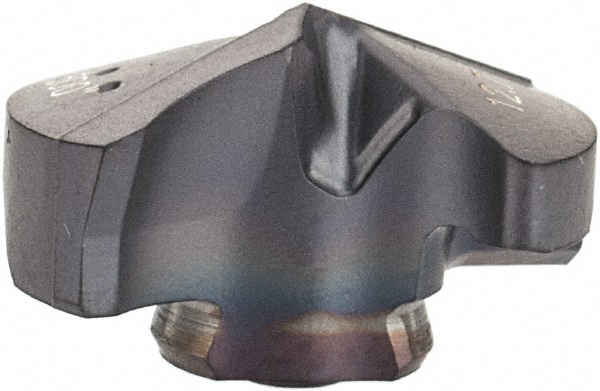

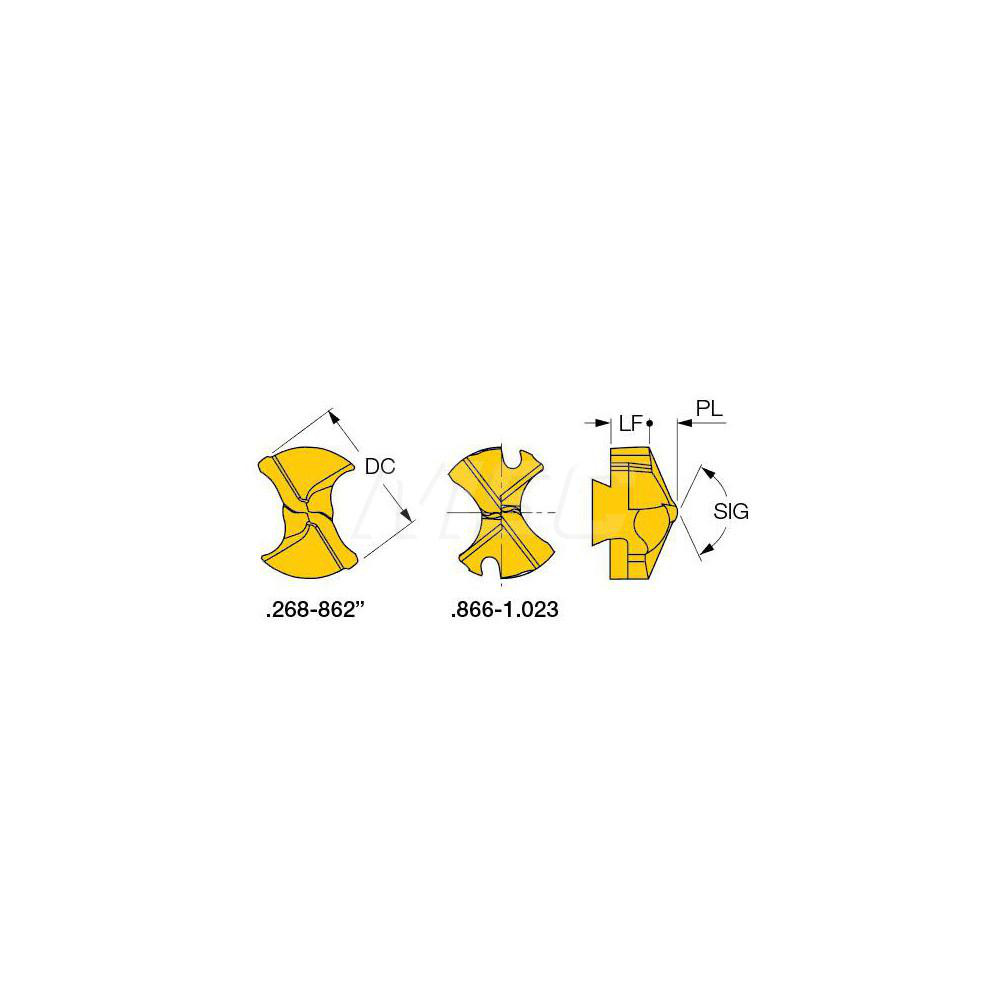

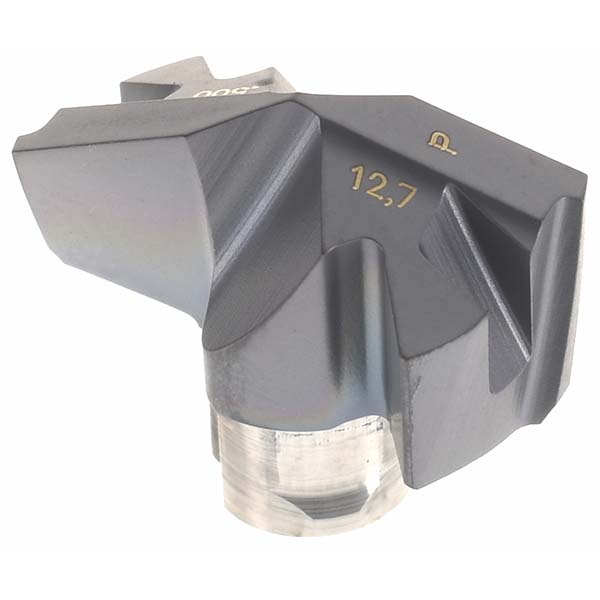

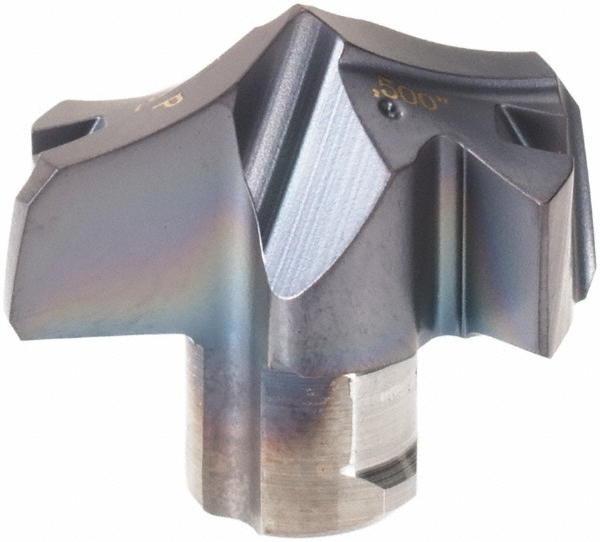

Seat Size 12, TiAlN Finish

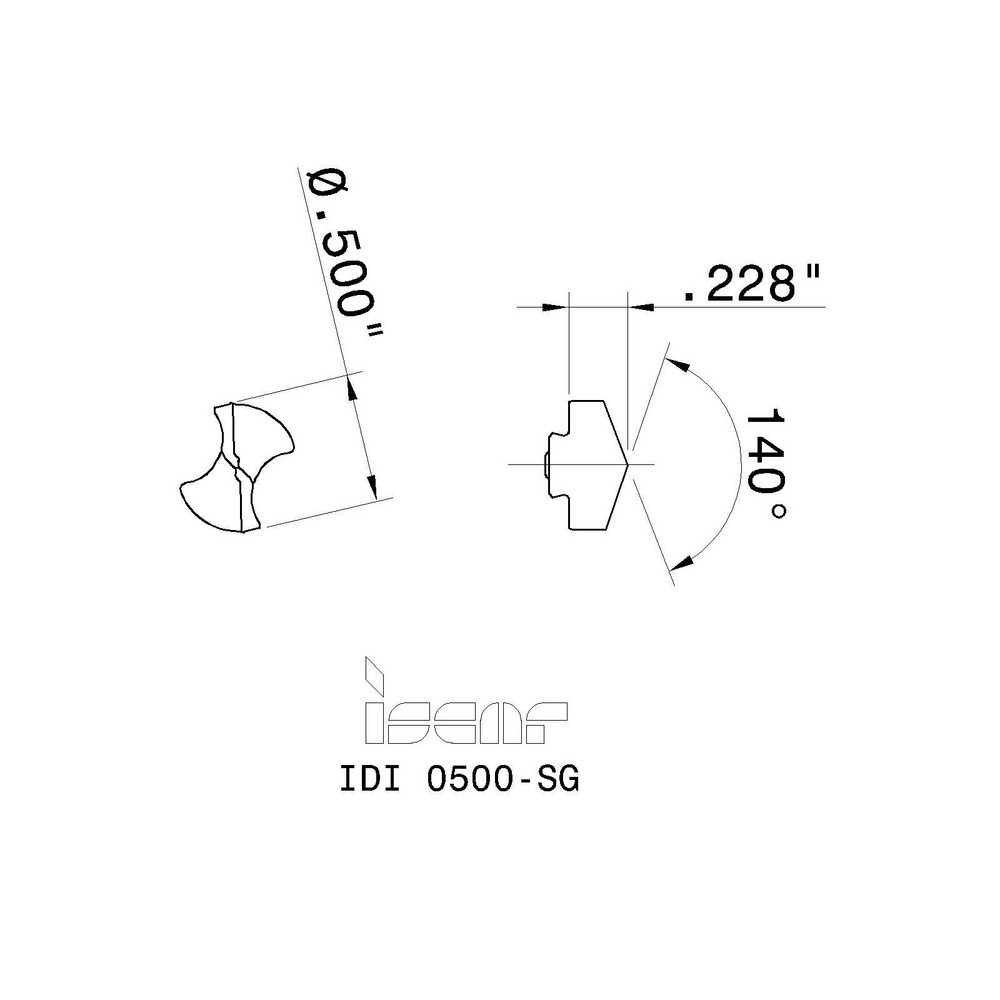

| Cutting Diameter (Inch) | 1/2 |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.5004 |
| Cutting Diameter (mm) | 12.71 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | IC908 |
| Material Grade | Submicron |
| Series | IDI-SG |
| Coating Process | PVD |
| Insert Geometry | SG |
| Insert Seat Size | 12 |
| Functional Length (Decimal Inch) | 0.1375 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Standards | ISO 13399 |
| Height (Decimal Inch) | 0.228 |
| Height (mm) | 6.00 |
| Overall Length/Projection (Decimal Inch) | 0.2285 |
| Web Thinning | Web Thinned |
| Drill Point Angle | 140 |
| Flute Type | Helical |
| Insert Holding Method | Clamp |
| ISO Number | IDI 127-SG |
| Coolant Through | No |
| Flute Length (mm) | 3.00 |
| Point Type | Standard |
| Spiral Type | Regular Spiral |
| Style | IDI-SG |
| UNSPSC Code | 23242105 |
| Applications | Drilling; Hole Making |
| Coating/Finish | TiAlN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
| Country of Origin | Israel |
| undefined | undefined |
| Pros | No Pros |
| Cons | No Cons |
| Ease of Use | 5 |
| Value | 5 |
| MSC Number | MSC# 60837747 |
