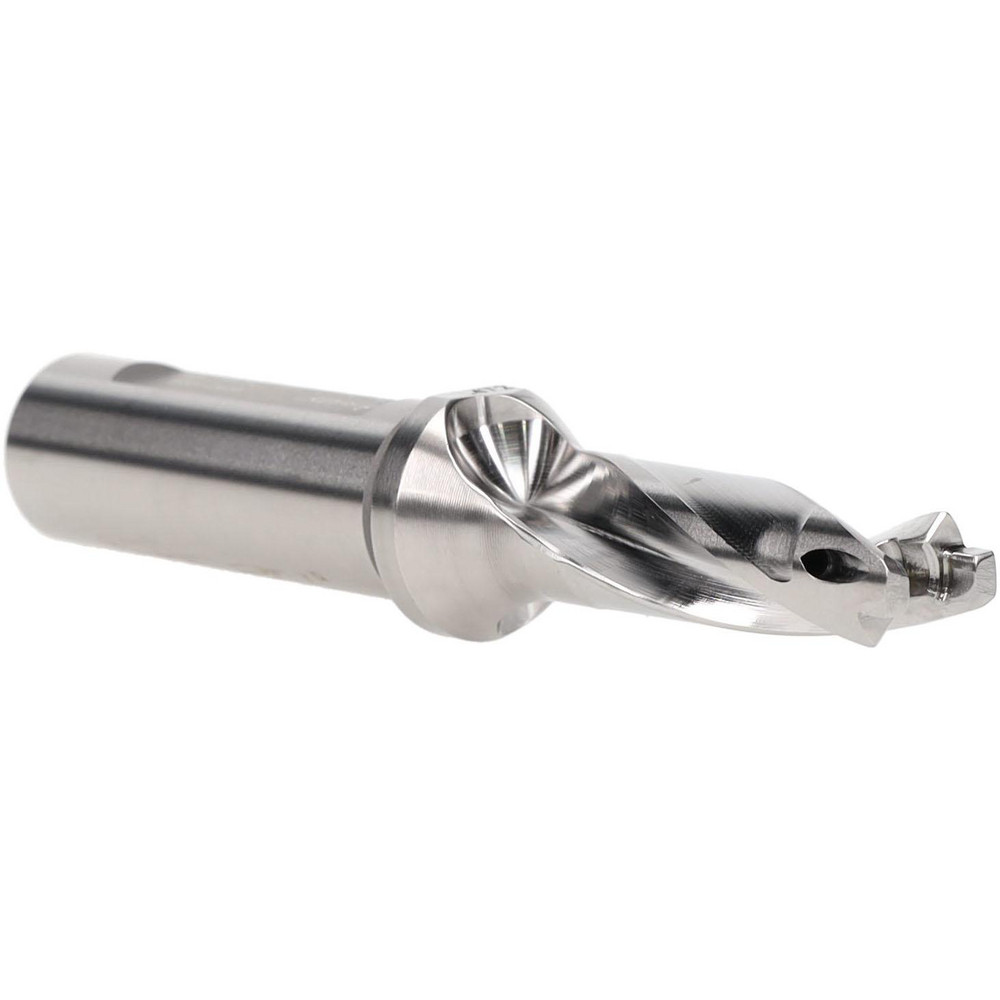

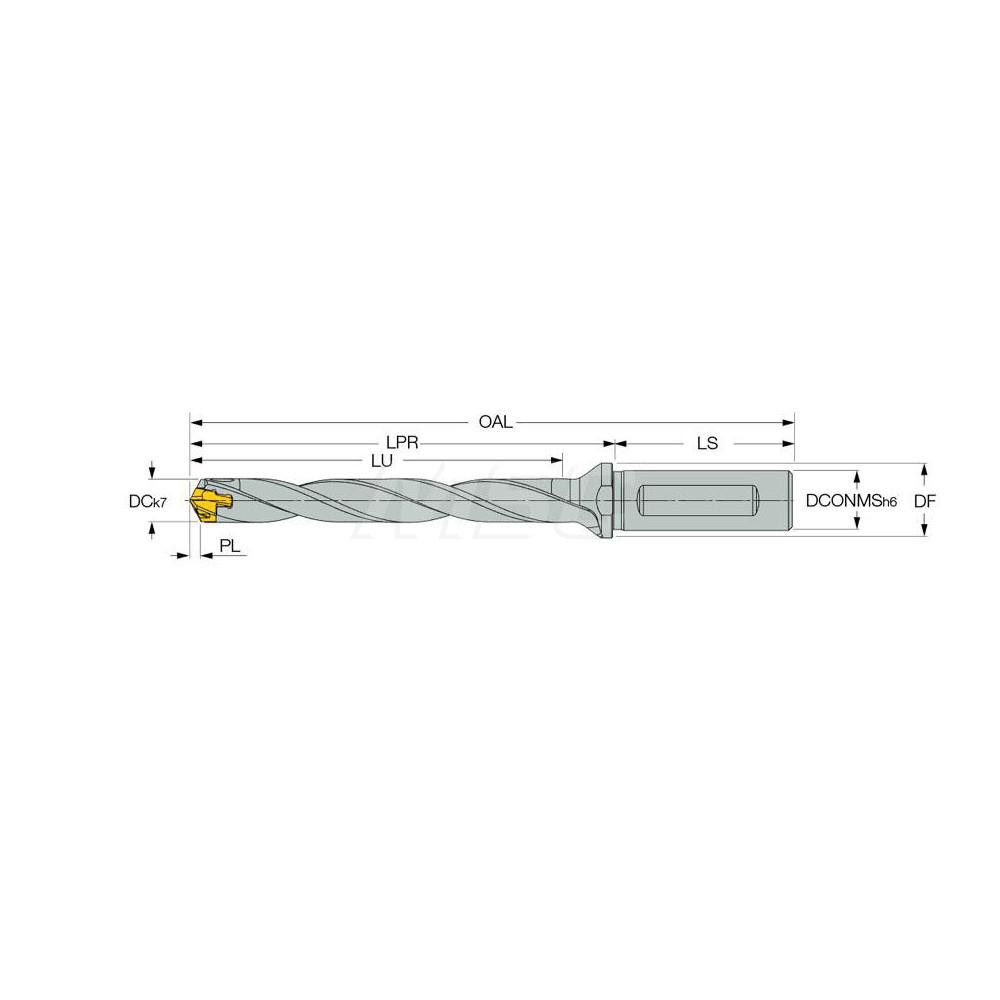

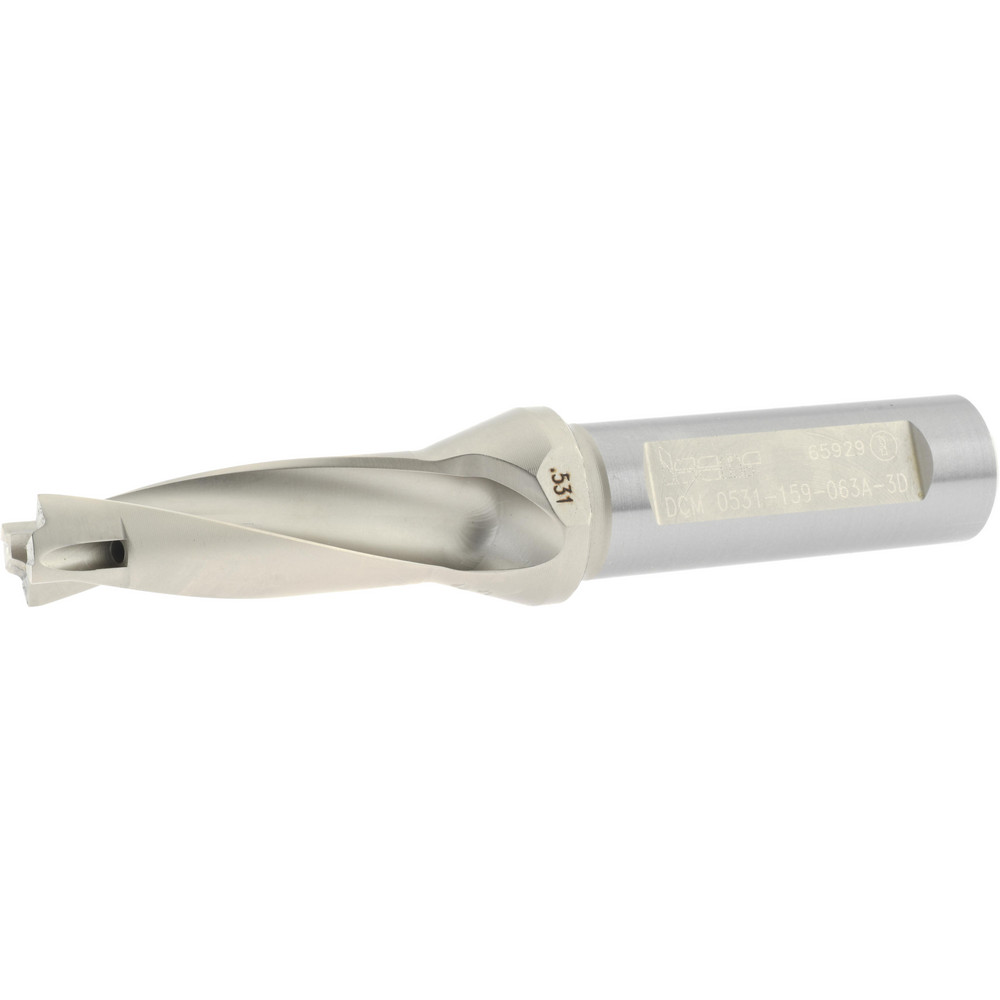

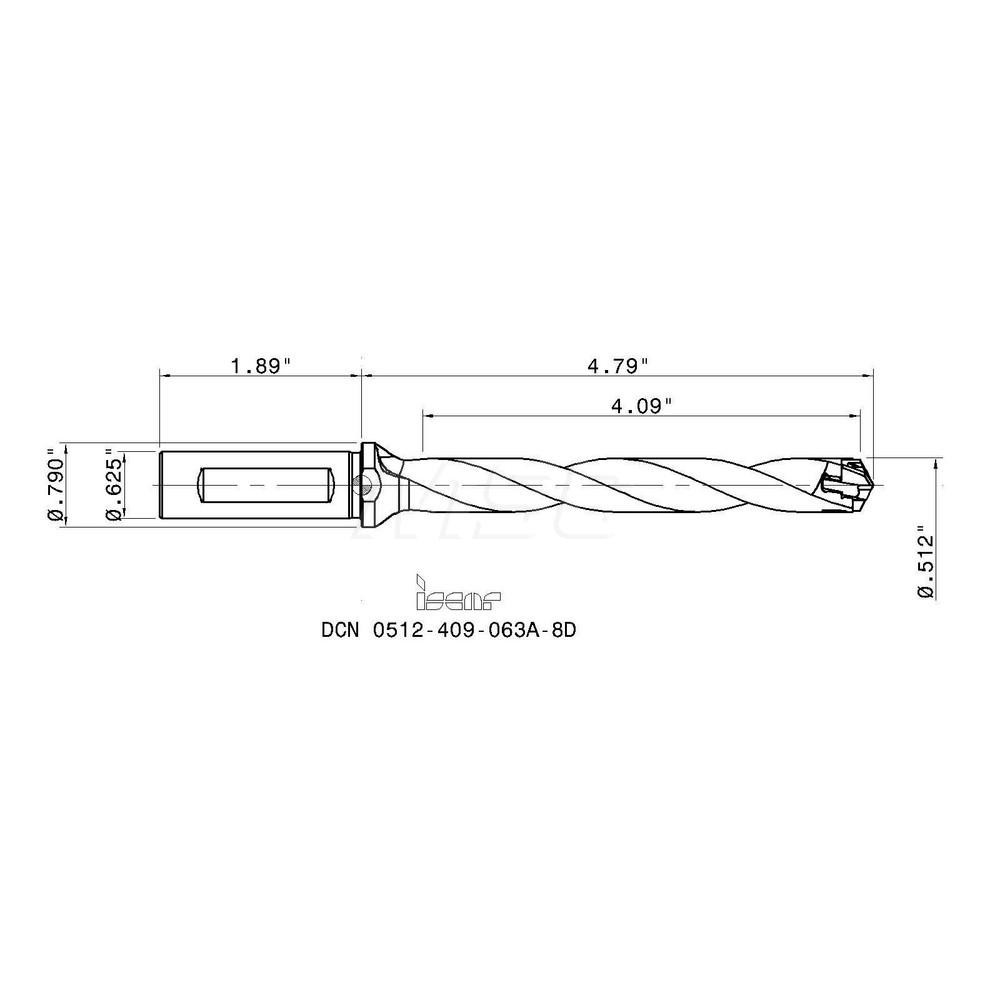

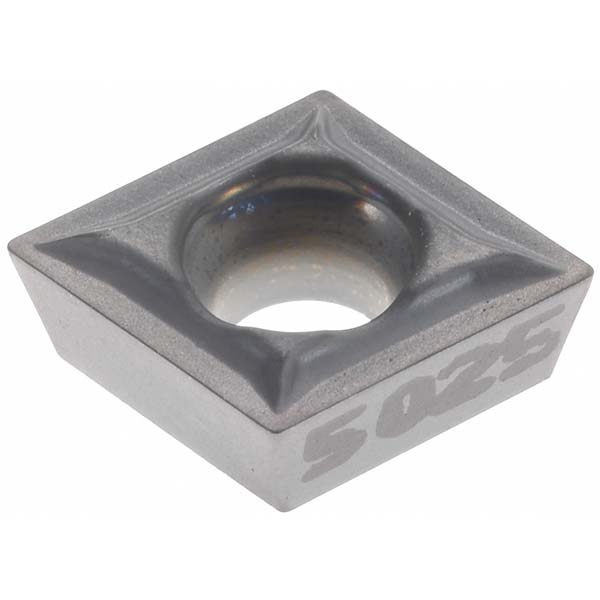

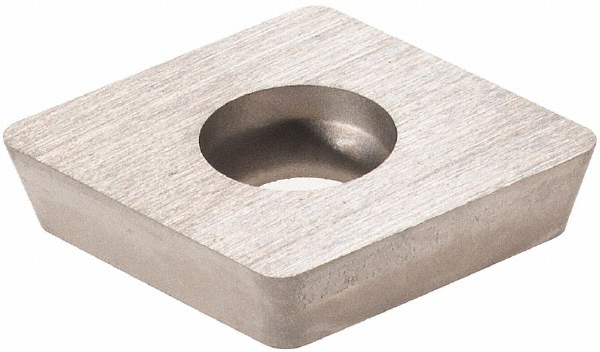

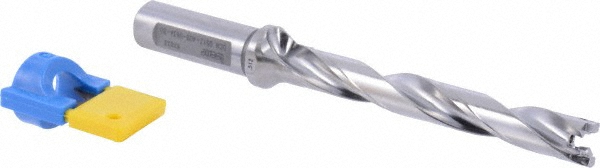

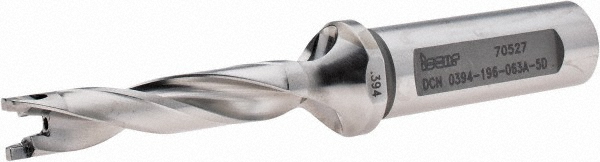

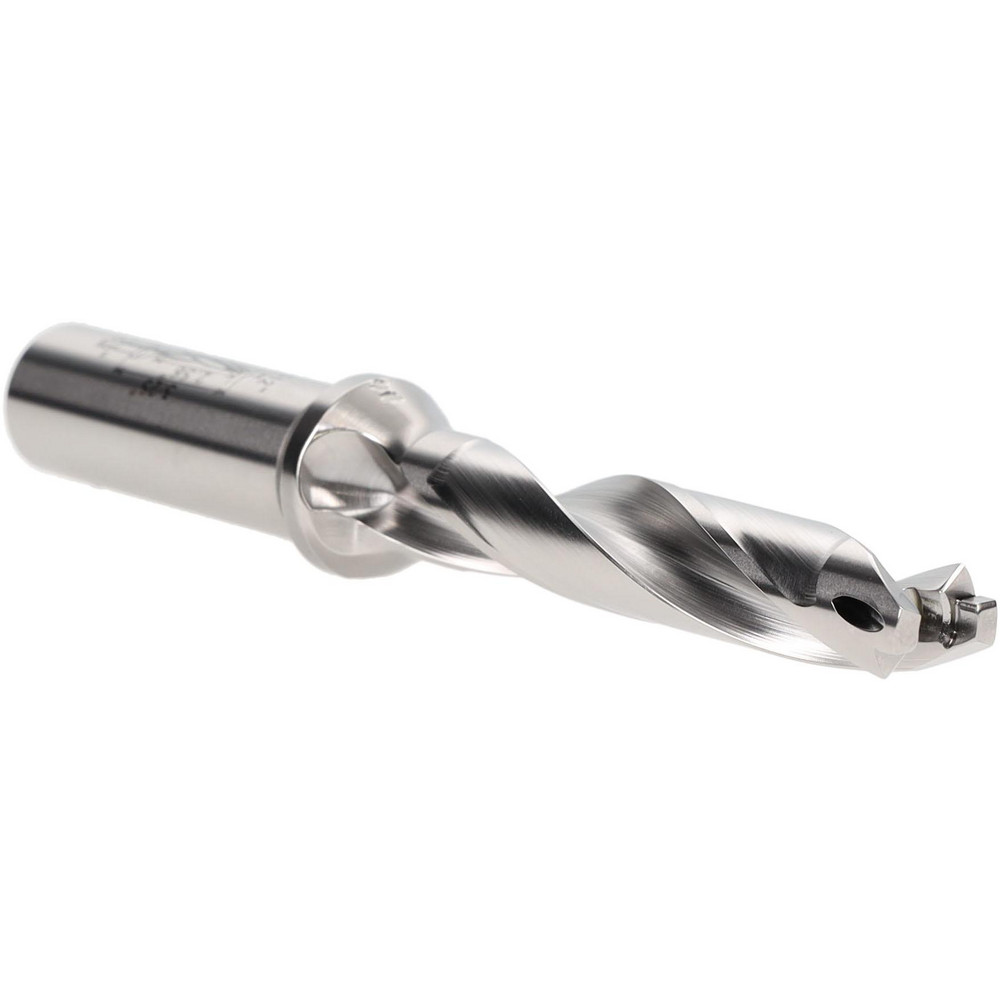

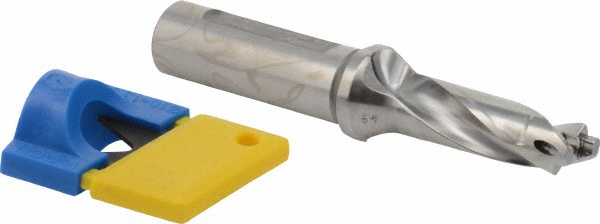

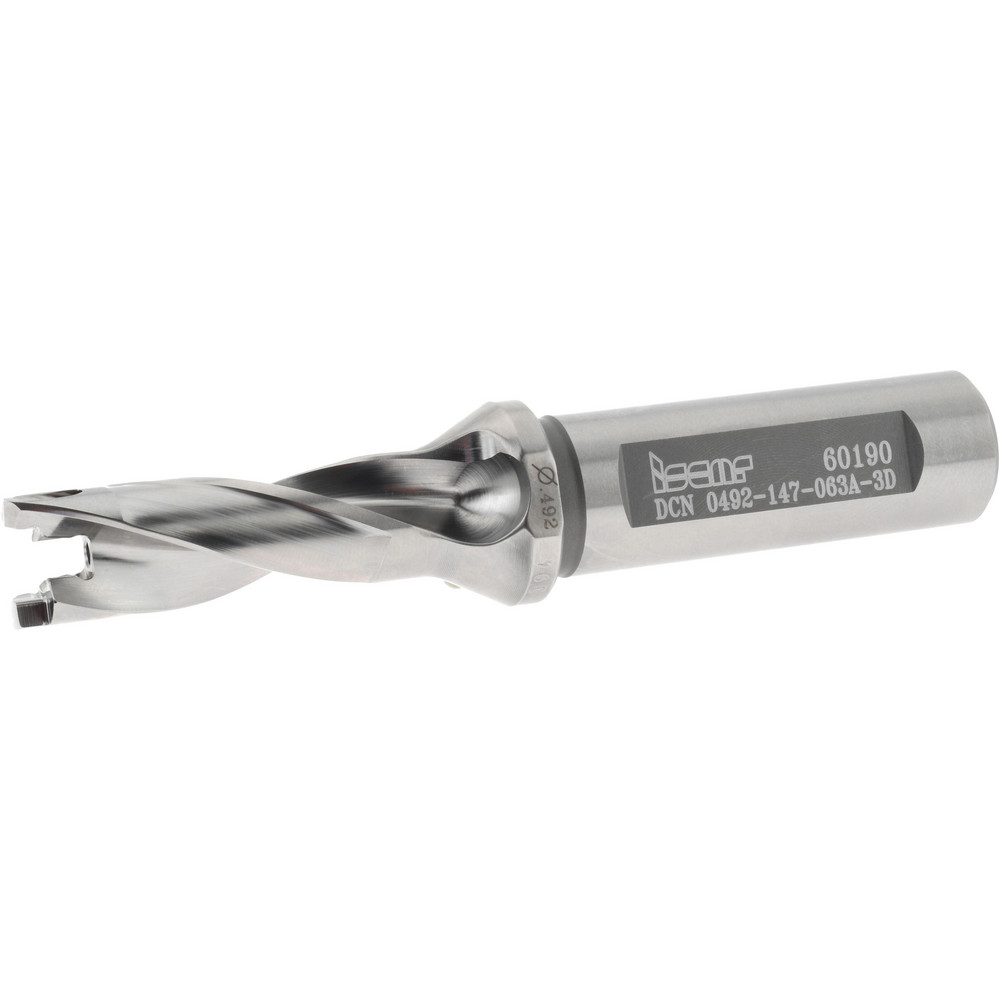

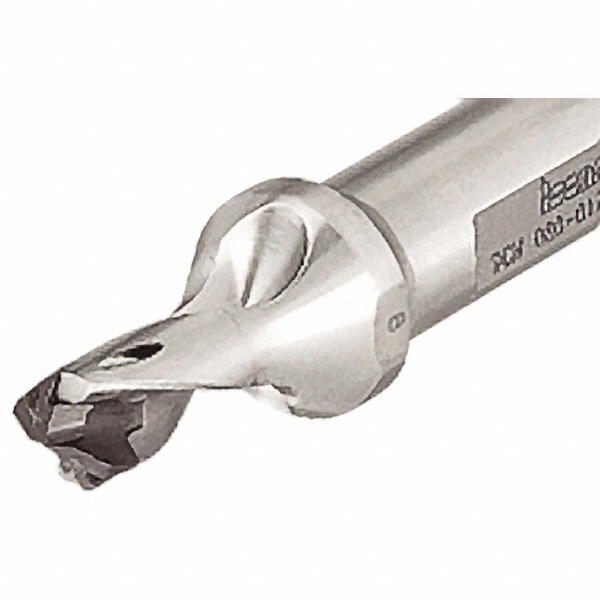

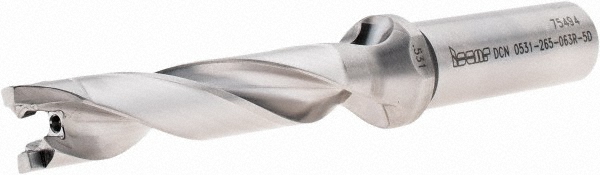

Uses FCP/ICK/ICK-2M/ICM/ICN/ICP/iCP-2M Inserts, Seat Size 13, 6.68" OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.5120 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.5470 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 4.0900 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Seat Size | 13 |
| Maximum Drill Depth Range (Decimal Inch) | 3.5000 to 4.5000 |

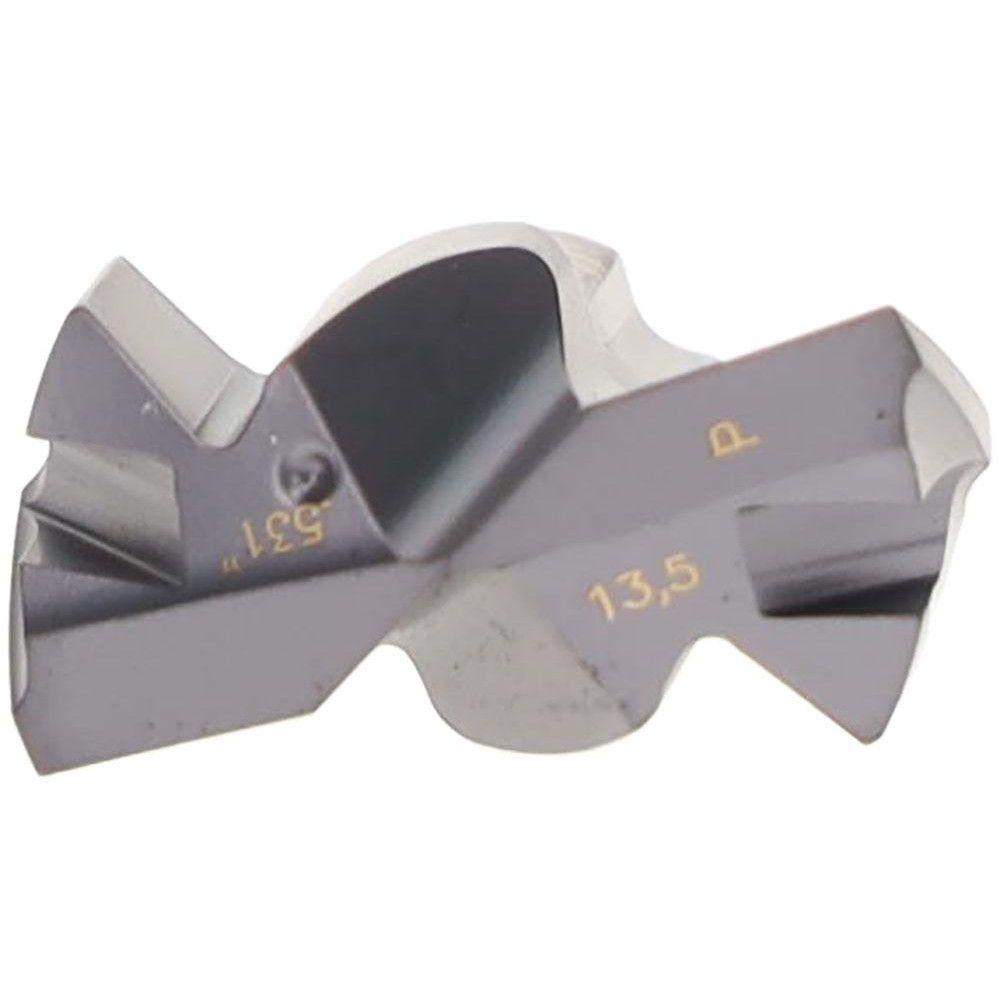

| Compatible Insert Style | ICK; iCP-2M; FCP; ICM; ICK-2M; ICN; ICP |
| Overall Length (Decimal Inch) | 6.68 |
| Series | SumoCham |
| Toolholder Style | DCN |
| Body Length (Decimal Inch) | 4.79 |
| Shank Length (Decimal Inch) | 1.8900 |
| Tool Application | Holemaking |
| Standards | ISO 13399 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | Israel |
| MSC Number | MSC# 91104711 |
