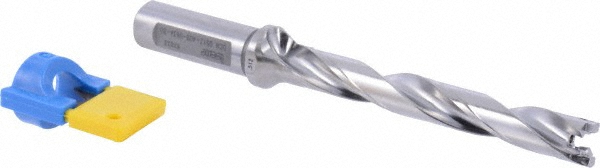

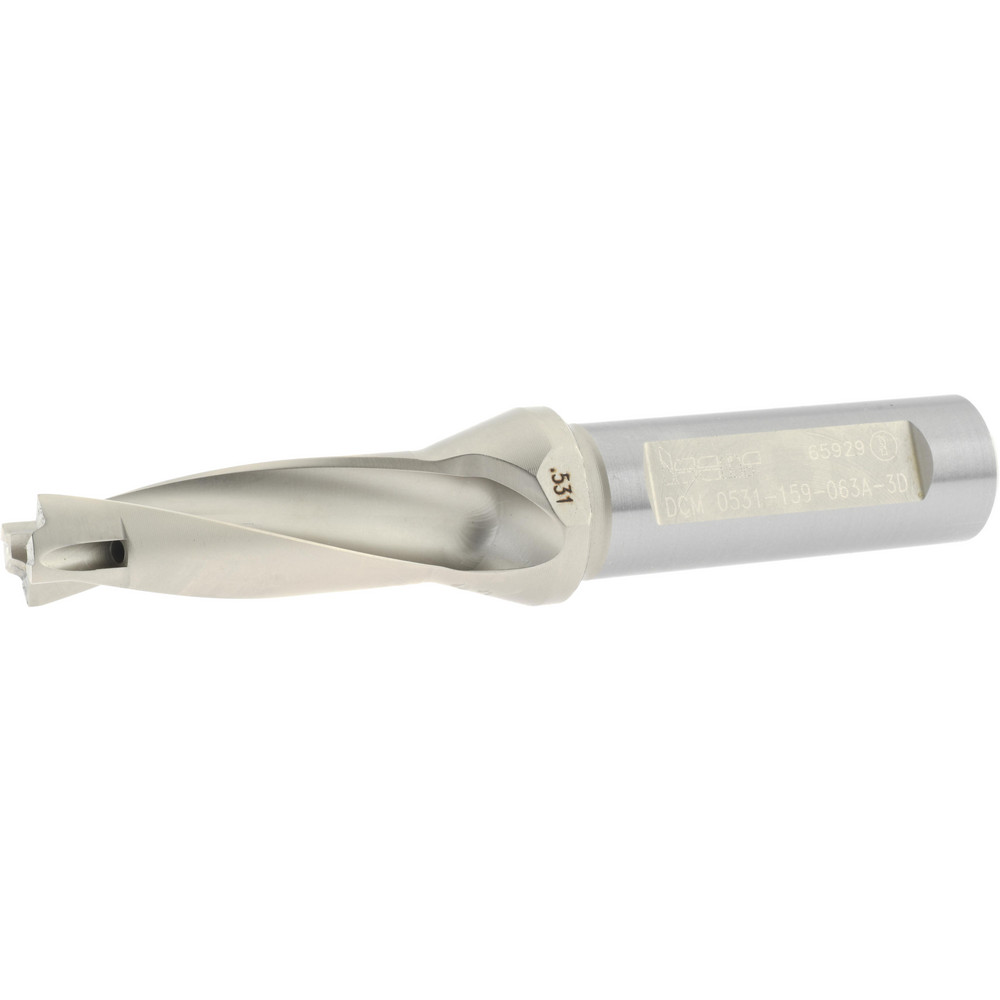

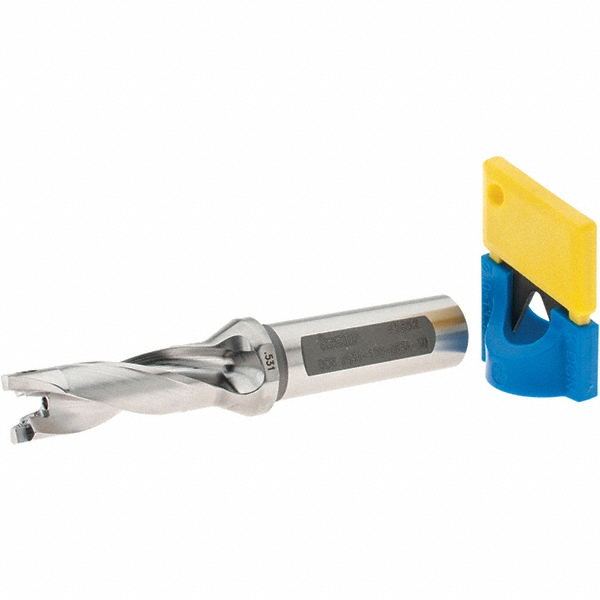

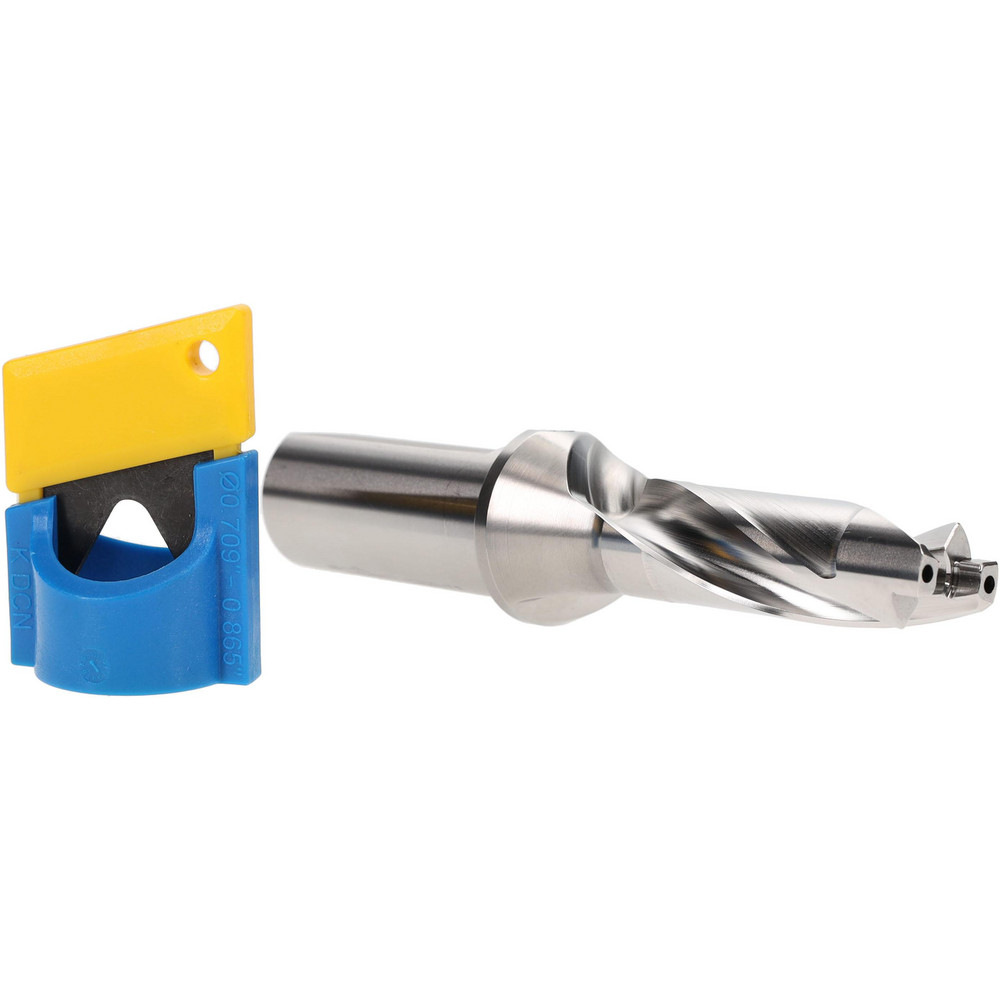

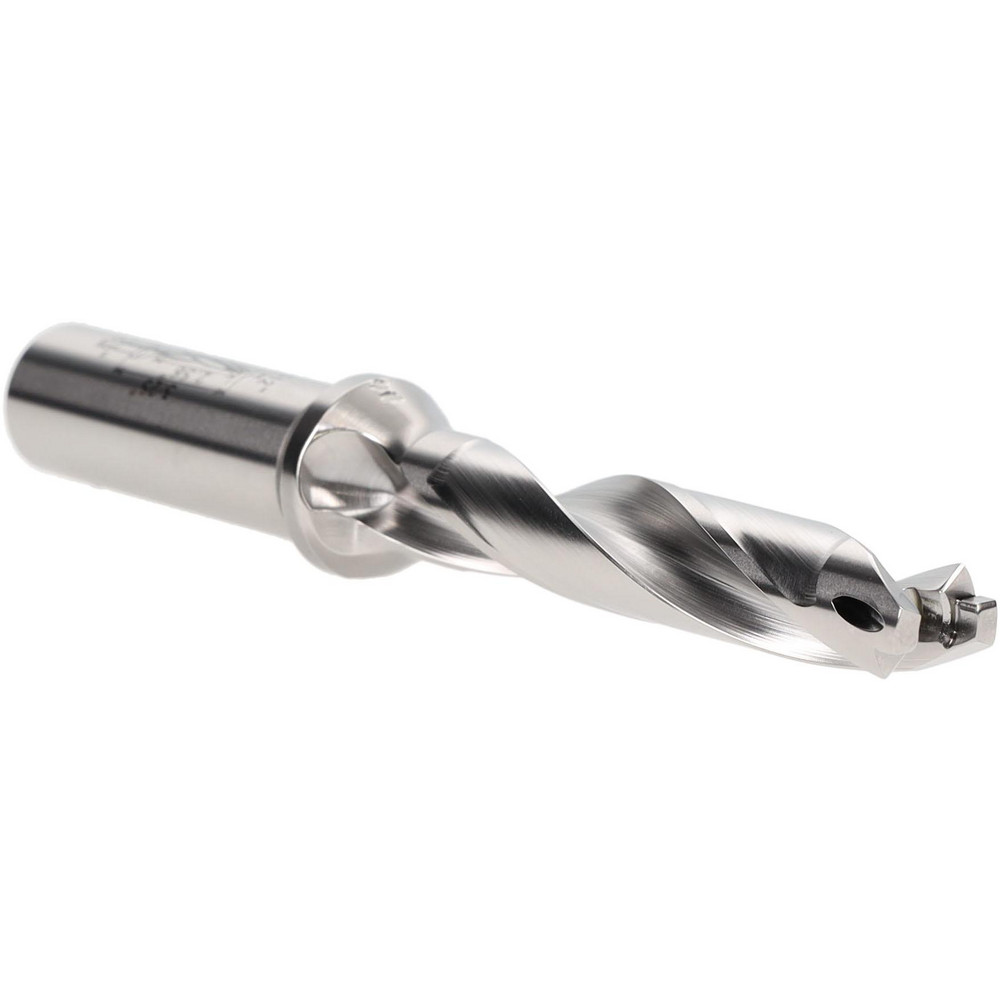

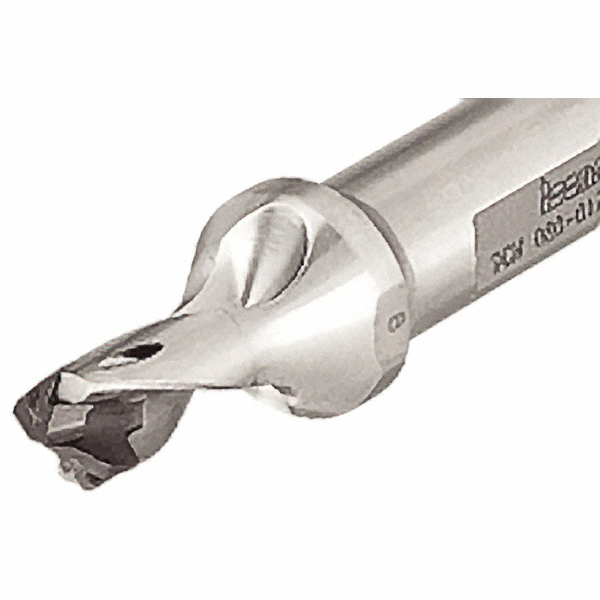

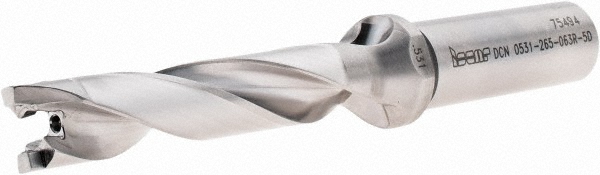

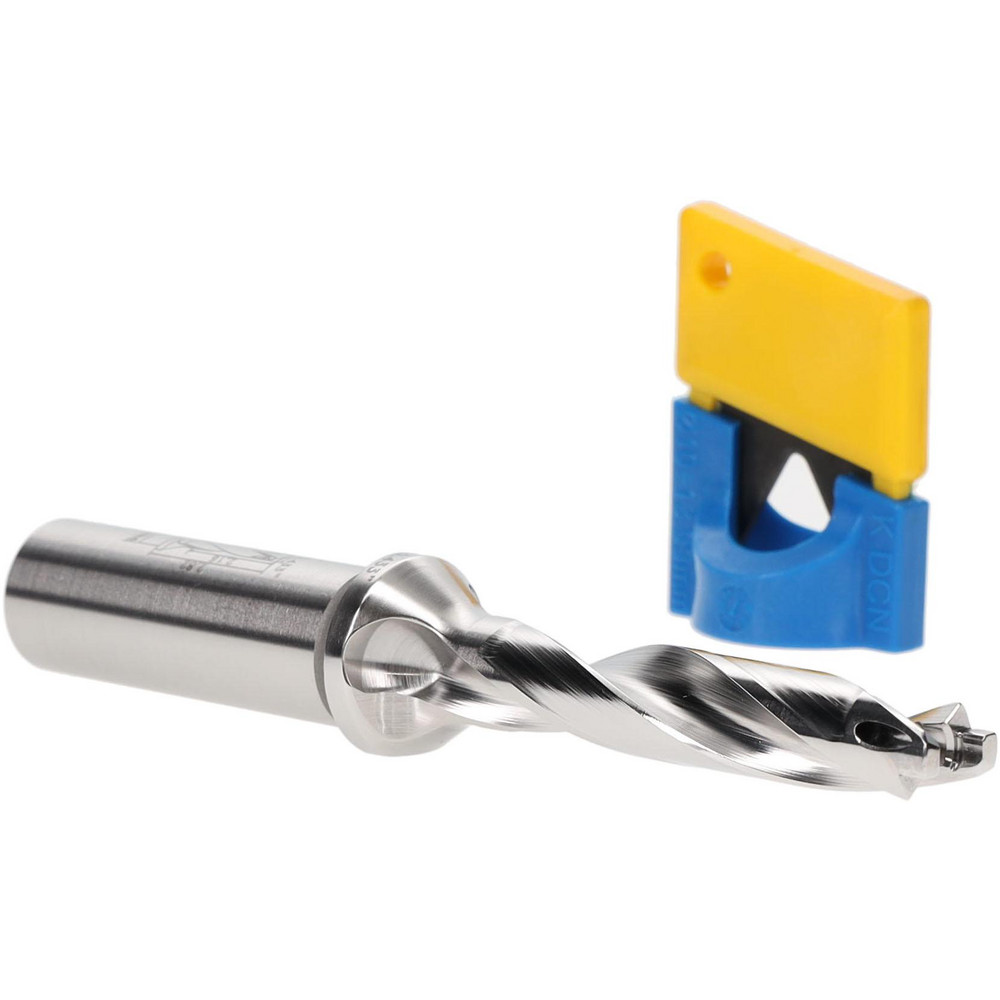

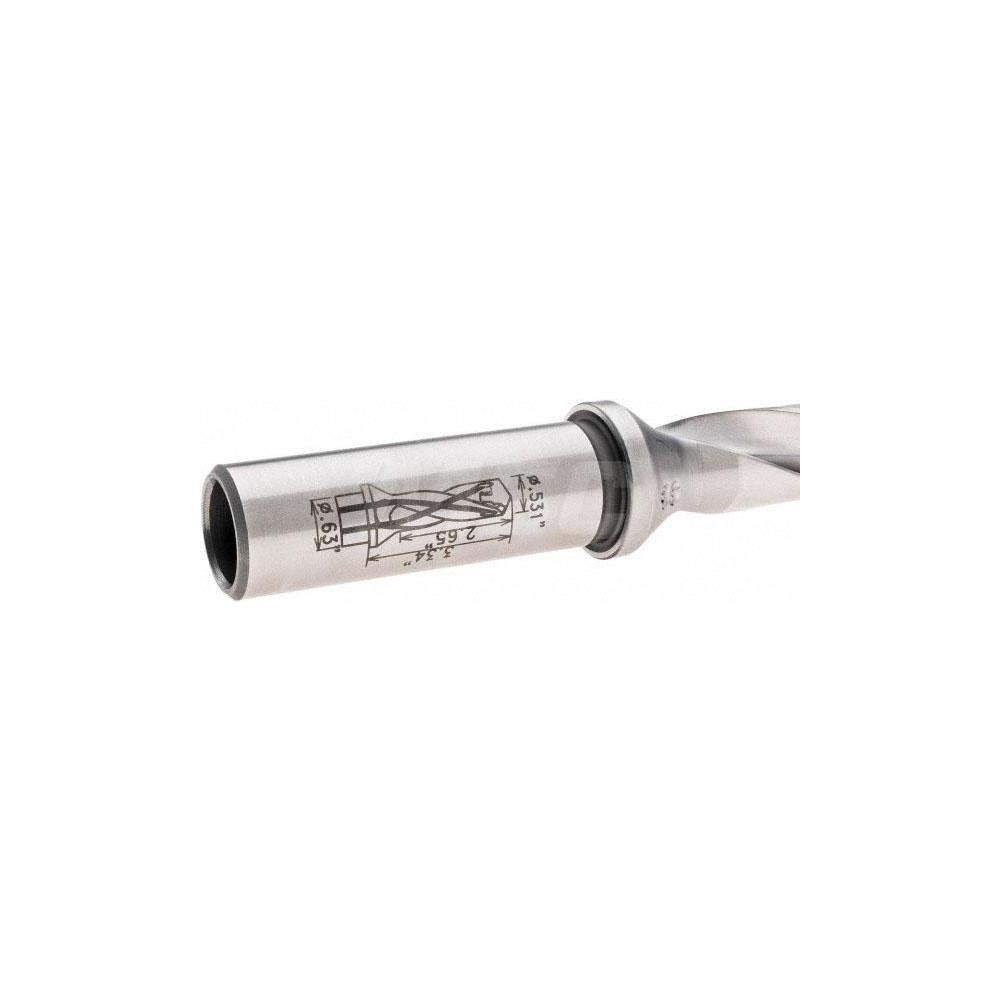

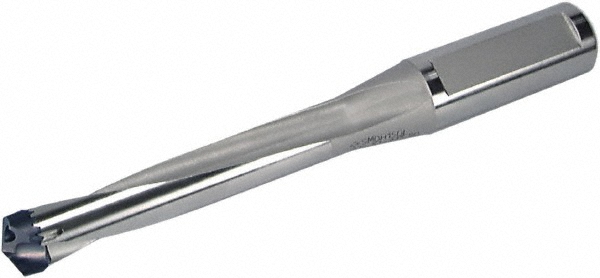

Uses FCP/ICK/ICK-2M/ICM/ICP/iCP-2M Inserts, 5.24" OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.5310 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.5470 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 2.6500 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Maximum Drill Depth Range (Decimal Inch) | 2.5000 to 3.5000 |

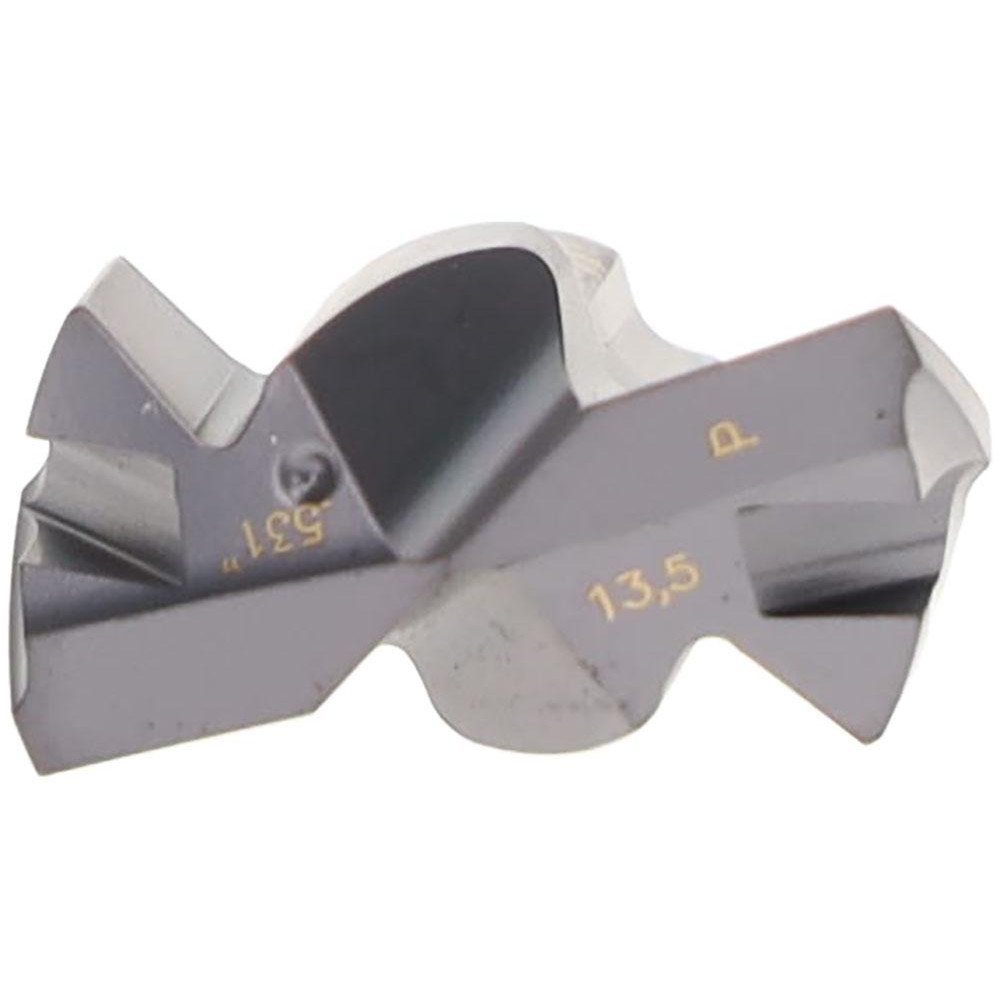

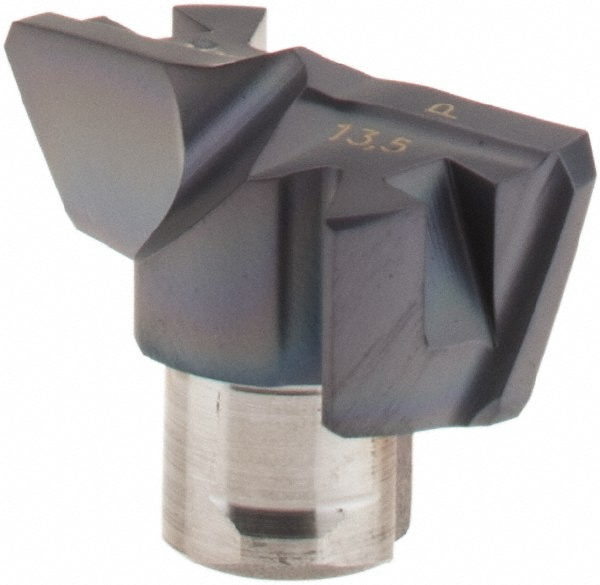

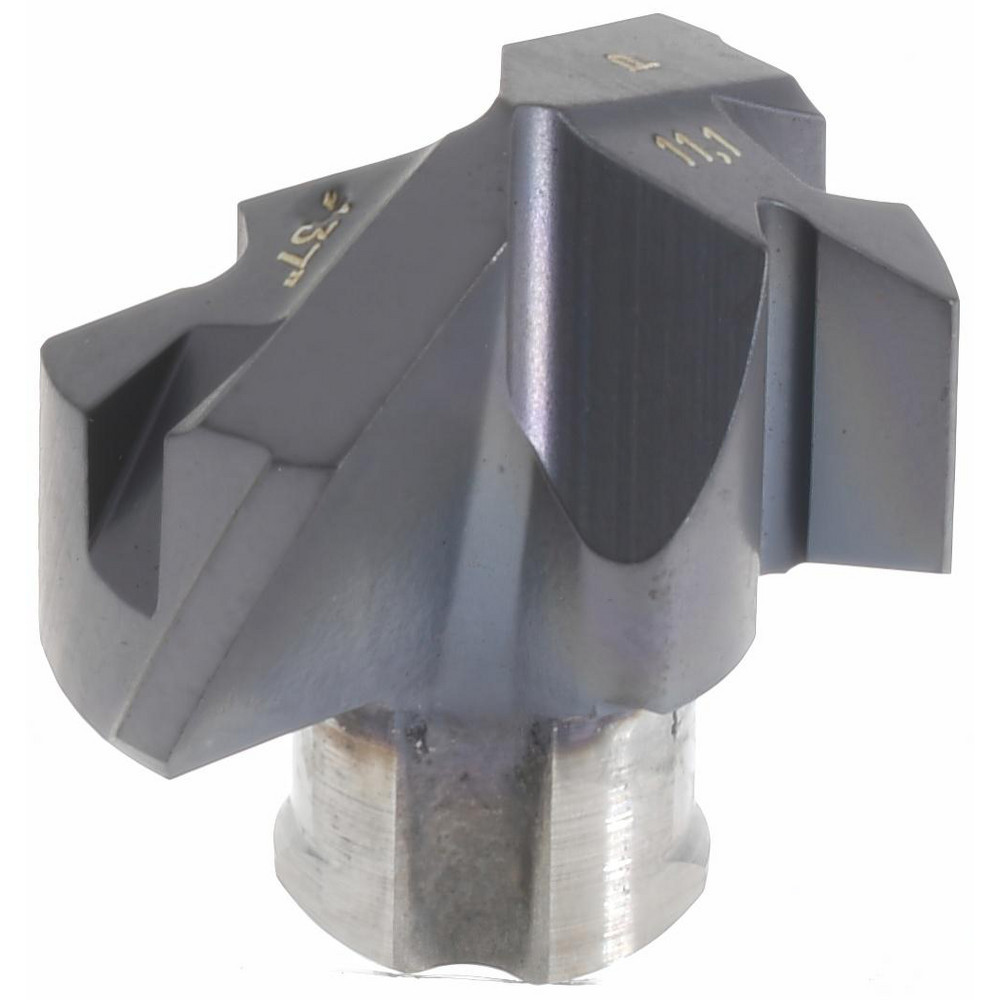

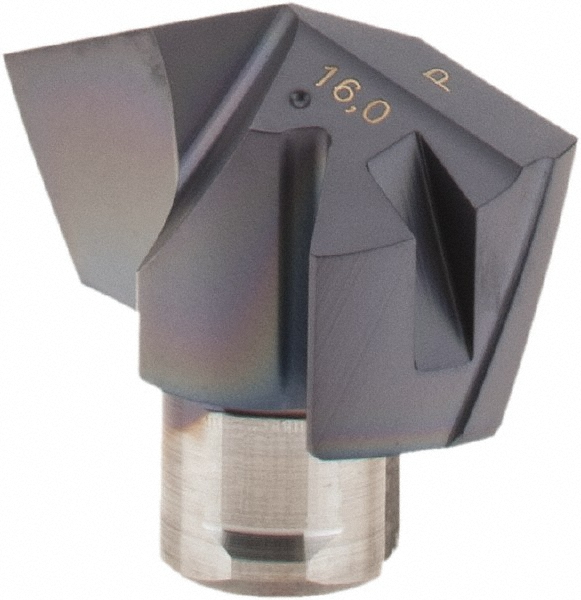

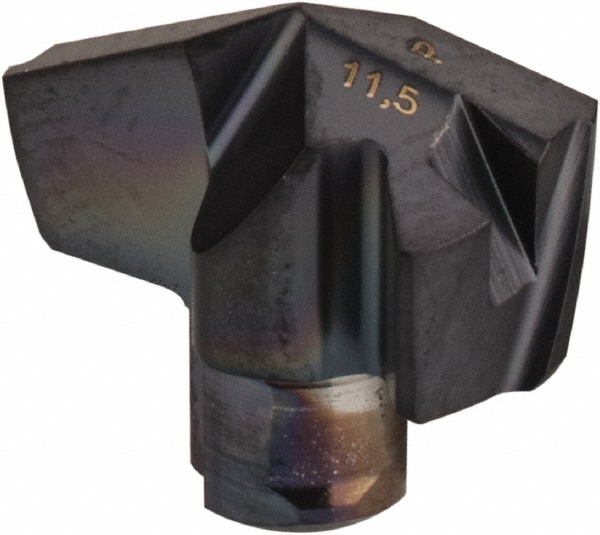

| Compatible Insert Style | ICK; iCP-2M; FCP; ICM; ICK-2M; ICP |
| Overall Length (Decimal Inch) | 5.24 |
| Series | SumoCham |
| Toolholder Style | DCN |
| Body Length (Decimal Inch) | 3.35 |
| Shank Length (Decimal Inch) | 1.8900 |
| Tool Application | Holemaking |
| Standards | ISO 13399 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 65980831 |
