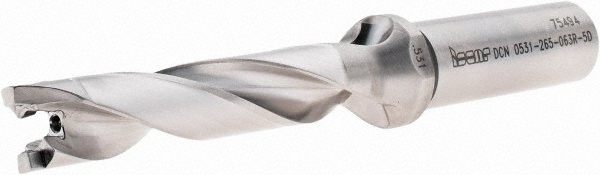

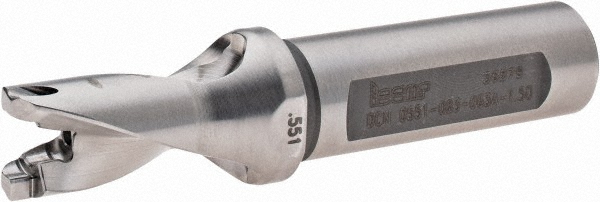

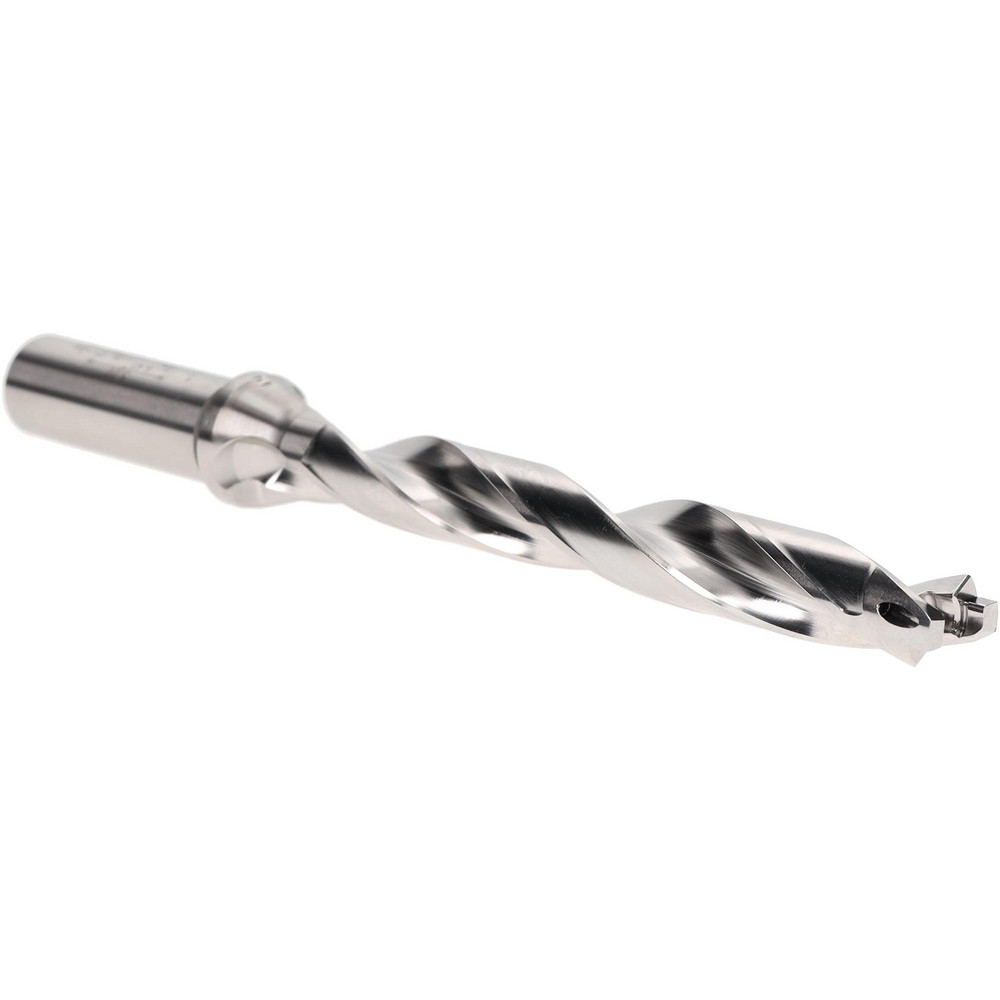

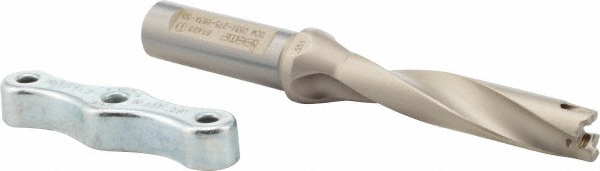

Uses H3P Inserts, 5.79" OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.5510 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.5670 |
| Maximum Drill Depth (Decimal Inch) | 2.8800 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Tool Material | Steel |
| Maximum Drill Depth Range (Decimal Inch) | 2.5000 to 3.5000 |
| Compatible Insert Style | H3P |
| Overall Length (Decimal Inch) | 5.79 |
| Series | D3N |
| Toolholder Style | D3N |
| Flute Length (Decimal Inch) | 2.8800 |
| Body Length (Decimal Inch) | 3.904 |
| Shank Length (Decimal Inch) | 1.8870 |
| Tool Application | Drilling |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 13627435 |
