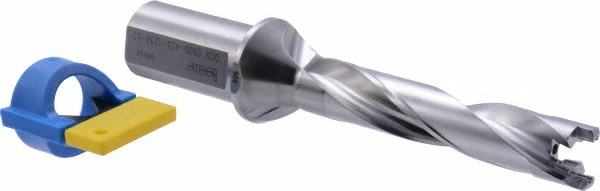

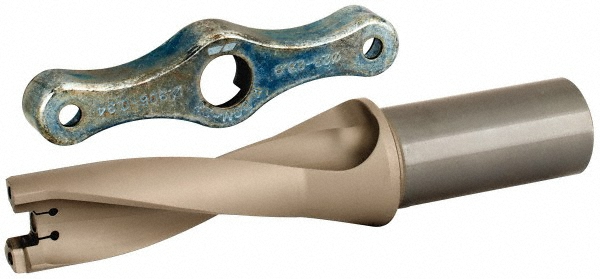

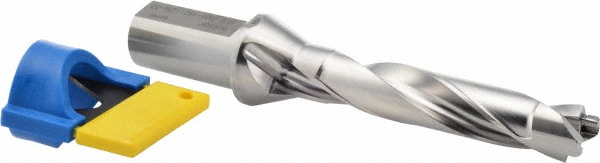

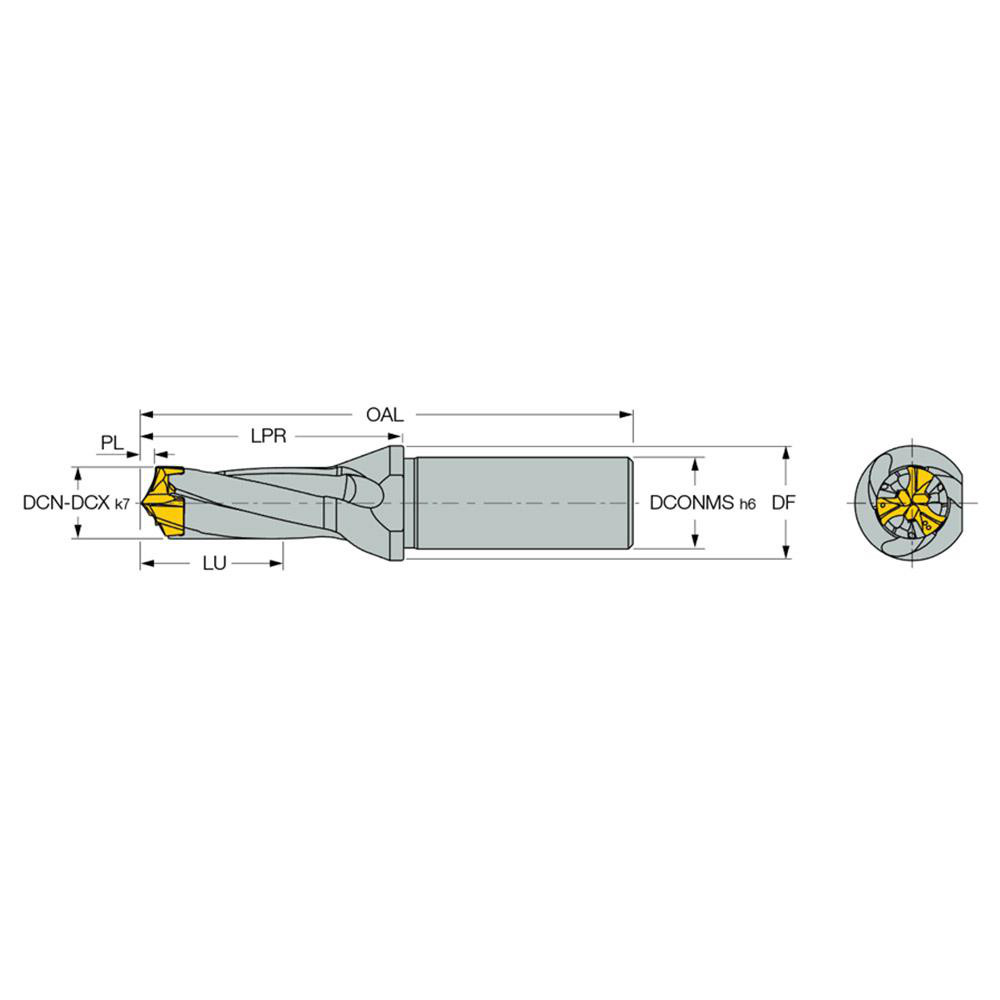

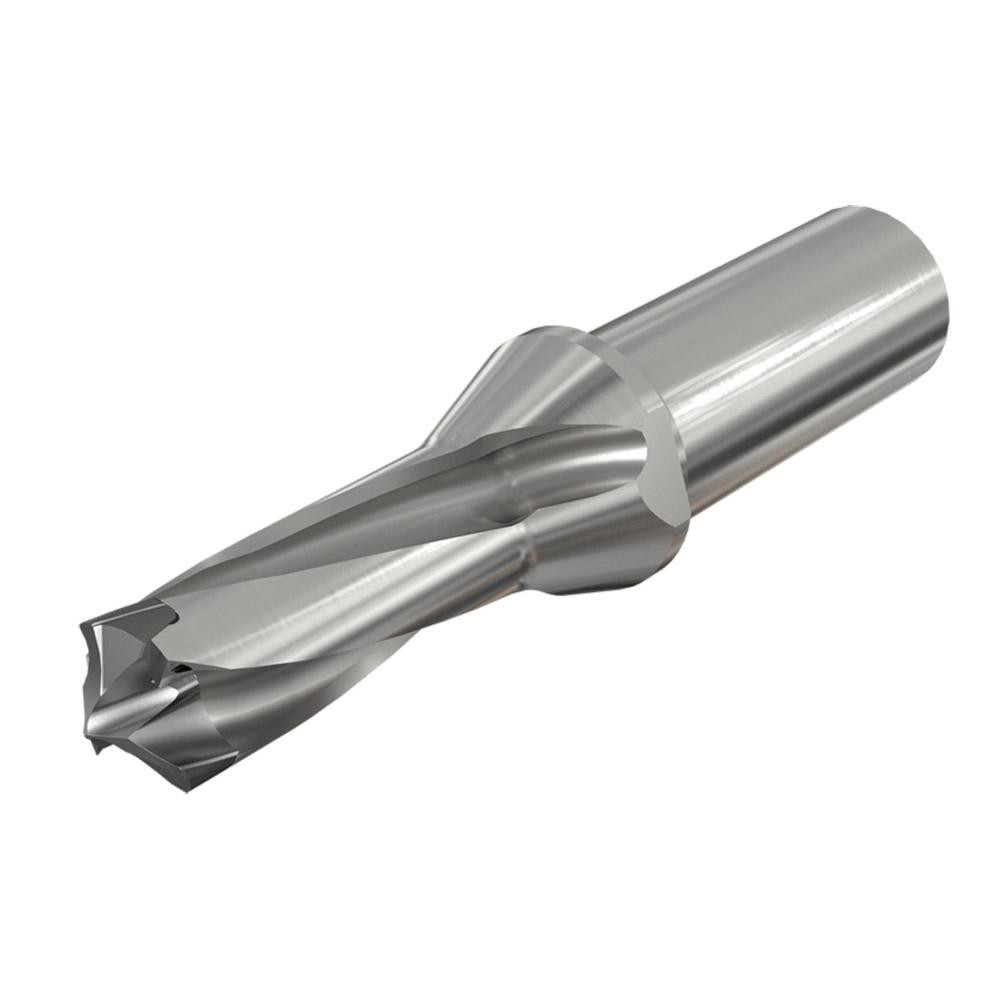

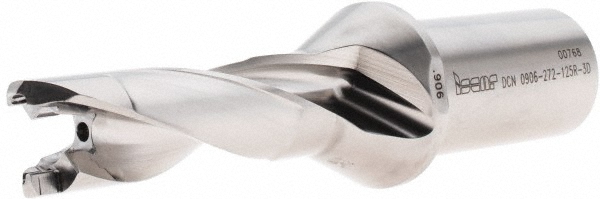

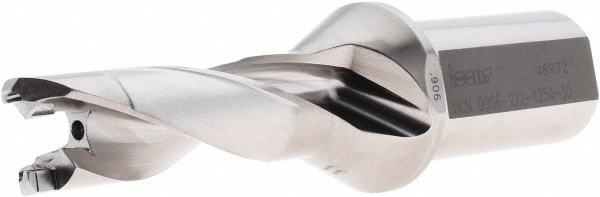

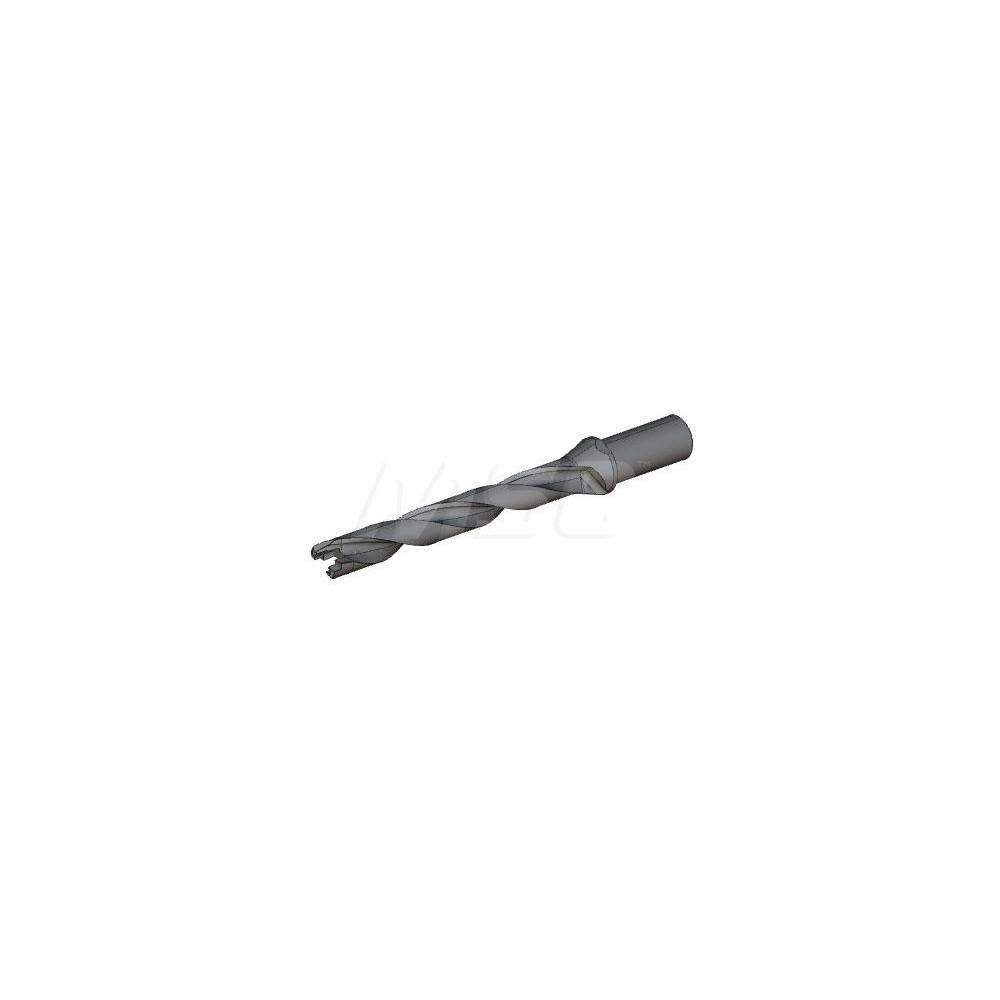

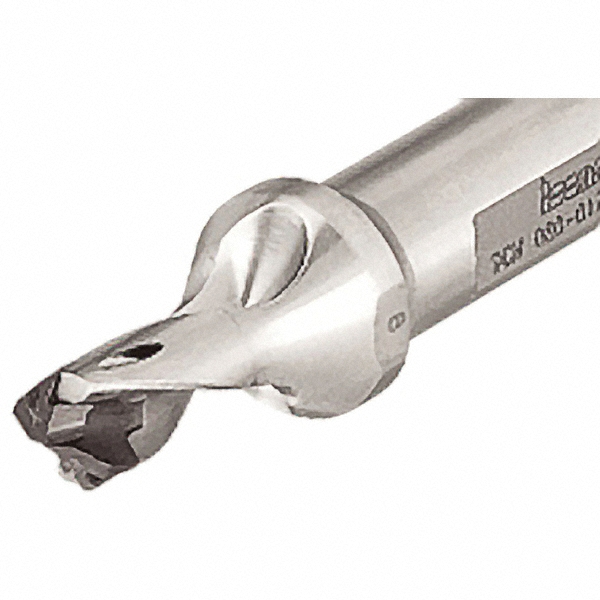

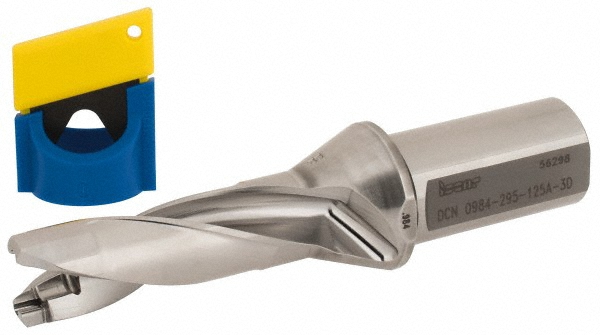

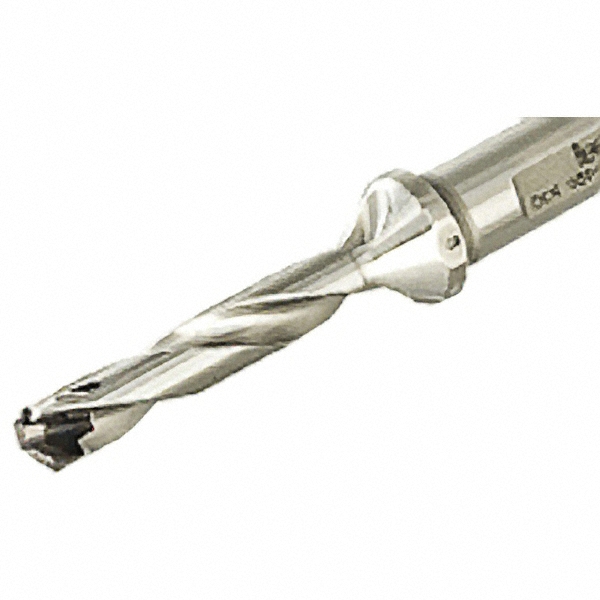

Uses H3P Inserts, 5.59" OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.9060 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.9410 |
| Maximum Drill Depth (Decimal Inch) | 1.5530 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Tool Material | Steel |
| Maximum Drill Depth Range (Decimal Inch) | 1.5000 to 2.5000 |
| Compatible Insert Style | H3P |
| Overall Length (Decimal Inch) | 5.59 |
| Series | D3N |
| Toolholder Style | D3N |
| Flute Length (Decimal Inch) | 1.5530 |
| Body Length (Decimal Inch) | 3.231 |
| Shank Length (Decimal Inch) | 2.3600 |
| Tool Application | Drilling |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 13625280 |
