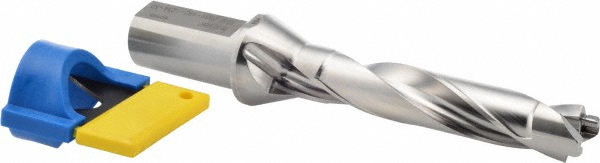

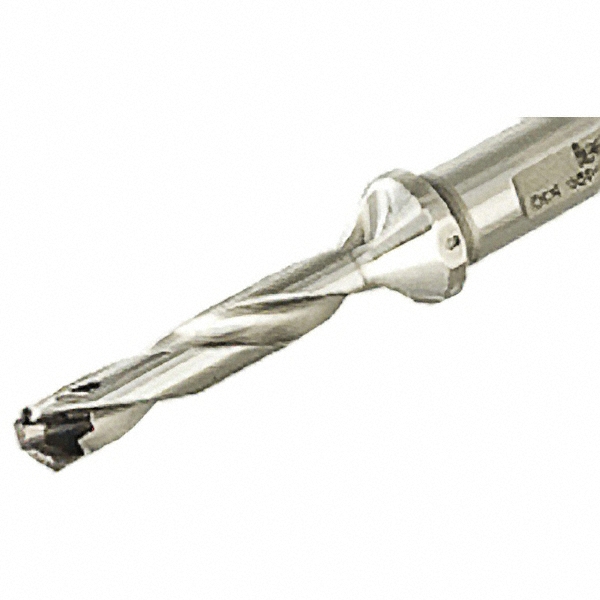

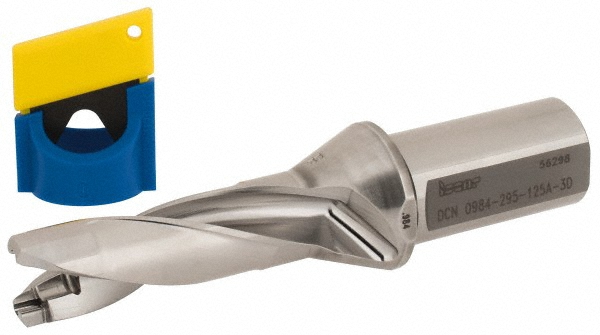

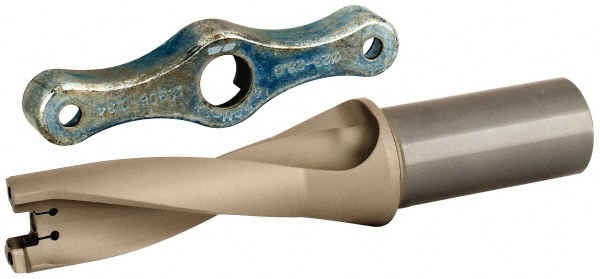

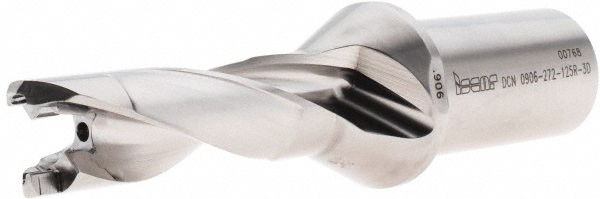

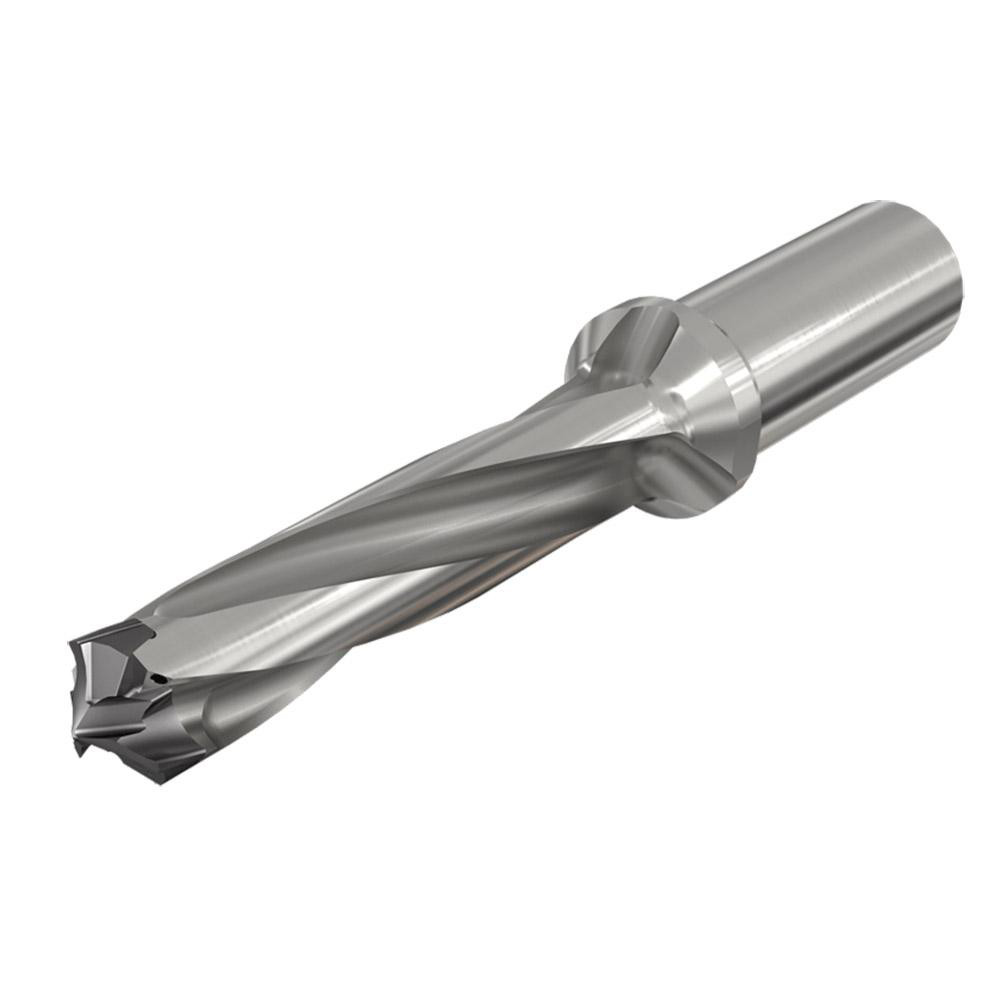

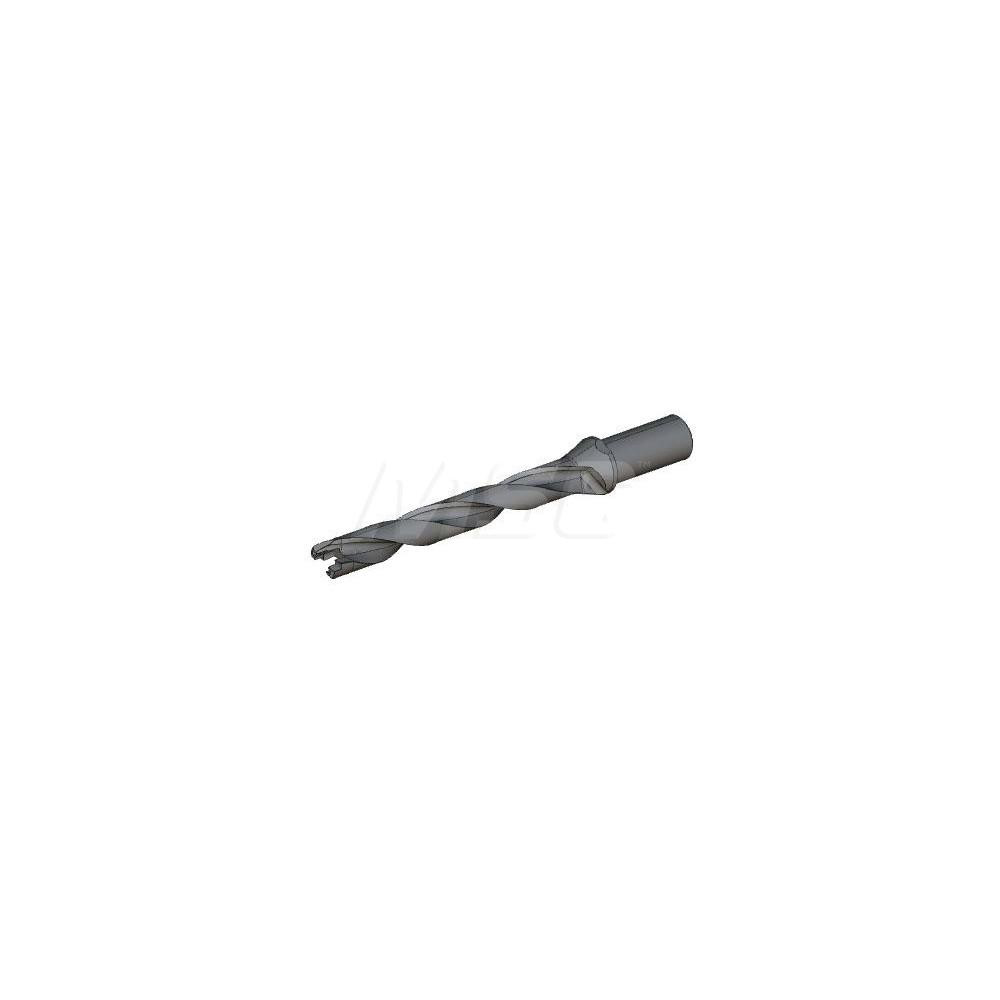

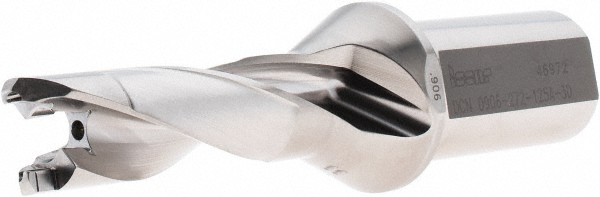

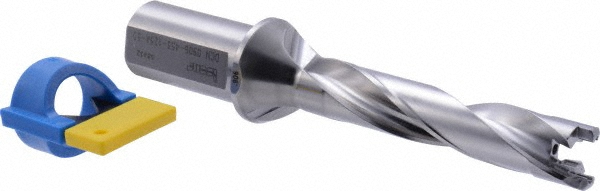

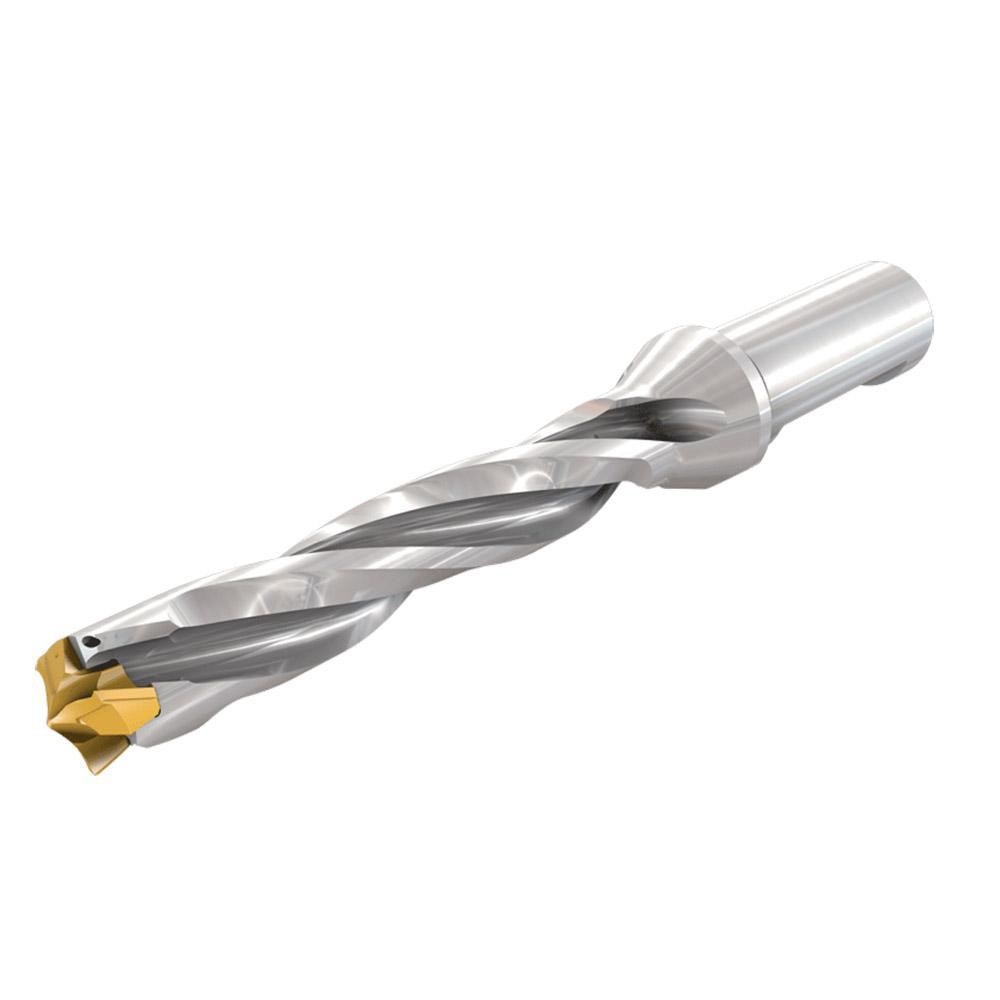

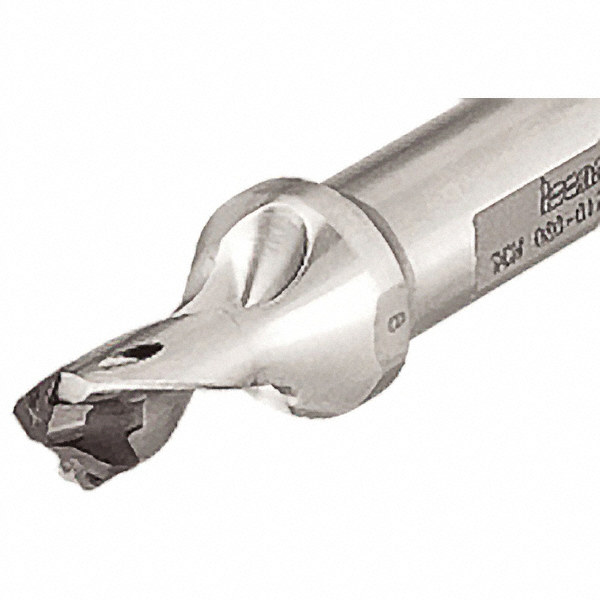

Uses H3P Inserts, 8.76" OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.9060 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.9410 |
| Maximum Drill Depth (Decimal Inch) | 4.7240 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Tool Material | Steel |
| Maximum Drill Depth Range (Decimal Inch) | 4.5000 to 6.0000 |
| Compatible Insert Style | H3P |

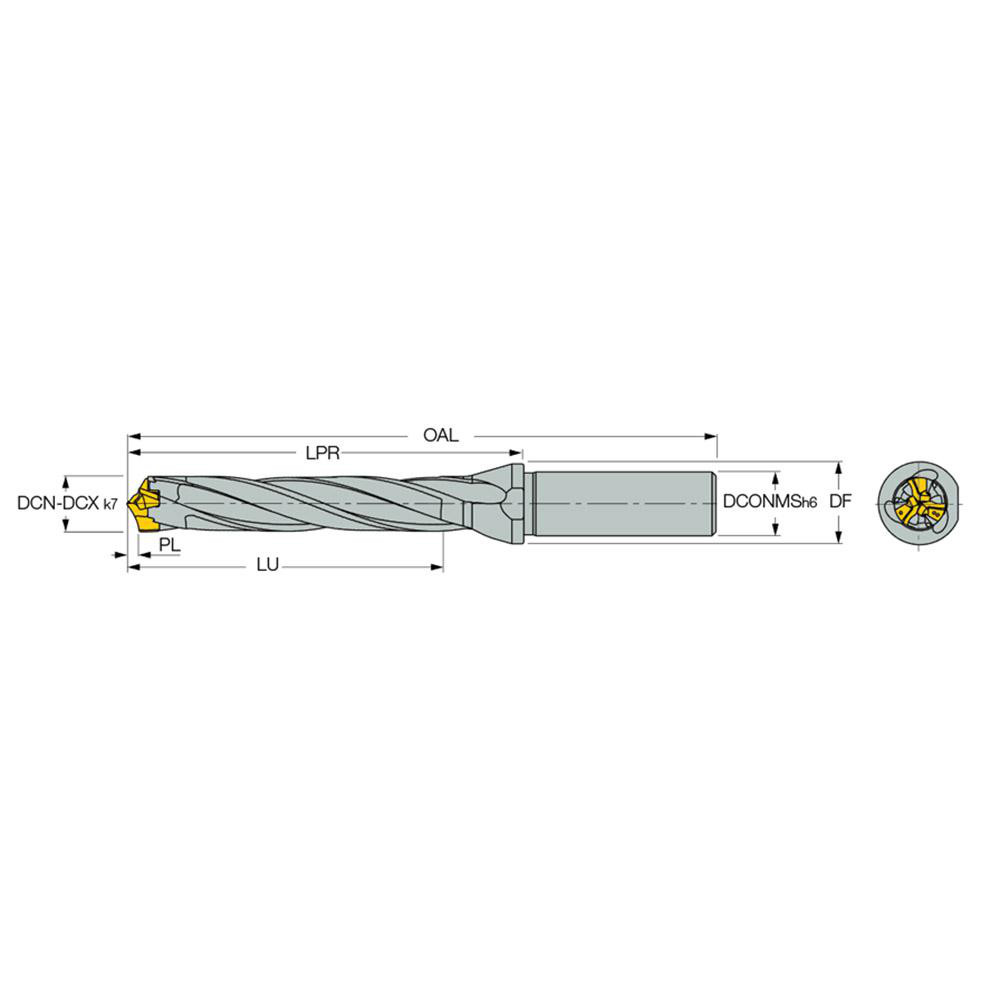

| Overall Length (Decimal Inch) | 8.76 |
| Series | D3N |
| Toolholder Style | D3N |
| Flute Length (Decimal Inch) | 4.7240 |
| Body Length (Decimal Inch) | 6.402 |
| Shank Length (Decimal Inch) | 2.3580 |
| Tool Application | Drilling |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 20293403 |
