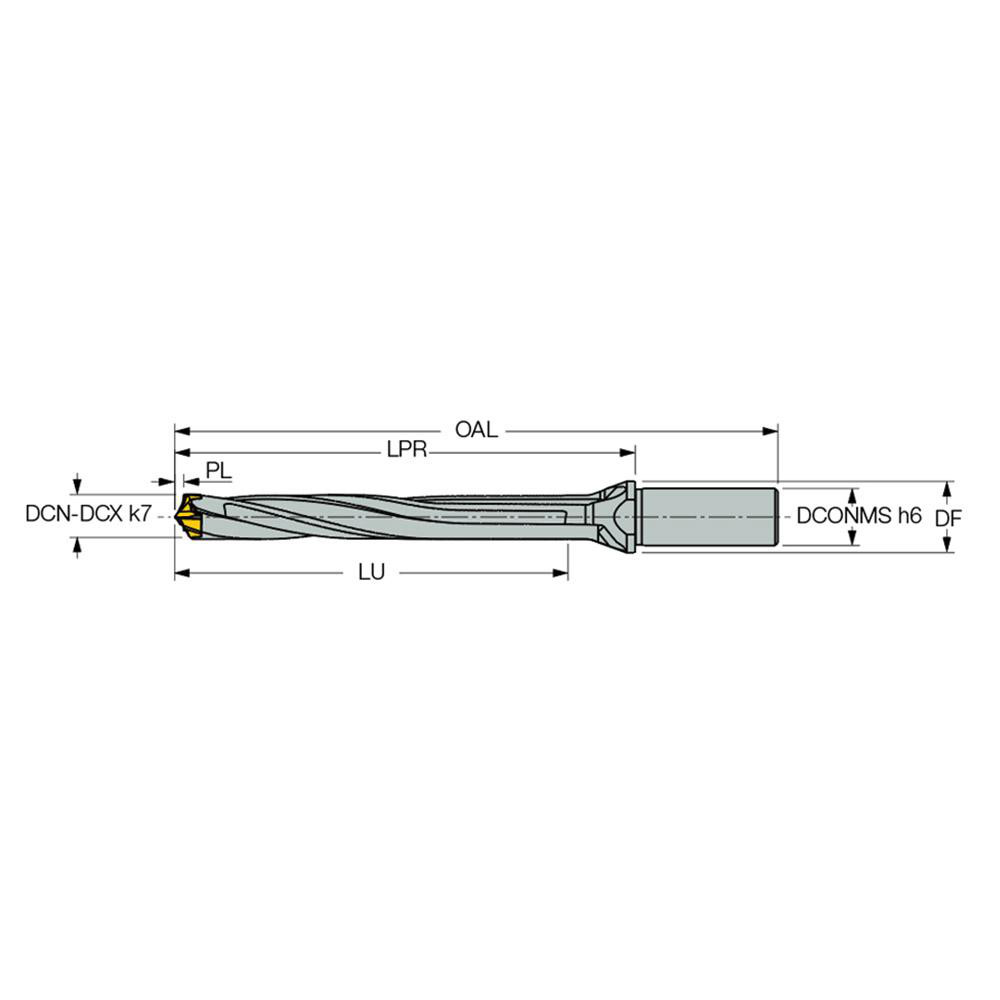

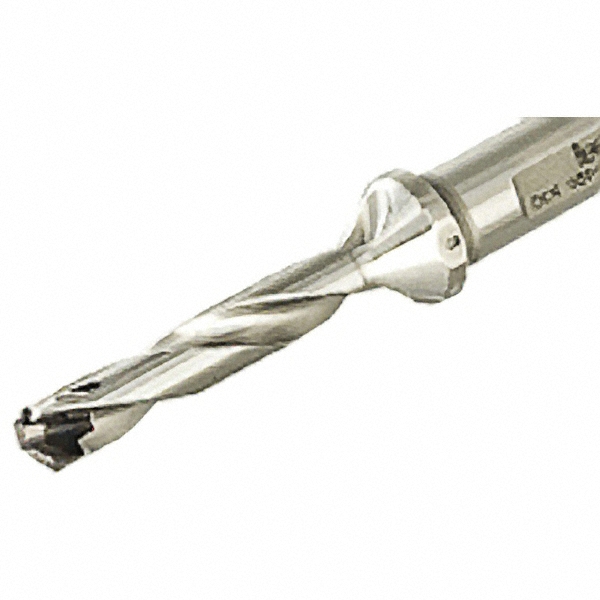

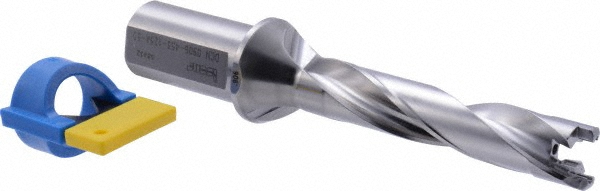

Uses H3P Inserts, 11.48 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.9060 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.9410 |
| Maximum Drill Depth (Decimal Inch) | 7.4430 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Tool Material | Steel |
| Maximum Drill Depth Range (Decimal Inch) | 6.0000 to 8.0000 |
| Compatible Insert Style | H3P |
| Series | D3N |
| Toolholder Style | D3N |
| Flute Length (Decimal Inch) | 7.4430 |
| Body Length (Decimal Inch) | 9.121 |
| Shank Length (Decimal Inch) | 2.3550 |
| Tool Application | Drilling |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | Israel |
| MSC Number | MSC# 13626205 |
