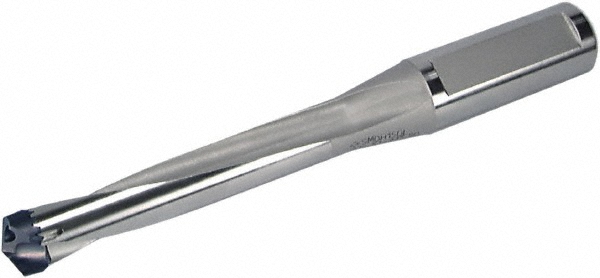

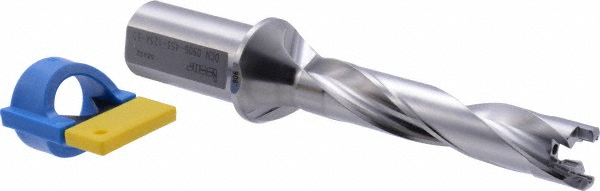

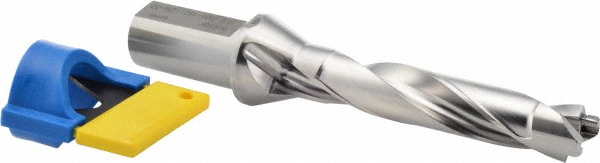

Uses ICP Inserts, 9.87 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 1.1420 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 1.1770 |
| Maximum Drill Depth (Decimal Inch) | 5.9200 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Tool Material | Steel |
| Maximum Drill Depth Range (Decimal Inch) | 4.5000 to 6.0000 |
| Compatible Insert Style | ICP |
| Series | DCN |
| Toolholder Style | DCN |
| Flute Length (Decimal Inch) | 5.9200 |
| Body Length (Decimal Inch) | 7.514 |
| Shank Length (Decimal Inch) | 2.3600 |
| Tool Application | Drilling |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | Israel |
| MSC Number | MSC# 13626601 |
