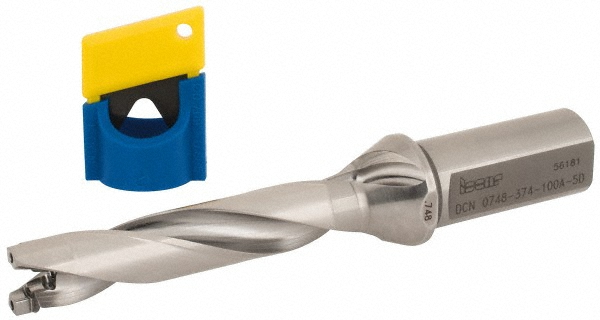

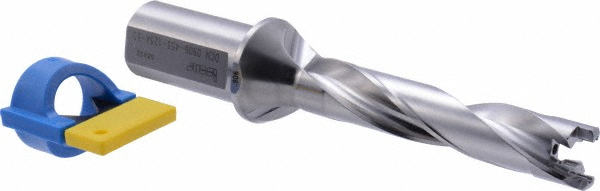

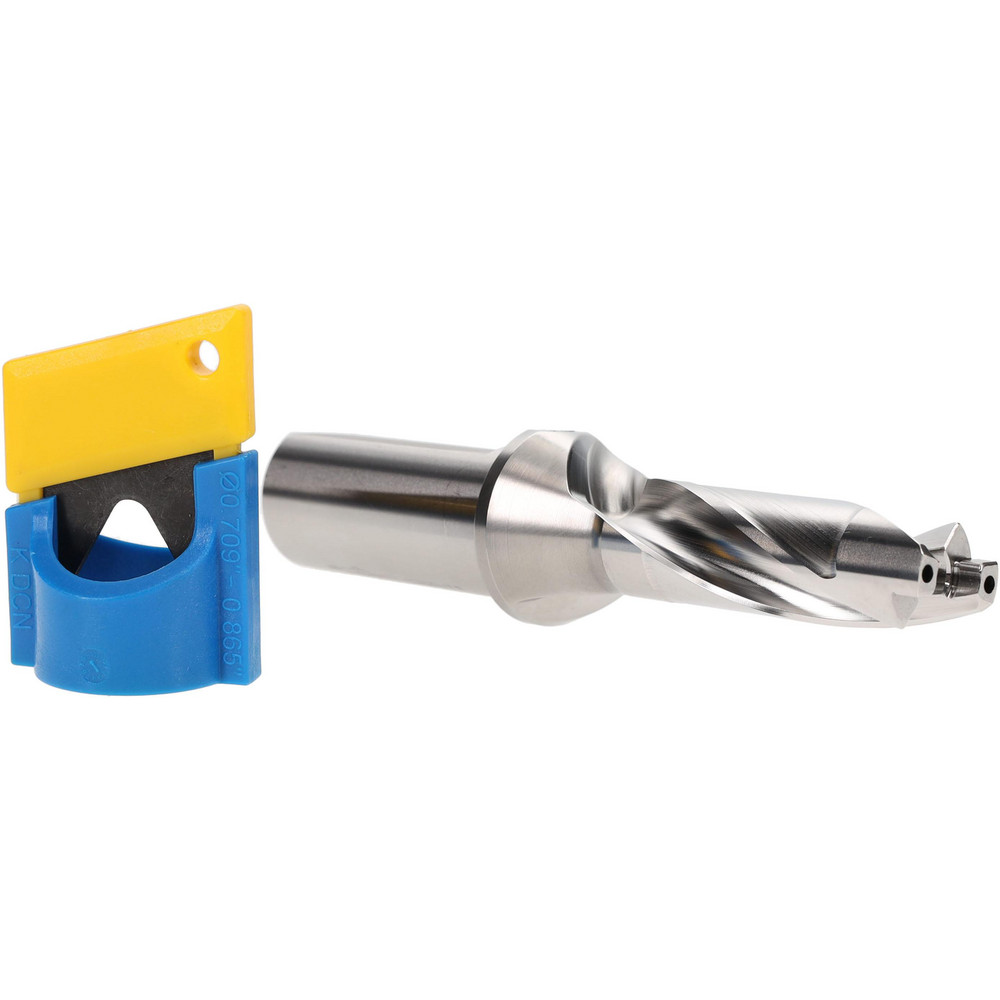

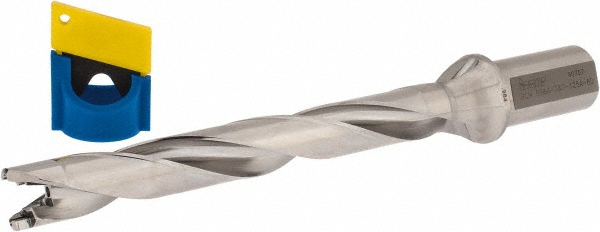

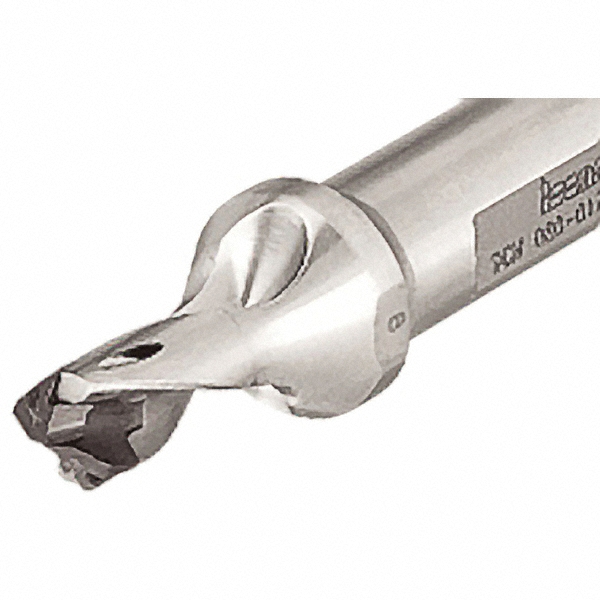

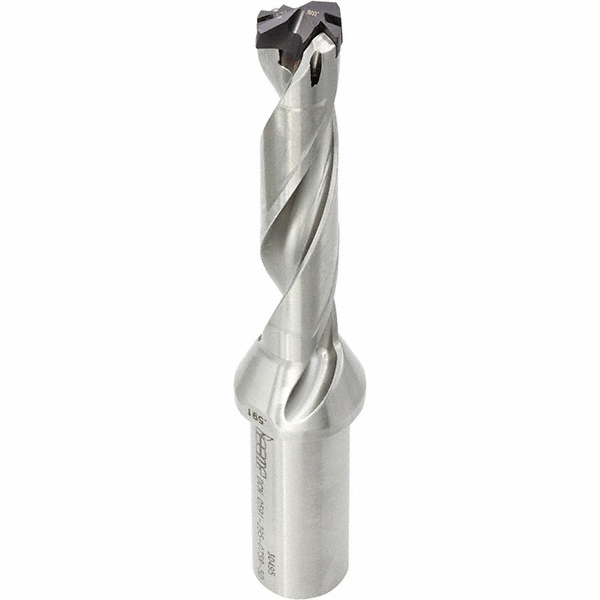

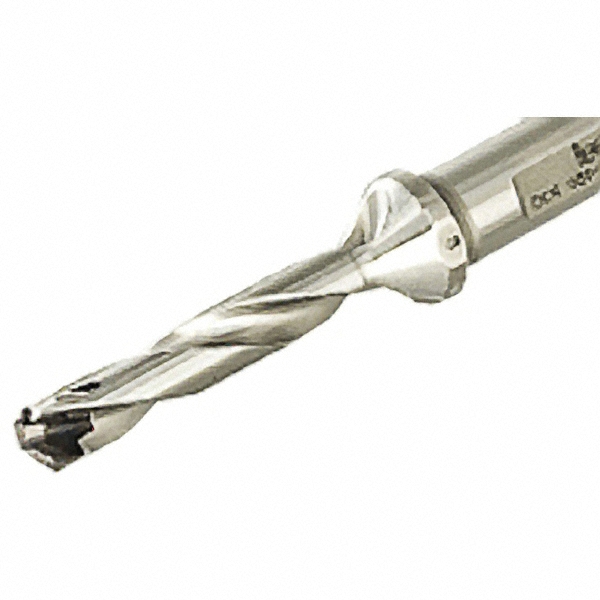

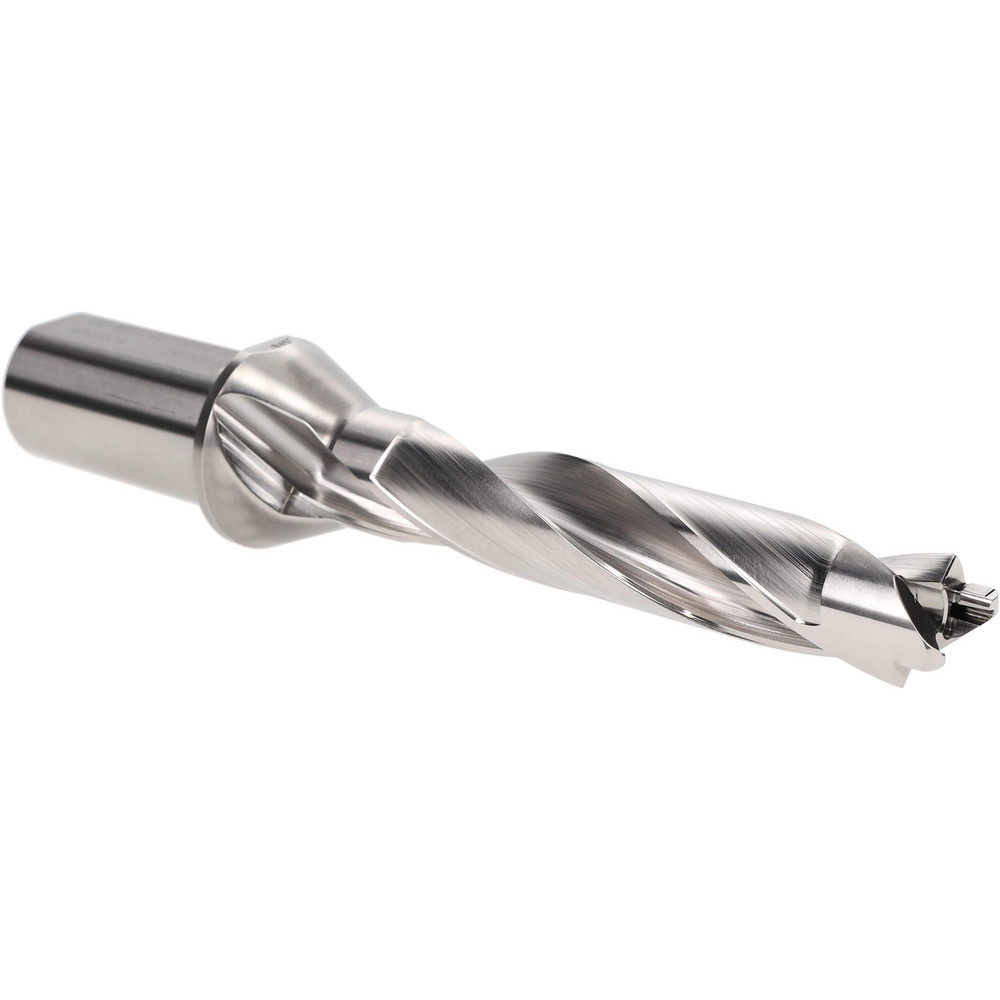

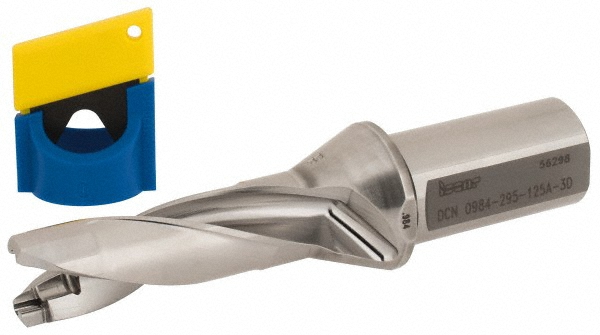

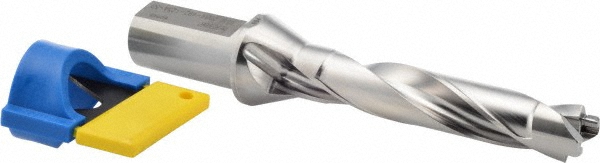

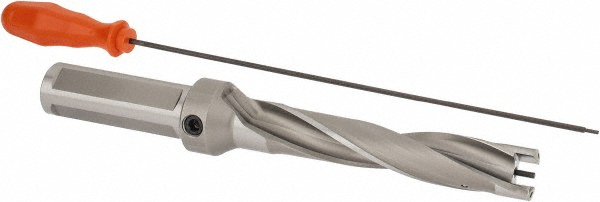

Uses FCP/HCP-IQ/ICK/ICK-2M/ICM/ICP/iCP-2M Inserts, 10.13" OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 1.1810 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 1.2160 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 5.9000 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Maximum Drill Depth Range (Decimal Inch) | 4.5000 to 6.0000 |
| Compatible Insert Style | ICK; iCP-2M; FCP; HCP-IQ; ICM; ICK-2M; ICP |
| Overall Length (Decimal Inch) | 10.13 |
| Series | SumoCham |
| Toolholder Style | DCN A |
| Body Length (Decimal Inch) | 7.77 |
| Shank Length (Decimal Inch) | 2.3600 |
| Tool Application | Holemaking |
| Standards | ISO 13399 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 30175061 |
